◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#122906) — 120 parça

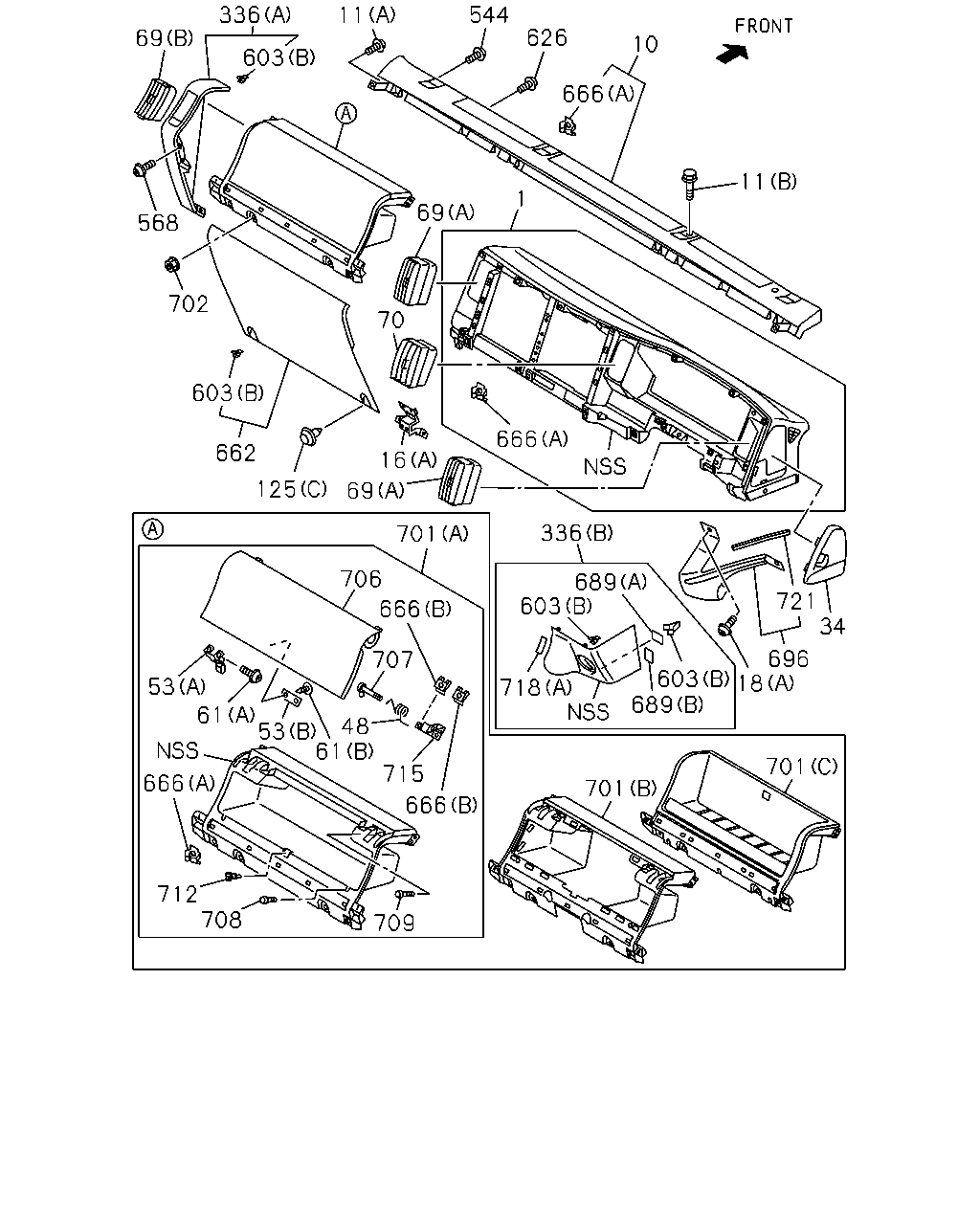

çizim 357715
336 69 603 11 544 626 666 10 11 568 702 603 662 125 69 16 701 666 336 70 69 1 689 603 718 603 689 18 696 34 721 701 701 709 666 715 61 48 707 666 706 708 712 666 53 61 53
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97405-253-8 01 1 1306- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1306- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1306- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1306- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1306- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1306- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306- ● ●
34 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1306- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 1306-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 1306-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 1306-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 1306-1405 ● ●
61 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1306- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1306- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1306- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1306- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1306- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1306- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1306- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1306- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1306- ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1306- ● ●
626 RETAINER
OD=15 BLACK SOU 		8-94279-804-0 02 1 1306- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1306- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1306- ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 1306-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ●
666 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1306- ● ●
689 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1306- ● ●
689 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1306- ● ●
696 BRACKET; KNEE 8-98199-366-0 01 1 1306- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> EXC. COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN>, COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97416-908-2 01 1 1306- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 1306-1405 ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-1 01 1 1406- ● ●
701 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER<AK5> (C) GRAY 		8-97422-091-1 01 1 1306- ● ●
702 NUT; TRAY
M6 FLANGE SOU 		0-91180-106-0 02 1 1306- ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 1306-1405 ● ●
706 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 1306-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 1306- ● ●
709 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 1306- ● ●
712 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 1306- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 1306-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 1306-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306- ● ●
721 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1306- ● ●

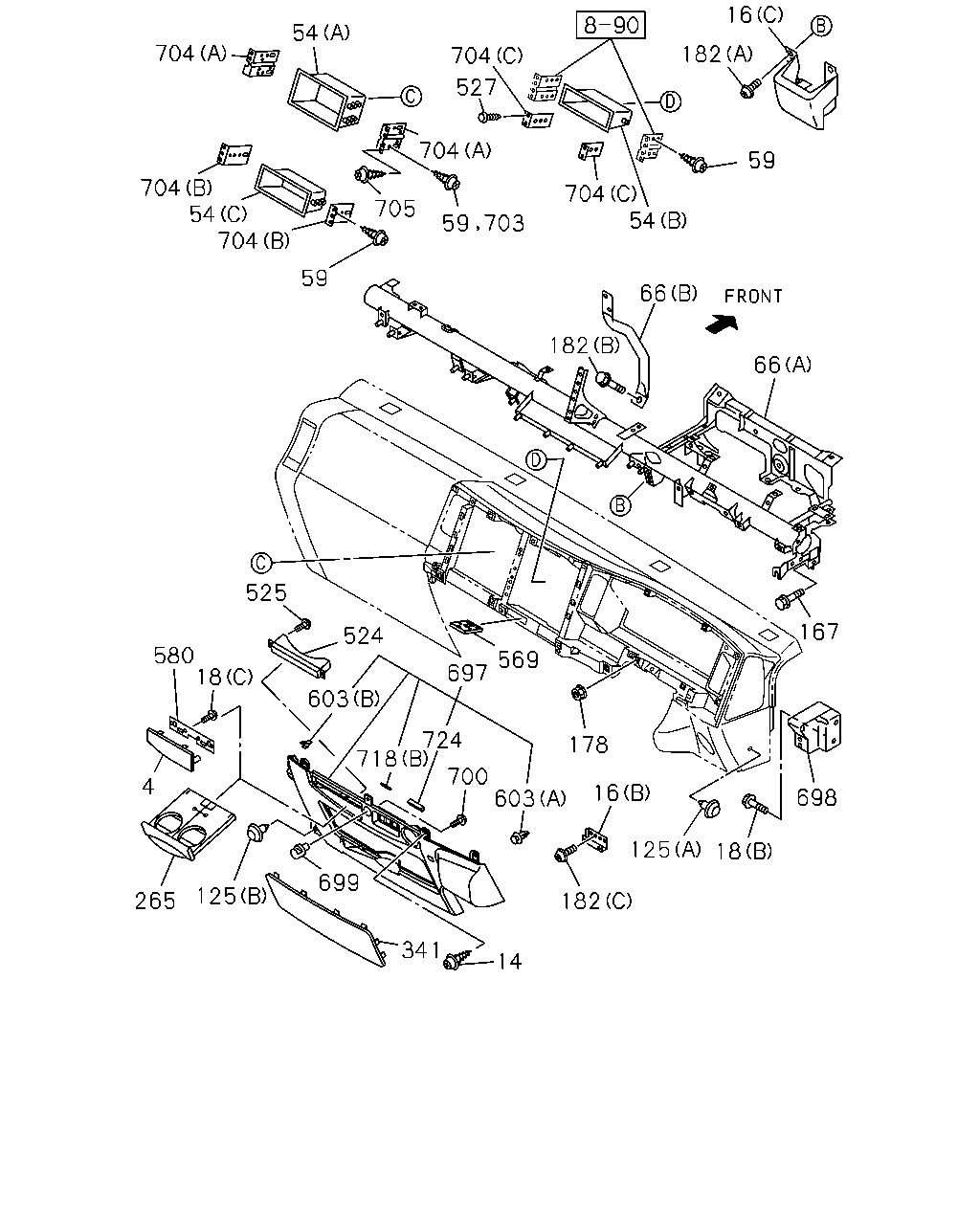

çizim 358075
54 704 704 704 54 59 705 704 527 704 704 59 703 54 66 59 182 16 66 182 525 524 580 18 4 265 125 699 341 14 182 125 18 603 700 718 603 697 569 178 16 698 167 724
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1306- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1306- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1306- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97585-612-2 01 1 1306- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1306- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE SOU 		0-28050-816-0 04 1 1306- ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1306- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1306- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1306- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1306- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1306- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1306- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1306- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-358-1 01 1 1306- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98199-359-1 01 1 1306- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1306- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-063-0 02 1 1306- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 1306- ● ●
125 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1306- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE SOU 		8-97264-766-0 04 1 1306- ● ●
178 NUT; INST PANEL
M6 FLANGE SOU 		0-91180-106-0 03 1 1306- ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1306- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1306- ● ●
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1306- ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1306- ● ●
341 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1306- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1306- ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1306- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 1306- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1306- ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1306- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 02 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 03 1 1306- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1306- ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1306- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1306- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1306- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1306- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1306- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1306- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1306- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1306- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1306- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1306- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1306- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1306- ● ●
718 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1306- ● ●
718 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1306- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1306- ● ●

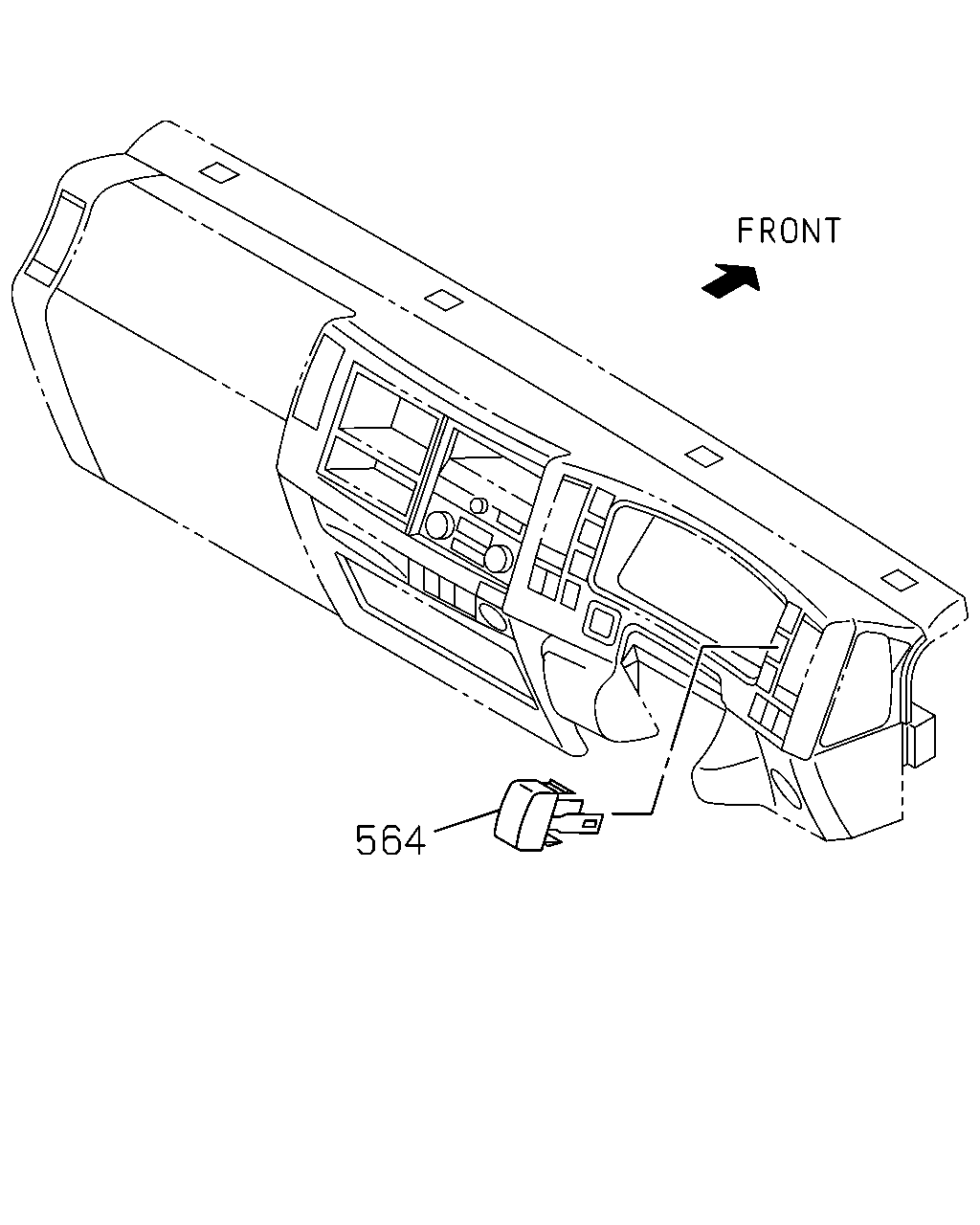

çizim 358596
564
BalonParca AdiParca NoAdetTipApplied Date A B
564 COVER; SW 8-98025-954-1 03 1 1306- ● ●
