◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#122903) — 27 parça

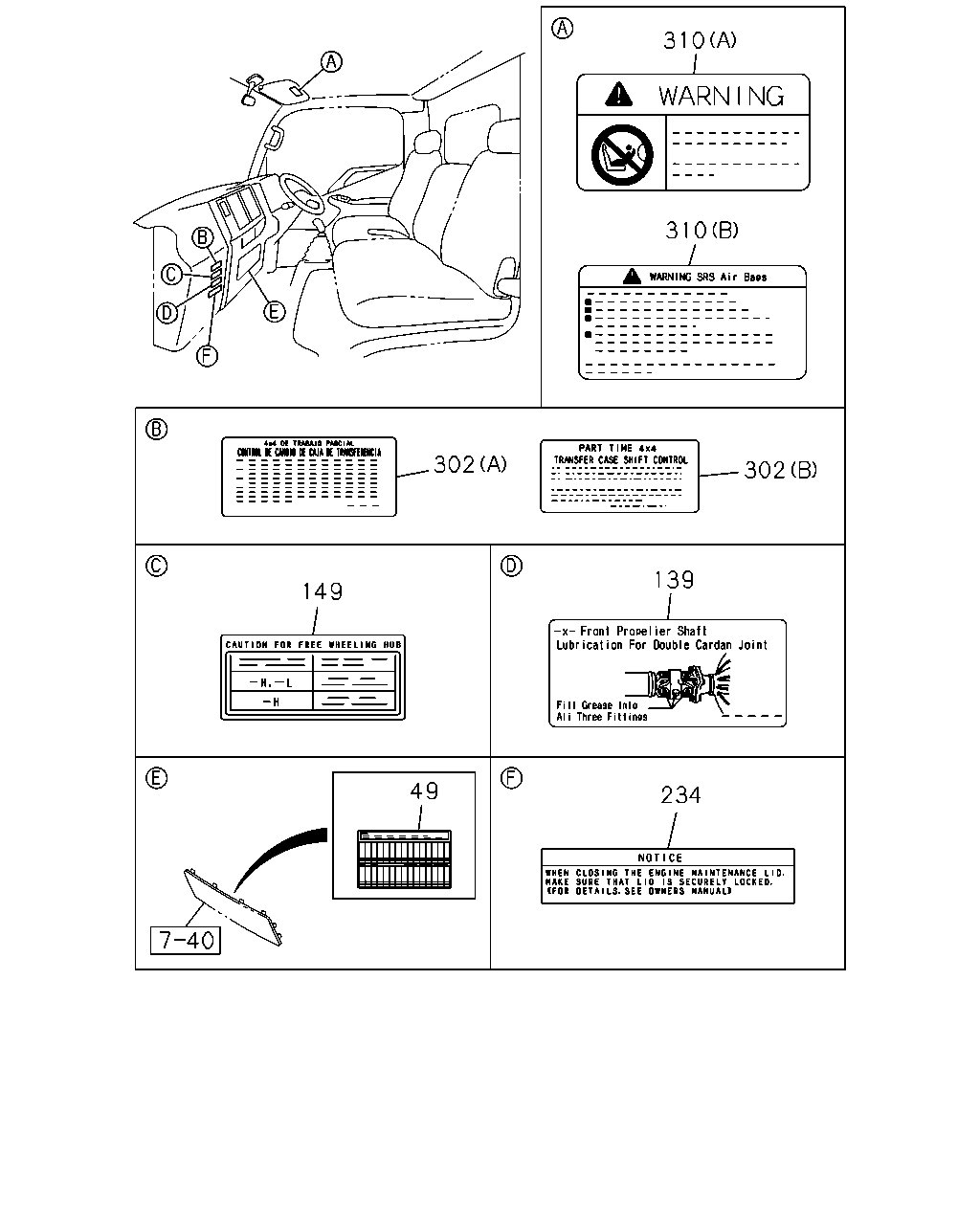

çizim 356665
302 302 139 234 49 149 310 310
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX 8-98090-175-0 01 1 1306- ● ●
139 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 1306- ● ●
139 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 1306- ● ●
149 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 1306- ● ●
149 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> SOU 		8-97108-673-1 01 1 1306- ● ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1306- ●
234 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1306- ●
234 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1306- ●
234 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1306- ●
302 PLATE; CAUTION,TRANSFER
CAUTION SPANISH<YN1> (A) 		8-97108-716-1 01 1 1306- ● ●
302 PLATE; CAUTION,TRANSFER
EXC. CAUTION SPANISH<YN1> (B) SOU 		8-97108-715-0 01 1 1306- ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> CAUTION SPANISH<YN1> (B) DRIVER 		8-98224-287-0 01 1 1306- ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. CAUTION SPANISH<YN1> (B) DRIVER 		8-98139-964-0 01 1 1306- ● ●
310 LABEL; WARNING,SRS
AIR BAG DRIVER & PASSENGER<AK5> (A) PASSENGER 		8-98080-839-0 01 1 1306- ● ●

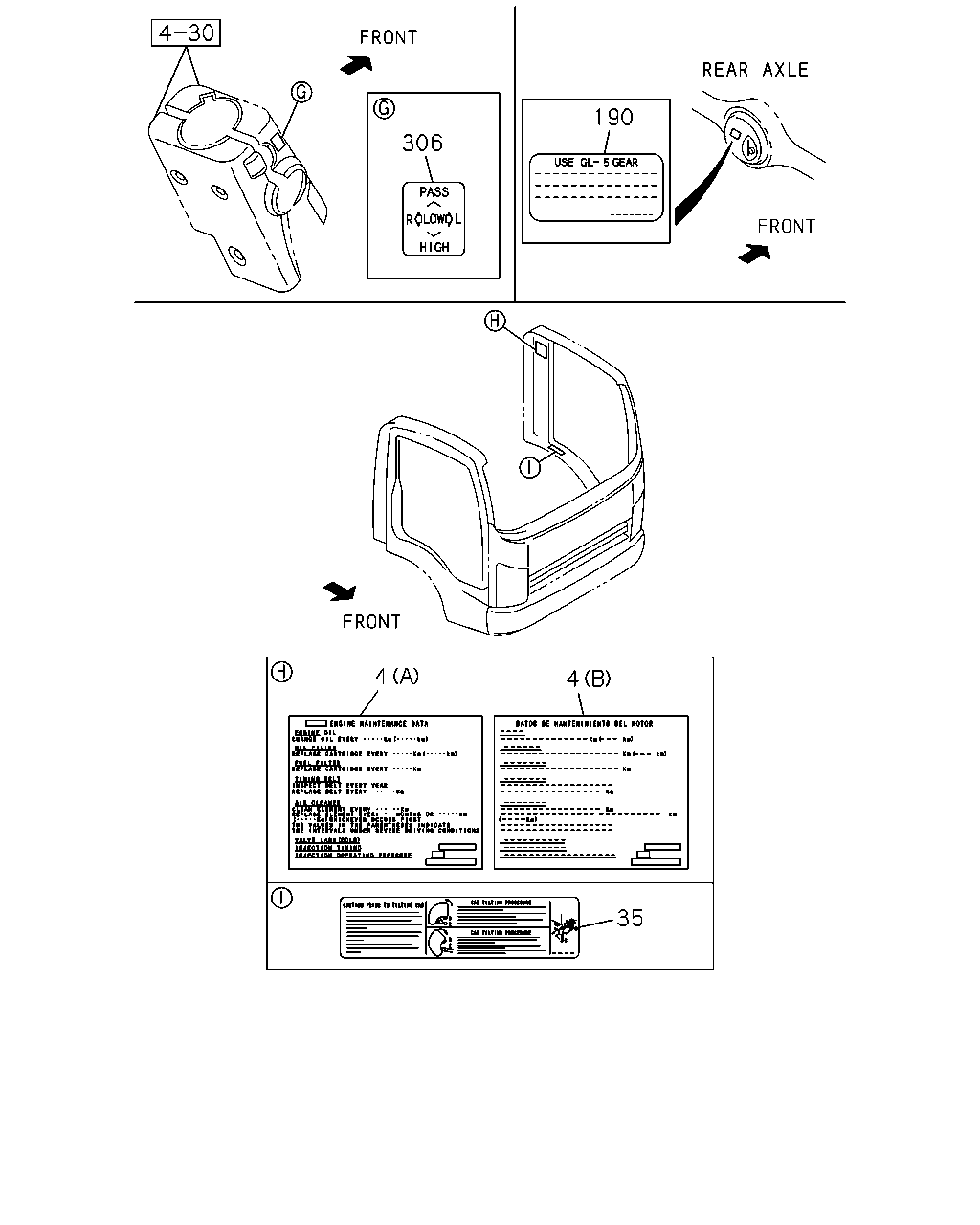

çizim 356705
306 190 4 4 35
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1306- ● ●
4 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1306- ● ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1306- ●
35 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1306- ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 1306-1405 ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97200-740-0 01 1 1406-1406 ● ●
190 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> BRK WHL LK CONT LSPV<6PH> 		8-97200-740-0 01 1 1407- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1306- ● ●

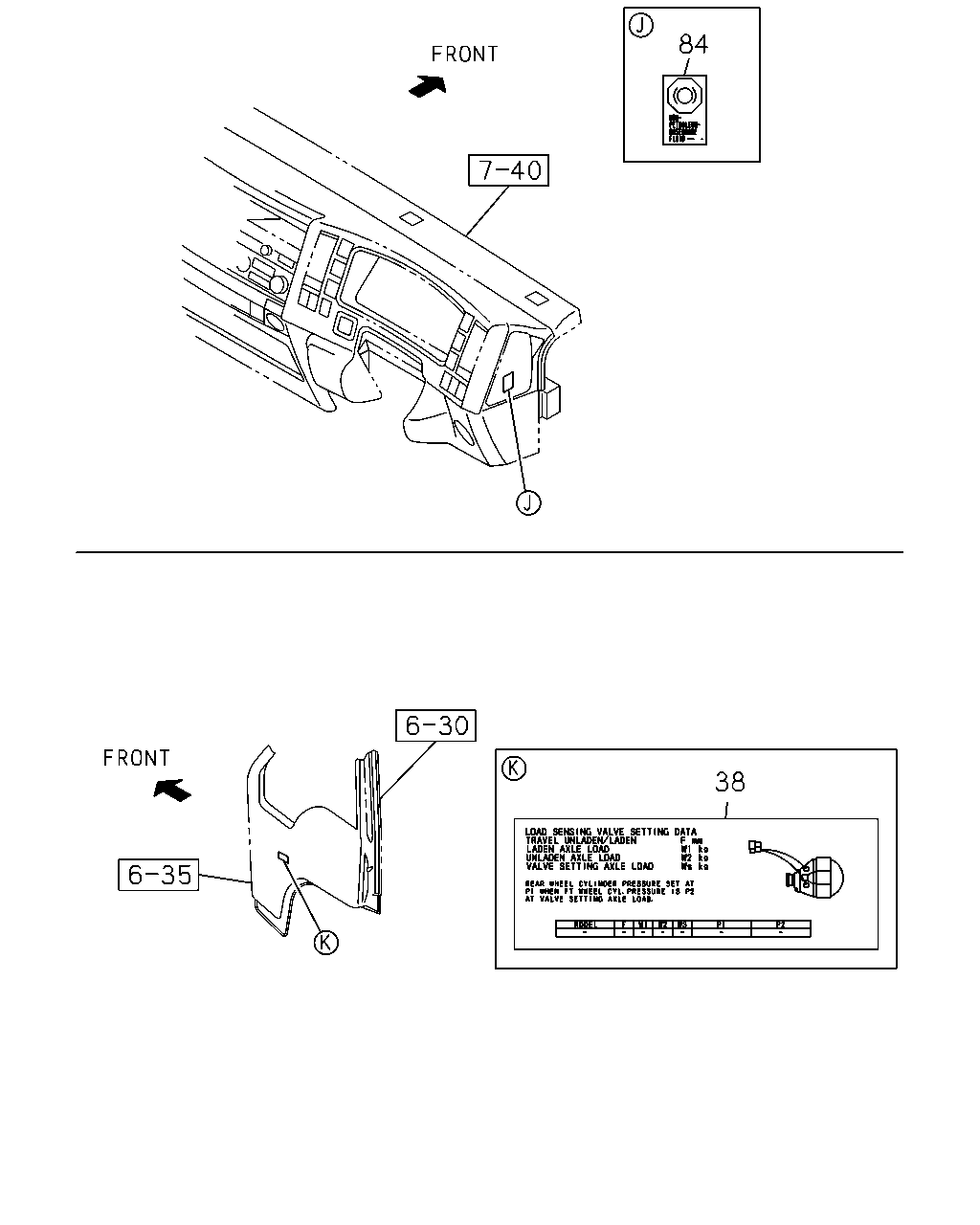

çizim 358178
84 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 PLATE; CAUTION,LSV 8-98100-941-0 01 1 1306-1405 ●
38 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<6PH> 		8-98100-941-0 01 1 1406- ●
38 PLATE; CAUTION,LSV 8-98163-862-0 01 1 1306-1405 ●
38 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<6PH> 		8-98163-862-0 01 1 1406- ●
84 PLATE; CAUTION,BRAKE FLUID 8-98022-836-1 01 1 1306- ● ●
