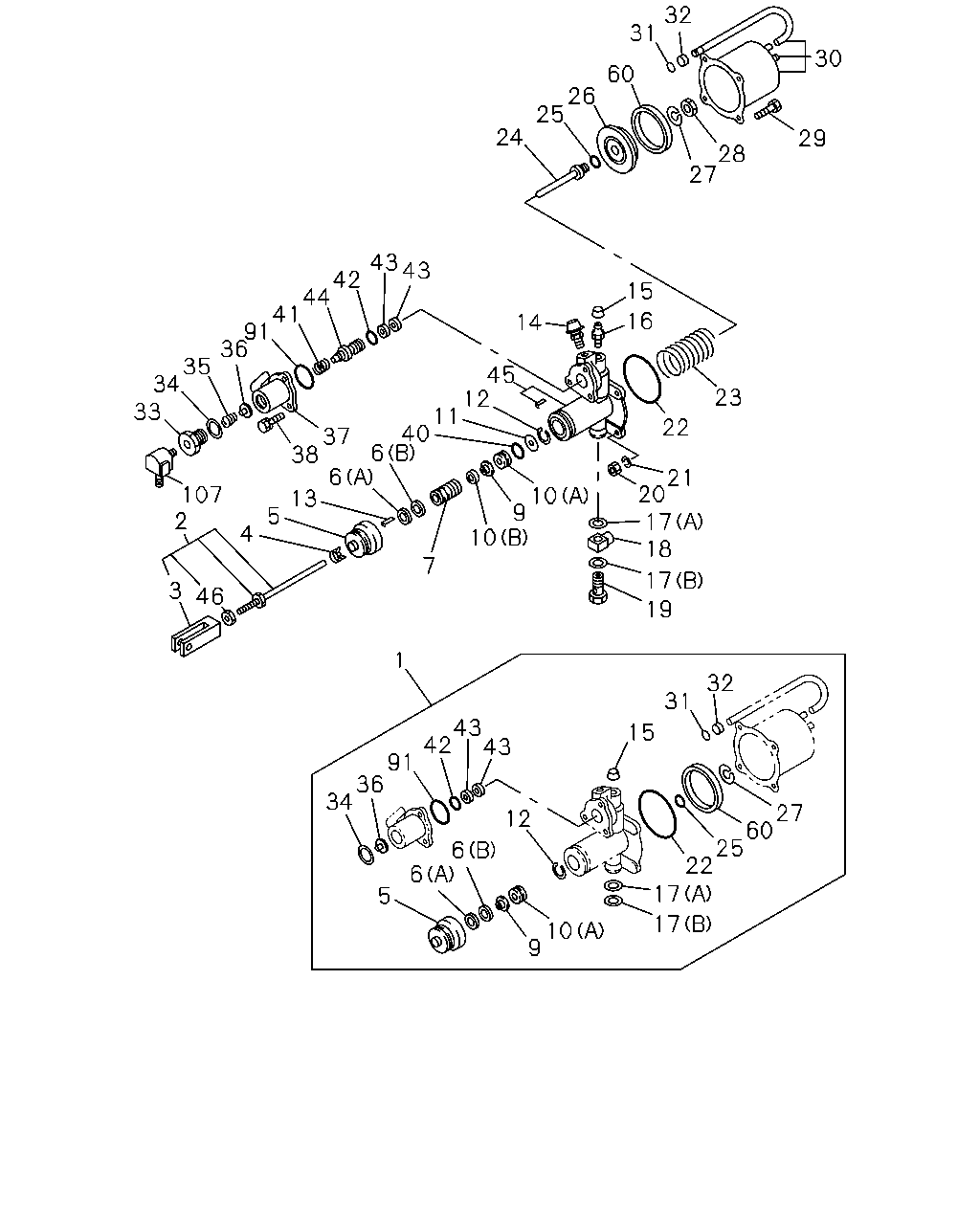

2-07 — CLUTCH BOOSTER; MINIPACK (#1229) — 107 parça

32 31 30 60 26 25 24 29 28 27 43 43 42 44 41 91 36 15 16 14 45 12 35 34 33 23 11 40 6 22 37 38 6 21 20 17 18 107 2 10 9 10 13 5 4 7 17 3 46 19 1 32 31 43 15 91 36 34 12 27 60 25 22 17 6 6 5 17 10 9 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	REPAIR KIT; CLU BOOSTER	1-31829-183-0	01	1	9202-	●	●
1	REPAIR KIT; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-183-0	01	1	9202-			●
2	ROD; PUSH,CLU BOOSTER	1-31824-138-0	01	1	9202-	●
2	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31824-138-0	01	1	9202-			●
2	ROD; PUSH,CLU BOOSTER	1-31824-132-0	01	1	9306-		●
3	CLEVIS; PUSH ROD,CLU BOOSTER	1-31829-186-0	01	1	9202-	●	●
3	CLEVIS; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-186-0	01	1	9202-			●
4	CLAMP; BOOSTER	1-31829-168-0	01	1	9202-	●	●
4	CLAMP; BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-168-0	01	1	9202-			●
5	GUARD; PISTON,CLU BOOSTER	1-31829-174-0	01	1	9202-	●	●
5	GUARD; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-174-0	01	1	9202-			●
6	GASKET; PISTON CUP,CLU BOOSTER (A)	1-31829-055-0	01	1	9202-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-055-0	01	1	9202-			●
6	GASKET; PISTON CUP,CLU BOOSTER (B)	1-31829-056-0	01	1	9202-	●	●
6	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-056-0	01	1	9202-			●
7	PISTON; CLU BOOSTER	1-31821-013-0	01	1	9202-	●	●
7	PISTON; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-013-0	01	1	9202-			●
9	GASKET; PISTON CUP,CLU BOOSTER	1-31829-003-0	01	1	9202-	●	●
9	GASKET; PISTON CUP,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-003-0	01	1	9202-			●
10	RETAINER; PISTON,CLU BOOSTER (A)	1-31829-107-0	01	1	9202-	●	●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	1-31829-107-0	01	1	9202-			●
10	RETAINER; PISTON,CLU BOOSTER (B)	1-31829-108-0	01	1	9202-	●	●
10	RETAINER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	1-31829-108-0	01	1	9202-			●
11	WASHER; PISTON,CLU BOOSTER	1-31829-105-0	01	1	9202-	●	●
11	WASHER; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-105-0	01	1	9202-			●
12	RING; RET,CLU BOOSTER	9-83315-315-0	01	1	9202-	●
12	RING; RET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-315-0	01	1	9202-			●
12	RING; RET,CLU BOOSTER	1-31829-142-0	01	1	9306-		●
13	PIN; SPR	1-31829-109-0	01	1	9202-	●	●
13	PIN; SPR AIR ASSIST CLUTCH<PK1>	1-31829-109-0	01	1	9202-			●
14	COVER; EXH,CLU BOOSTER	1-31829-102-0	01	1	9202-	●	●
14	COVER; EXH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-102-0	01	1	9202-			●
15	PROTECTOR; END PLATE,CLU BOOSTER	9-83335-044-0	01	1	9202-	●	●
15	PROTECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83335-044-0	01	1	9202-			●
16	PLUG; END PLATE,CLU BOOSTER	9-83331-704-0	01	1	9202-	●	●
16	PLUG; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83331-704-0	01	1	9202-			●
17	GASKET; CONN,CLU BOOSTER (A)	9-09920-267-0	01	1	9202-	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (A)	9-09920-267-0	01	1	9202-			●
17	GASKET; CONN,CLU BOOSTER (B)	9-09920-268-0	01	1	9202-	●	●
17	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1> (B)	9-09920-268-0	01	1	9202-			●
18	CONNECTOR; END PLATE,CLU BOOSTER	1-31829-248-0	01	1	9202-	●	●
18	CONNECTOR; END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-248-0	01	1	9202-			●
19	BOLT; EYE,END PLATE,CLU BOOSTER	9-83315-047-0	01	1	9202-	●	●
19	BOLT; EYE,END PLATE,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-047-0	01	1	9202-			●
20	NUT; END PLATE TO SHELL,CLU BOOSTER	9-83315-085-0	04	1	9202-	●	●
20	NUT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-83315-085-0	04	1	9202-			●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER ID=8.2	9-09150-508-0	04	1	9202-	●	●
21	WASHER; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1> ID=8.2	9-09150-508-0	04	1	9202-			●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER	1-09623-327-0	01	1	9202-	●	●
22	GASKET; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-327-0	01	1	9202-			●
23	SPRING; SHELL,CLU BOOSTER	1-31829-110-0	01	1	9202-	●	●
23	SPRING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-110-0	01	1	9202-			●
24	ROD; PUSH,CLU BOOSTER	1-31829-112-0	01	1	9202-	●	●
24	ROD; PUSH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-112-0	01	1	9202-			●
25	GASKET; PUSH ROD,CLU BOOSTER	1-09623-321-0	01	1	9202-	●	●
25	GASKET; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-09623-321-0	01	1	9202-			●
26	PISTON; SHELL,CLU BOOSTER	1-31821-057-0	01	1	9202-	●	●
26	PISTON; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-057-0	01	1	9202-			●
27	SPRING; CLU BOOSTER	1-31829-111-0	01	1	9202-	●	●
27	SPRING; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-111-0	01	1	9202-			●
28	NUT; PUSH ROD,CLU BOOSTER	9-88510-365-0	01	1	9202-	●	●
28	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	9-88510-365-0	01	1	9202-			●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER	1-31829-015-0	04	1	9202-	●	●
29	BOLT; END PLATE TO SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-015-0	04	1	9202-			●
30	SHELL; CYL,CLU BOOSTER	1-31811-026-0	01	1	9202-	●
30	SHELL; CYL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-026-0	01	1	9202-			●
30	SHELL; CYL,CLU BOOSTER	1-31811-063-0	01	1	9306-		●
31	GASKET; SHELL,CLU BOOSTER	1-31829-113-0	01	1	9202-	●	●
31	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-113-0	01	1	9202-			●
32	BUSHING; SHELL,CLU BOOSTER	1-31829-114-0	01	1	9202-	●	●
32	BUSHING; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-114-0	01	1	9202-			●
33	CONNECTOR; UPR,VLV,CLU BOOSTER	1-31829-214-0	01	1	9202-	●	●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-31829-214-0	01	1	9202-			●
33	CONNECTOR; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-31829-212-0	01	1	9202-			●
34	GASKET; CONN,CLU BOOSTER	1-31829-053-0	01	1	9202-	●	●
34	GASKET; CONN,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-053-0	01	1	9202-			●
35	SPRING; POPPET VLV,CLU BOOSTER	1-31829-077-0	01	1	9202-	●	●
35	SPRING; POPPET VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-077-0	01	1	9202-			●
36	VALVE; POPPET,CLU BOOSTER	1-31829-016-0	01	1	9202-	●	●
36	VALVE; POPPET,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-016-0	01	1	9202-			●
37	BODY; UPR,VLV,CLU BOOSTER	1-31811-018-0	01	1	9202-	●	●
37	BODY; UPR,VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-018-0	01	1	9202-			●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	1-44519-022-0	03	1	9202-	●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE AIR ASSIST CLUTCH<PK1>	1-44519-022-0	03	1	9202-			●
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE	9-83315-113-0	03	1	9306-		●
40	GASKET; PISTON,CLU BOOSTER	1-31829-037-0	01	1	9202-	●	●
40	GASKET; PISTON,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-037-0	01	1	9202-			●
41	SPRING; DIAPH,CLU BOOSTER	1-31829-104-0	01	1	9202-	●	●
41	SPRING; DIAPH,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-104-0	01	1	9202-			●
42	GASKET; FITTING,CLU BOOSTER	1-31829-123-0	01	1	9202-	●	●
42	GASKET; FITTING,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-123-0	01	1	9202-			●
43	GASKET; UPR VLV,CLU BOOSTER	1-31829-060-0	02	1	9202-	●	●
43	GASKET; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-060-0	02	1	9202-			●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-019-0	01	1	9202-	●
44	PISTON; UPR VLV,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31821-019-0	01	1	9202-			●
44	PISTON; UPR VLV,CLU BOOSTER	1-31821-020-0	01	1	9306-		●
45	PLATE; END,CLU BOOSTER	1-31811-062-0	01	1	9202-	●	●
45	PLATE; END,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31811-062-0	01	1	9202-			●
46	NUT; PUSH ROD,CLU BOOSTER LH THREAD	9-83315-104-0	01	1	9202-	●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) LH THREAD	9-83315-104-0	01	1	9202-			●
46	NUT; PUSH ROD,CLU BOOSTER AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-31824-126-0	01	1	9202-			●
46	NUT; PUSH ROD,CLU BOOSTER M10	9-09111-410-0	01	1	9306-		●
60	GASKET; SHELL,CLU BOOSTER	1-31829-066-0	01	1	9202-	●	●
60	GASKET; SHELL,CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-066-0	01	1	9202-			●
91	GASKET; CLU BOOSTER	1-31829-103-0	01	1	9202-	●	●
91	GASKET; CLU BOOSTER AIR ASSIST CLUTCH<PK1>	1-31829-103-0	01	1	9202-			●
107	CONNECTOR; ELBOW AIR ASSIST CLUTCH<PK1> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9202-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
