6-78 — FLOOR HOLE PLUG (#122897) — 17 parça

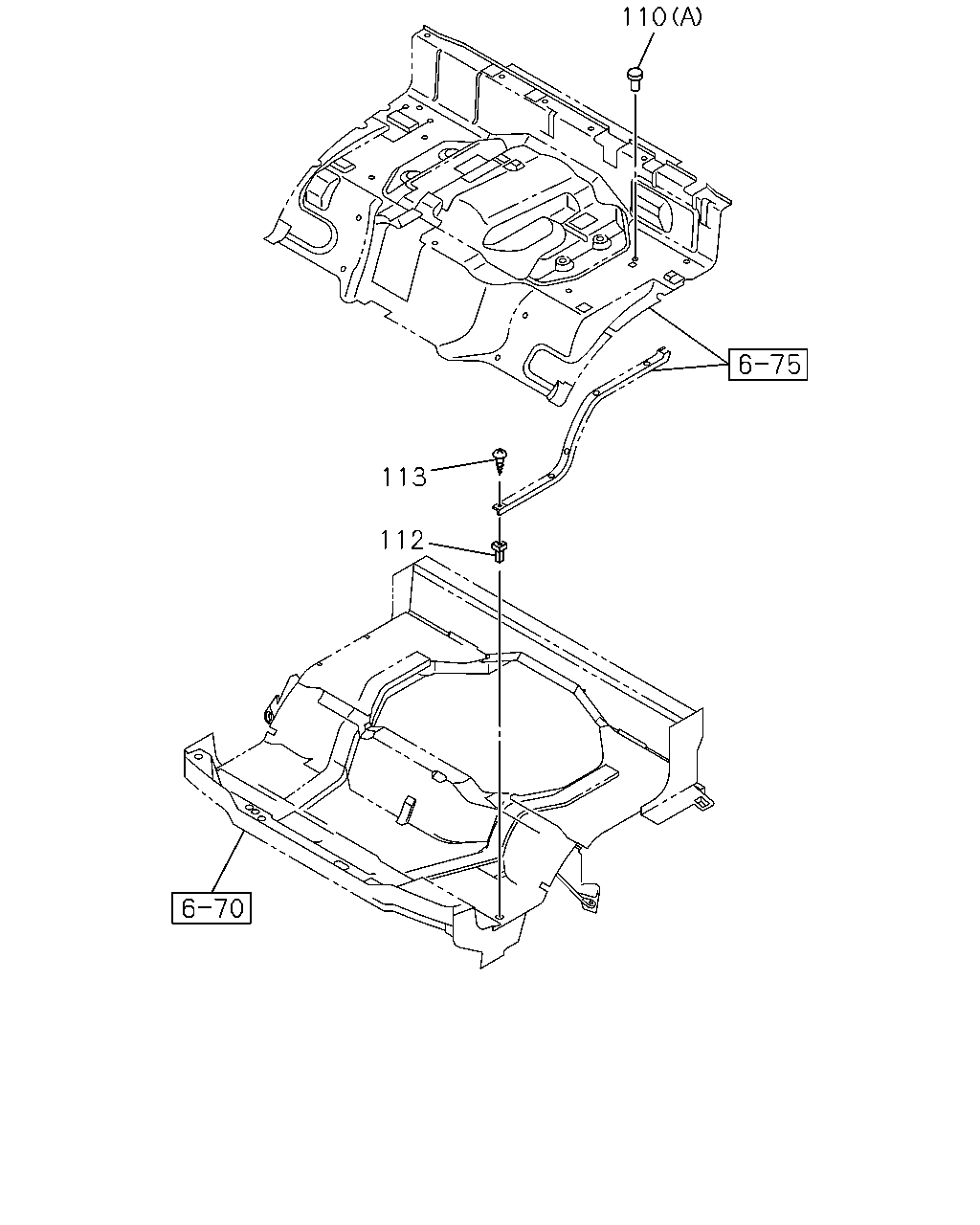

çizim 358168

110 113 112

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	110	FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK SOU	8-94279-089-0	10	1	1306-	●
	110	FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK SOU	8-94279-089-0	11	1	1306-	●
	110	FASTENER; FLOOR MAT (A) BLACK SOU	8-94279-089-0	02	1	1306-		●
	110	FASTENER; FLOOR MAT (A) BLACK SOU	8-94279-089-0	09	1	1306-		●
	110	FASTENER; FLOOR MAT (B) H=15	8-94463-268-1	08	1	1306-		●
	110	FASTENER; FLOOR MAT (C) DARK GRAY	8-97098-326-0	04	1	1306-		●
	112	GROMMET; SCREW,TRIM COVER H=15	8-94463-268-1	08	1	1306-	●	●
	113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1306-	●	●

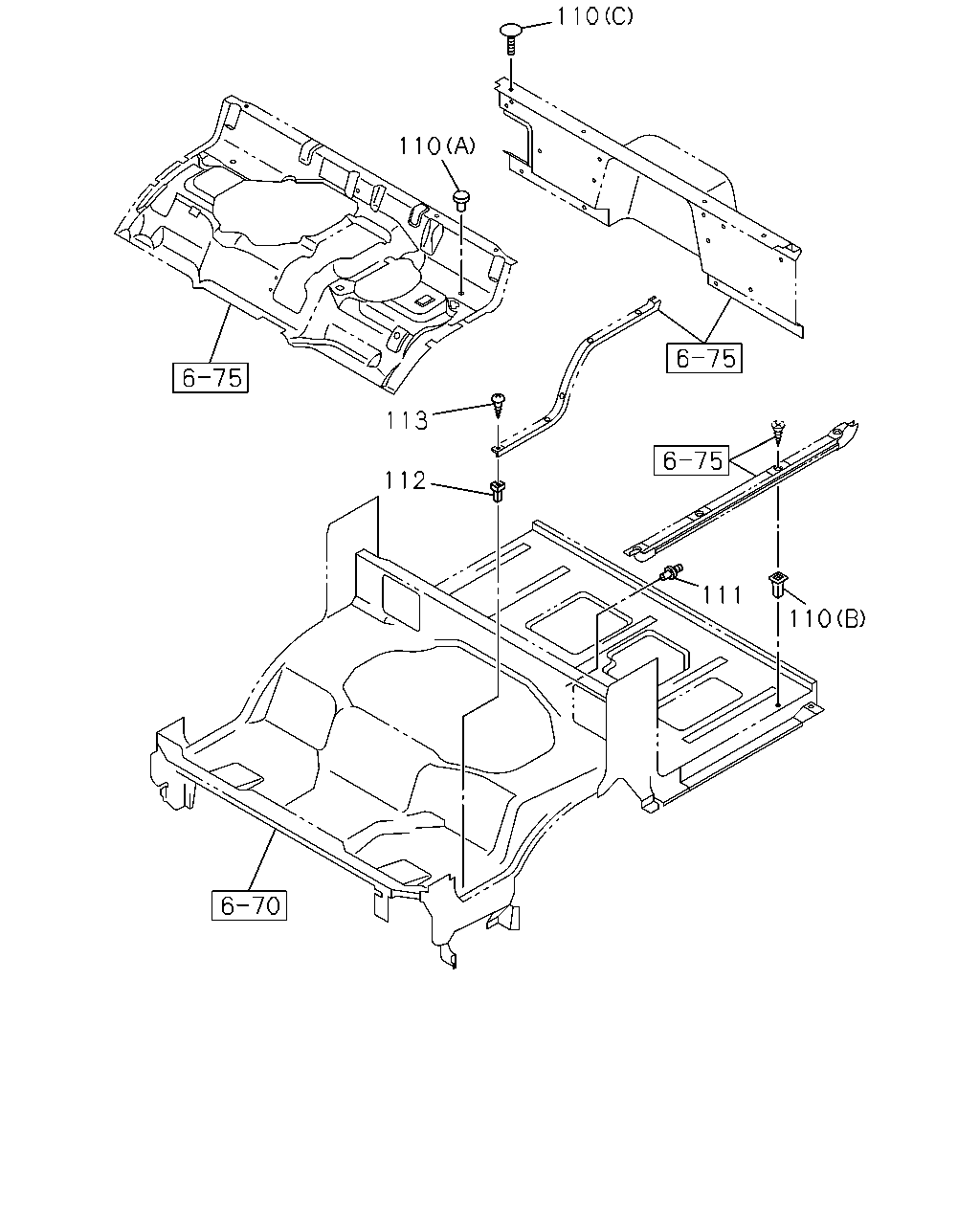

çizim 358883

110 110 113 112 111 110

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	110	FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK SOU	8-94279-089-0	10	1	1306-	●
	110	FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK SOU	8-94279-089-0	11	1	1306-	●
	110	FASTENER; FLOOR MAT (A) BLACK SOU	8-94279-089-0	02	1	1306-		●
	110	FASTENER; FLOOR MAT (A) BLACK SOU	8-94279-089-0	09	1	1306-		●
	110	FASTENER; FLOOR MAT (B) H=15	8-94463-268-1	08	1	1306-		●
	110	FASTENER; FLOOR MAT (C) DARK GRAY	8-97098-326-0	04	1	1306-		●
	111	FASTENER; FLOOR MAT,CAB RR MTG BLACK SOU	8-94279-089-0	11	1	1306-		●
	112	GROMMET; SCREW,TRIM COVER H=15	8-94463-268-1	08	1	1306-	●	●
	113	SCREW; TRIM COVER T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	08	1	1306-	●	●
