◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#122895) — 21 parça

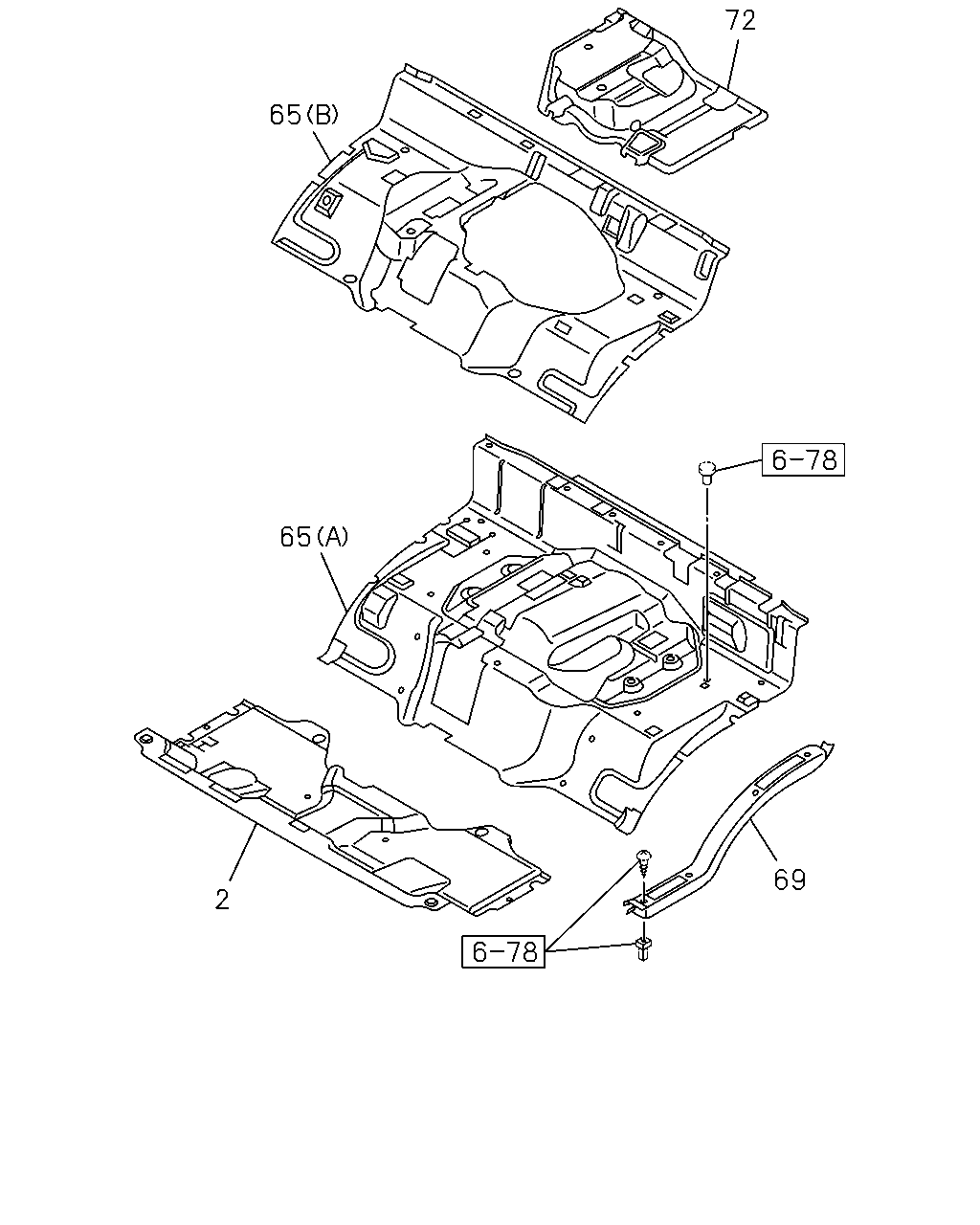

çizim 356550
65 65 72 69 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97422-057-0 01 1 1306- ● ●
65 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1306- ●
65 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1306- ●
65 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1306- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1306- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1306- ● ●
72 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1306- ●
72 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1306- ●

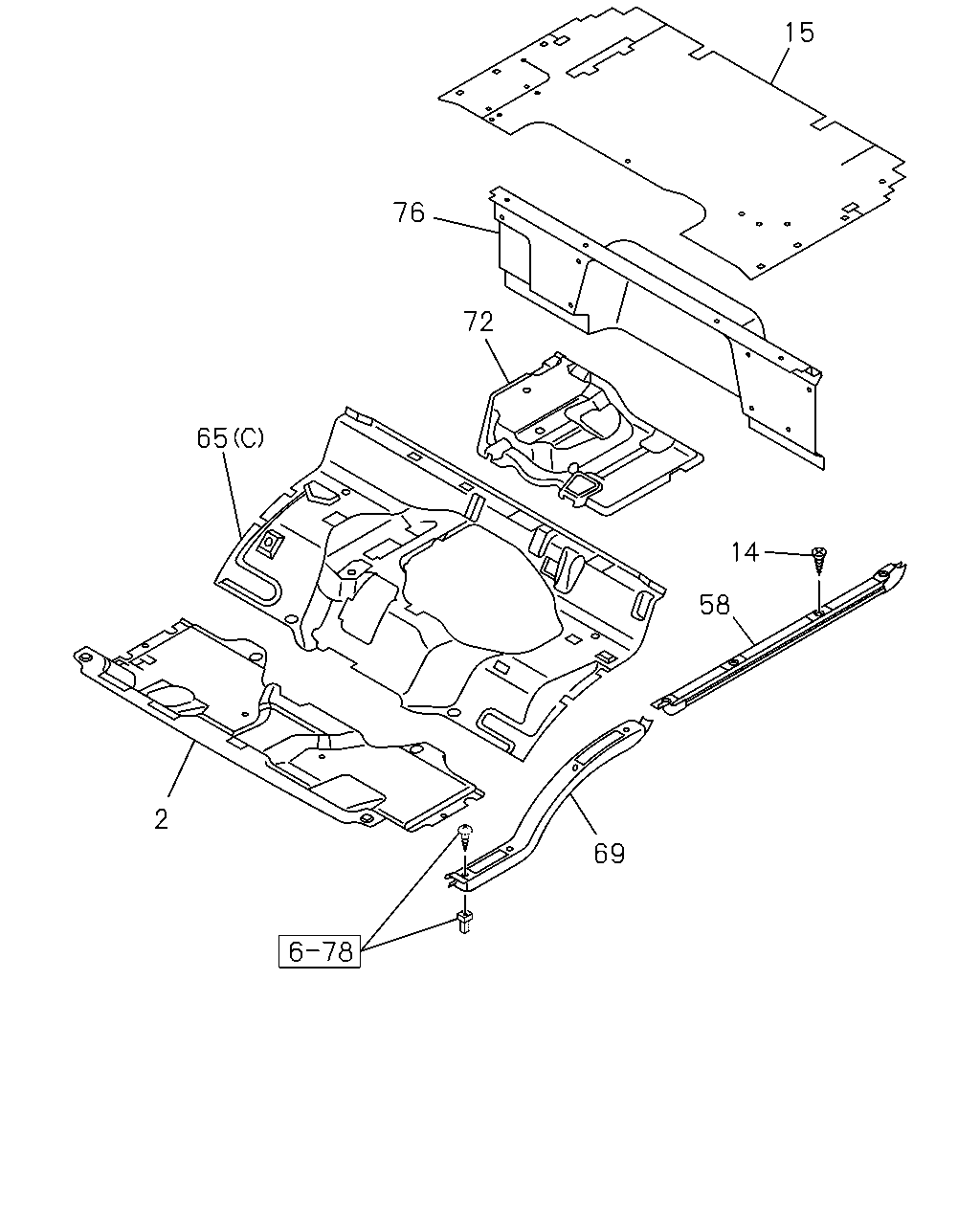

çizim 356584
72 76 14 58 15 69 65 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 MAT; FLOOR
GRAY 		8-97422-057-0 01 1 1306- ● ●
14 SCREW; PLATE
T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 08 1 1306- ●
15 MAT; FLOOR REAR
GRAY 		8-97412-602-1 01 1 1306- ●
58 PLATE; GUARD,RR FLOOR MAT
GRAY 		8-97405-981-1 02 1 1306- ●
65 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY 		8-97425-110-1 01 1 1306- ●
65 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY 		8-97425-119-1 01 1 1306- ●
65 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY 		8-97425-111-1 01 1 1306- ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-388-1 01 1 1306- ● ●
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY 		8-97405-389-1 01 1 1306- ● ●
72 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY 		8-97406-252-3 01 1 1306- ●
72 MAT; SILENCER,ENG COVER
GRAY 		8-97406-252-3 01 1 1306- ●
76 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97412-600-1 01 1 1306-1511 ●
76 MAT; FLOOR,REINF,CAB RR MTG
GRAY 		8-97467-183-0 01 1 1512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
