6-70 — FLOOR PANEL (#122894) — 136 parça

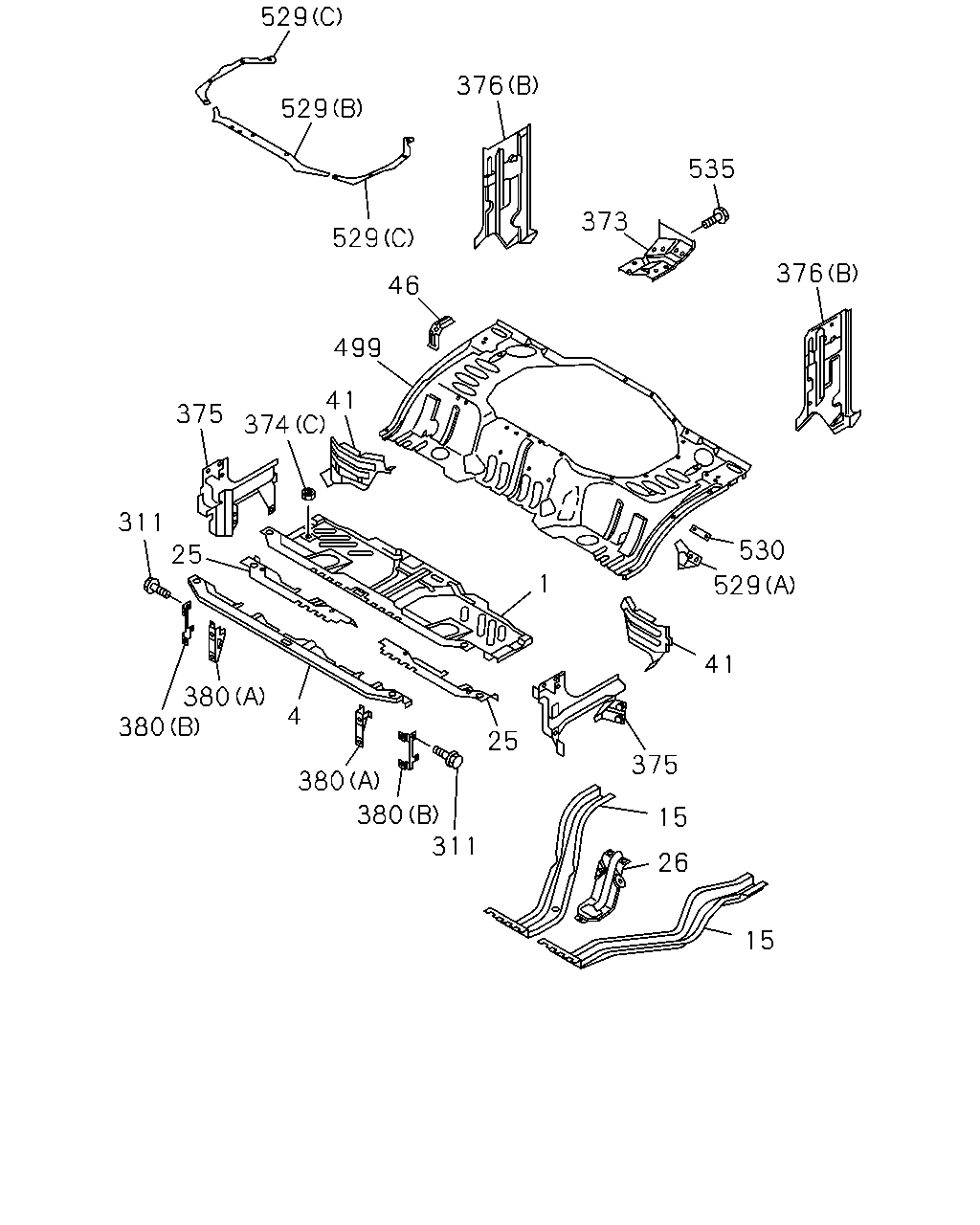

529 529 376 535 373 376 530 529 41 375 15 26 15 25 311 380 380 4 380 380 25 311 375 374 41 1 499 46 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-870-0	01	1	1306-	●
1	PANEL; FLOOR	8-98112-870-0	01	1	1306-		●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98107-595-0	01	1	1306-	●
4	FRAME; FLOOR,FRT SOU	8-98107-595-0	01	1	1306-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98059-498-1	01	1	1306-	●
15	FRAME; UNDER SOU	8-98059-498-1	01	1	1306-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98088-004-0	01	1	1306-	●
15	FRAME; UNDER	8-98088-004-0	01	1	1306-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-823-0	01	1	1306-	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1306-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-587-0	01	1	1306-	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1306-		●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1306-	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1306-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-880-1	01	1	1306-	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1306-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-881-1	01	1	1306-	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1306-		●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1306-	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1306-		●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1306-	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1306-	●
373	REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1306-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1306-		●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	1306-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1306-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1306-	●	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-727-2	01	1	1306-	●
375	CLOSING; PILLAR	8-98080-727-2	01	1	1306-		●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-728-1	01	1	1306-	●
375	CLOSING; PILLAR	8-98080-728-1	01	1	1306-		●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1306-	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1306-	●
376	CLOSING; PILLAR,LWR (B)	8-98016-953-7	01	1	1306-		●
376	CLOSING; PILLAR,LWR (B)	8-98016-954-6	01	1	1306-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-384-4	01	1	1306-	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-384-4	01	1	1306-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-385-3	01	1	1306-	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-385-3	01	1	1306-		●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1306-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1306-	●	●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1306-	●
499	PANEL; FLOOR,RR	8-98205-116-0	01	1	1306-		●
529	RETAINER; FLOOR PANEL (B)	8-97589-249-0	01	1	1306-		●
529	RETAINER; FLOOR PANEL (C)	8-97589-467-1	01	1	1306-		●
529	RETAINER; FLOOR PANEL (C)	8-97589-468-1	01	1	1306-		●
529	RETAINER; FLOOR PANEL (A)	8-98030-358-0	01	1	1306-		●
530	BRACKET; COVER	8-97589-255-0	01	1	1306-		●
535	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	05	1	1306-		●

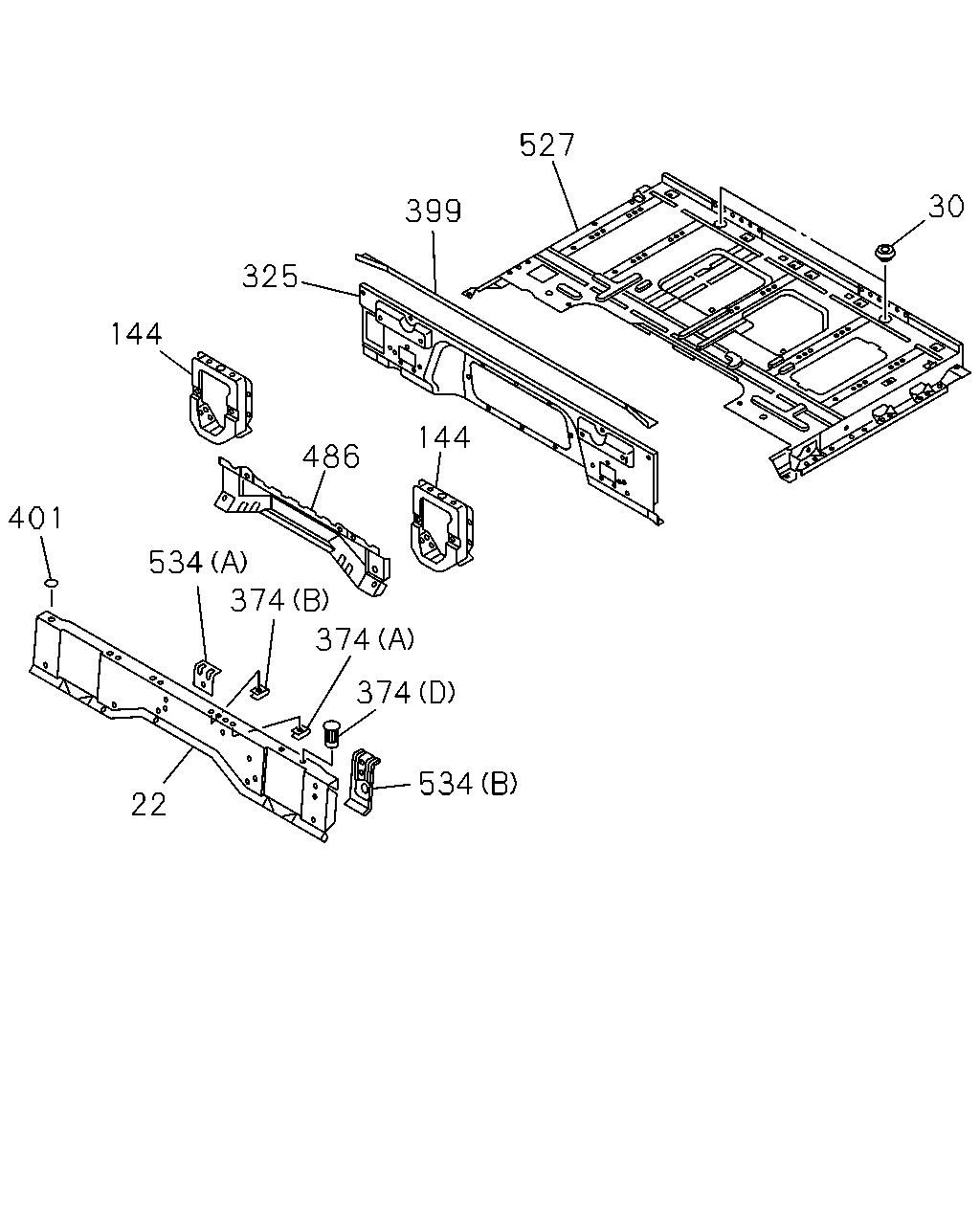

401 144 325 399 527 30 144 486 374 374 534 22 534 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1306-	●
22	FRAME; FLOOR REAR	8-97587-394-4	01	1	1306-		●
30	GROMMET; CAB MTG RAIL OD=74	8-94279-731-0	02	1	1306-		●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1306-	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	1306-		●
325	REINFORCEMENT ASM; RR MTG	8-98006-699-3	01	1	1306-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1306-		●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	1306-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1306-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1306-	●	●
399	PANEL; EXTENSION,RR MTG RAIL	8-97587-702-1	01	1	1306-		●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1306-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1306-	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1306-		●
527	FLOOR; RR	8-98081-184-3	01	1	1306-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) SOU	8-97583-851-3	01	1	1306-	●
534	REINFORCEMENT; SEAT BACK (B) SOU	8-97583-851-3	01	1	1306-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1306-	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1306-		●

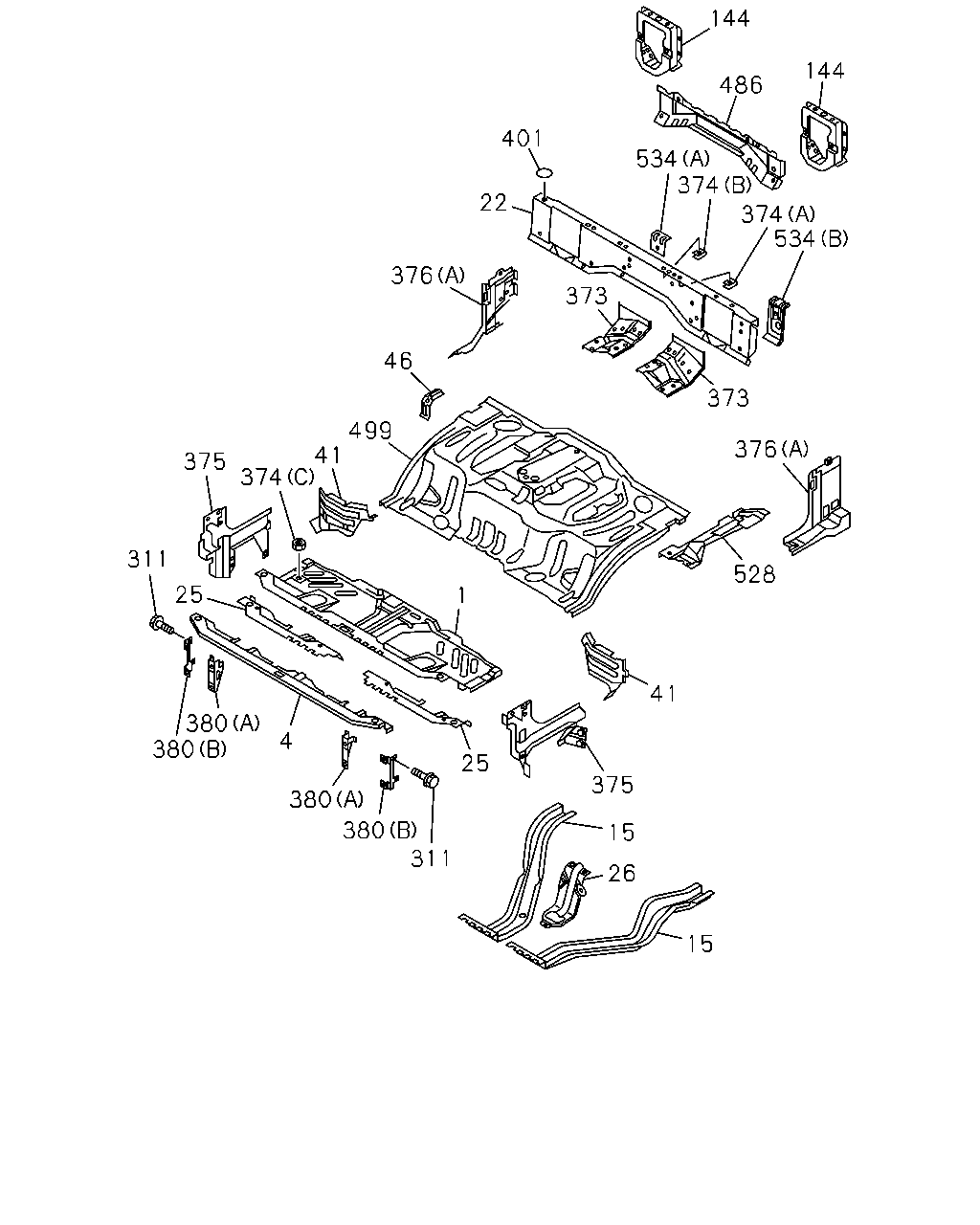

144 144 486 534 374 374 534 376 373 373 401 22 376 46 499 41 374 375 311 25 380 380 4 380 380 311 25 1 528 41 375 15 26 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PANEL; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-870-0	01	1	1306-	●
1	PANEL; FLOOR	8-98112-870-0	01	1	1306-		●
4	FRAME; FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98107-595-0	01	1	1306-	●
4	FRAME; FLOOR,FRT SOU	8-98107-595-0	01	1	1306-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> SOU	8-98059-498-1	01	1	1306-	●
15	FRAME; UNDER SOU	8-98059-498-1	01	1	1306-		●
15	FRAME; UNDER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98088-004-0	01	1	1306-	●
15	FRAME; UNDER	8-98088-004-0	01	1	1306-		●
22	FRAME; FLOOR REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-848-4	01	1	1306-	●
22	FRAME; FLOOR REAR	8-97587-394-4	01	1	1306-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-823-0	01	1	1306-	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-97583-823-0	01	1	1306-		●
25	REINFORCEMENT; FRAME FLOOR,FRT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98107-587-0	01	1	1306-	●
25	REINFORCEMENT; FRAME FLOOR,FRT	8-98107-587-0	01	1	1306-		●
26	PANEL; GEAR CONT REINF MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-382-1	01	1	1306-	●
26	PANEL; GEAR CONT REINF	8-97589-382-1	01	1	1306-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-880-1	01	1	1306-	●
41	SUPPORT; STEP,RR	8-97583-880-1	01	1	1306-		●
41	SUPPORT; STEP,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-881-1	01	1	1306-	●
41	SUPPORT; STEP,RR	8-97583-881-1	01	1	1306-		●
46	BRACKET; FRT SEAT,RR OUTER MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97583-834-0	01	1	1306-	●
46	BRACKET; FRT SEAT,RR OUTER	8-97583-834-0	01	1	1306-		●
144	BRACKET; MTG,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97589-544-3	02	1	1306-	●
144	BRACKET; MTG,RR	8-98112-244-2	02	1	1306-		●
311	BOLT; BRKT M6X16 FLANGE SOU	0-28650-616-0	04	1	1306-	●	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-523-2	01	1	1306-	●
373	REINFORCEMENT; SEAT BELT MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98014-524-2	01	1	1306-	●
373	REINFORCEMENT; SEAT BELT	8-98015-216-2	01	1	1306-		●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) M8	1-09984-111-0	01	1	1306-	●
374	NUT; FLOOR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) M6	1-09984-110-0	02	1	1306-	●
374	NUT; FLOOR (B) M6	1-09984-110-0	02	1	1306-		●
374	NUT; FLOOR (A) M8	1-09984-111-0	04	1	1306-		●
374	NUT; FLOOR (D) M6 POP NUT	8-98013-752-0	01	1	1306-		●
374	NUT; FLOOR (C) M8	9-09114-068-0	04	1	1306-	●	●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-727-2	01	1	1306-	●
375	CLOSING; PILLAR	8-98080-727-2	01	1	1306-		●
375	CLOSING; PILLAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98080-728-1	01	1	1306-	●
375	CLOSING; PILLAR	8-98080-728-1	01	1	1306-		●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97583-888-2	01	1	1306-	●
376	CLOSING; PILLAR,LWR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97584-618-2	01	1	1306-	●
376	CLOSING; PILLAR,LWR (B)	8-98016-953-7	01	1	1306-		●
376	CLOSING; PILLAR,LWR (B)	8-98016-954-6	01	1	1306-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-384-4	01	1	1306-	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-384-4	01	1	1306-		●
380	BRACKET; HEAD LAMP MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A) SOU	8-97589-385-3	01	1	1306-	●
380	BRACKET; HEAD LAMP (A) SOU	8-97589-385-3	01	1	1306-		●
380	BRACKET; HEAD LAMP (B)	8-98029-288-0	01	1	1306-	●	●
380	BRACKET; HEAD LAMP (B)	8-98029-289-0	01	1	1306-	●	●
401	GROMMET; HOLE OD=24.5 T=7.5	8-97224-683-0	01	1	1306-	●	●
486	REINFORCEMENT; FRAME FLOOR,REAR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98030-613-2	01	1	1306-	●
486	REINFORCEMENT; FRAME FLOOR,REAR	8-98030-614-2	01	1	1306-		●
499	PANEL; FLOOR,RR MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-98206-873-0	01	1	1306-	●
499	PANEL; FLOOR,RR	8-98205-116-0	01	1	1306-		●
528	REINFORCEMENT; PARKING BRAKE MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA>	8-97584-619-4	01	1	1306-	●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (B) SOU	8-97583-851-3	01	1	1306-	●
534	REINFORCEMENT; SEAT BACK (B) SOU	8-97583-851-3	01	1	1306-		●
534	REINFORCEMENT; SEAT BACK MANUAL TILT CAB<RWZ> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98019-181-2	01	1	1306-	●
534	REINFORCEMENT; SEAT BACK (A)	8-98019-181-2	01	1	1306-		●

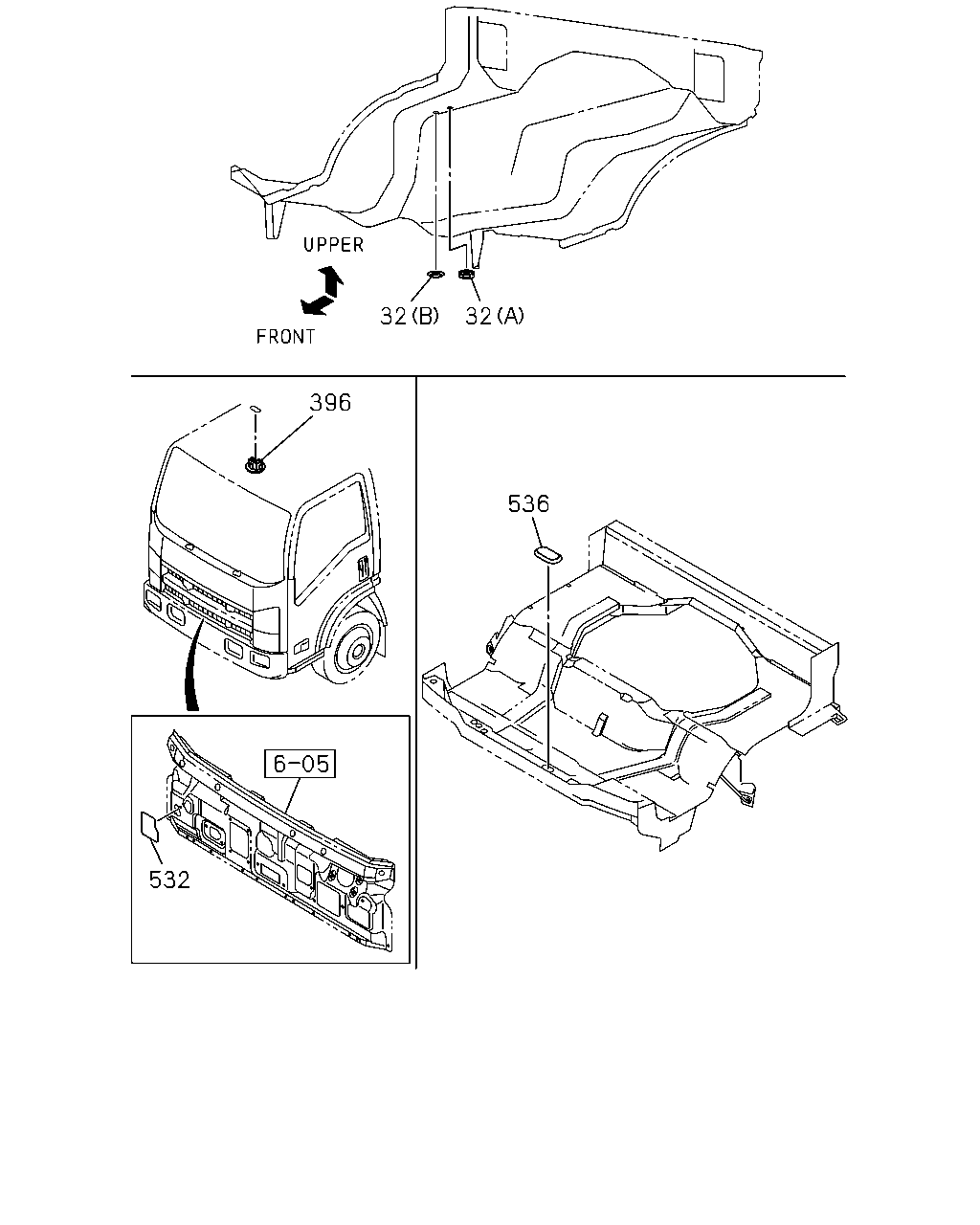

396 32 32 536 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	GROMMET; FLOOR PANEL,LOCATION HOLE (A) OD=15.0 SOU	8-94279-040-0	02	1	1306-	●	●
32	GROMMET; FLOOR PANEL,LOCATION HOLE (B) OD=12.1	8-97898-423-0	02	1	1306-	●	●
396	GROMMET; LOCATION HOLE	8-98054-990-0	02	1	1306-	●
532	SEAL; CABLE	8-98042-432-1	01	1	1306-	●	●
536	PLUG; CABLE,PTO	8-98029-219-1	01	1	1306-	●	●
