6-47 — MUD GUARD AND INSULATOR (#122887) — 64 parça

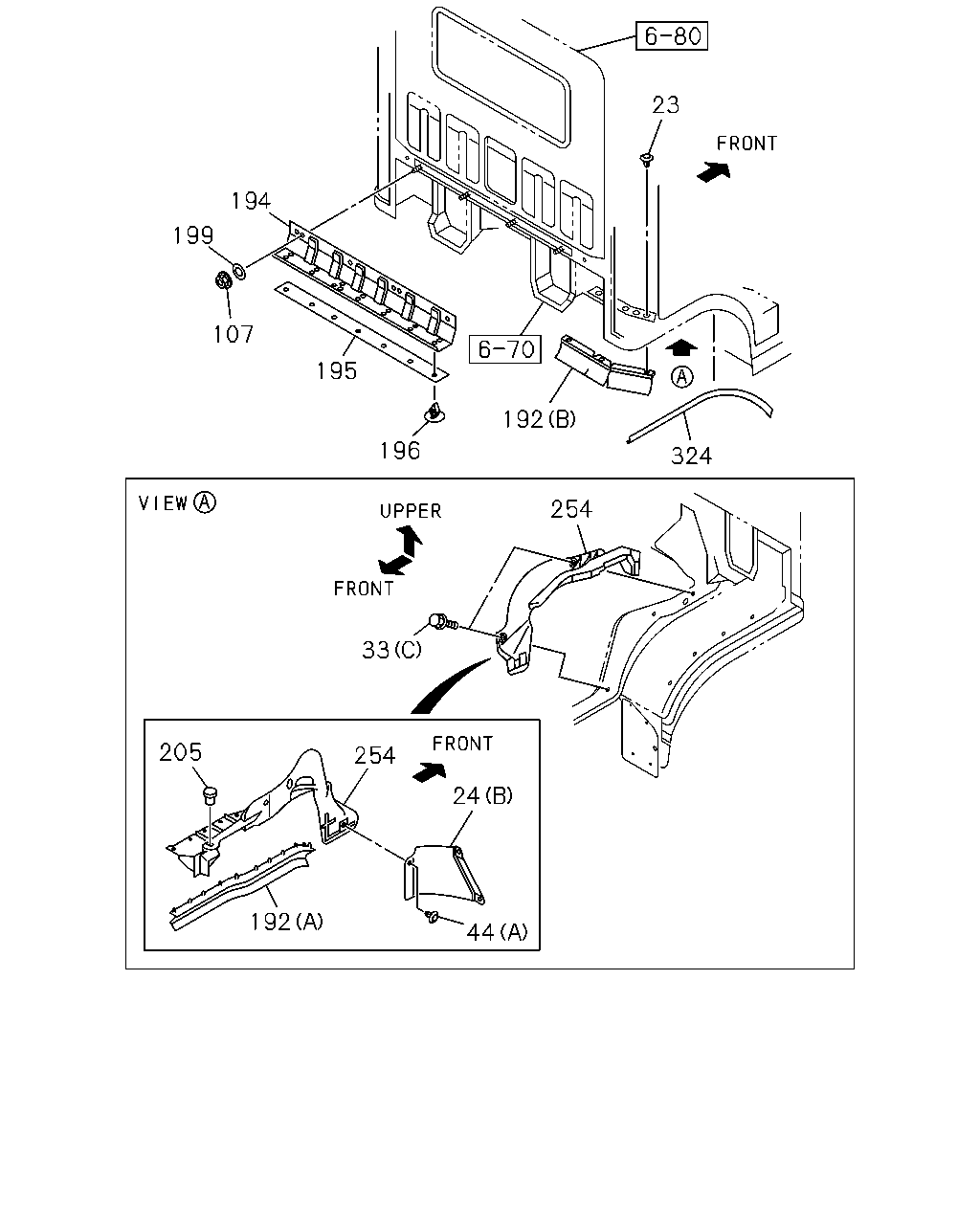

194 199 107 195 196 192 324 23 33 254 205 192 254 24 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3 SOU	8-97997-832-0	06	1	1306-	●	●
24	PLATE; MUD COVER (A)	8-98072-929-1	01	1	1306-	●	●
24	PLATE; MUD COVER (A)	8-98073-062-1	01	1	1306-	●	●
24	PLATE; MUD COVER (C)	8-98094-591-1	02	1	1306-	●	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1306-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1306-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1306-	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1306-	●	●
44	CLIP; ANCHOR (A) OD=16 L=11 SOU	1-76378-155-0	06	1	1306-	●	●
44	CLIP; ANCHOR (B) OD=8.3 SOU	8-97997-832-0	06	1	1306-	●	●
107	NUT; HEAT PROTECTOR M6 FLANGE	8-94279-514-0	04	1	1306-		●
192	SEAL; MUD COVER (A)	8-98022-755-1	01	1	1306-	●	●
192	SEAL; MUD COVER (A)	8-98022-756-1	01	1	1306-	●	●
192	SEAL; MUD COVER (B)	8-98022-782-3	02	1	1306-	●	●
194	BRACKET; HEAT PROTECTOR	8-98065-107-0	01	1	1306-		●
195	PROTECTOR; HEAT	8-94272-528-1	01	1	1306-		●
196	CLIP; HEAT PROTECTOR SOU	8-94244-922-0	07	1	1306-		●
199	WASHER; PL,HEAT PROTECTOR	8-94292-135-0	04	1	1306-		●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON SOU	8-94242-150-0	02	1	1306-	●	●
254	COVER; MUD,VALANCE	8-98022-750-3	01	1	1306-	●	●
254	COVER; MUD,VALANCE	8-98022-751-3	01	1	1306-	●	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1306-	●	●

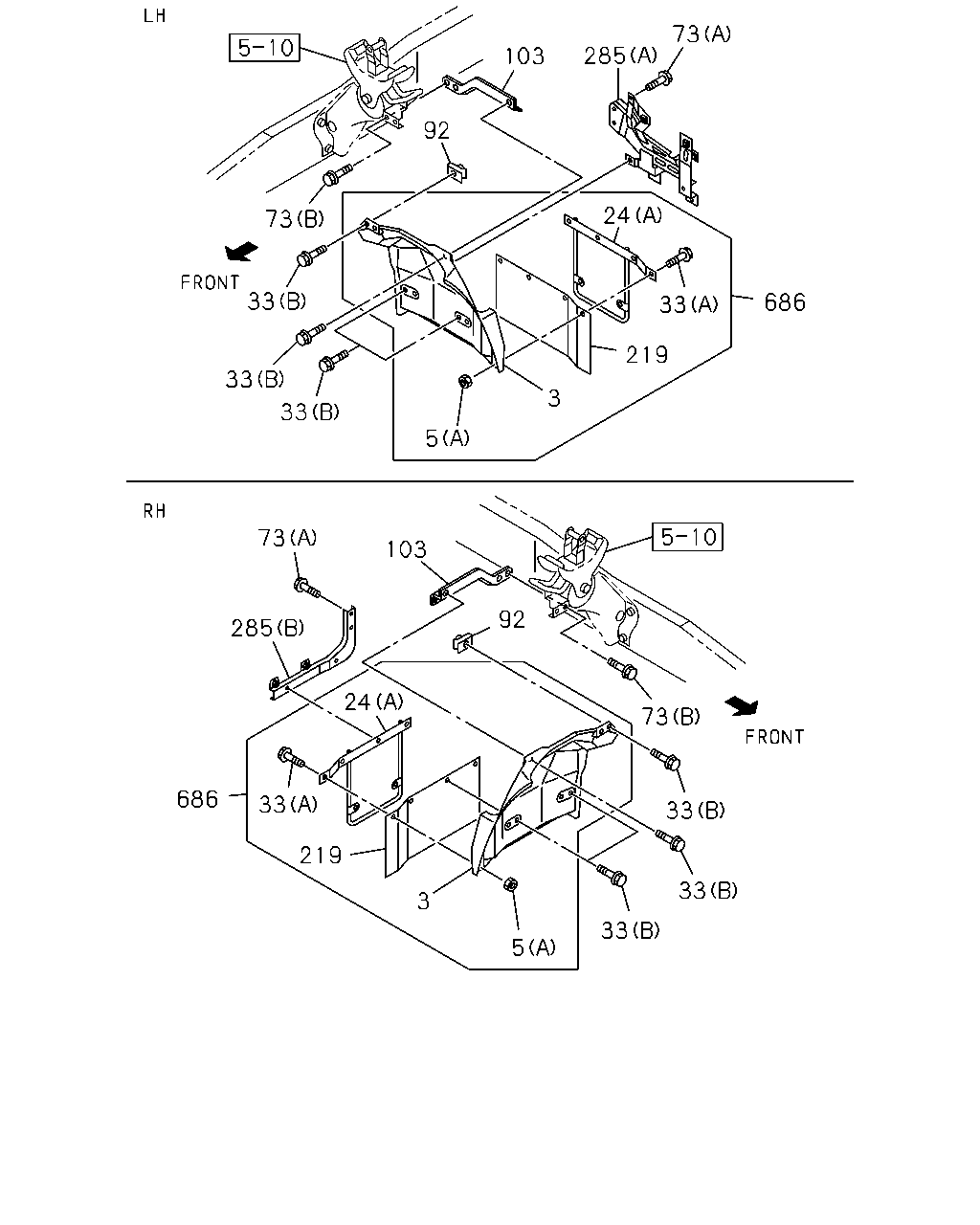

73 285 103 92 73 33 33 33 5 3 219 33 686 24 73 33 33 33 5 3 219 686 33 285 73 103 24 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR	8-98004-029-5	01	1	1306-	●	●
3	GUARD; MUD,RR	8-98004-030-4	01	1	1306-	●	●
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1306-	●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE SOU	0-91180-106-0	02	1	1306-		●
24	PLATE; MUD COVER (A)	8-98072-929-1	01	1	1306-	●	●
24	PLATE; MUD COVER (A)	8-98073-062-1	01	1	1306-	●	●
24	PLATE; MUD COVER (C)	8-98094-591-1	02	1	1306-	●	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1306-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	1306-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE	8-98061-108-0	04	1	1306-	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE	8-98227-381-0	12	1	1306-	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE SOU	0-28651-025-0	04	1	1306-	●	●
92	NUT; MUD COVER M8 SPIRE NUT	8-98039-860-2	02	1	1306-	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-315-2	01	1	1306-	●	●
103	BRACKET ASM; RR MUD FLAP	8-98001-319-2	01	1	1306-	●	●
219	FLAP; MUD GUARD	8-98072-933-0	02	1	1306-	●	●
285	BRACKET; MUD COVER (B)	8-98001-314-2	01	1	1306-	●	●
285	BRACKET; MUD COVER (A)	8-98001-320-3	01	1	1306-	●	●
686	FLAP ASM; MUD	8-98049-236-3	01	1	1306-	●	●
686	FLAP ASM; MUD	8-98049-237-3	01	1	1306-	●	●

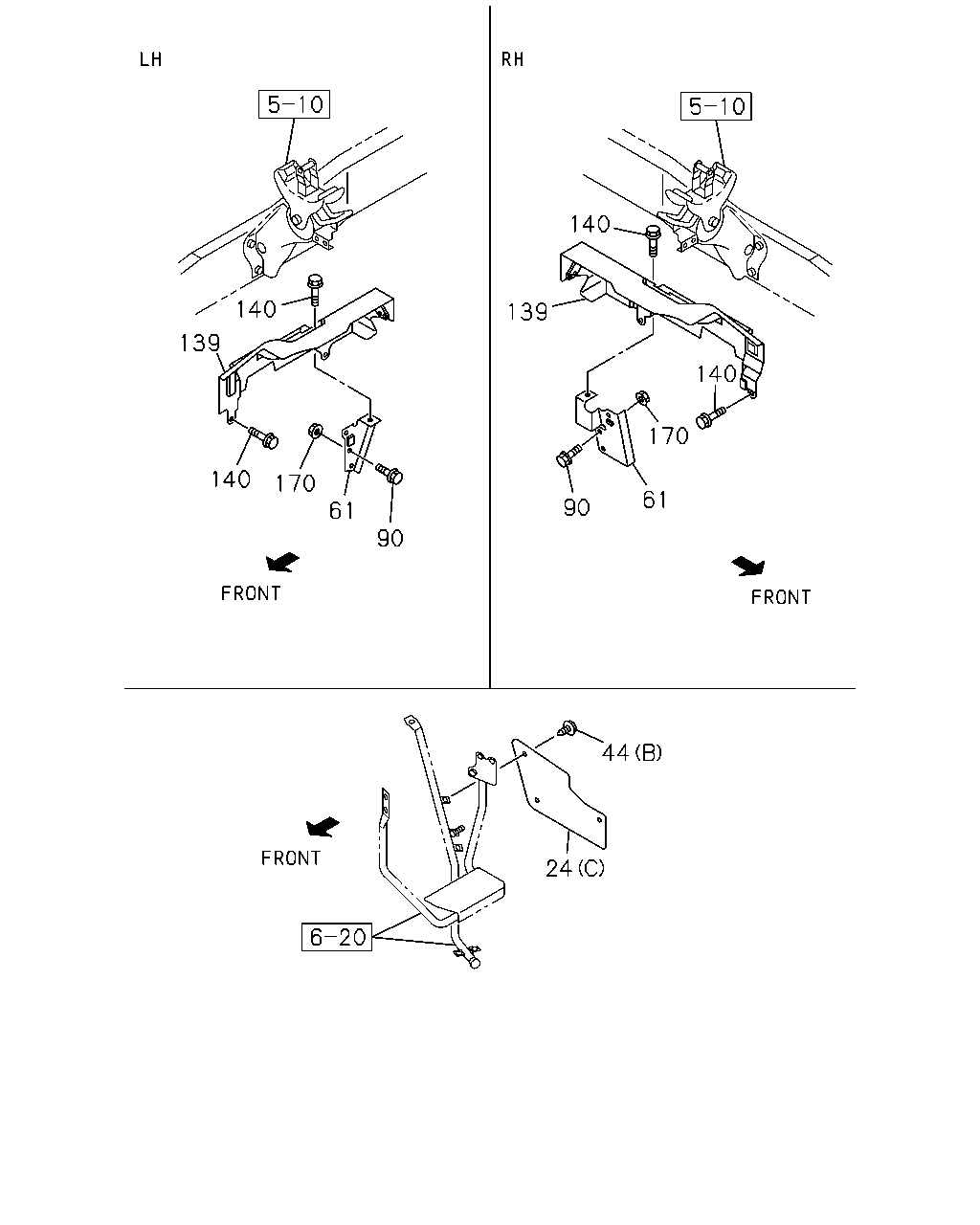

139 140 90 61 170 140 61 90 170 140 139 140 44 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	PLATE; MUD COVER (A)	8-98072-929-1	01	1	1306-	●	●
24	PLATE; MUD COVER (A)	8-98073-062-1	01	1	1306-	●	●
24	PLATE; MUD COVER (C)	8-98094-591-1	02	1	1306-	●	●
24	PLATE; MUD COVER (B)	8-98154-258-0	02	1	1306-	●	●
44	CLIP; ANCHOR (A) OD=16 L=11 SOU	1-76378-155-0	06	1	1306-	●	●
44	CLIP; ANCHOR (B) OD=8.3 SOU	8-97997-832-0	06	1	1306-	●	●
61	BRACKET; COVER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98278-132-0	01	1	1407-	●	●
61	BRACKET; COVER	8-98049-205-1	01	1	1306-1406	●	●
61	BRACKET; COVER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98049-205-1	01	1	1407-	●	●
61	BRACKET; COVER	8-98049-206-1	01	1	1306-	●	●
90	BOLT; COVER M8X25 FLANGE SOU	0-28650-825-0	04	1	1306-	●	●
139	PANEL; SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98278-071-0	01	1	1407-	●	●
139	PANEL; SIDE	8-98049-203-0	01	1	1306-1406	●	●
139	PANEL; SIDE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98049-203-0	01	1	1407-	●	●
139	PANEL; SIDE	8-98115-458-1	01	1	1306-	●	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER	1-09030-094-0	06	1	1306-	●	●
170	NUT; COVER M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●

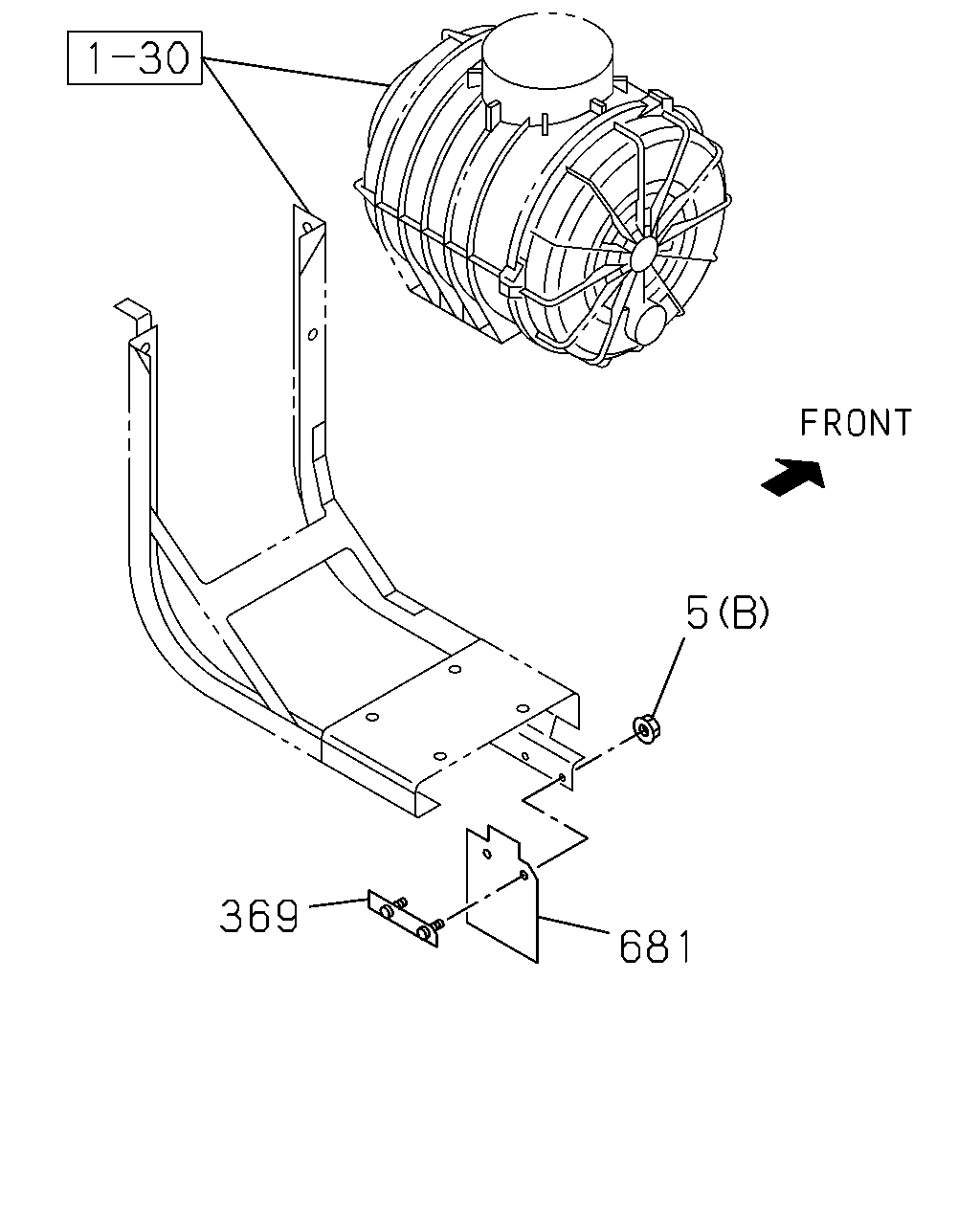

369 681 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	NUT; FLAP RUBBER (A) M6	8-98227-380-0	12	1	1306-	●	●
5	NUT; FLAP RUBBER (B) M6 FLANGE SOU	0-91180-106-0	02	1	1306-		●
369	PLATE	8-98061-674-0	01	1	1306-		●
681	FLAP; AIR CLEANER	8-98061-671-0	01	1	1306-		●
