◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#122881) — 166 parça

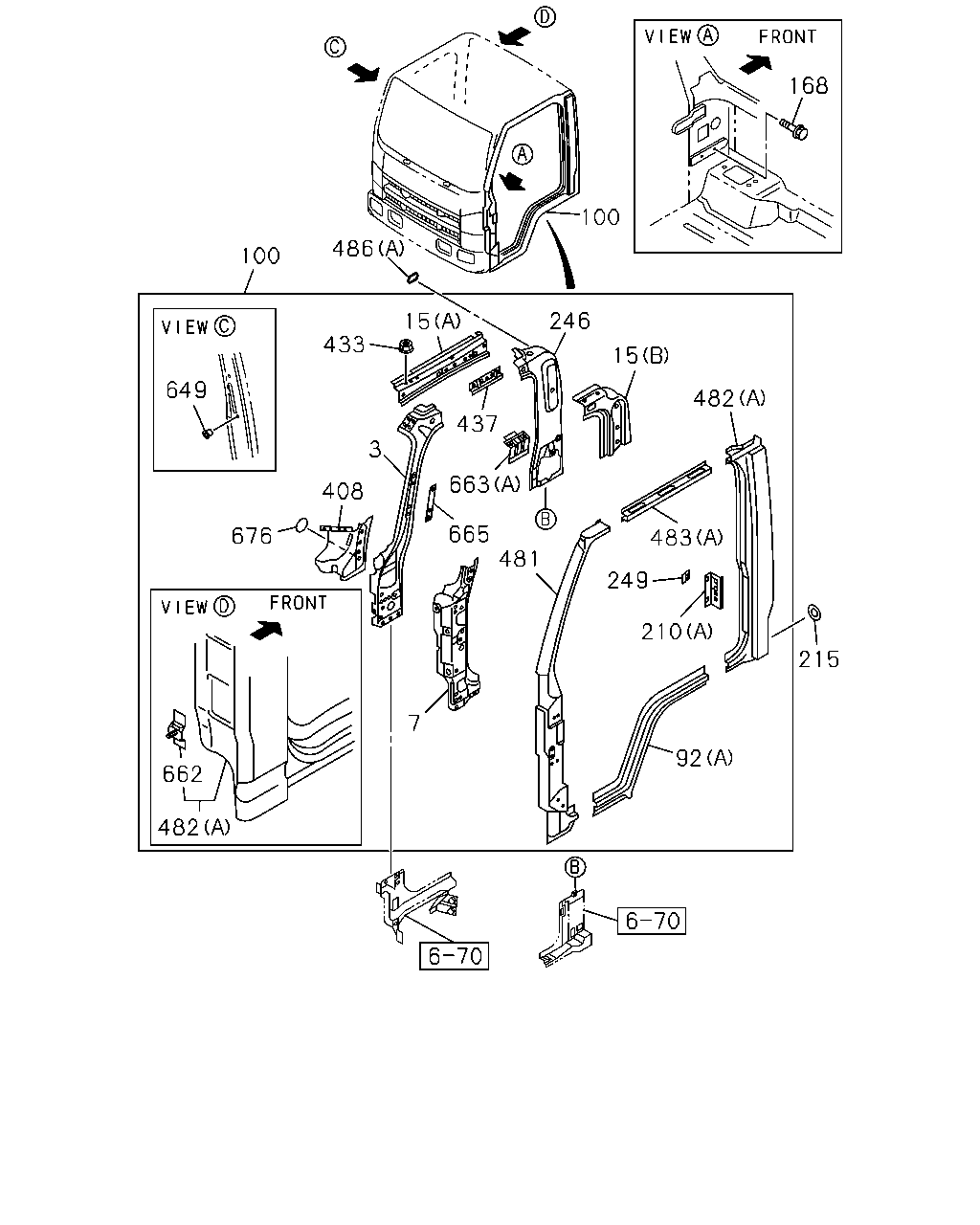

çizim 356612
168 100 15 482 483 249 210 215 92 7 481 665 663 437 15 246 486 100 649 676 408 3 433 662 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1306- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1306- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1306- ● ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1306- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1306-1402 ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1403- ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1306-1402 ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1306- ● ●
210 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1306- ●
215 GROMMET; RR PILLAR
OD=35 		8-94122-971-0 01 1 1306- ●
246 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 1306- ●
246 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 1306- ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1306- ●
249 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 1306- ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 1306- ● ●
408 GUSSET; PILLAR 8-97585-317-4 01 1 1306- ● ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1306- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1306- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1306- ●
437 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1306- ● ●
437 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1306- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1306- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1306- ● ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1306- ●
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1306- ●
486 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1306- ●
486 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1306- ●
649 NUT; POP
M5 POP NUT SOU 		8-97249-574-0 02 1 1306- ● ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1306- ●
662 BRACKET; DUCT 8-98006-778-1 01 1 1306- ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1306- ● ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1306- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1306- ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306- ● ●

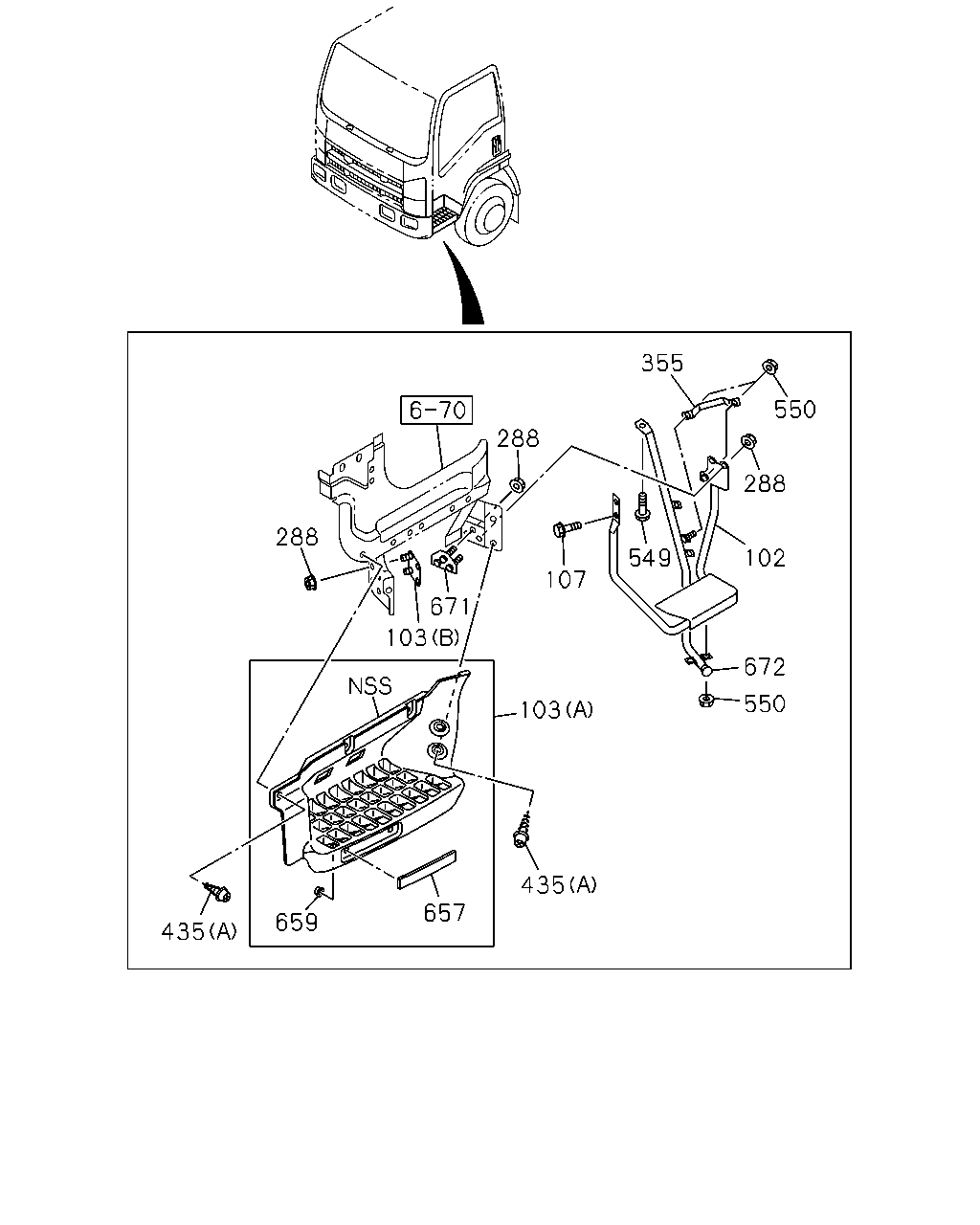

çizim 356912
355 550 288 102 672 550 103 107 288 671 103 288 657 659 435 435 549
BalonParca AdiParca NoAdetTipApplied Date A B
102 STEP; BODY SIDE 8-98070-082-0 01 1 1306- ● ●
102 STEP; BODY SIDE 8-98070-083-0 01 1 1306- ● ●
103 PLATE; STEP
(B) 		8-98070-091-1 01 1 1306- ● ●
103 PLATE; STEP
(B) 		8-98070-092-1 01 1 1306- ● ●
103 PLATE; STEP
(A) 		8-98077-158-0 01 1 1306- ● ●
103 PLATE; STEP
(A) 		8-98077-159-0 01 1 1306- ● ●
107 BOLT; SIDE STEP
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1306- ● ●
288 NUT; STEP
M8 FLANGE SOU 		0-91180-108-0 08 1 1306- ● ●
288 NUT; STEP
M8 FLANGE SOU 		0-91180-108-0 04 1 1306- ●
355 STAY 8-98070-088-1 02 1 1306- ● ●
435 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1306- ● ●
435 BOLT; RR STEP
(B) M8X20 FLANGE 		0-28650-820-0 08 1 1306- ●
549 BOLT; STAY
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
550 NUT; STAY
M8 FLANGE SOU 		0-91180-108-0 08 1 1306- ● ●
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 1306- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1306- ● ●
671 PLATE; STEP RR 8-98070-093-0 02 1 1306- ● ●
672 STAY; STEP 8-98070-085-0 01 1 1306- ● ●
672 STAY; STEP 8-98070-086-0 01 1 1306- ● ●

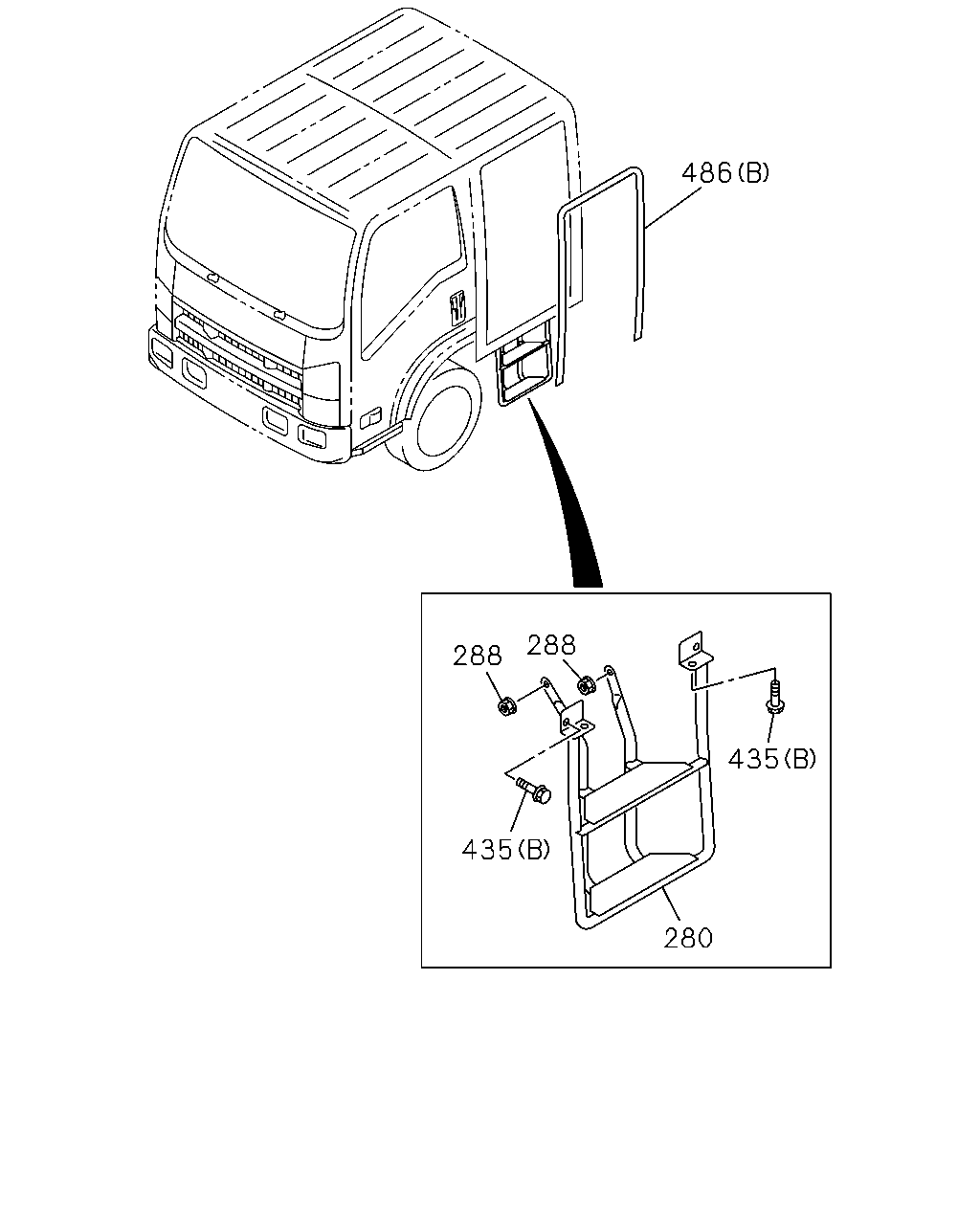

çizim 356945
486 435 280 435 288 288
BalonParca AdiParca NoAdetTipApplied Date A B
280 STEP ASM; RR 8-98075-436-2 01 1 1306- ●
280 STEP ASM; RR 8-98075-437-2 01 1 1306- ●
288 NUT; STEP
M8 FLANGE SOU 		0-91180-108-0 08 1 1306- ● ●
288 NUT; STEP
M8 FLANGE SOU 		0-91180-108-0 04 1 1306- ●
435 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 1306- ● ●
435 BOLT; RR STEP
(B) M8X20 FLANGE 		0-28650-820-0 08 1 1306- ●
486 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 1306- ●
486 SEAL; BODY SIDE
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 1306- ●
486 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1306- ●

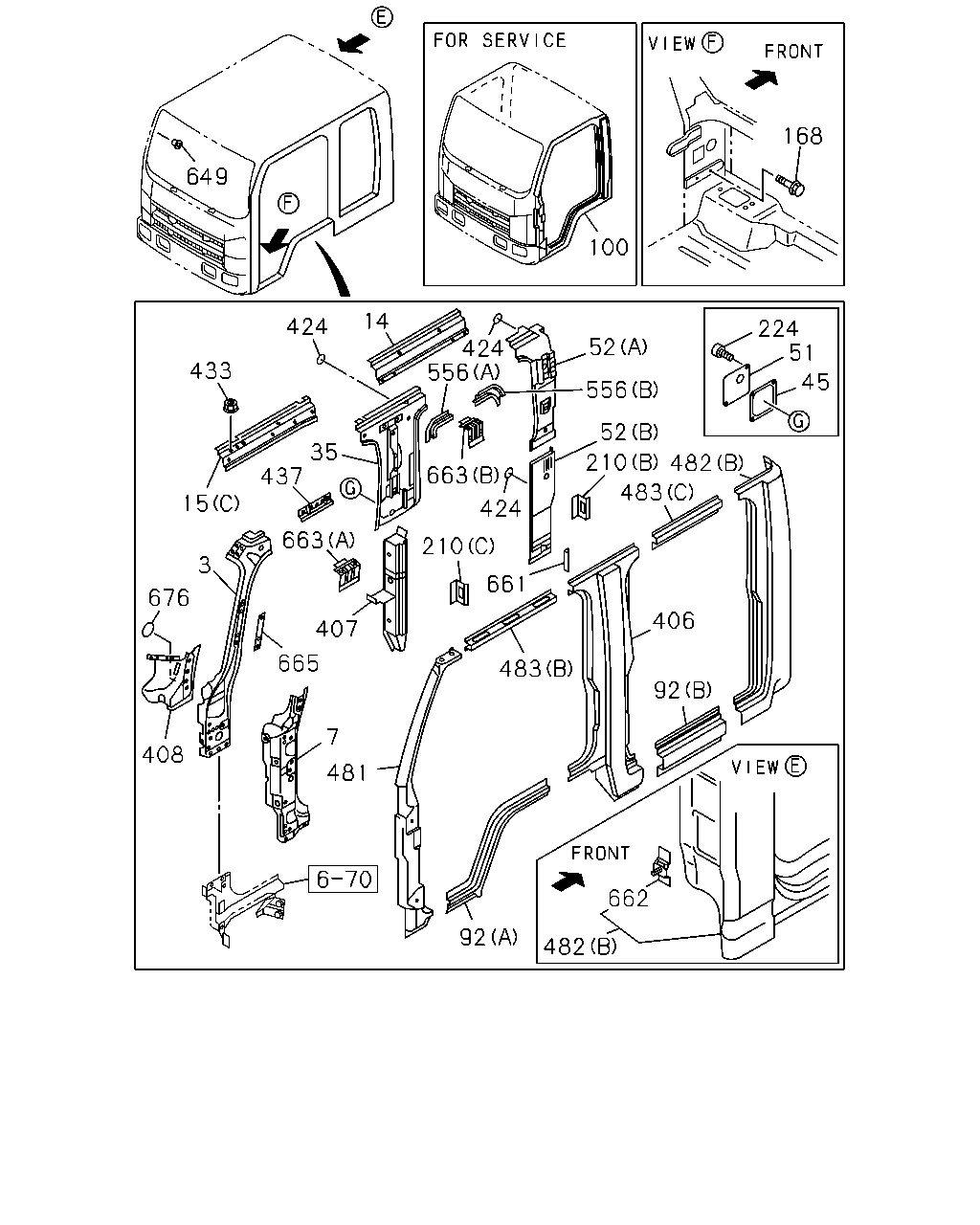

çizim 357736
168 224 51 45 52 556 52 210 482 483 406 92 662 482 92 481 7 665 407 663 15 3 676 408 433 437 35 424 14 556 424 663 424 210 661 483 649 100
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1306- ● ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1306- ● ●
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1306- ● ●
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1306- ● ●
14 PANEL; REINF,SIDE DRIP 8-97583-706-2 02 1 1306- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 1306- ●
15 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 1306- ●
35 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 1306- ●
35 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 1306- ●
45 SEAL; B-C POST 8-97853-731-2 02 1 1306- ●
51 COVER; HOLE,B-C POST 8-94273-658-0 02 1 1306- ●
52 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 1306- ●
52 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 1306- ●
52 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 1306- ●
52 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 1306- ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 1306- ● ●
92 PANEL; SIDE SILL,CAB
(B) 		8-98069-113-0 02 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1306- ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1306-1402 ●
100 PANEL ASM; BODY SIDE 8-97586-023-5 01 1 1403- ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1306-1402 ●
100 PANEL ASM; BODY SIDE 8-97585-200-9 01 1 1403- ●
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1306- ● ●
210 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 1306- ●
210 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 1306- ●
224 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1306- ●
406 PILLAR; CENTER 8-98069-085-0 01 1 1306- ●
406 PILLAR; CENTER 8-98069-086-0 01 1 1306- ●
407 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 1306- ●
407 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 1306- ●
408 GUSSET; PILLAR 8-97585-316-3 01 1 1306- ● ●
408 GUSSET; PILLAR 8-97585-317-4 01 1 1306- ● ●
424 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 1306- ●
424 SEAL; CLOSING
BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 1306- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1306- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1306- ●
433 NUT; HEADER SHELF
M6 		9-09114-086-0 04 1 1306- ●
437 BRACKET; ROOF RAIL 8-98039-019-0 01 1 1306- ● ●
437 BRACKET; ROOF RAIL 8-98039-020-0 01 1 1306- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-451-0 01 1 1306- ● ●
481 PANEL; SIDE FRT PILLAR 8-98055-470-0 01 1 1306- ● ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 1306- ●
482 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 1306- ●
483 PANEL; SIDE CANTRAIL
(C) 		8-98069-095-0 02 1 1306- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 1306- ●
556 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 1306- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 1306- ●
556 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 1306- ●
649 NUT; POP
M5 POP NUT SOU 		8-97249-574-0 02 1 1306- ● ●
661 BRACKET; SIDE PANEL 8-98012-621-1 01 1 1306- ●
661 BRACKET; SIDE PANEL 8-98012-623-1 01 1 1306- ●
662 BRACKET; DUCT 8-97584-611-1 01 1 1306- ●
662 BRACKET; DUCT 8-98006-778-1 01 1 1306- ●
663 BRACKET; AIR
(A) 		8-97585-207-2 01 1 1306- ● ●
663 BRACKET; AIR
(A) 		8-97585-208-2 01 1 1306- ● ●
663 BRACKET; AIR
(B) 		8-98020-643-1 02 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 1306- ●
665 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 02 1 1306- ●
676 SEAL
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1306- ● ●
