Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#12288) — 40 parça
◀
[057A] '03/2- HOSE CLIP (2 parça)

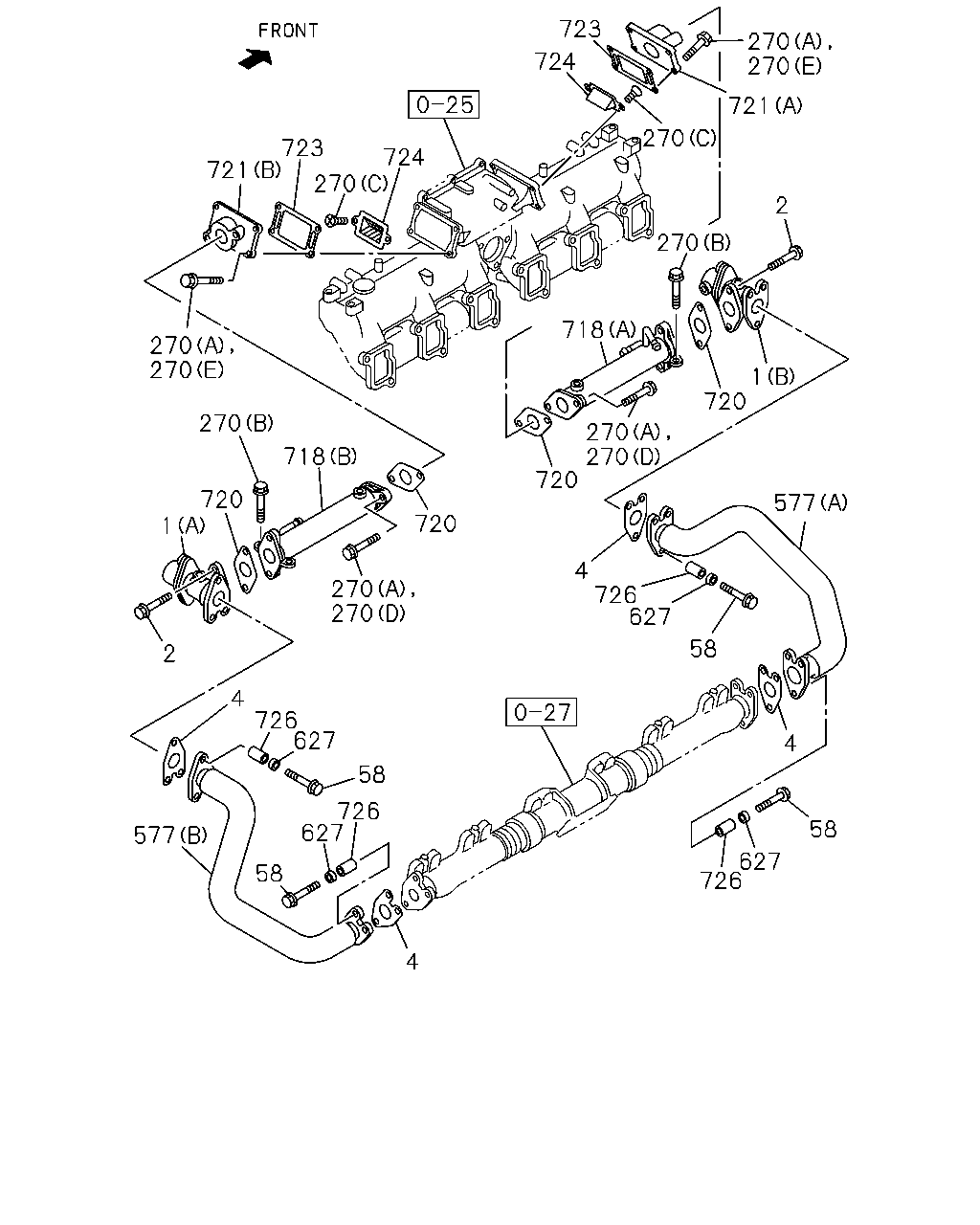

[057A] '03/2- PIPE,EGR COOLER AND OTHER PARTS (28 parça)

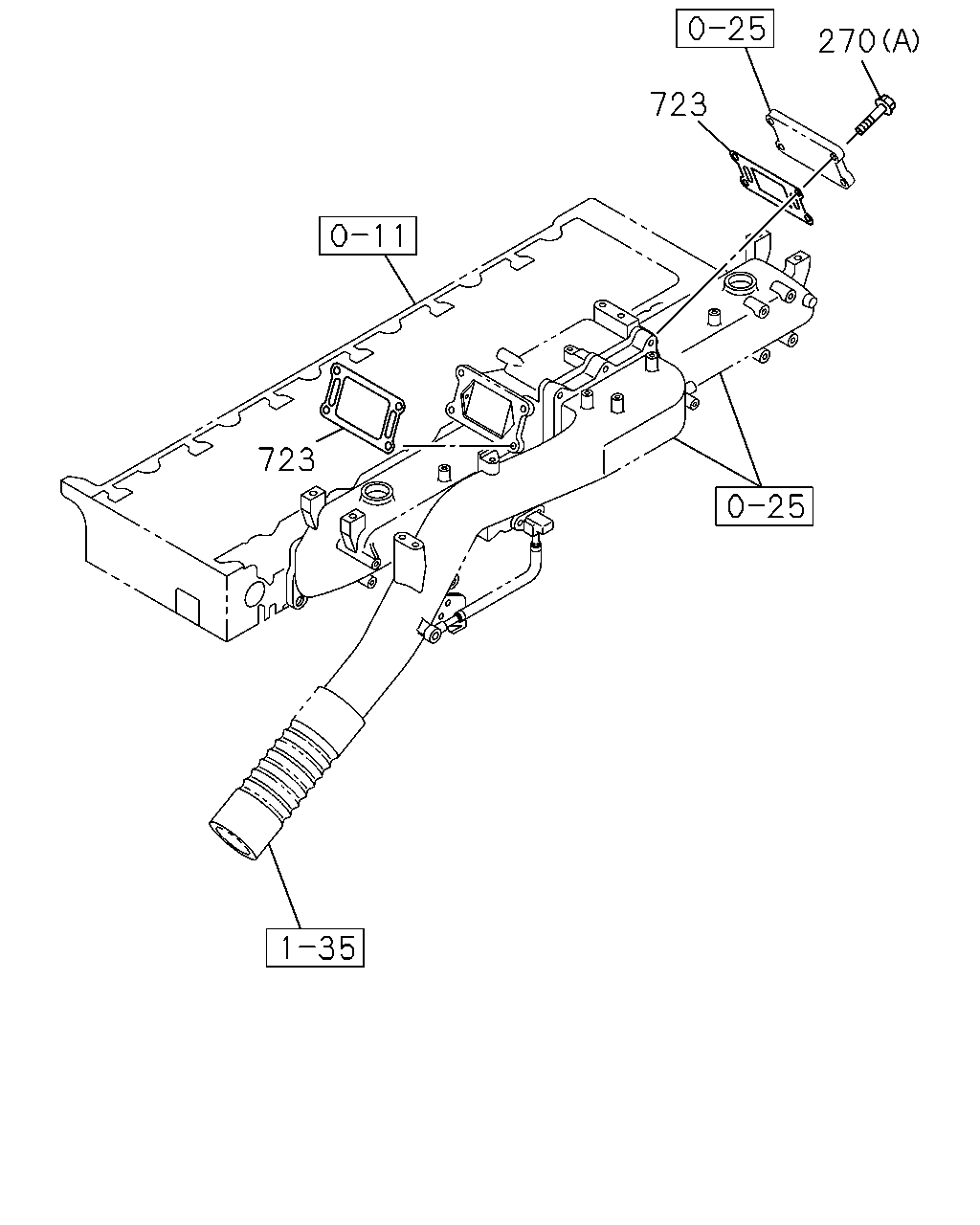

[057A] -'03/1 (10 parça)
▶
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
CLIP; HOSE
ID=10 & 10
1-09709-277-1
02
1
0310-
49
CLIP; HOSE
ID=10 & 10
1-09709-277-1
02
1
0302-0309
723
270
270
724
721
270
723
721
724
270
2
270
718
270
270
1
720
270
270
270
720
718
720
577
720
1
4
726
627
270
270
58
2
4
726
627
4
58
726
627
58
577
627
726
58
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
(A)
1-16110-015-2
01
1
0302-
1
VALVE; EGR
(B)
1-16110-016-2
01
1
0302-
2
BOLT; EGR VLV
M10X20 FLANGE
0-28181-020-0
04
1
0302-0512
2
BOLT; EGR VLV
M10X20 FLANGE
0-28151-020-0
04
1
0601-
4
GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
1-16157-015-0
04
1
0302-
58
BOLT; PIPE
M10X55 FLANGE
8-94399-863-1
12
1
0302-
270
BOLT
(E) M10X35 FLANGE
0-28181-035-0
08
1
0407-0512
270
BOLT
(E) M10X35 FLANGE
0-28151-035-0
08
1
0601-
270
BOLT
(A) M10X30 FLANGE
0-28181-030-0
08
1
0105-0301
270
BOLT
(A) M10X30 FLANGE
0-28181-030-0
12
1
0302-0406
270
BOLT
(D) M10X30 FLANGE
0-28181-030-0
04
1
0407-0512
270
BOLT
(D) M10X30 FLANGE
0-28151-030-0
04
1
0601-
270
BOLT
(B) M10X20 FLANGE
0-28181-020-0
04
1
0302-0512
270
BOLT
(B) M10X20 FLANGE
0-28151-020-0
04
1
0601-
270
BOLT
(C) M6X12 HEX SOCKET
9-05820-612-0
04
1
0302-
577
PIPE; AIR,EGR
(A)
1-16181-083-2
01
1
0302-
577
PIPE; AIR,EGR
(B)
1-16181-084-2
01
1
0302-
627
WASHER; LK,EGR PIPE
T=2.2
1-09556-015-0
12
1
0302-
718
COOLER; EGR
(A)
1-16127-016-2
01
1
0302-
718
COOLER; EGR
(B)
1-16127-017-2
01
1
0302-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-16157-016-0
04
1
0302-
721
DUCT; COOLER
(A)
1-16183-035-1
01
1
0302-0406
721
DUCT; COOLER
(A)
1-16183-064-0
01
1
0407-
721
DUCT; COOLER
(B)
1-16183-036-1
01
1
0302-0406
721
DUCT; COOLER
(B)
1-16183-065-0
01
1
0407-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
1-16185-004-0
02
1
0105-
724
VALVE; REED
8-98186-738-0
02
1
0302-
726
TUBE; DISTANCE
L=28
8-97250-073-1
12
1
0302-
270
723
723
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
270
BOLT
(E) M10X35 FLANGE
0-28181-035-0
08
1
0407-0512
270
BOLT
(E) M10X35 FLANGE
0-28151-035-0
08
1
0601-
270
BOLT
(A) M10X30 FLANGE
0-28181-030-0
08
1
0105-0301
270
BOLT
(A) M10X30 FLANGE
0-28181-030-0
12
1
0302-0406
270
BOLT
(D) M10X30 FLANGE
0-28181-030-0
04
1
0407-0512
270
BOLT
(D) M10X30 FLANGE
0-28151-030-0
04
1
0601-
270
BOLT
(B) M10X20 FLANGE
0-28181-020-0
04
1
0302-0512
270
BOLT
(B) M10X20 FLANGE
0-28151-020-0
04
1
0601-
270
BOLT
(C) M6X12 HEX SOCKET
9-05820-612-0
04
1
0302-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
1-16185-004-0
02
1
0105-
