◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#122879) — 64 parça

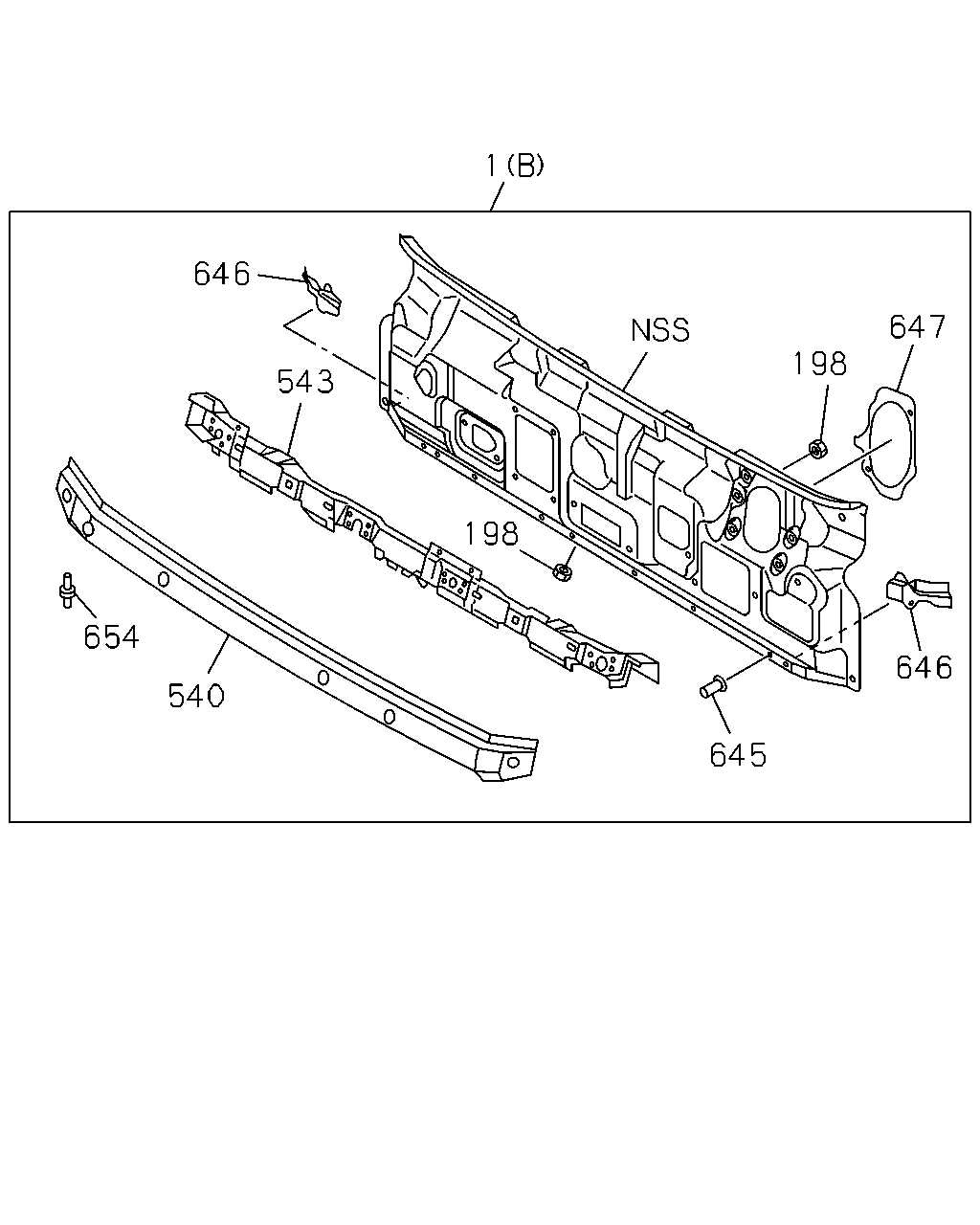

çizim 356568
1 646 543 198 654 540 645 646 647 198
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1306- ● ●
1 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1306- ● ●
198 NUT; PANEL
M6 		9-09114-086-0 04 1 1306- ● ●
540 PANEL; FRONT,OUTER 8-97585-325-3 01 1 1306- ● ●
543 CLOSING; FRT MTG RAIL 8-97585-328-5 01 1 1306- ● ●
645 STUD; FRT PANEL
M6X12 SOU 		8-98013-112-0 06 1 1306- ● ●
646 REINFORCEMENT; DASH 8-98023-098-1 01 1 1306- ● ●
646 REINFORCEMENT; DASH 8-98023-099-1 01 1 1306- ● ●
647 REINFORCEMENT; WIPER MOTOR 8-98006-327-0 01 1 1306- ● ●
654 PIN; FRT PANEL 8-98021-967-2 02 1 1306- ● ●

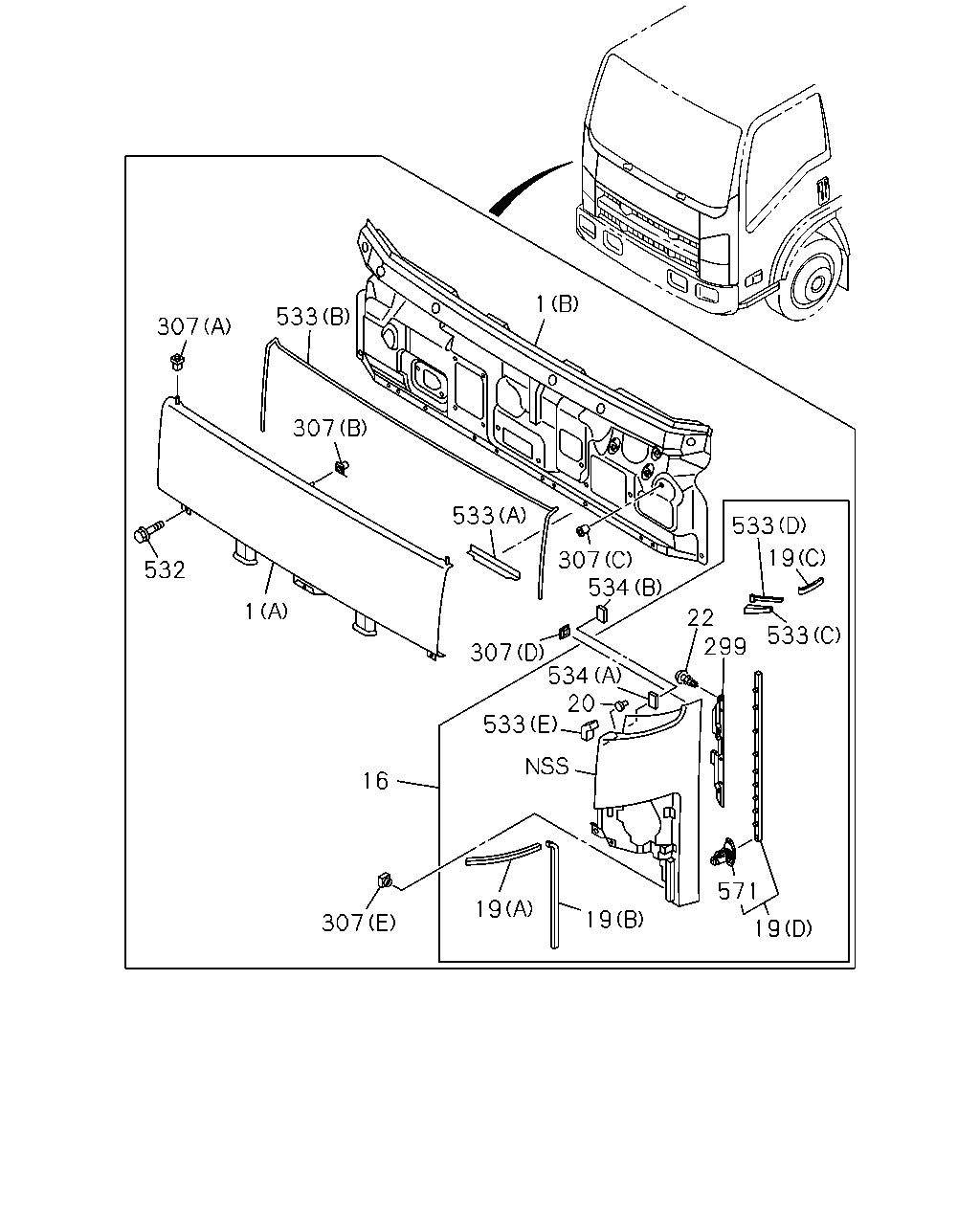

çizim 356904
1 533 307 307 533 307 534 307 1 532 16 307 19 533 534 20 22 299 533 19 533 571 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1306- ● ●
1 PANEL ASM; FRT
(B) 		8-98181-027-0 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-039-9 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97406-040-9 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-715-9 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97415-716-9 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-635-9 01 1 1306- ●
16 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97414-636-9 01 1 1306- ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-870-9 01 1 1306- ● ●
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97409-872-9 01 1 1306- ● ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-749-3 01 1 1306- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (D) 		8-98028-749-3 01 1 1306- ●
19 SEAL; FRT SIDE PANEL
(D) 		8-98028-750-3 01 1 1306- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (D) 		8-98028-750-3 01 1 1306- ●
19 SEAL; FRT SIDE PANEL
(A) 		8-98035-268-0 02 1 1306- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (A) 		8-98035-268-0 02 1 1306- ●
19 SEAL; FRT SIDE PANEL
(C) 		8-98038-608-0 02 1 1306- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (C) 		8-98038-608-0 02 1 1306- ●
19 SEAL; FRT SIDE PANEL
(B) 		8-98062-215-0 02 1 1306- ●
19 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (B) 		8-98062-215-0 02 1 1306- ●
20 CLIP; FRT PANEL SIDE 8-97410-739-1 04 1 1306- ●
20 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 		8-97410-739-1 04 1 1306- ●
22 SCREW; FRT PANEL SIDE
M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1306- ●
22 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1306- ●
299 COVER; FRT PANEL SIDE 8-98028-144-1 01 1 1306- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 		8-98028-144-1 01 1 1306- ●
299 COVER; FRT PANEL SIDE 8-98028-145-1 01 1 1306- ●
299 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 		8-98028-145-1 01 1 1306- ●
307 GROMMET; FRT PANEL
(D) 		8-97410-738-0 02 1 1306- ● ●
307 GROMMET; FRT PANEL
(E) 		8-98021-300-1 04 1 1306- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-968-0 01 1 1306- ● ●
307 GROMMET; FRT PANEL
(A) 		8-98021-969-0 01 1 1306- ● ●
307 GROMMET; FRT PANEL
(B) 		8-98023-229-1 01 1 1306- ● ●
307 GROMMET; FRT PANEL
(C) OD=20 		8-98034-363-1 04 1 1306- ● ●
532 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER 		0-52010-616-0 04 1 1306- ● ●
533 SEAL; FRT PANEL
(C) 		8-98043-509-0 01 1 1306- ●
533 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (C) 		8-98043-509-0 01 1 1306- ●
533 SEAL; FRT PANEL
(C) 		8-98043-510-0 01 1 1306- ●
533 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (C) 		8-98043-510-0 01 1 1306- ●
533 SEAL; FRT PANEL
(D) 		8-98043-511-1 02 1 1306- ●
533 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (D) 		8-98043-511-1 02 1 1306- ●
533 SEAL; FRT PANEL
(E) 		8-98064-939-0 02 1 1306- ●
533 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (E) 		8-98064-939-0 02 1 1306- ●
533 SEAL; FRT PANEL
(B) 		8-98021-964-4 01 1 1306-1506 ● ●
533 SEAL; FRT PANEL
(B) 		8-98309-764-0 01 1 1507- ● ●
533 SEAL; FRT PANEL
(A) 		8-98021-965-2 01 1 1306- ● ●
534 FASTENER
(A) 40X25 		8-98089-412-1 02 1 1306- ●
534 FASTENER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) (A) 40X25 		8-98089-412-1 02 1 1306- ●
534 FASTENER
(B) 40X25 		8-98089-411-1 02 1 1306- ● ●
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1306- ●
571 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 20 1 1306- ●

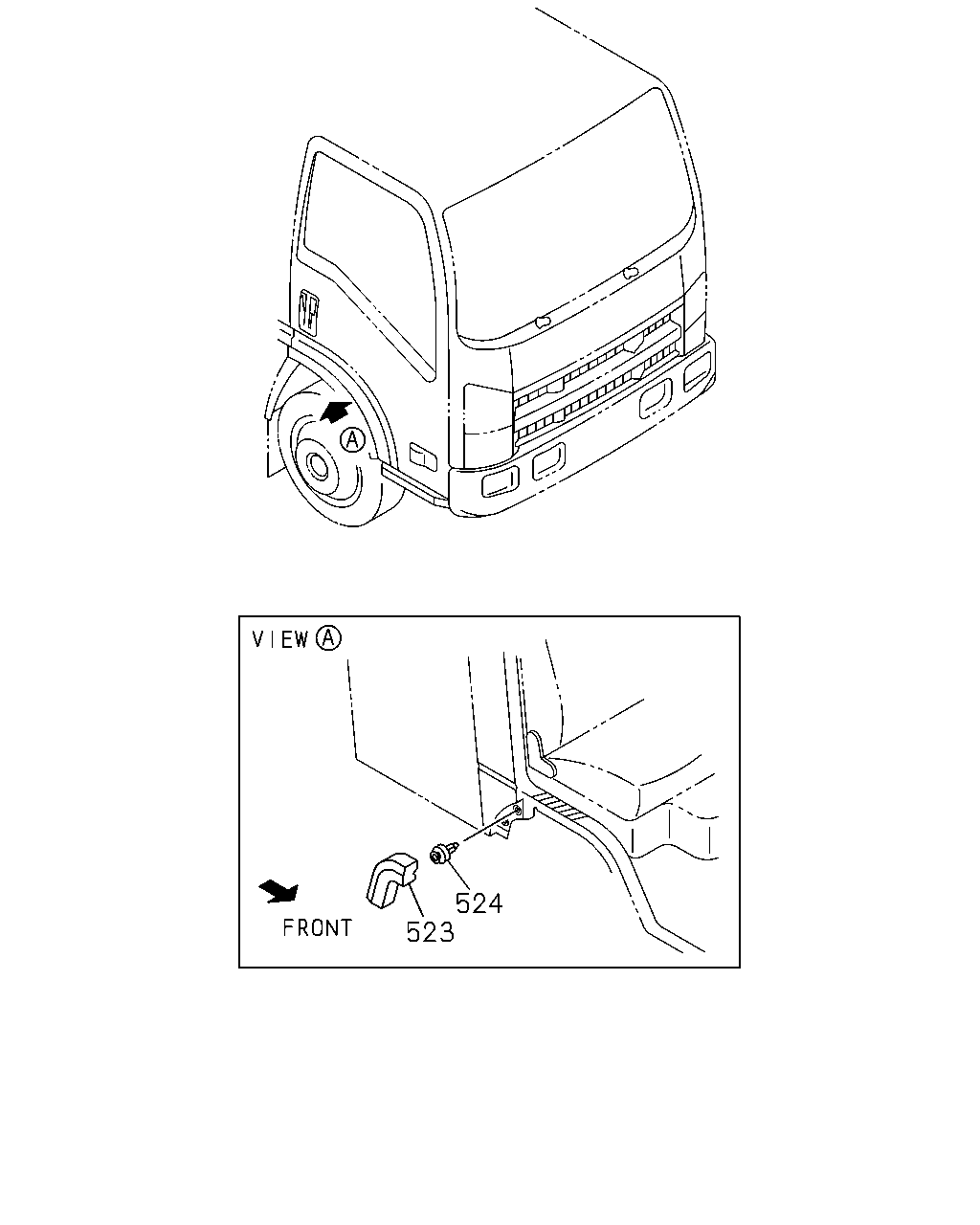

çizim 358948
523 524
BalonParca AdiParca NoAdetTipApplied Date A B
523 COVER; FENDER RR 8-97410-295-2 01 1 1306- ●
523 COVER; FENDER RR 8-97410-296-2 01 1 1306- ●
524 CLIP; FENDER COVER
OD=8.5 GRAY SOU 		8-97893-482-0 06 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
