Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#122875) — 38 parça
Tümü
A - NPS5WN
B - NPS5SN
◀

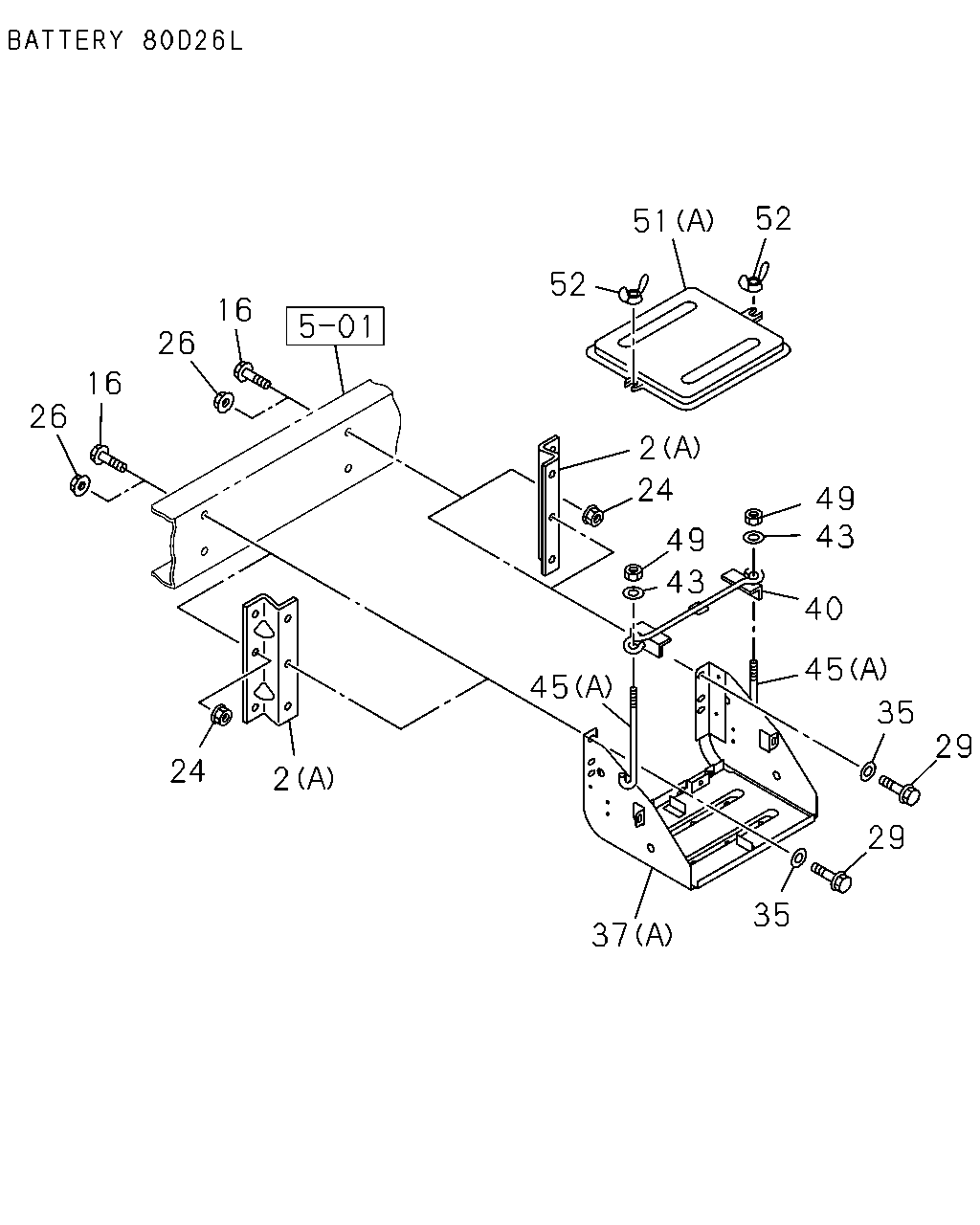

[520A] NO.1 (21 parça)

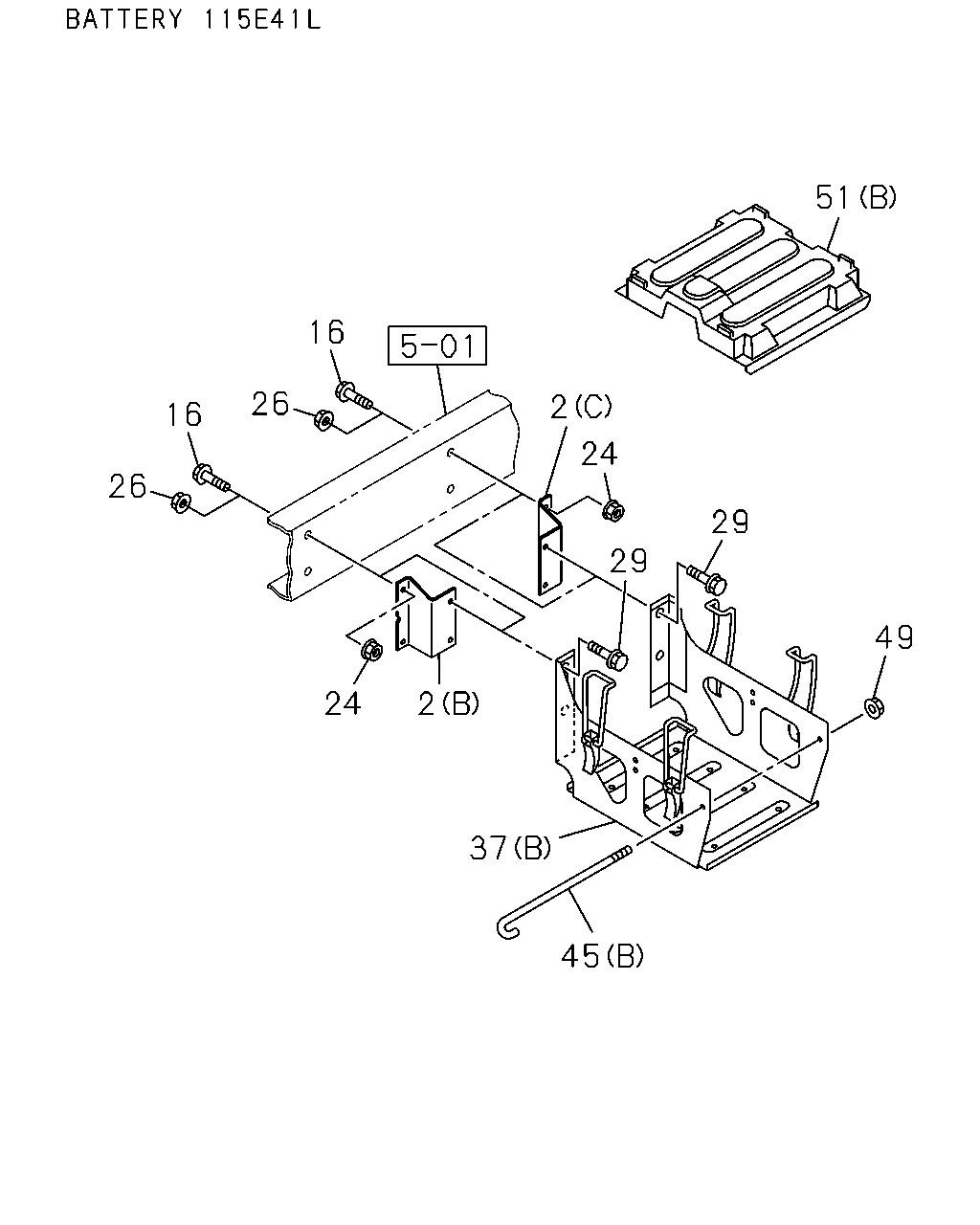

[520A] NO.2 (17 parça)
▶
51
52
2
24
49
49
43
43
40
45
45
35
29
29
35
37
2
24
26
16
26
16
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> (A)
8-97384-069-1
02
1
1408-
●
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> (B)
8-98207-429-1
01
1
1408-
●
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> (C)
8-98207-430-1
01
1
1408-
●
16
BOLT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> M10X35 FLANGE SOU
0-28651-035-0
04
1
1408-
●
24
NUT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> M10 FLANGE SOU
0-91180-110-0
03
1
1408-
●
24
NUT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> M10 FLANGE SOU
0-91180-110-0
04
1
1408-
●
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1306-1407
●
●
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1408-
●
26
NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE SOU
0-91180-210-0
04
1
1408-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
1306-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1> ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
1306-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1306-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1306-
●
●
40
CLAMP; BATTERY
BATTERY 80D26L<TM1>
5-53615-004-1
01
1
1306-
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1> ID=8.4 OD=22
0-91614-708-0
02
1
1306-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120 SOU
9-53616-615-0
02
1
1306-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B) L=430
8-97134-740-0
02
1
1306-
●
●
49
NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE SOU
0-91180-108-0
02
1
1306-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1> (A)
8-97120-747-0
01
1
1306-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
1306-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1> M8 WING NUT
0-91118-408-0
02
1
1306-
●
●
51
16
2
24
29
29
49
45
37
2
24
26
16
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> (A)
8-97384-069-1
02
1
1408-
●
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> (B)
8-98207-429-1
01
1
1408-
●
2
BRACKET; BATTERY
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> (C)
8-98207-430-1
01
1
1408-
●
16
BOLT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> M10X35 FLANGE SOU
0-28651-035-0
04
1
1408-
●
24
NUT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> M10 FLANGE SOU
0-91180-110-0
03
1
1408-
●
24
NUT; BRKT TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> M10 FLANGE SOU
0-91180-110-0
04
1
1408-
●
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1306-1407
●
●
26
NUT; BRKT
M10 FLANGE SOU
0-91180-210-0
04
1
1408-
●
26
NUT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE SOU
0-91180-210-0
04
1
1408-
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28661-035-0
04
1
1306-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1306-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1306-
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1> (A) L=120 SOU
9-53616-615-0
02
1
1306-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (B) L=430
8-97134-740-0
02
1
1306-
●
●
49
NUT; ROD,BATTERY
BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> M8 FLANGE SOU
0-91180-108-0
02
1
1306-
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1> (A)
8-97120-747-0
01
1
1306-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (B)
1-53612-029-1
01
1
1306-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
