Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#122873) — 84 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

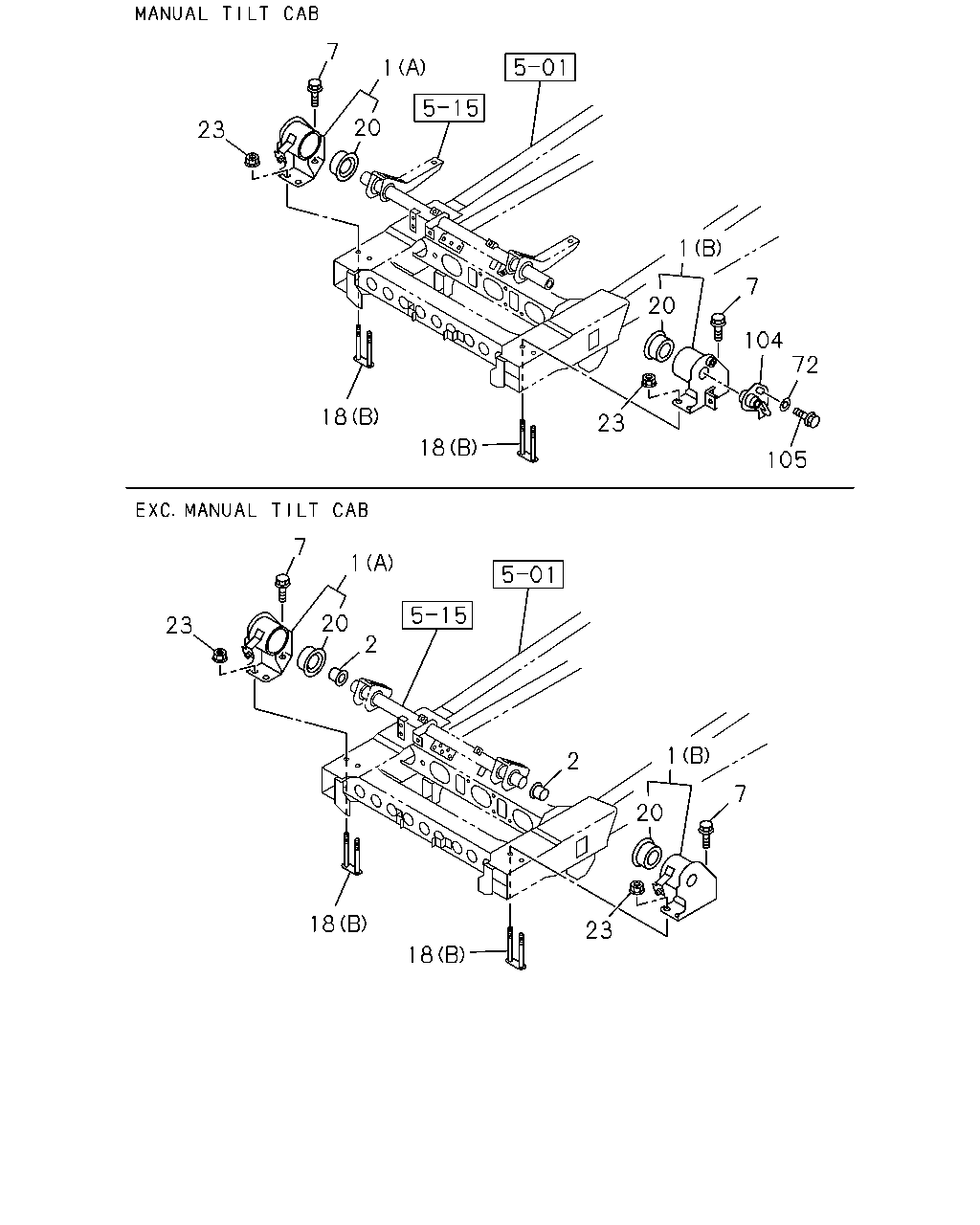

[510A] CAB MTG BRKT FRONT (14 parça)
[510A] CAB MTG BRKT REAR;MANUAL TILT CAB (28 parça)
[510A] CAB MTG BRKT REAR;EXC.MANUAL TILT CAB (26 parça)
[510A] CAB MTG BRKT REAR;DBL CAB (16 parça)
▶
23
20
1
7
18
18
23
105
72
104
7
1
20
1
7
23
20
2
2
1
7
20
23
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BRACKET; CAB MTG
(A)
8-98074-798-2
01
1
1306-
●
●
1
BRACKET; CAB MTG
MANUAL TILT CAB<RWZ> (B)
8-98020-467-5
01
1
1306-
●
1
BRACKET; CAB MTG
EXC. MANUAL TILT CAB<RWZ> (B)
8-98074-800-2
01
1
1306-
●
1
BRACKET; CAB MTG
(B)
8-98074-800-2
01
1
1306-
●
2
BUSHING; TORSION BAR
EXC. MANUAL TILT CAB<RWZ>
8-97061-514-0
02
1
1306-
●
2
BUSHING; TORSION BAR
8-97061-514-0
02
1
1306-
●
7
BOLT; BRKT,CAB TILT
M14X40 FLANGE
0-28661-440-0
02
1
1306-
●
●
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1306-
●
●
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1306-
●
●
20
RUBBER; MTG,CAB BRKT
8-98007-037-1
02
1
1306-
●
●
23
NUT; MTG BRKT
M14
8-98039-989-0
04
1
1306-
●
●
72
WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
1306-
●
104
BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97383-788-1
01
1
1306-
●
105
BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> M14X35 FLANGE
0-28661-435-0
01
1
1306-
●

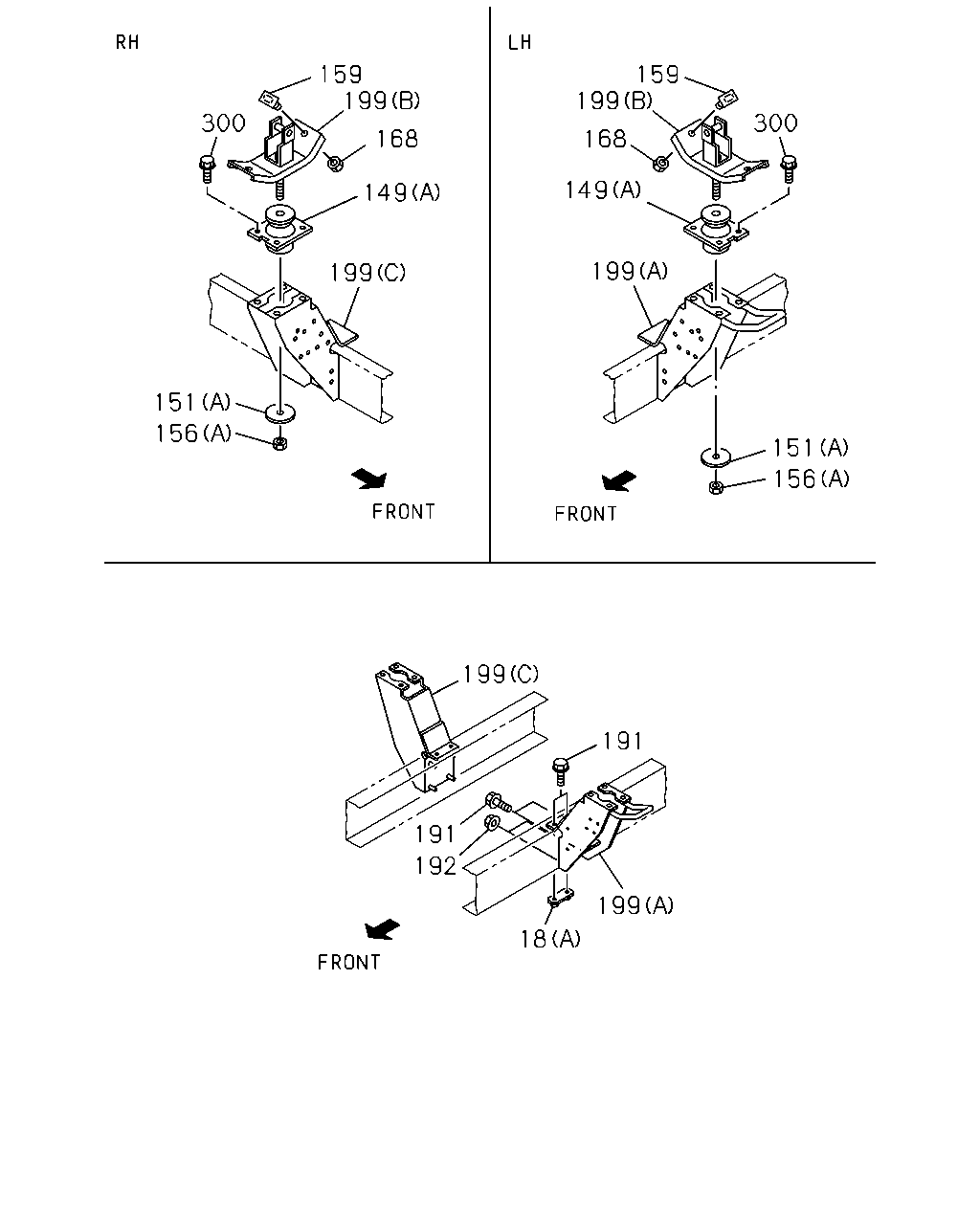

300
159
199
168
149
199
151
156
199
168
159
149
199
300
151
156
199
191
191
192
18
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1306-
●
●
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=35
8-97256-684-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
8-97256-686-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) ID=15 OD=36
0-91614-714-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=16 OD=60
8-97359-044-1
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M14 SOU
0-91110-514-0
04
1
1306-
●
159
RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
1306-
●
168
NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> M8 FLANGE SOU
0-91180-108-0
04
1
1306-
●
191
BOLT; BRKT FIX
M12X40 FLANGE SOU
0-28651-240-0
08
1
1306-
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
08
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98036-883-0
02
1
1306-
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C)
8-98178-617-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98178-618-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (D)
8-98024-778-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
(D)
8-98024-778-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (C)
8-98099-144-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
(C)
8-98099-144-1
01
1
1306-
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
1306-
●
●

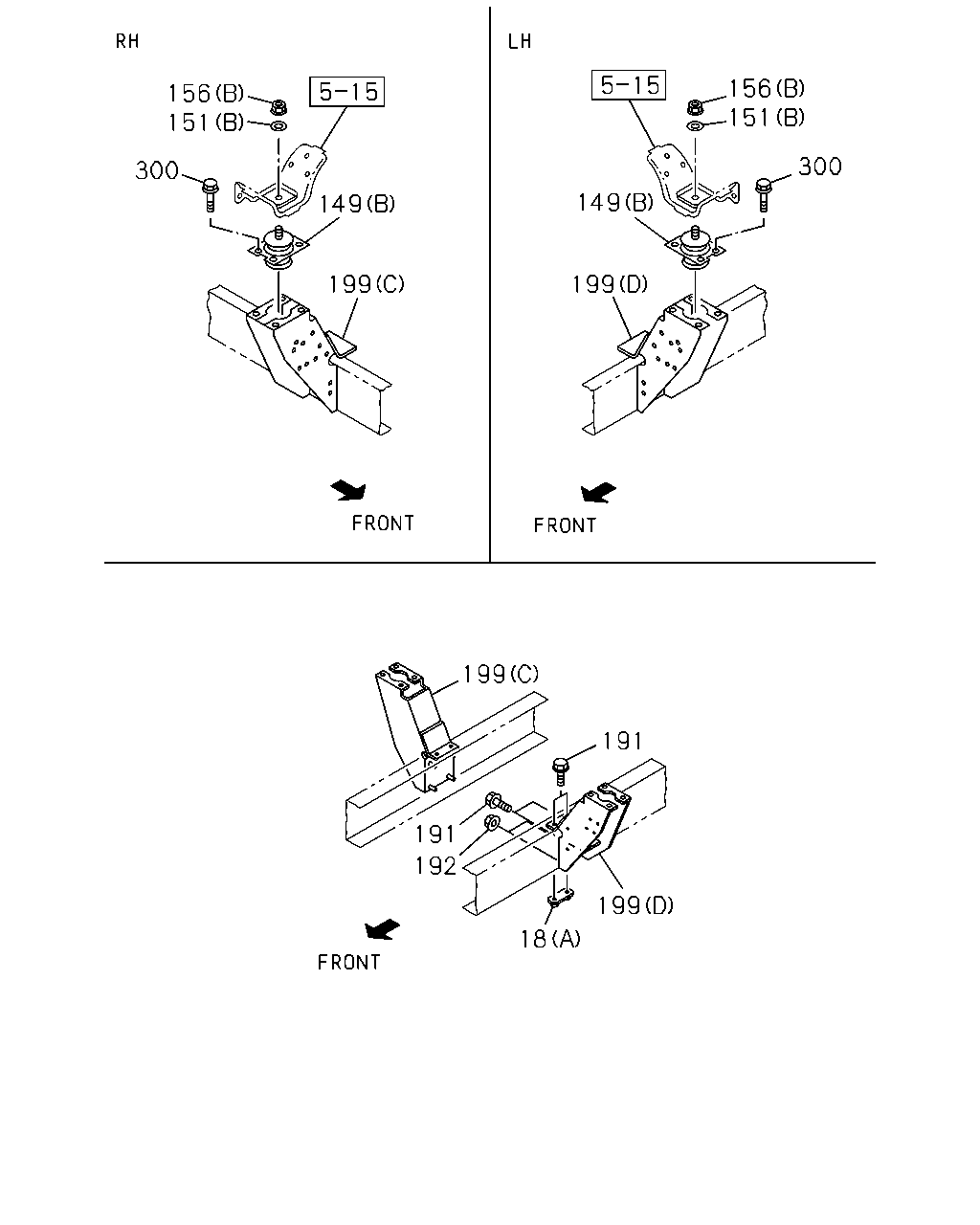

156
151
300
149
199
199
191
199
18
192
191
199
149
151
156
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
18
PLATE; MTG BRKT FIX
(A)
8-97034-139-2
02
1
1306-
●
●
18
PLATE; MTG BRKT FIX
(B)
8-98029-285-1
02
1
1306-
●
●
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=35
8-97256-684-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
8-97256-686-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) ID=15 OD=36
0-91614-714-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=16 OD=60
8-97359-044-1
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M14 SOU
0-91110-514-0
04
1
1306-
●
191
BOLT; BRKT FIX
M12X40 FLANGE SOU
0-28651-240-0
08
1
1306-
●
●
192
NUT; BRKT FIX
M12 FLANGE
0-91180-112-0
08
1
1306-
●
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98036-883-0
02
1
1306-
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (C)
8-98178-617-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98178-618-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (D)
8-98024-778-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
(D)
8-98024-778-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
EXC. MANUAL TILT CAB<RWZ> (C)
8-98099-144-1
01
1
1306-
●
199
BRACKET; CAB RR MTG
(C)
8-98099-144-1
01
1
1306-
●
300
BOLT; MTG RUBBER
M10X20 FLANGE
0-28651-020-0
08
1
1306-
●
●

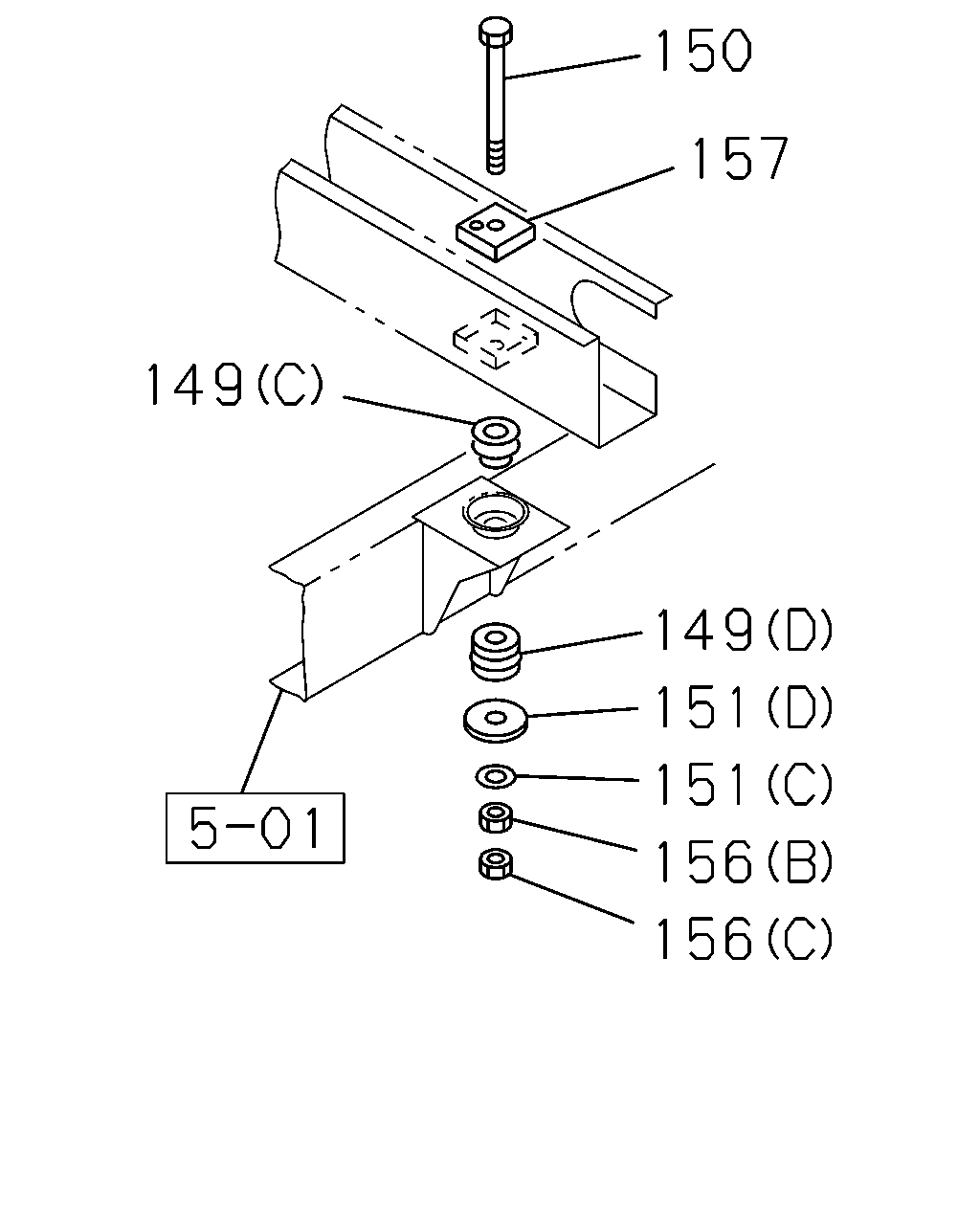

150
157
149
151
149
151
156
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
149
RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ> (A) H=62
8-98021-561-1
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
EXC. MANUAL TILT CAB<RWZ> (B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(B) H=94
8-98038-868-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(C) H=35
8-97256-684-0
02
1
1306-
●
149
RUBBER; MTG,CAB,UPR RR
(D) H=26.5
8-97256-686-0
02
1
1306-
●
150
BOLT; CAB MTG RR
M14X110
8-97365-192-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
MANUAL TILT CAB<RWZ> (A) ID=17 OD=62
8-97359-042-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
EXC. MANUAL TILT CAB<RWZ> (B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(B) ID=16.5 OD=58
8-97359-040-1
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(C) ID=15 OD=36
0-91614-714-0
02
1
1306-
●
151
WASHER; CAB MTG,RR UPR
(D) ID=16 OD=60
8-97359-044-1
02
1
1306-
●
156
NUT; CAB MTG RR
MANUAL TILT CAB<RWZ> (A) M16 SOU
0-91111-516-0
02
1
1306-
●
156
NUT; CAB MTG RR
EXC. MANUAL TILT CAB<RWZ> (B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(B) M14 FLANGE
0-91180-114-0
02
1
1306-
●
156
NUT; CAB MTG RR
(C) M14 SOU
0-91110-514-0
04
1
1306-
●
157
RUBBER; MTG,CAB,TOP RR
8-97256-685-0
02
1
1306-
●
