5-01 — FRAME AND OTHER PARTS (#122872) — 116 parça

376 376 376 376 376 376 376 376 376 376 376 376 376 221 176 176 296 67 222 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	NUT; C/MBR 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> M10 FLANGE SOU	0-91180-210-0	17	1	1409-	●
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	18	1	1306-1409	●	●
67	NUT; C/MBR M10 FLANGE SOU	0-91180-210-0	18	1	1410-		●
67	NUT; C/MBR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10 FLANGE SOU	0-91180-210-0	18	1	1410-	●
67	NUT; C/MBR 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> M10 FLANGE SOU	0-91180-210-0	18	1	1410-	●
118	NUT; STOPPER M8 LOCK NUT SOU	0-91370-008-0	02	1	1306-	●	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE	0-28051-030-0	04	1	1306-	●	●
176	BOLT; C/MBR,ENG MTG (A) M10X25 FLANGE SOU	0-28651-025-0	02	1	1306-	●	●
176	BOLT; C/MBR,ENG MTG (B) M10X30 FLANGE SOU	0-28651-030-0	02	1	1306-	●	●
221	BOLT; RAD MTG BRKT,FRAME M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-1409	●	●
221	BOLT; RAD MTG BRKT,FRAME M8X25 FLANGE SOU	0-28650-825-0	02	1	1410-1505		●
221	BOLT; RAD MTG BRKT,FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU	0-28650-825-0	02	1	1410-1505	●
221	BOLT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU	0-28650-825-0	02	1	1506-		●
221	BOLT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU	0-28650-825-0	02	1	1506-	●
222	NUT; RAD MTG BRKT,FRAME M8 FLANGE SOU	0-91180-208-0	02	1	1306-1409	●	●
222	NUT; RAD MTG BRKT,FRAME M8 FLANGE SOU	0-91180-208-0	02	1	1410-1505		●
222	NUT; RAD MTG BRKT,FRAME EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-208-0	02	1	1410-1505	●
222	NUT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8 FLANGE SOU	0-91180-208-0	02	1	1506-		●
222	NUT; RAD MTG BRKT,FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-208-0	02	1	1506-	●
296	BOLT; 3RD C/MBR 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> M10X30 FLANGE SOU	0-28651-030-0	15	1	1409-	●
296	BOLT; 3RD C/MBR M10X30 FLANGE SOU	0-28651-030-0	16	1	1306-1409	●	●
296	BOLT; 3RD C/MBR M10X30 FLANGE SOU	0-28651-030-0	16	1	1410-		●
296	BOLT; 3RD C/MBR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M10X30 FLANGE SOU	0-28651-030-0	16	1	1410-	●
296	BOLT; 3RD C/MBR 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> M10X30 FLANGE SOU	0-28651-030-0	16	1	1410-	●
376	RIVET; FRAME (A) D8X24 TAPER END	9-06750-824-0	AR	1	1306-	●	●
376	RIVET; FRAME (A) D8X24 PLATED TAPER END	0-67800-824-0	AR	1	1306-	●	●
376	RIVET; FRAME (B) D10X22 TAPER END	9-06751-022-0	AR	1	1306-	●	●
376	RIVET; FRAME (B) D10X22 PLATED TAPER END	0-67801-022-0	AR	1	1306-	●	●
376	RIVET; FRAME (C) D10X24 TAPER END	9-06751-024-0	AR	1	1306-	●	●
376	RIVET; FRAME (D) D10X26 TAPER END	9-06751-026-0	AR	1	1306-	●	●
376	RIVET; FRAME (D) D10X26 PLATED TAPER END	0-67801-026-0	AR	1	1306-	●	●
376	RIVET; FRAME (E) D10X28 TAPER END	9-06751-028-0	AR	1	1306-	●	●
376	RIVET; FRAME (E) D10X28 PLATED TAPER END SOU	0-67801-028-0	AR	1	1306-	●	●
376	RIVET; FRAME (F) D10X30 TAPER END	9-06751-030-0	AR	1	1306-	●	●
376	RIVET; FRAME (F) D10X30 PLATED TAPER END	0-67801-030-0	AR	1	1306-	●	●
376	RIVET; FRAME (G) D10X32 TAPER END	9-06751-032-0	AR	1	1306-	●	●
376	RIVET; FRAME (G) D10X32 PLATED TAPER END	0-67801-032-0	AR	1	1306-	●	●
376	RIVET; FRAME (H) D10X36 TAPER END	9-06751-036-0	AR	1	1306-	●	●
376	RIVET; FRAME (H) D10X36 PLATED TAPER END	0-67801-036-0	AR	1	1306-	●	●
376	RIVET; FRAME (I) D11X26 TAPER END	9-06751-126-0	AR	1	1306-	●	●
376	RIVET; FRAME (I) D11X26 PLATED TAPER END	0-67801-126-0	AR	1	1306-	●	●
376	RIVET; FRAME (J) D11X30 TAPER END	9-06751-130-0	AR	1	1306-	●	●
376	RIVET; FRAME (J) D11X30 PLATED TAPER END	0-67801-130-0	AR	1	1306-	●	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	1306-	●	●
376	RIVET; FRAME (K) D12X30 PLATED TAPER END	0-67801-230-0	AR	1	1306-	●	●
376	RIVET; FRAME (L) D12X36 TAPER END	9-06751-236-0	AR	1	1306-	●	●
376	RIVET; FRAME (L) D12X36 PLATED TAPER END	0-67801-236-0	AR	1	1306-	●	●
376	RIVET; FRAME (M) D12X40 TAPER END	9-06751-240-0	AR	1	1306-	●	●
376	RIVET; FRAME (M) D12X40 PLATED TAPER END	0-67801-240-0	AR	1	1306-	●	●

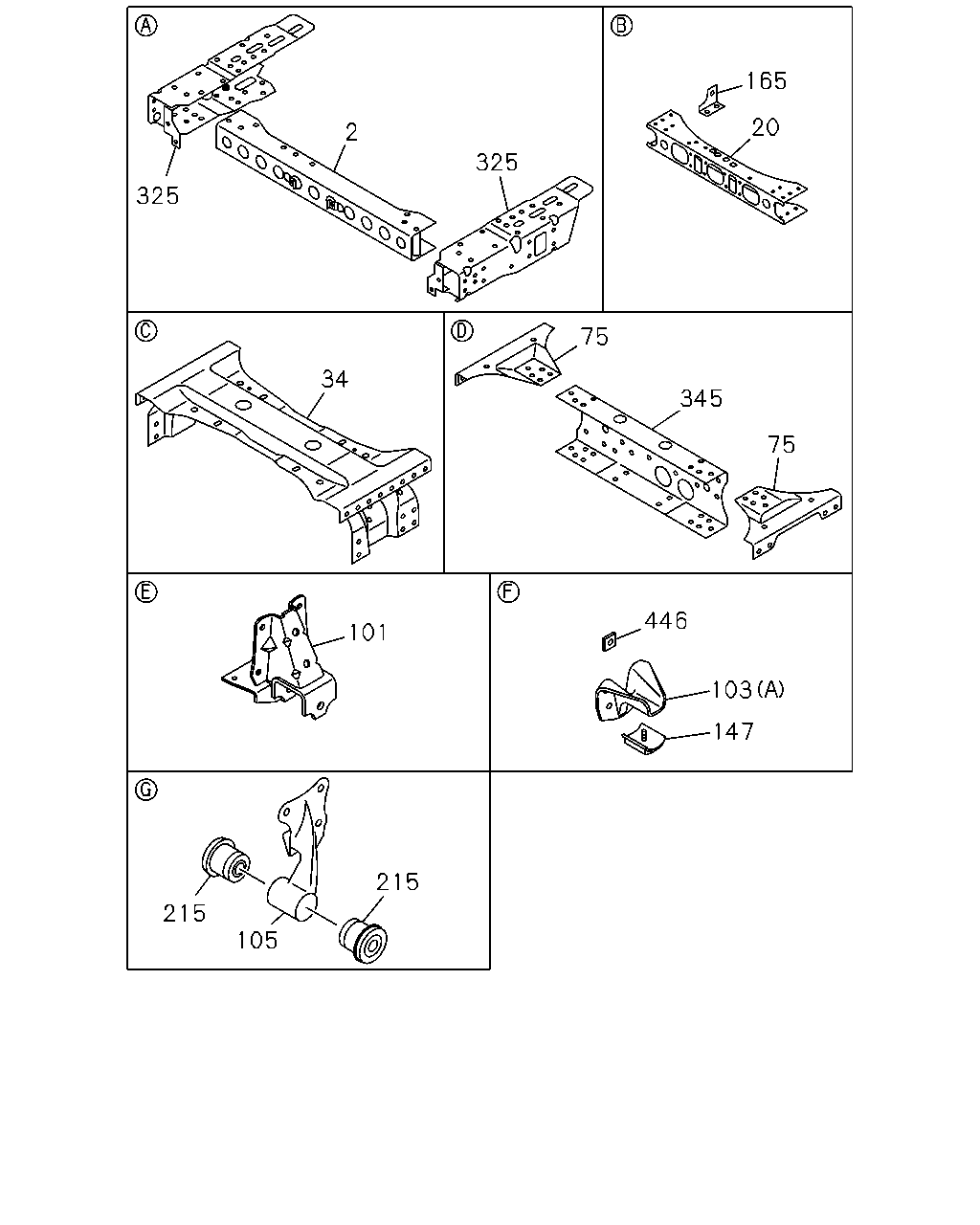

2 325 325 165 20 34 75 345 75 446 103 147 101 215 105 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97387-866-5	01	1	1306-	●	●
20	MEMBER; CROSS,2ND	8-98014-074-7	01	1	1306-	●	●
34	MEMBER; CROSS,3RD SOU	8-98074-639-4	01	1	1306-	●	●
75	GUSSET; 5TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-583-0	02	1	1306-	●	●
75	GUSSET; 5TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-584-0	02	1	1306-	●	●
101	BRACKET; RR SPR,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1>	8-98243-605-0	02	1	1409-1409	●
101	BRACKET; RR SPR,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA>	8-98243-605-0	02	1	1410-1505	●
101	BRACKET; RR SPR,FRT	8-98243-605-0	02	1	1506-	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1306-1409	●	●
101	BRACKET; RR SPR,FRT	8-97042-245-1	02	1	1410-1505		●
101	BRACKET; RR SPR,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-245-1	02	1	1410-1505	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	1306-	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	1306-	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-488-0	01	1	1306-	●	●
105	BRACKET; RR SPR,RR SOU	8-98032-489-0	01	1	1306-	●	●
147	RUBBER; SUB SPRING SOU	8-97254-387-0	04	1	1306-	●	●
165	BRACKET; RAD STAY SOU	8-98000-886-0	01	1	1306-	●	●
215	BUSHING; BRKT,RR SPRING SOU	8-97184-699-1	04	1	1306-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-348-1	01	1	1306-	●	●
325	EXTENSION; FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-349-0	01	1	1306-	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-344-1	01	1	1306-	●	●
325	EXTENSION; FRAME EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98073-345-0	01	1	1306-	●	●
345	MEMBER; CROSS,5TH SOU	8-97175-993-3	01	1	1306-	●	●
446	STIFFENER; SPRING STOPPER	8-97122-173-0	02	1	1306-	●	●

140 217 196 198 139 198 74 344 74 201 130 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
74	GUSSET; 4TH C/MBR RH-LOWER,LH-UPPER SOU	8-98000-583-0	02	1	1306-	●	●
74	GUSSET; 4TH C/MBR RH-UPPER,LH-LOWER SOU	8-98000-584-0	02	1	1306-	●	●
130	MEMBER; CROSS,END SOU	8-97080-872-0	01	1	1306-	●	●
139	MEMBER; CROSS,6TH SOU	8-97107-384-0	01	1	1306-	●	●
140	BRACKET; S/ABS,RR	8-97080-884-1	02	1	1306-	●	●
196	BRACKET; STAB TO FRAME	8-98033-523-0	02	1	1306-	●	●
198	GUSSET; 6TH C/MBR SOU	8-98092-777-1	01	1	1306-	●	●
198	GUSSET; 6TH C/MBR SOU	8-98092-778-1	01	1	1306-	●	●
201	GUSSET; C/MBR SOU	8-97096-871-0	02	1	1306-	●	●
217	BRACKET; HELPER RUBBER,RR SPRING SOU	8-97202-417-0	02	1	1306-	●	●
344	MEMBER; CROSS,4TH SOU	8-97175-993-3	01	1	1306-	●	●

51 51 42 24 63 141 141 43 103 31 31 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	BRACKET; FRT SPR,FRT	8-98059-775-0	02	1	1306-	●	●
31	BUSHING; FRT SPR,RR SOU	8-97184-699-1	04	1	1306-	●	●
39	BRACKET; FRT SPR,RR	8-98070-113-0	01	1	1306-	●	●
39	BRACKET; FRT SPR,RR	8-98070-114-0	01	1	1306-	●	●
42	MEMBER; CROSS,ENG MTG	8-98067-960-0	01	1	1306-	●	●
43	BRACKET; CAB MTG,RR	8-98061-560-1	01	1	1306-	●
43	BRACKET; CAB MTG,RR	8-98061-561-1	01	1	1306-	●
51	BRACKET; ENG SUPPORT,OUTER	8-98034-961-0	01	1	1306-	●	●
63	BRACKET; RAD MTG	8-97115-668-0	01	1	1306-	●	●
103	STOPPER; SUB SPR (B)	8-97079-659-1	02	1	1306-	●	●
103	STOPPER; SUB SPR (A) SOU	8-97223-748-0	04	1	1306-	●	●
141	STIFFENER	8-98064-354-2	01	1	1306-	●	●
141	STIFFENER	8-98064-355-2	01	1	1306-	●	●

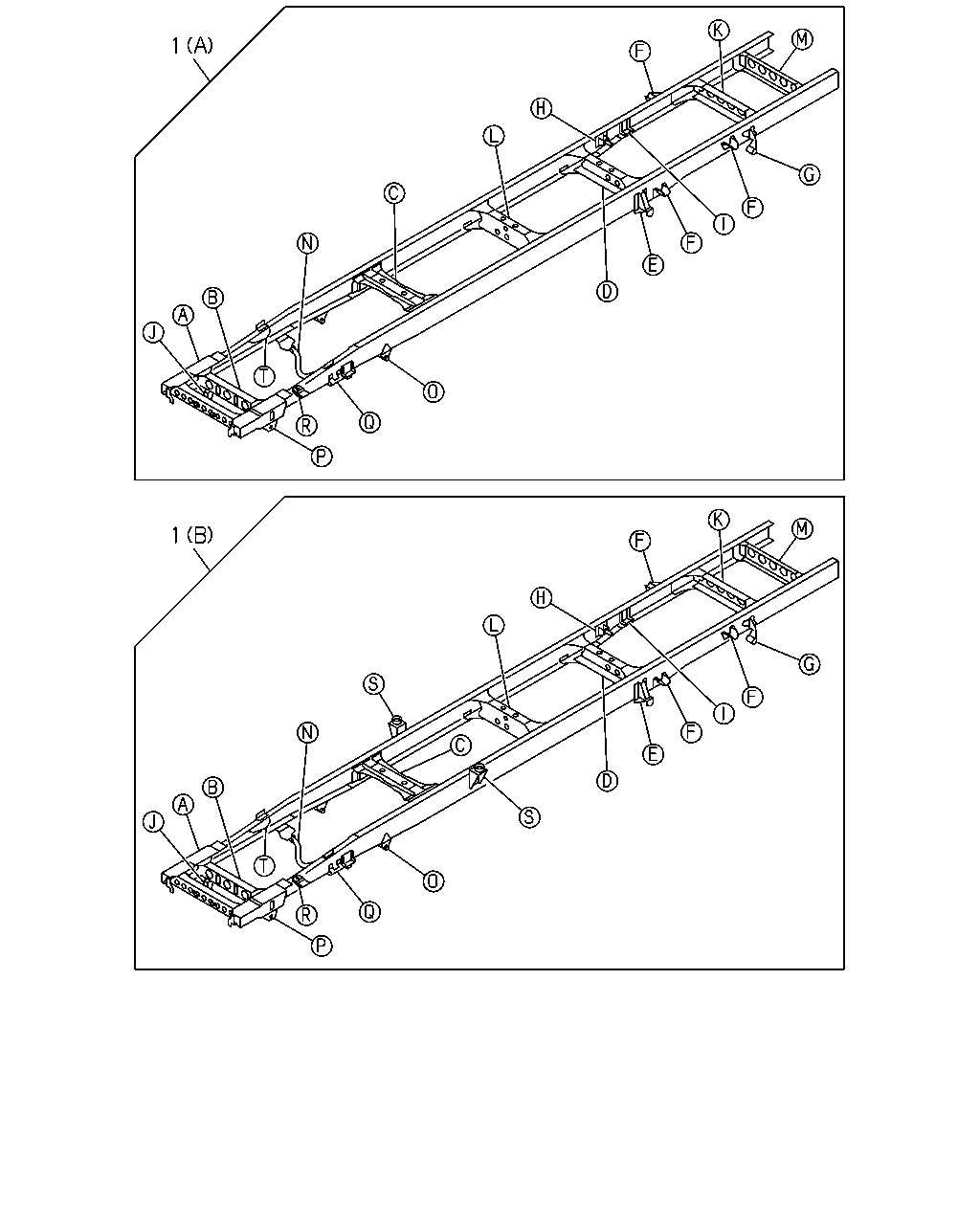

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> (B)	8-98288-765-1	01	1	1410-	●
1	FRAME ASM 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98289-337-1	01	1	1410-	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> (B)	8-98285-486-0	01	1	1407-1412	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> (B)	8-98305-510-1	01	1	1501-	●
1	FRAME ASM 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98285-485-0	01	1	1407-1409	●
1	FRAME ASM 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 80D26L<TM1> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98289-336-1	01	1	1410-	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98071-749-4	01	1	1306-		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98071-748-3	01	1	1306-1408		●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) SOU	8-98285-678-1	01	1	1409-		●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98071-751-3	01	1	1306-1406	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98071-751-3	01	1	1407-1409	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> BATTERY 115E41L<8MA> (B)	8-98071-751-3	01	1	1407-1409	●
1	FRAME ASM AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98071-751-4	01	1	1410-	●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98162-924-1	01	1	1306-1406	●
1	FRAME ASM 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98162-924-1	01	1	1407-1408	●
1	FRAME ASM BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) SOU	8-98162-924-1	01	1	1407-1408	●
1	FRAME ASM 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 115E41L<8MA> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) SOU	8-98285-682-0	01	1	1409-1409	●
1	FRAME ASM BATTERY 80D26L<TM1>,BATTERY 115E41L<8MA> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) SOU	8-98285-682-0	01	1	1409-1409	●
1	FRAME ASM EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,4 WHEEL ANTI LOCK BRAKE<JE5> (B) SOU	8-98285-682-1	01	1	1410-	●
