4-80 — ROAD WHEEL (#122871) — 14 parça

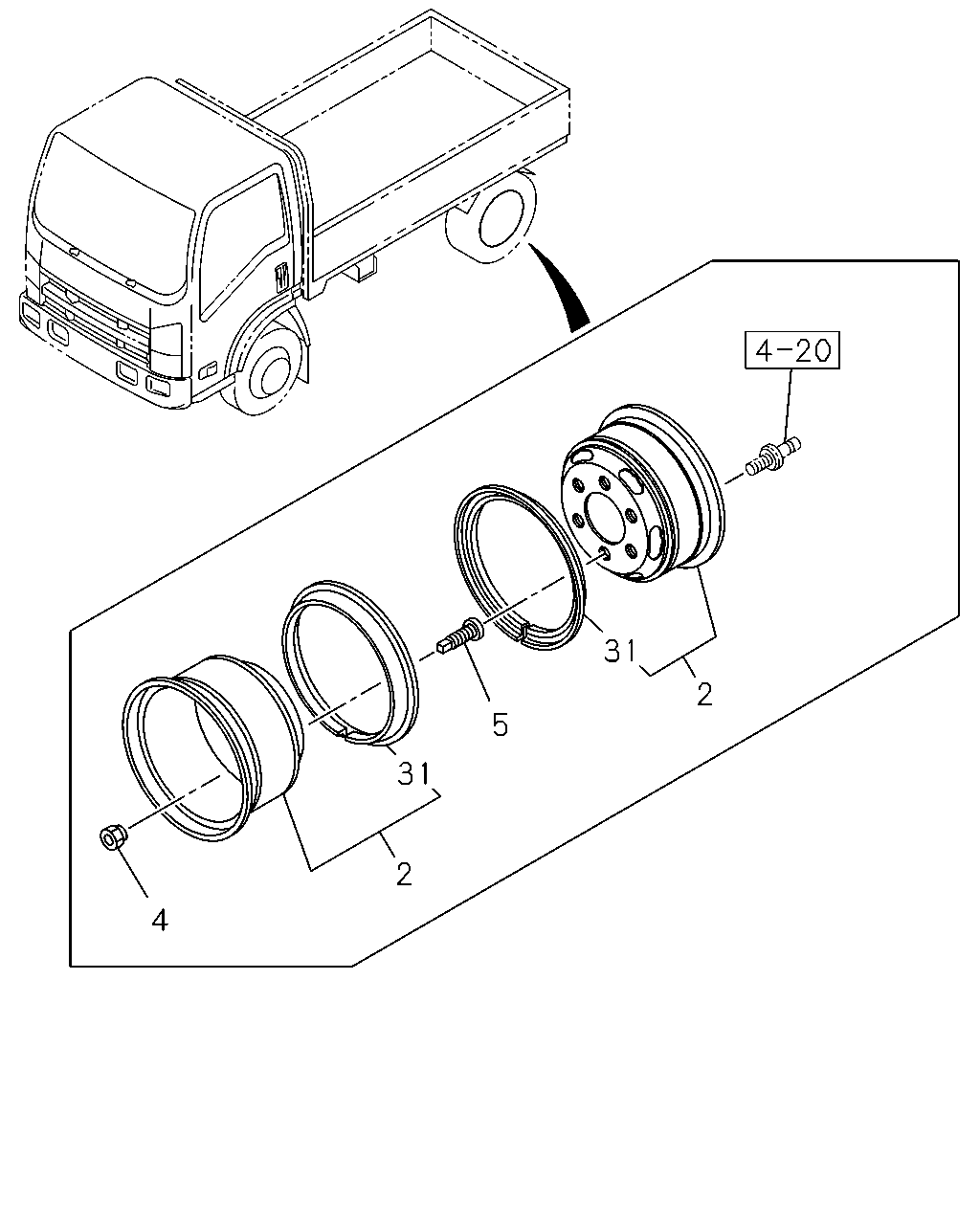

çizim 357034

2 31 5 31 2 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	1306-	●	●
	2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	1306-	●	●
	4	NUT; WHEEL,RR AXLE M30 RH THREAD SOU	8-97359-809-0	06	1	1306-	●	●
	4	NUT; WHEEL,RR AXLE M30 LH THREAD SOU	8-97359-810-0	06	1	1306-	●	●
	5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD SOU	8-97359-805-0	06	1	1306-	●	●
	5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD SOU	8-97359-806-0	06	1	1306-	●	●
	31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	1306-	●	●
	31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	1306-	●	●

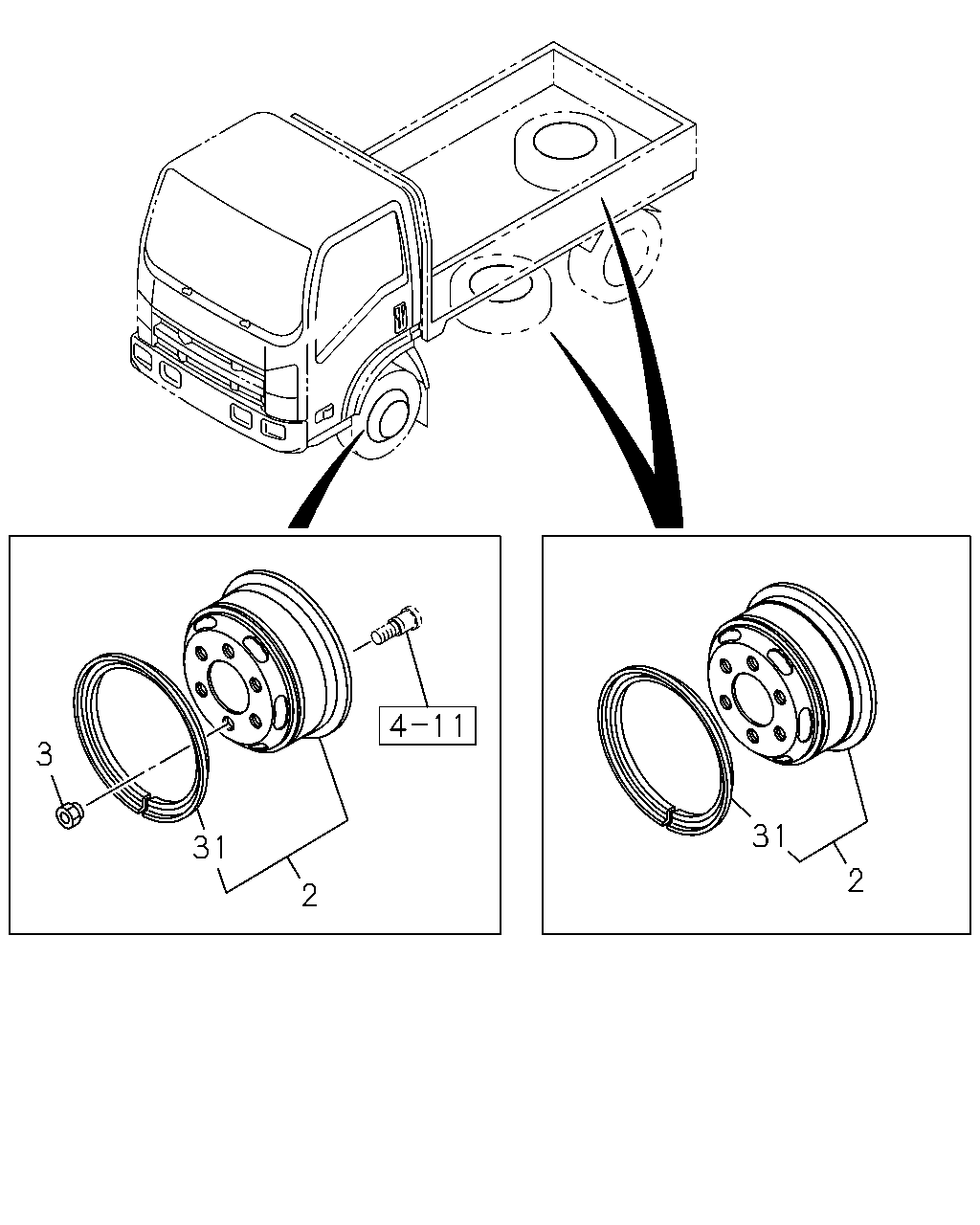

çizim 358920

2 31 2 31 3

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	WHEEL; DISC SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	01	1	1306-	●	●
	2	WHEEL; DISC FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE SOU	8-94438-670-4	06	1	1306-	●	●
	3	NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1306-	●	●
	3	NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1306-	●	●
	31	RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	01	1	1306-	●	●
	31	RING; SIDE,DISC WHEEL FRONT,REAR 16X6.00GS STAMP, BLACK SOU	8-94412-585-0	06	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
