◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#122870) — 27 parça

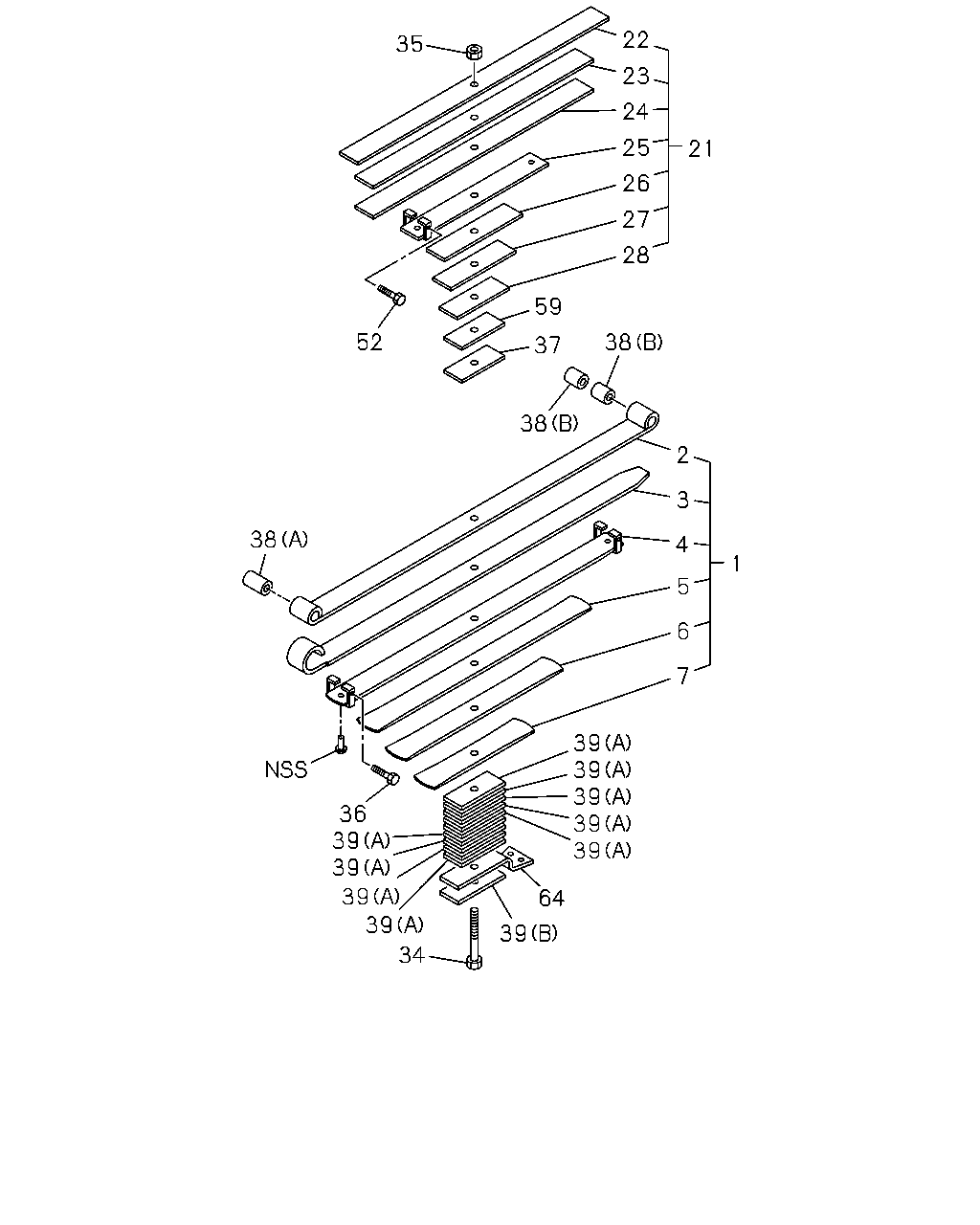

çizim 358740
1 7 6 5 4 3 2 38 38 37 59 28 27 26 25 21 24 23 22 35 52 38 39 39 39 39 39 64 39 34 39 39 39 39 36
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-402-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-403-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-404-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-405-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-406-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-407-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 8-98089-683-1 		8-98094-408-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-409-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-410-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-411-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-412-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-413-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-414-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-415-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
ASM PART: A = 8-98089-683-1 		8-98094-416-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: A = 8-98089-683-1 		8-98095-022-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M12 ASM PART: A = 8-98089-683-1 		9-99110-512-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M8X90.5 ASM PART: A = 8-98089-683-1 		8-94407-133-0 02 1 -
37 SPACER; CENTER,LEAF SPR,RR
ASM PART: A = 8-98089-683-1 		8-98095-025-0 01 1 -
38 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98089-683-1 		5-87610-163-0 01 1 -
38 BUSHING; LEAF SPR,RR
(B), OD=40 L=43.7 ASM PART: A = 8-98089-683-1 		8-94118-588-1 02 1 -
38 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98089-683-1 		8-97074-826-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
(A), T=9 ASM PART: A = 8-98089-683-1 		1-51377-139-0 09 1 -
39 SEAT; LEAF SPR,RR MAIN
(B), T=6 ASM PART: A = 8-98089-683-1 		8-94367-965-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M8X90.5 ASM PART: A = 8-98089-683-1 		8-94407-133-0 01 1 -
59 SEAT; RR SPRING,SUB
T=6 ASM PART: A = 8-98089-683-1 		8-94367-965-0 01 1 -
64 SUPPORT; RR SPR
ASM PART: A = 8-98089-683-1 		8-97044-353-2 01 1 -
