◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#122868) — 20 parça

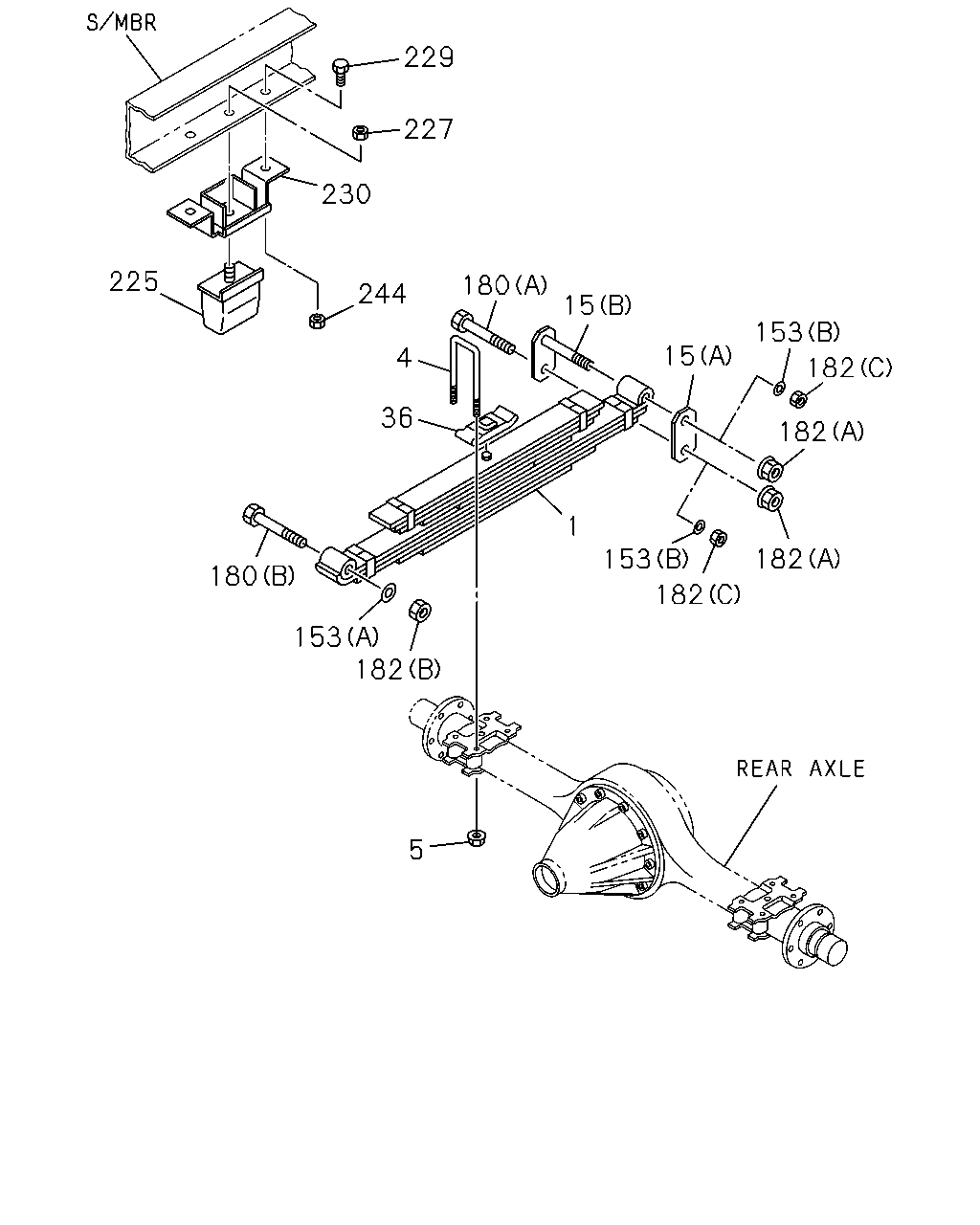

çizim 356405
182 153 15 182 182 182 153 1 5 182 153 180 36 4 244 230 227 229 225 180 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 13-LEAF 		8-98089-683-1 02 1 1306- ● ●
4 U-BOLT; RR SPR
L=420 		1-51371-196-2 04 1 1306- ● ●
5 NUT; U-BOLT,RR SPR
M18 FLANGE 		1-09440-039-1 08 1 1306- ● ●
15 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1306- ● ●
15 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1306- ● ●
36 SEAT; HELPER RUBBER,RR SPR 1-51372-059-0 02 1 1306- ● ●
153 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> (B) ID=16.5 		8-98011-489-0 04 1 1306- ● ●
153 WASHER; PL,SPRING PIN
(A) ID=19 		8-97360-119-0 02 1 1306- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (A) M16X122 		8-98011-487-0 02 1 1306- ● ●
180 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1306- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97360-110-0 02 1 1306- ● ●
180 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1306- ● ●
182 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> (C) M16 SOU 		0-91110-516-0 04 1 1306- ● ●
182 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 1306- ● ●
182 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97360-125-0 04 1 1306- ● ●
225 RUBBER; CUSHION,RR SPR 8-98025-096-1 02 1 1306- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-112-0 02 1 1306- ● ●
229 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 04 1 1306- ● ●
230 SPACER; CUSHION RUBBER 8-98049-968-0 02 1 1306- ● ●
244 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 04 1 1306- ● ●
