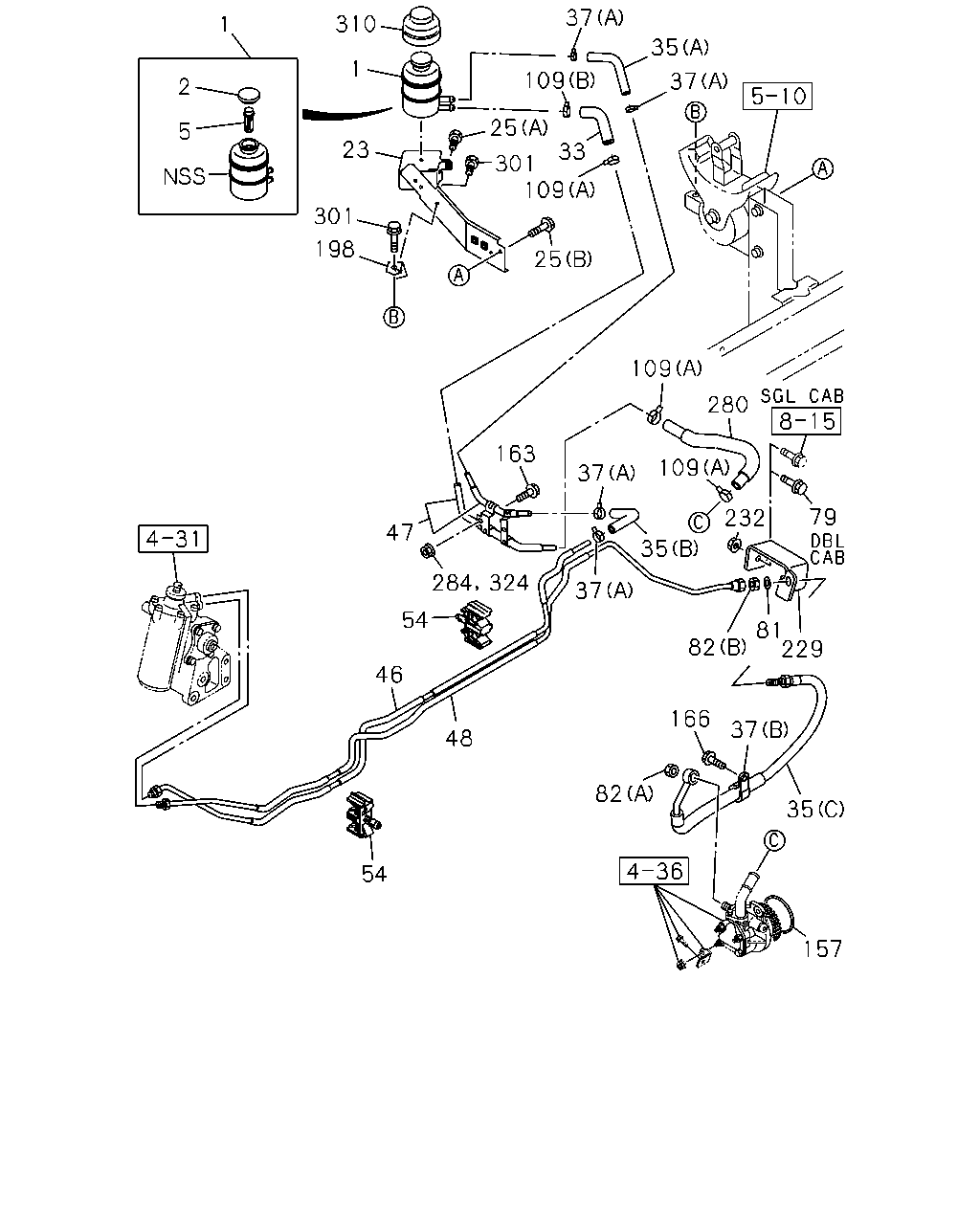

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#122862) — 41 parça

1 2 5 310 1 301 23 198 47 284 324 46 48 54 163 37 37 109 109 280 232 35 79 81 229 82 166 37 35 157 82 25 109 33 25 109 37 35 37 301 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	1306-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	1306-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1306-	●	●
23	BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	1306-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28450-620-0	01	1	1306-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
33	HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	1306-	●	●
35	HOSE; RETURN,P/S TANK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-679-0	01	1	1406-		●
35	HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	1306-	●
35	HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	1306-	●	●
35	HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	1306-	●	●
35	HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	1306-1405		●
35	HOSE; RETURN,P/S TANK EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-490-3	01	1	1406-		●
37	CLIP; HOSE,P/S (B) ID=26 L=26	1-09701-236-0	01	1	1306-	●	●
37	CLIP; HOSE,P/S (A) ID=16	8-98008-098-0	04	1	1306-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	1306-	●	●
47	PIPE; RETURN	8-98083-166-1	01	1	1306-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	1306-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	1306-		●
54	CLIP; OIL PIPE ID=10X2 H=37.5	8-97018-546-0	02	1	1306-	●	●
79	BOLT; BRKT M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-		●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	1306-	●	●
82	NUT; FLEX HOSE,P/S (B) M16	8-94370-339-0	01	1	1306-	●	●
82	NUT; FLEX HOSE,P/S (A) M12 SELF LOCK	8-97028-390-1	01	1	1306-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-97359-141-0	01	1	1306-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	01	1	1306-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-98150-355-0	02	1	1306-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	1306-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
166	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	1306-	●	●
229	BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	1306-	●
229	BRACKET; HOSE,POWER STRG	8-98043-418-2	01	1	1306-		●
232	NUT; BRKT M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
280	HOSE; P/S OIL PUMP,INL HYDRO BRAKE BOOSTER(7QQ)	8-98082-972-0	01	1	1406-	●	●
280	HOSE; P/S OIL PUMP,INL	8-98082-973-0	01	1	1306-1405	●	●
280	HOSE; P/S OIL PUMP,INL EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98082-973-0	01	1	1406-	●	●
284	NUT; PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	1306-	●
324	NUT; OIL PIPE M8 FLANGE SOU	0-91180-108-0	01	1	1306-		●
