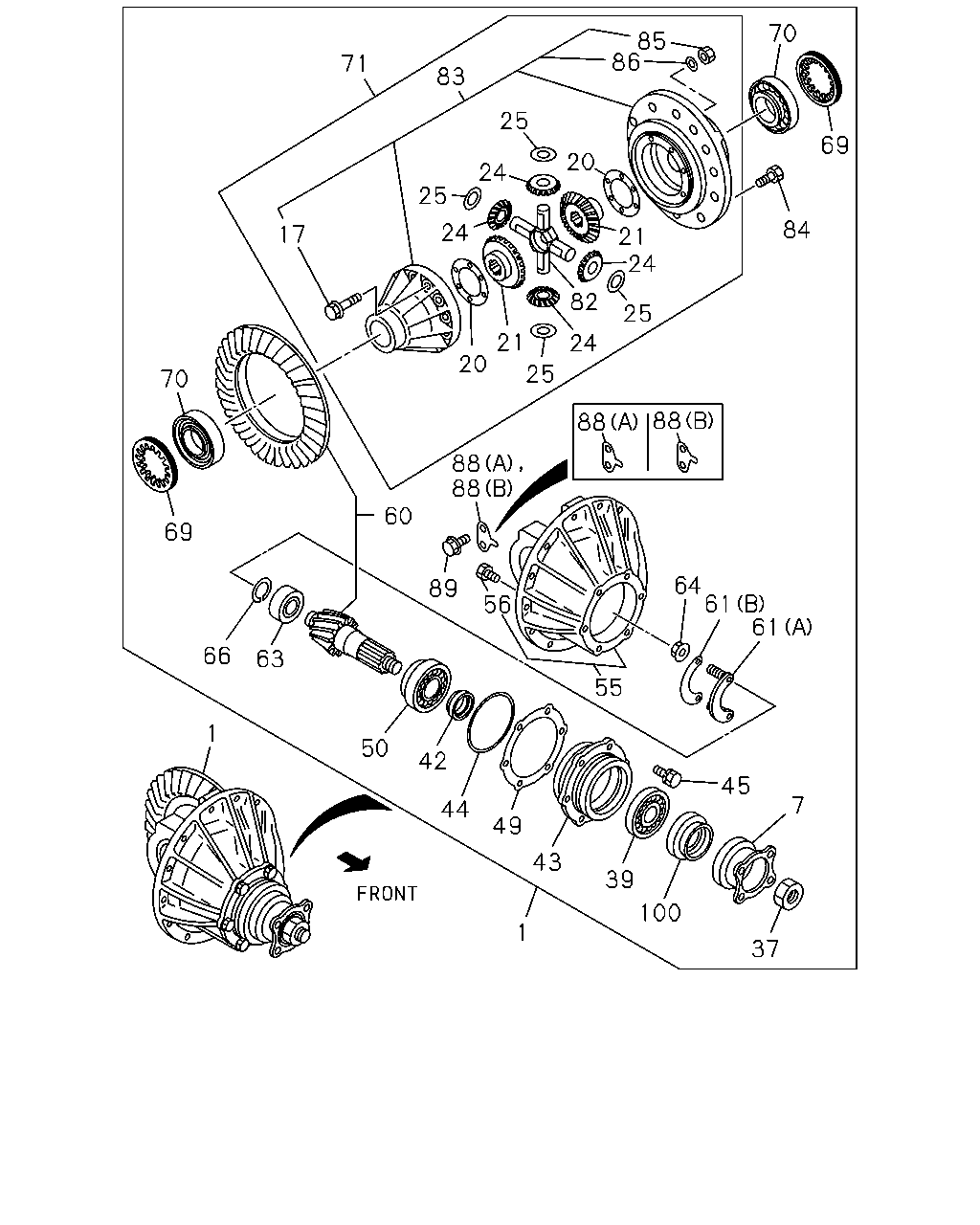

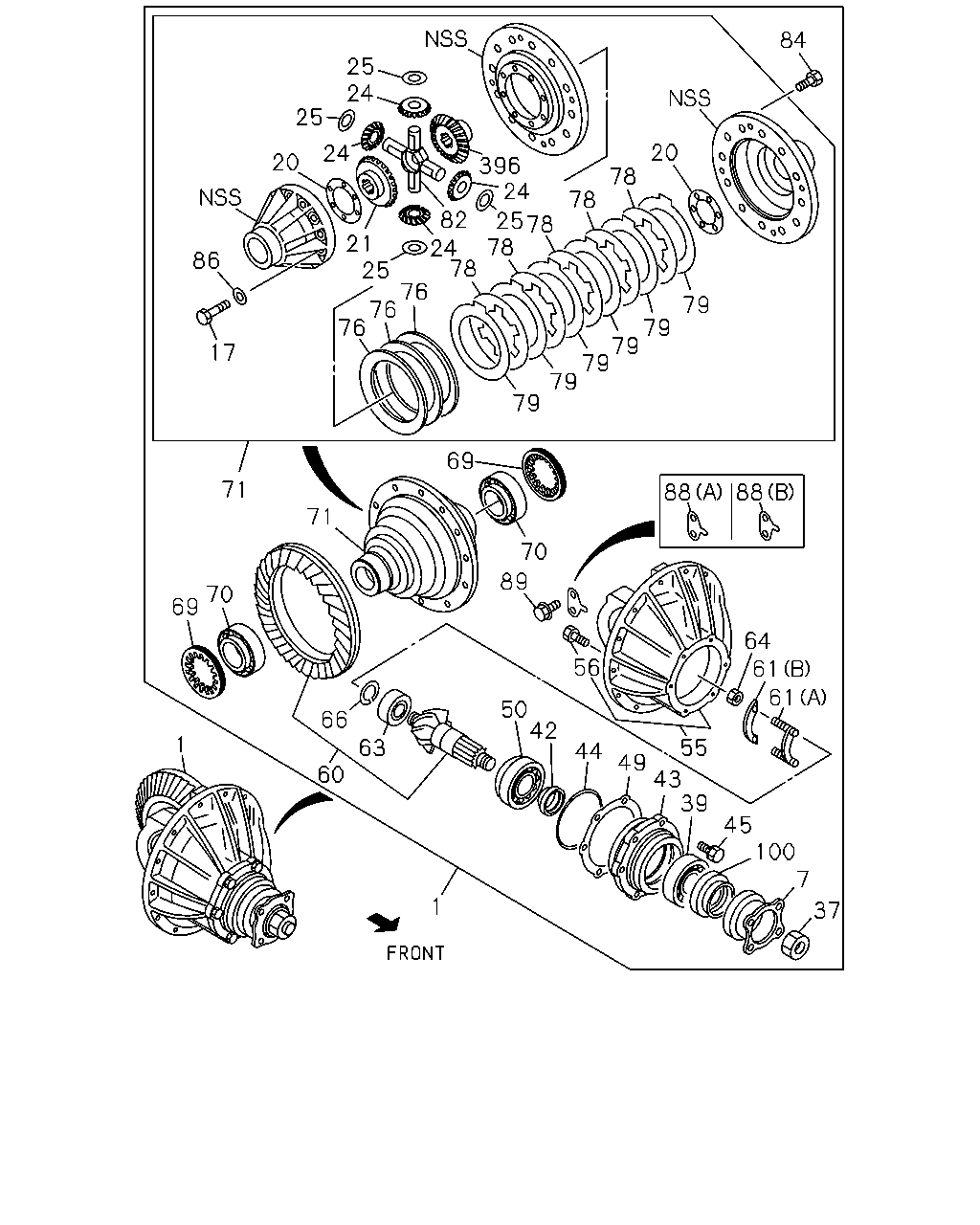

4-25 — REAR FINAL DRIVE (#122858) — 122 parça

25 24 25 24 20 86 17 76 76 76 25 21 24 82 396 24 25 78 78 78 78 78 20 84 79 79 79 79 79 79 69 70 89 56 55 88 88 64 61 61 37 7 100 45 39 43 49 44 42 50 63 66 71 71 70 69 1 60 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1306-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1306-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	1306-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12X90	8-98219-448-0	12	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1306-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1306-1406	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1407-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1306-1406	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1407-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1306-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1306-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1306-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1306-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1306-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1306-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1306-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1306-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1306-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1306-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1306-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1306-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1306-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1306-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1306-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1306-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1306-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1306-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1306-	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1306-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1306-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1306-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1306-	●	●
76	DISC; BEVEL LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	1306-	●	●
78	DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	1306-	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	1306-	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1306-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1306-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1306-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1306-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1306-	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1306-	●	●
396	GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV>	8-98169-195-0	01	1	1306-	●	●

70 69 84 85 86 25 20 24 25 24 83 71 17 70 69 20 21 25 24 82 25 24 21 88 88 88 88 60 89 56 55 64 61 61 45 7 37 100 39 43 1 49 44 42 50 63 66 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) LIMITED SLIP DIFF<6LV> 39/7	8-98093-377-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 39/7(GV1) EXC. LIMITED SLIP DIFF<6LV> 39/7	8-97388-705-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) LIMITED SLIP DIFF<6LV> 41/8	8-98065-974-0	01	1	1306-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/8(RU1) EXC. LIMITED SLIP DIFF<6LV> 41/8	8-97388-704-0	01	1	1306-	●	●
7	FLANGE; FINAL	8-97047-095-2	01	1	1306-	●	●
17	BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	1306-	●	●
17	BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12X90	8-98219-448-0	12	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	1306-	●	●
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	1306-	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1306-1406	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1407-	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	02	1	1306-1406	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<6LV> Z=16	8-98165-935-0	01	1	1407-	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1306-	●	●
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	1306-	●	●
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	1306-	●	●
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	1306-	●	●
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	1306-	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	1306-	●	●
43	CAGE; FINAL PINION	8-97047-098-0	01	1	1306-	●	●
44	GASKET; PINION CAGE	8-97048-053-0	01	1	1306-	●	●
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	1306-	●	●
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	1306-	●	●
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1306-	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1306-	●	●
55	CARRIER; DIFF	8-97094-637-0	01	1	1306-	●	●
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	1306-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 39/7(GV1) 39/7	8-97121-593-1	01	1	1306-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-97174-099-0	01	1	1306-1505	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/8(RU1) 41/8	8-98092-137-0	01	1	1506-	●	●
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	1306-	●	●
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	1306-	●	●
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	1306-	●	●
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	1306-	●	●
64	NUT; RET M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●	●
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	1306-	●	●
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	1306-	●	●
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	1306-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98169-220-2	01	1	1306-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-4	01	1	1306-	●	●
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1306-1309	●	●
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-	●	●
83	CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-98219-707-0	01	1	1306-	●	●
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	1306-	●	●
85	NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	1306-	●	●
86	WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	1306-	●	●
86	WASHER; PL,DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1306-	●	●
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	1306-	●	●
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	1306-	●	●
89	BOLT; LK PLATE M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	1306-	●	●
