◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-16 - FREE WHEEL HUB ▶
4-16 — FREE WHEEL HUB (#122856) — 23 parça

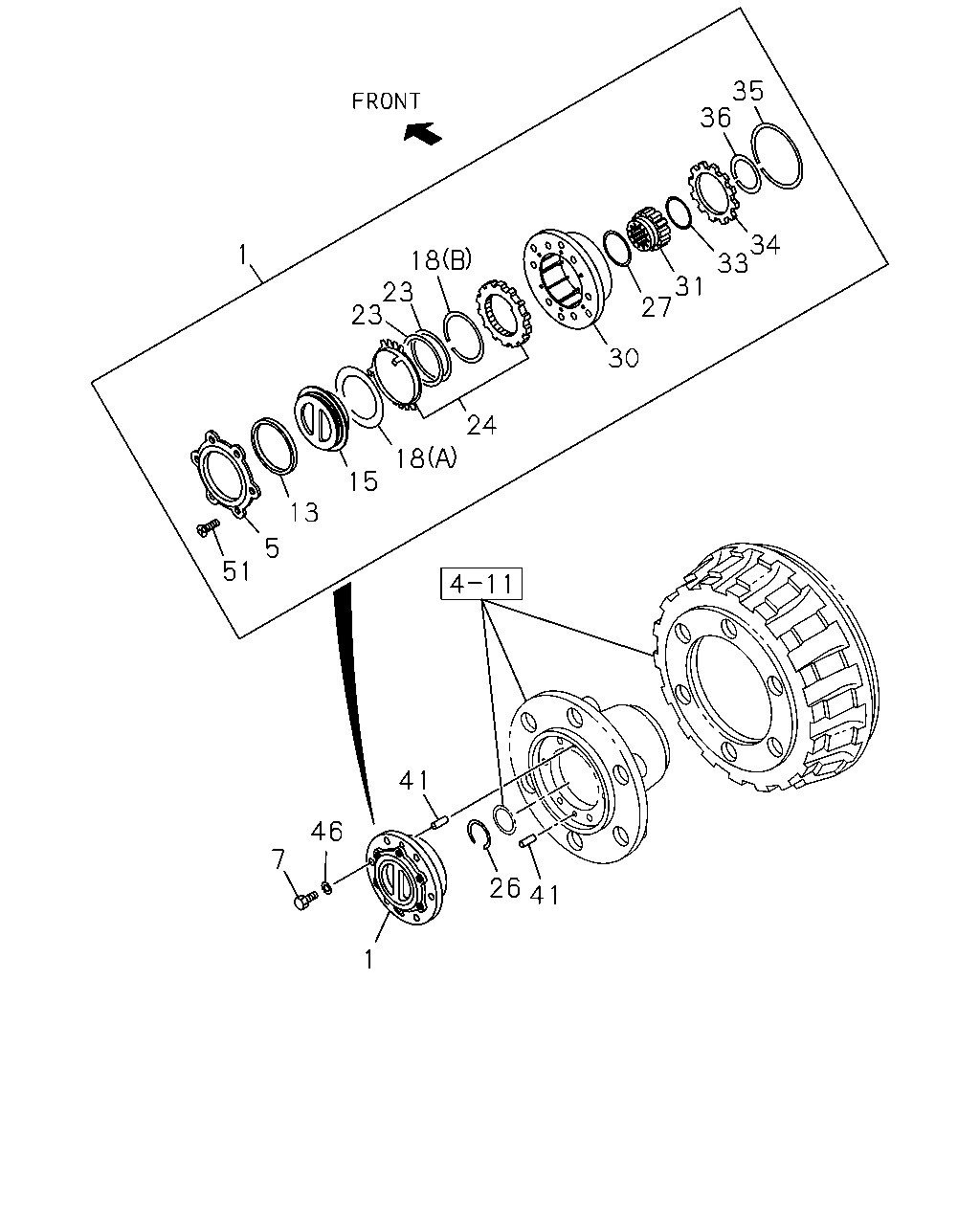

çizim 356377
1 23 23 18 27 31 33 34 36 35 24 30 18 15 13 5 51 7 46 1 41 26 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HUB ASM; FREE WHEEL 8-98049-339-0 02 1 1306- ● ●
5 COVER; HUB LOCK 8-97032-907-0 02 1 1306- ● ●
7 BOLT; FREE WHEEL HUB 8-98049-682-0 12 1 1306- ● ●
13 RING; HUB LOCK 8-97032-909-0 02 1 1306- ● ●
15 HANDLE; HUB LOCK 8-97032-908-0 02 1 1306- ● ●
18 RING; SNAP,INNER
(A) 		8-94321-500-0 02 1 1306- ● ●
18 RING; SNAP,INNER
(B) 		8-94321-504-0 02 1 1306- ● ●
23 SPRING; TENSION,HUB LOCK 8-94321-499-0 04 1 1306- ● ●
24 CLUTCH; HUB LOCK 8-94321-498-0 02 1 1306- ● ●
26 RING; SNAP,HUB 8-94478-198-0 02 1 1306- ● ●
27 SHIM; AXLE SHAFT
T=0.3 		8-94441-489-0 AR 1 1306- ● ●
27 SHIM; AXLE SHAFT
T=0.5 		8-94441-490-0 AR 1 1306- ● ●
27 SHIM; AXLE SHAFT
T=1.0 		8-94441-491-0 AR 1 1306- ● ●
30 HOUSING; FREE WHEEL HUB 8-94321-492-0 02 1 1306- ● ●
31 INNER; HUB LOCK 8-94321-495-0 02 1 1306- ● ●
33 SPACER; HUB LOCK 8-94321-497-0 02 1 1306- ● ●
34 RING; HUB LOCK 8-94321-493-0 02 1 1306- ● ●
35 RING; SNAP,HUB LOCK,INNER 8-94321-494-0 02 1 1306- ● ●
36 RING; SNAP,HUB LOCK,OUTER 8-94321-496-0 02 1 1306- ● ●
41 PIN; KNOCK,FRT AXLE KNUCKLE
OD=10 L=20 		9-08161-020-0 04 1 1306-1510 ● ●
41 PIN; KNOCK,FRT AXLE KNUCKLE
OD=10 L=20 		8-97135-423-0 04 1 1511- ● ●
46 WASHER; LK,DRIVEN TO HSG
ID=12.2 		0-91510-812-0 12 1 1306- ● ●
51 SCREW; FREE WHEEL HUB 8-98049-688-0 12 1 1306- ● ●
