◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-12 - FRONT DRIVE SHAFT ▶
4-12 — FRONT DRIVE SHAFT (#122854) — 22 parça

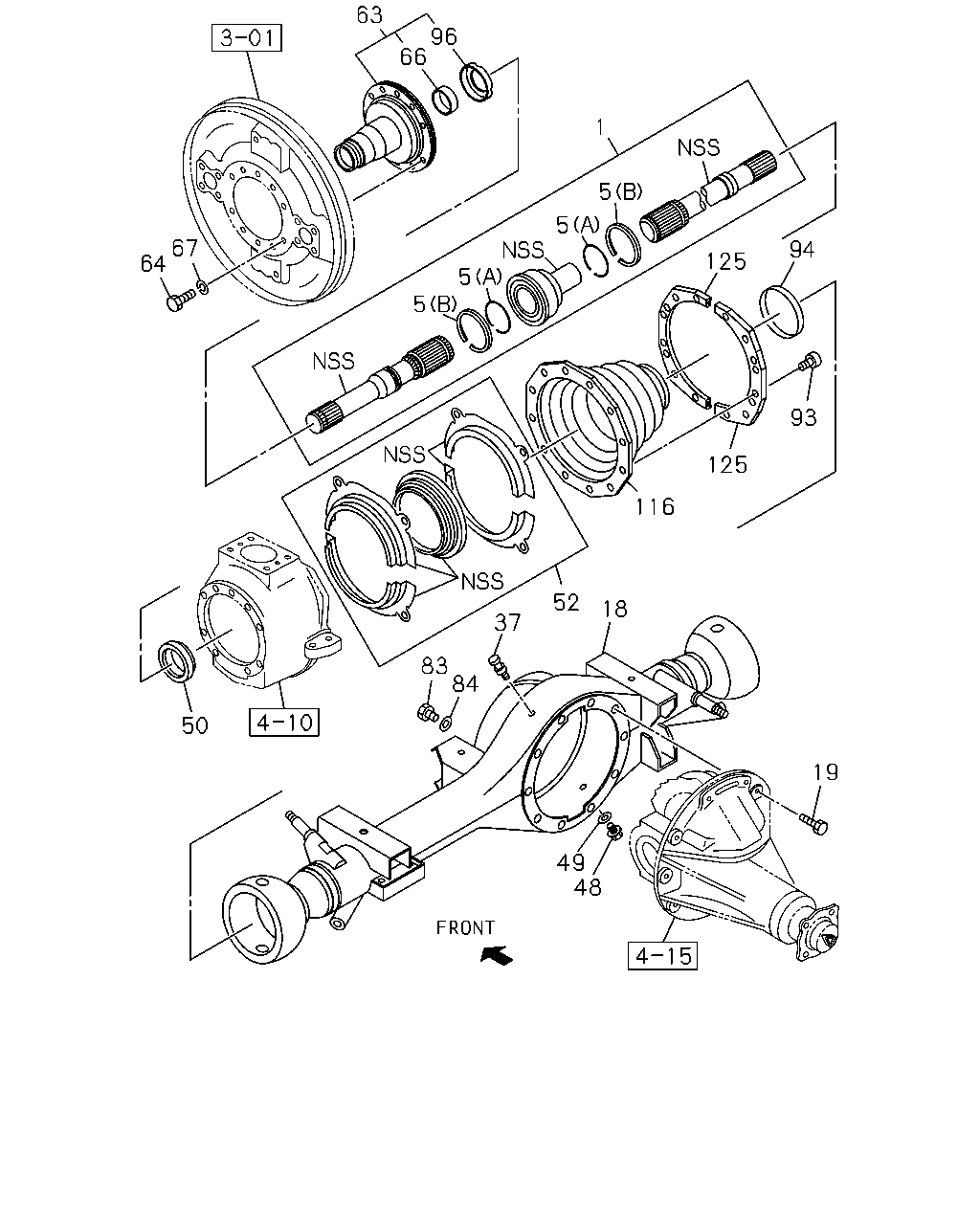

çizim 356363
63 96 66 1 5 5 5 5 67 64 125 94 93 125 116 18 52 37 19 48 49 84 83 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT ASM; FRT DRIVE 8-97043-026-0 01 1 1306- ● ●
1 SHAFT ASM; FRT DRIVE 8-97043-027-0 01 1 1306- ● ●
5 RING; RET,FRT DRIVE SHAFT
(A) 		8-97106-944-0 04 1 1306- ● ●
5 RING; RET,FRT DRIVE SHAFT
(B) 		8-97106-945-0 04 1 1306- ● ●
18 CASE; FRT AXLE 8-97073-899-1 01 1 1306- ● ●
19 BOLT; FRT AXLE
M10X40 W/LK WASHER 		0-50561-040-0 10 1 1306- ● ●
37 BREATHER; FRT AXLE CASE
L=29 SOU 		8-98006-960-0 01 1 1306- ● ●
48 PLUG; DRAIN,AXLE CASE
M16X12.5 SOU 		8-97307-060-0 01 1 1306- ● ●
49 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 1306- ● ●
50 SEAL; OIL,SHAFT,FRT AXLE 8-94459-416-0 02 1 1306- ● ●
52 SEAL; OIL,KNUCKLE 8-97125-754-0 02 1 1306- ● ●
63 SPINDLE; KNUCKLE,FRT AXLE SHAFT 8-94440-882-0 02 1 1306- ● ●
64 BOLT; SPINDLE 8-98049-683-0 18 1 1306- ● ●
66 BUSHING; SPINDLE,FRT AXLE SHAFT 8-97116-630-0 02 1 1306- ● ●
67 WASHER; LK,SPINDLE
ID=12.2 		0-91510-812-0 18 1 1306- ● ●
83 PLUG; OIL FILLER
M20X10.5 		8-98009-333-0 01 1 1306- ● ●
84 GASKET; PLUG,OIL FILLER
ID=20 OD=30 SOU 		8-94462-734-0 01 1 1306- ● ●
93 SCREW; TUBE END BOOT HOLDER,FRT AXLE
M6X12 		8-94477-783-0 24 1 1306- ● ●
94 BAND; TUBE END BOOT,FRT AXLE 8-94447-698-0 02 1 1306- ● ●
96 WASHER; THRUST,SPINDLE,FRT AXLE 8-94440-903-0 02 1 1306- ● ●
116 BOOT; TUBE END,FRT AXLE 8-94321-407-0 02 1 1306- ● ●
125 HOLDER; TUBE END BOOT,FRT AXLE 8-98049-388-0 04 1 1306- ● ●
