◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#122853) — 24 parça

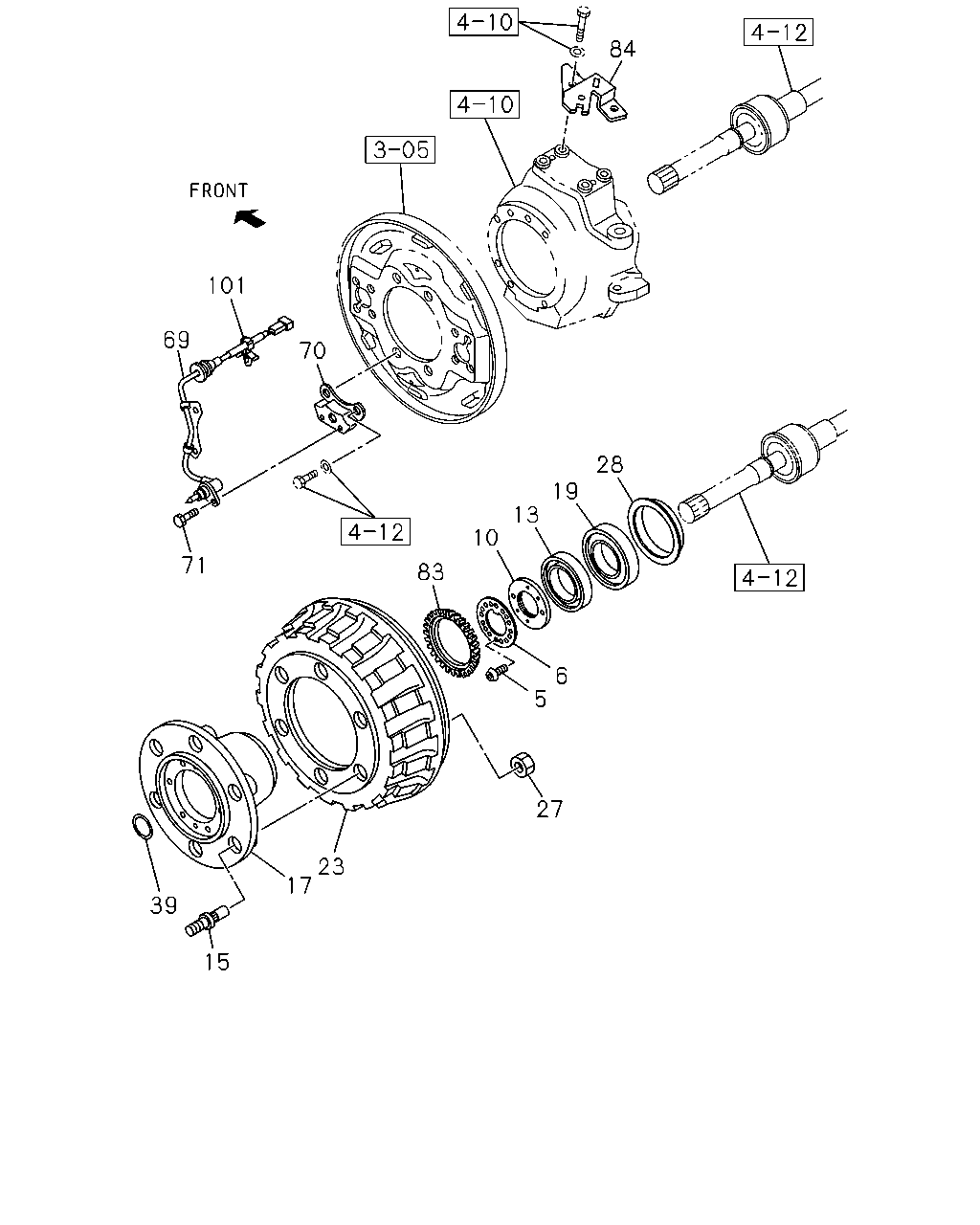

çizim 356517
84 28 19 13 10 83 6 5 27 23 17 15 39 71 69 101 70
BalonParca AdiParca NoAdetTipApplied Date A B
5 BOLT; LK WASHER
M6X12 		8-94477-783-0 04 1 1306- ● ●
6 WASHER; LK,FRT HUB
ID=52 		9-09853-214-1 02 1 1306- ● ●
10 NUT; FRT HUB BRG 8-98236-851-0 02 1 1306- ● ●
13 BEARING; HUB OUTER,FRT AXLE
NSK 		1-09812-097-0 02 1 1306- ● ●
15 PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD 		8-97081-584-4 06 1 1306- ● ●
15 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD 		8-97081-585-4 06 1 1306- ● ●
17 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97173-548-0 02 1 1407- ● ●
17 HUB; FRT AXLE 8-97116-500-0 02 1 1306-1406 ● ●
17 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97116-500-0 02 1 1407- ● ●
19 BEARING; HUB INNER,FRT AXLE 8-94441-252-0 02 1 1306- ● ●
23 DRUM; BRK,FRT 8-97138-110-0 02 1 1306- ● ●
27 NUT; WHEEL PIN,FRT AXLE
M22 		0-91110-522-0 12 1 1306- ● ●
28 SEAL; OIL,FRT HUB 8-94440-904-0 02 1 1306- ● ●
39 SHIM; AXLE SHAFT OUTER
T=0.3 		8-94441-489-0 AR 1 1306- ● ●
39 SHIM; AXLE SHAFT OUTER
T=0.5 		8-94441-490-0 AR 1 1306- ● ●
39 SHIM; AXLE SHAFT OUTER
T=1.0 		8-94441-491-0 AR 1 1306- ● ●
69 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98282-351-0 01 1 1407- ● ●
69 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98282-352-0 01 1 1407- ● ●
70 BRACKET; SPEED SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98282-354-0 02 1 1407- ● ●
71 BOLT; SENSOR TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE SOU 		0-28050-616-0 02 1 1407- ● ●
83 ROTOR; SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98282-355-0 02 1 1407- ● ●
84 BRACKET; ABS HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97300-422-0 01 1 1407- ● ●
84 BRACKET; ABS HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97300-423-0 01 1 1407- ● ●
101 CLIP; SENSOR TO BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> ID=9.6 		8-94147-870-0 02 1 1407- ● ●
