4-10 — FRONT AXLE (#122852) — 63 parça

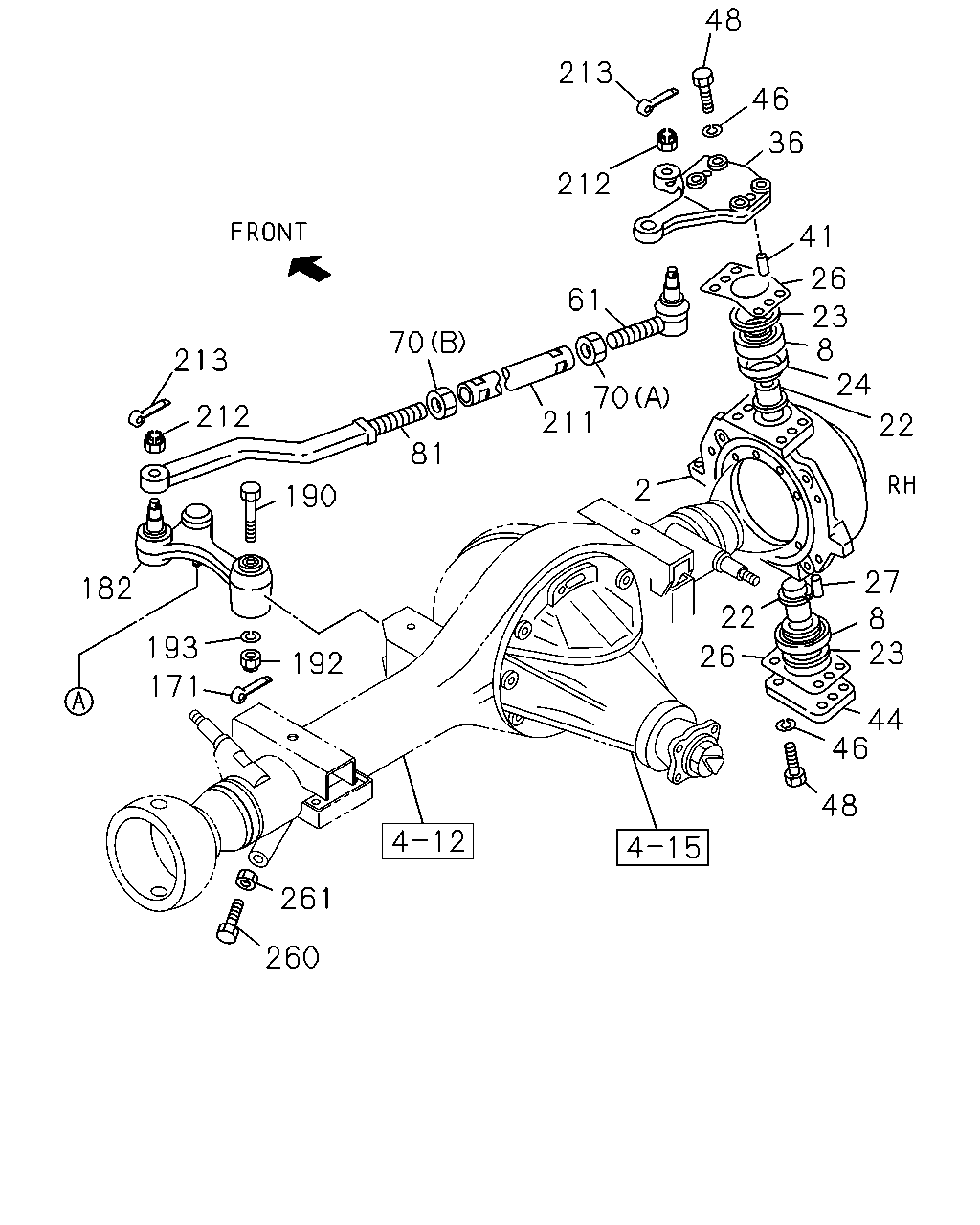

çizim 357734
48 46 36 41 26 23 8 24 22 27 8 23 44 46 48 26 22 2 70 211 81 70 61 212 213 213 212 190 192 171 193 182 261 260
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1306- ● ●
2 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1306- ● ●
8 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1306- ● ●
22 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1306- ● ●
23 COLLAR; DIST BRG 8-94440-839-0 04 1 1306- ● ●
24 RECEIVER; KING PIN 8-94458-454-0 02 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1306- ● ●
27 PIN; STRAIGHT,KING PIN
OD=4 L=8 		9-08160-408-0 04 1 1306- ● ●
36 ARM; KNUCKLE 8-97043-208-0 01 1 1306- ● ●
41 PIN; KNOCK,KNUCKLE ARM 9-08161-028-0 04 1 1306- ● ●
44 COVER; KING PIN 8-94440-230-0 02 1 1306- ● ●
46 WASHER; LK,COVER
ID=14.2 SOU 		0-91510-814-0 16 1 1306- ● ●
48 BOLT; COVER 8-98048-539-0 16 1 1306- ● ●
61 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1306- ● ●
70 NUT; TIE ROD END
(B) M20 SOU 		0-91111-520-0 02 1 1306- ● ●
70 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1306- ● ●
81 ROD; TIE 8-94440-365-0 02 1 1306- ● ●
171 PIN; SPLIT,STRG ARM
OD=2.8 L=25 SOU 		0-81123-025-0 01 1 1306- ● ●
182 ARM; STRG,TIE ROD,FRT AXLE 8-94323-964-1 01 1 1306- ● ●
190 BOLT; STRG ARM TO BRKT,FRT AXLE 8-98049-687-0 01 1 1306- ● ●
192 NUT; STRG ARM BRKT
M14 SLOTTED 		0-91116-514-0 01 1 1306- ● ●
193 WASHER; PL,STRG ARM BRKT
ID=15 SOU 		0-91614-614-0 01 1 1306- ● ●
211 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1306- ● ●
212 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1306- ● ●
213 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1306- ● ●
260 BOLT; STOPPER,TIE ROD ARM 8-98049-680-0 03 1 1306- ● ●
261 NUT; STOPPER BOLT
M12 SOU 		0-91110-512-0 03 1 1306- ● ●

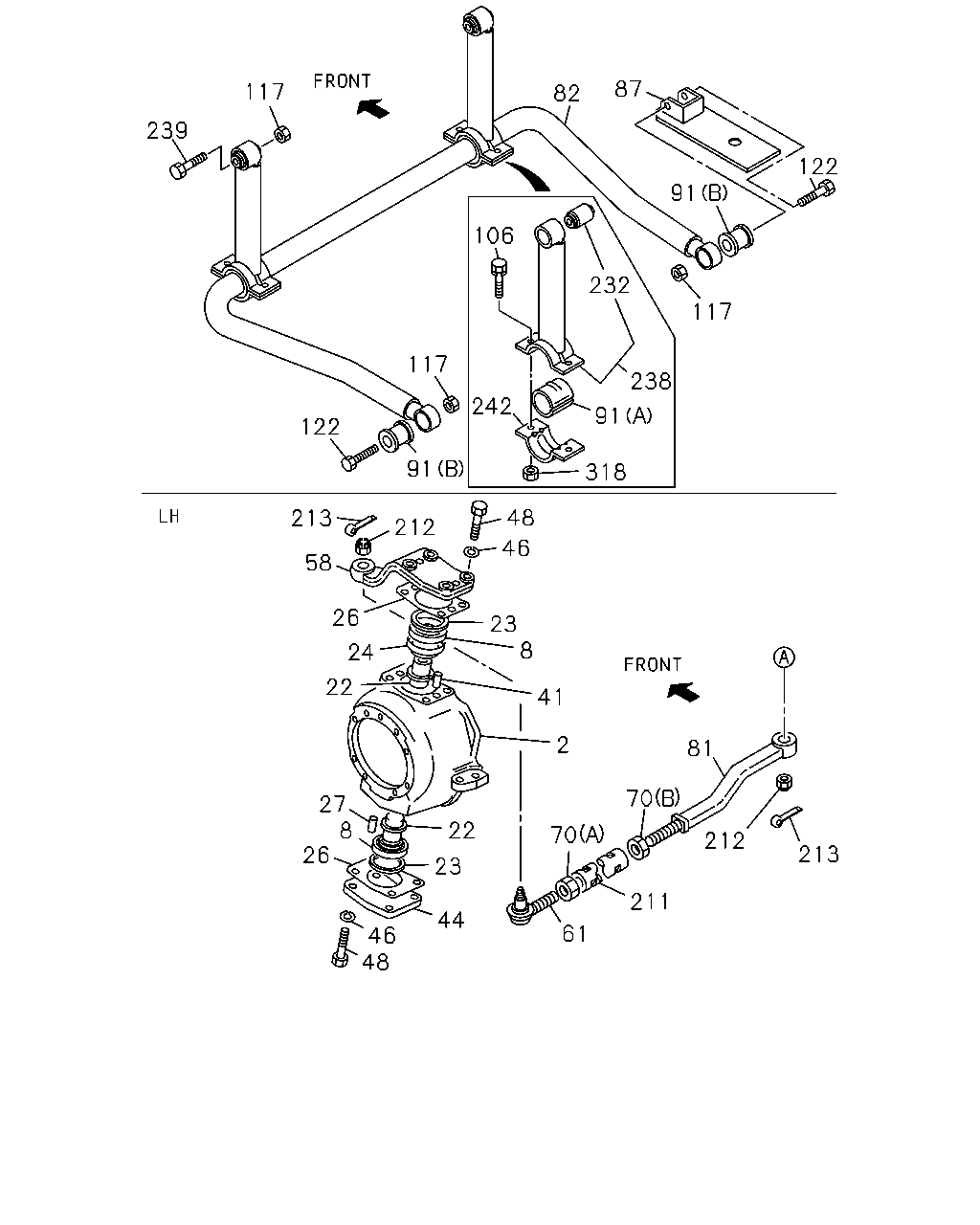

çizim 358367
48 46 44 23 22 27 8 26 2 41 70 70 81 212 213 211 61 8 23 24 26 22 58 213 122 91 117 242 212 48 46 318 91 232 106 82 87 91 117 238 122 117 239
BalonParca AdiParca NoAdetTipApplied Date A B
2 KNUCKLE; FRT AXLE 8-94458-330-2 01 1 1306- ● ●
2 KNUCKLE; FRT AXLE 8-94458-331-2 01 1 1306- ● ●
8 BEARING; NEEDLE,KING PIN 8-94440-901-0 04 1 1306- ● ●
22 PIN; KING,FRT AXLE 8-94440-228-0 04 1 1306- ● ●
23 COLLAR; DIST BRG 8-94440-839-0 04 1 1306- ● ●
24 RECEIVER; KING PIN 8-94458-454-0 02 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.1 		8-94440-840-0 AR 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.2 		8-94440-841-0 AR 1 1306- ● ●
26 SHIM; KING PIN,BRG
T=0.5 		8-94440-842-0 AR 1 1306- ● ●
27 PIN; STRAIGHT,KING PIN
OD=4 L=8 		9-08160-408-0 04 1 1306- ● ●
41 PIN; KNOCK,KNUCKLE ARM 9-08161-028-0 04 1 1306- ● ●
44 COVER; KING PIN 8-94440-230-0 02 1 1306- ● ●
46 WASHER; LK,COVER
ID=14.2 SOU 		0-91510-814-0 16 1 1306- ● ●
48 BOLT; COVER 8-98048-539-0 16 1 1306- ● ●
58 ARM; TIE ROD 8-94440-366-0 01 1 1306- ● ●
61 ROD END; TIE ROD
LH THREAD 		8-94419-609-3 02 1 1306- ● ●
70 NUT; TIE ROD END
(B) M20 SOU 		0-91111-520-0 02 1 1306- ● ●
70 NUT; TIE ROD END
(A) M20 LH THREAD 		8-94254-726-0 02 1 1306- ● ●
81 ROD; TIE 8-94440-365-0 02 1 1306- ● ●
82 BAR; STAB,FRT SUSP 8-94322-468-2 01 1 1306- ● ●
87 BRACKET; STABILIZER 8-94321-458-0 01 1 1306- ● ●
91 BUSHING; RUBBER,STAB BAR
(A) 		8-94440-793-0 02 1 1306- ● ●
91 BUSHING; RUBBER,STAB BAR
(B) 		8-97239-911-0 02 1 1306- ● ●
106 BOLT; CAP FIX
M10X25 FLANGE SOU 		0-28651-025-0 04 1 1306- ● ●
117 NUT; STAB BAR BUSHING
M14 FLANGE 		8-97360-124-0 02 1 1306- ● ●
122 BOLT; BRKT
M14X70 FLANGE 		0-28851-470-0 02 1 1306- ● ●
211 ROD ASM; STEERING TIE ROD 8-94458-045-0 02 1 1306- ● ●
212 NUT; STRG ROD
M16 SLOTTED 		8-98049-689-0 02 1 1306- ● ●
213 PIN; COTTER,STRG ROD
OD=3.7 L=25 		0-81124-025-0 04 1 1306- ● ●
232 BUSHING; LINK ROD 8-97239-911-0 02 1 1306- ● ●
238 ROD LINK ASM; STABILIZER,FRT 8-97138-300-1 02 1 1306- ● ●
239 BOLT; LINK ROD
M14X70 FLANGE 		0-28851-470-0 02 1 1306- ● ●
242 CAP; LINK ROD 8-94178-430-2 02 1 1306- ● ●
318 NUT; CAP FIX
M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ● ●
