Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#122850) — 568 parça

202 165 234 39 108 184 20 96 234 116 234 116 12 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-1405	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	1406-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-1405	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-1405	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	1406-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-1405	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
20	NUT; BRKT M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1306-1405	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1306-	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●
202	SEAL SOU	8-97856-616-0	02	1	1306-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	1306-1405	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●

184 184 184 165 184 165 39 11 6 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●

116 39 39 39 39 165 184 165 184 165 184 184 116 120 203 12 13 12 12 157 12 13 12 157 12 157 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-1405	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	1406-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-1405	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-1405	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	1406-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-1405	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	1406-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-1405	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-1405	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	1406-	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-1405	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	1406-	●	●

116 39 165 184 184 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●

120 203 12 13 12 157 116 234 116 234 96 20 184 108 39 165 202 173 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-1405	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	1406-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-1405	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-1405	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	1406-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-1405	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
20	NUT; BRKT M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1306-1405	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1306-	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	1406-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-1405	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98107-558-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●
202	SEAL SOU	8-97856-616-0	02	1	1306-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-1405	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	1406-	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-1405	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	1406-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	1306-1405	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●

165 202 234 173 12 12 163 173 234 39 116 234 234 96 184 116 20 157 12 13 12 203 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	08	1	1306-1405	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	08	1	1406-	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) ID=15.5	8-98008-097-0	02	1	1306-1405	●	●
12	CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=15.5	8-98008-097-0	02	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	1306-1405	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	03	1	1406-	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	1306-1405	●	●
13	JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98035-106-0	01	1	1406-	●	●
20	NUT; BRKT M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1306-1405	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-695-2	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-352-3	01	1	1406-	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	1306-1405	●	●
120	HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-696-2	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (F)	8-98017-168-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-98027-350-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98027-351-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98027-353-3	01	1	1406-	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	1306-1405	●	●
157	HOSE; JOINT POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98027-354-2	01	1	1406-	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	1306-1405	●	●
157	HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (E)	8-98022-868-3	01	1	1406-	●	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T)	8-97353-668-0	01	1	1306-1405	●	●
163	JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97353-668-0	01	1	1406-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98121-940-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98121-941-0	01	1	1406-	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1306-1405	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (C)	8-98107-558-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (G)	8-98156-526-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (F)	8-98193-145-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-539-0	01	1	1406-	●	●
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER(7QQ) EXC. KD PREPARATORY PACK VAR.4<7TV> (G)	8-98255-541-0	01	1	1406-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-548-0	01	1	1406-	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-467-1	01	1	1306-1405	●	●
184	BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98183-467-1	01	1	1406-	●	●
184	BRACKET; UNION FIX (B)	8-98017-628-1	01	1	1306-	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (A)	8-98183-462-1	01	1	1306-1311	●	●
184	BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1312-1405	●	●
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER(7QQ),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-535-0	01	1	1406-	●	●
202	SEAL SOU	8-97856-616-0	02	1	1306-	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B) SOU	8-94104-021-0	01	1	1306-1405	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU	8-94104-021-0	01	1	1406-	●	●
203	VALVE; CHECK (A) SOU	8-94386-540-0	01	1	1306-1405	●	●
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU	8-94386-540-0	01	1	1406-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) ID=16 SOU	8-94238-568-0	03	1	1306-1405	●	●
234	CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●
234	CLAMP; PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=16 SOU	8-94238-568-0	03	1	1406-	●	●

136 136 78 236 122 136 108 235 136 136 44 136 44 66 116 66 169 96 98 39 39 78 66 116 66 33 33 169 66 66 169 66 116 66 75 78 116

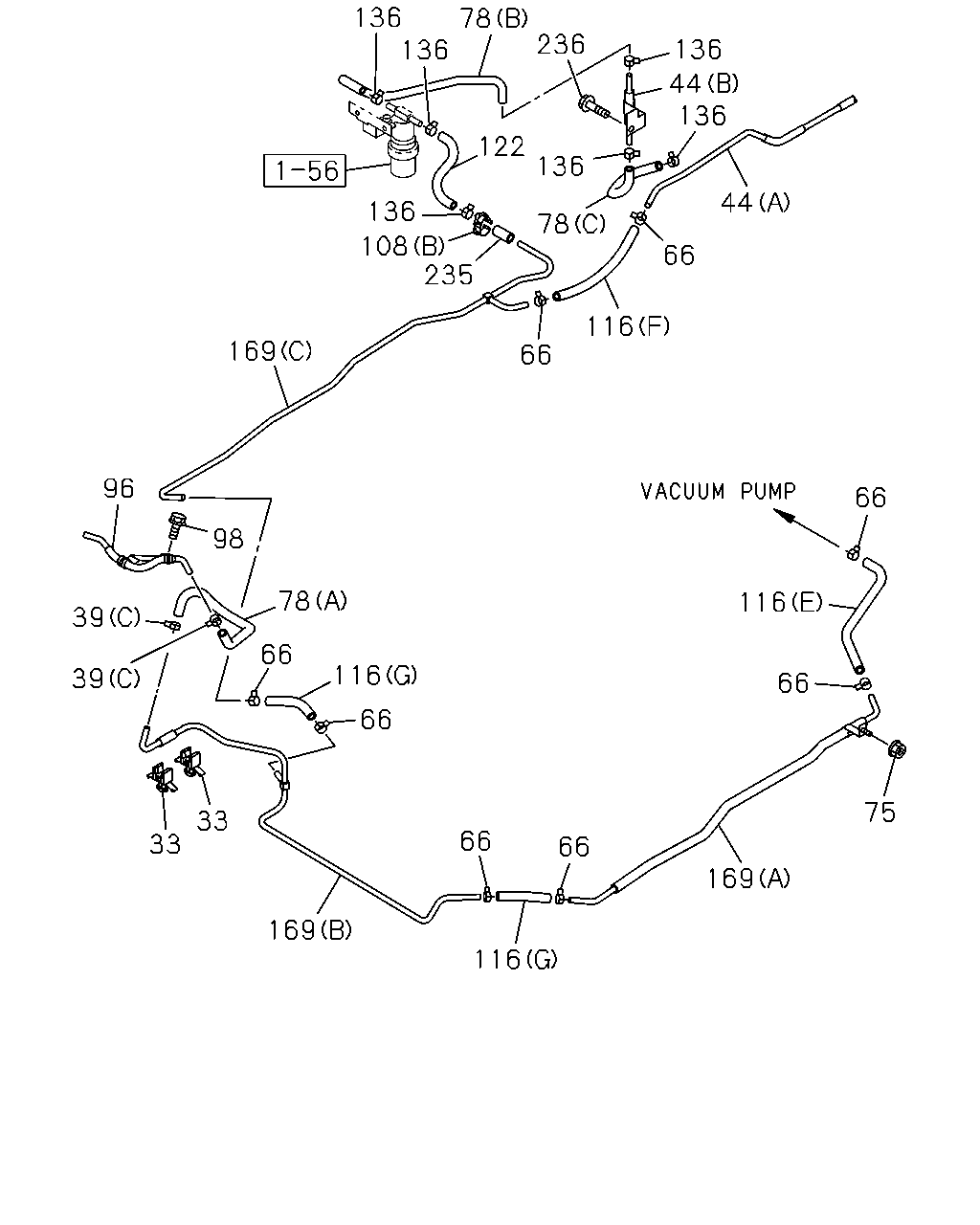

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	CLIP; VAC PIPE ID=10 H=40	8-94462-219-0	02	1	1306-1405	●	●
33	CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1406-	●	●
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) ID=10 H=40	8-94462-219-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
44	PIPE; VAC,MAG VLV (B)	8-98070-194-0	01	1	1306-	●
44	PIPE; VAC,MAG VLV (A)	8-98103-009-0	01	1	1306-	●	●
44	PIPE; VAC,MAG VLV (B)	8-98040-634-0	01	1	1306-		●
66	CLIP; VAC HOSE,M/VAC ID=16	8-98008-098-0	08	1	1306-	●	●
75	NUT; CLIP,VAC HOSE M8 FLANGE SOU	0-91180-108-0	01	1	1306-1407	●	●
75	NUT; CLIP,VAC HOSE EXC. HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-97386-589-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98096-135-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1306-1405	●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1306-		●
96	PIPE; VAC,M/VAC TO VAC PUMP	8-98220-579-0	01	1	1306-1405	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP EXC. HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
96	PIPE; VAC,M/VAC TO VAC PUMP POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ)	8-98220-579-0	01	1	1406-	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1408-	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M8X25 FLANGE SOU	0-28650-825-0	01	1	1408-	●	●
98	BOLT; VAC PIPE FIX HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU	0-28050-612-0	02	1	1408-		●
98	BOLT; VAC PIPE FIX M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-1405	●	●
98	BOLT; VAC PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU	0-28050-612-0	01	1	1406-1407	●	●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU	0-28050-612-0	01	1	1406-1407	●	●
98	BOLT; VAC PIPE FIX POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) M6X12 FLANGE SOU	0-28050-612-0	01	1	1408-	●	●
98	BOLT; VAC PIPE FIX M6X12 FLANGE SOU	0-28050-612-0	01	1	1408-	●	●
108	GROMMET; PIPE (B) ID=17	8-94128-319-2	01	1	1306-	●	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T) (A) SOU	9-09956-353-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (H)	8-98067-702-0	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (I)	8-98081-002-2	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-97389-674-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (D)	8-97389-689-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (G) L=140 SERVICED BY L=3000	0-08158-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (F) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC (E)	8-98158-378-0	01	1	1306-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-690-3	01	1	1406-	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	1306-1405	●	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (A)	8-98094-547-0	01	1	1406-	●	●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-104-0	01	1	1306-	●
122	HOSE; AIR,MAG VLV TO AIR PIPE	8-98189-105-0	01	1	1306-		●
136	CLIP; VAC HOSE ID=16	8-98008-098-0	06	1	1306-	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98222-219-0	01	1	1408-	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98040-479-3	01	1	1408-	●	●
169	PIPE; VAC,BOOSTER SIDE HYDRO BRAKE BOOSTER(7QQ) EXC. POWER ASSIST CLUTCH(S2T) (B)	8-98048-901-0	01	1	1408-	●	●
169	PIPE; VAC,BOOSTER SIDE (A)	8-98041-052-2	01	1	1306-1407	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98041-052-2	01	1	1408-	●	●
169	PIPE; VAC,BOOSTER SIDE (B)	8-98041-053-4	01	1	1306-1405	●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1406-	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-98041-053-4	01	1	1406-	●	●
169	PIPE; VAC,BOOSTER SIDE (C)	8-98041-054-3	01	1	1306-1407	●	●
169	PIPE; VAC,BOOSTER SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1408-	●	●
169	PIPE; VAC,BOOSTER SIDE EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	8-98041-054-3	01	1	1408-	●	●
235	RUBBER; SUPPORT,PIPE OD=16.5 L=50	8-97214-235-0	01	1	1306-	●	●
236	BOLT; PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-1407	●
236	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X25 FLANGE SOU	0-28650-825-0	01	1	1408-	●	●
236	BOLT; PIPE M8X25 FLANGE SOU	0-28650-825-0	01	1	1408-	●
236	BOLT; PIPE M10X25 FLANGE SOU	0-28651-025-0	01	1	1306-		●

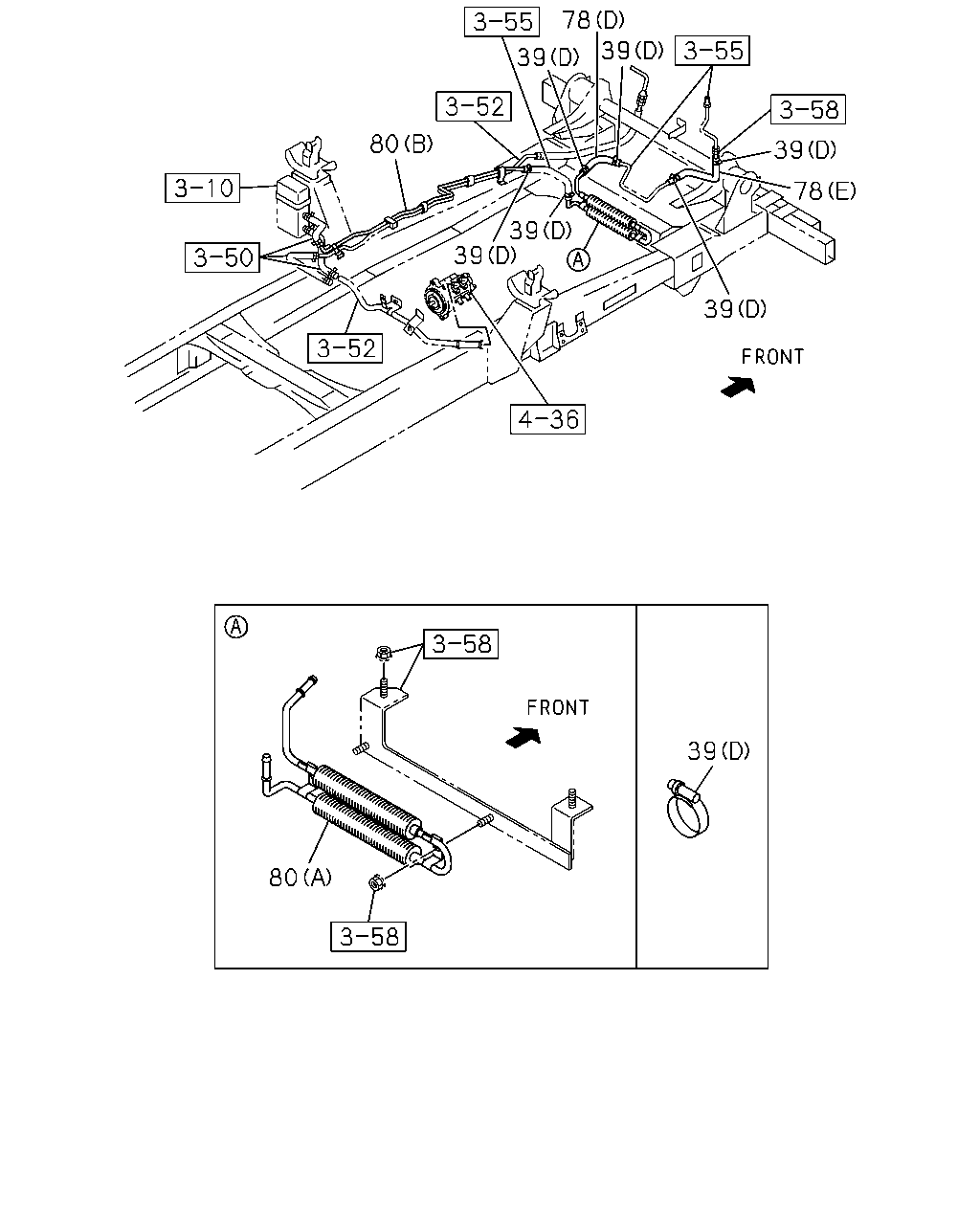

78 39 39 39 39 80 78 39 78 39 39 80 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-97386-589-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98096-135-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1306-1405	●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1306-		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	1408-	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97386-605-0	01	1	1408-	●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-258-1	01	1	1408-1501		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98308-378-0	01	1	1502-		●

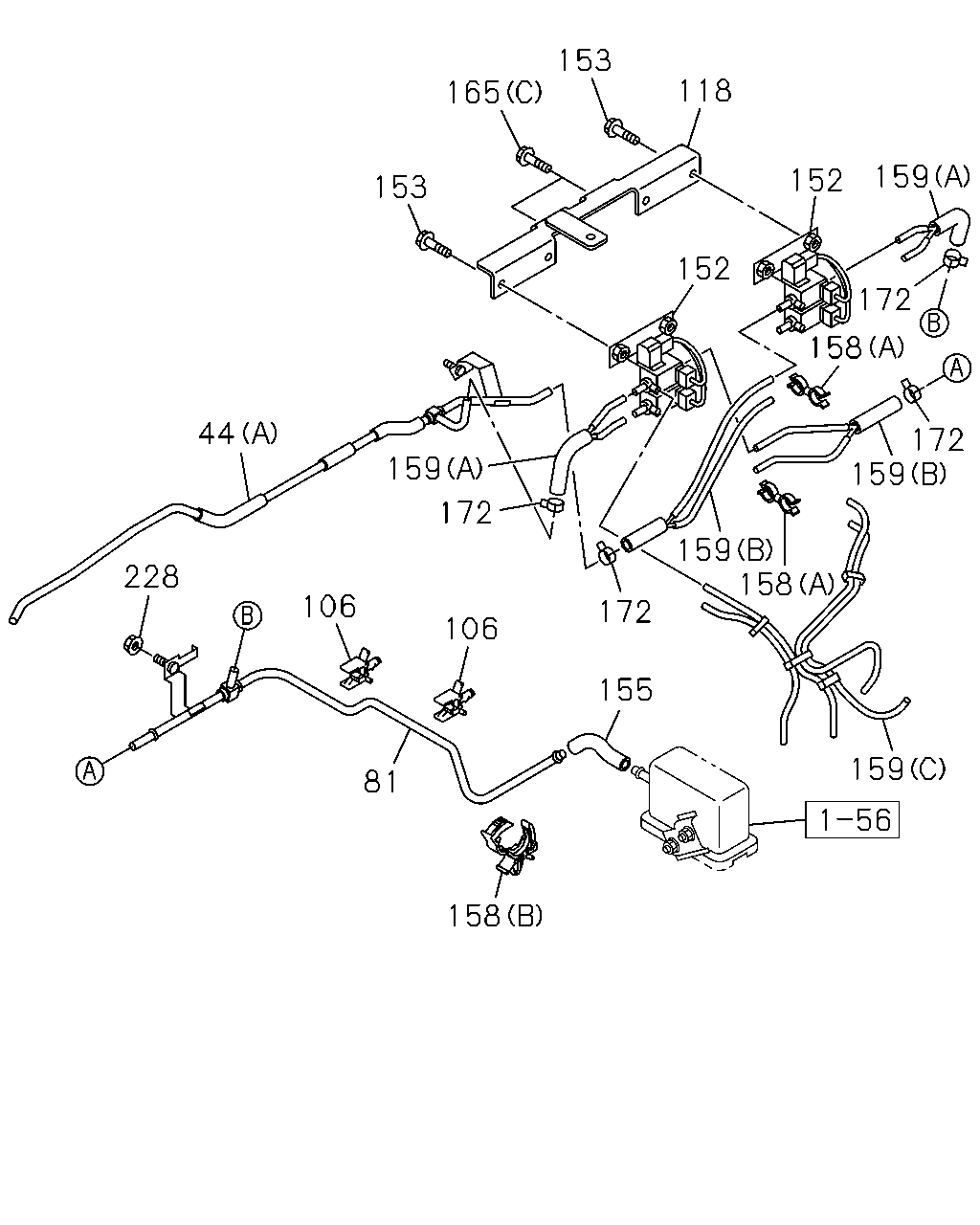

158 81 155 159 106 106 228 44 153 165 153 118 152 152 159 159 172 172 159 158 159 172 158 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	PIPE; VAC,MAG VLV (B)	8-98070-194-0	01	1	1306-	●
44	PIPE; VAC,MAG VLV (A)	8-98103-009-0	01	1	1306-	●	●
44	PIPE; VAC,MAG VLV (B)	8-98040-634-0	01	1	1306-		●
81	PIPE; VAC,VSV	8-98060-407-3	01	1	1306-	●	●
106	CLIP; PIPE ID=10 H=40	8-94462-219-0	02	1	1306-	●	●
118	BRACKET; VSV	8-98069-541-3	01	1	1306-	●
118	BRACKET; VSV	8-98090-281-1	01	1	1306-		●
152	VALVE; VAC SWITCHING,TRANSFER CONT	8-98222-432-0	02	1	1306-1310	●	●
152	VALVE; VAC SWITCHING,TRANSFER CONT	8-98256-404-0	02	1	1311-	●	●
153	BOLT; VSV M10X25 FLANGE SOU	0-28651-025-0	04	1	1306-	●	●
155	HOSE; VAC,AIR FILTER L=130 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●	●
158	CLIP; HOSE (B) ID=14-20	8-97061-603-0	01	1	1306-	●
158	CLIP; HOSE (A) ID=16.5 & 16.5	8-94468-380-0	01	1	1306-	●	●
159	HOSE ASM; VAC (B)	8-98070-137-2	02	1	1306-	●	●
159	HOSE ASM; VAC (A)	8-98070-138-1	02	1	1306-	●	●
159	HOSE ASM; VAC (C)	8-98093-010-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●	●
165	BOLT; BRKT (C) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
165	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1306-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1306-1405	●	●
165	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
165	BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M6X16 FLANGE SOU	0-28650-616-0	01	1	1406-	●	●
172	CLIP; VAC HOSE ID=16	8-98008-098-0	04	1	1306-	●	●
228	NUT; PIPE M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
228	NUT; PIPE M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
228	NUT; PIPE M10 FLANGE SOU	0-91180-110-0	01	1	1306-		●

78 39 39 80 39 78 39 39 39 80 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (D) ID=11-17	8-98173-762-1	08	1	1408-	●	●
39	CLIP; HOSE,VAC HYDRO BRAKE BOOSTER(7QQ) (E) ID=21.7	8-97203-074-0	02	1	1408-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	04	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	04	1	1406-	●	●
39	CLIP; HOSE,VAC (A) L=170.3	1-09987-182-0	01	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (A) L=170.3	1-09987-182-0	01	1	1406-	●	●
39	CLIP; HOSE,VAC (C) ID=16	8-97329-628-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER(7QQ) (C) ID=16	8-97329-628-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (B) ID=16 SOU	8-94238-568-0	02	1	1306-1405	●	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (B) ID=16 SOU	8-94238-568-0	02	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-97386-589-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98136-613-0	01	1	1408-	●	●
78	HOSE; VAC,PIPE TO PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98096-135-0	01	1	1408-		●
78	HOSE; VAC,PIPE TO PIPE (C) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98171-287-0	01	1	1306-	●
78	HOSE; VAC,PIPE TO PIPE (A)	8-98080-833-1	01	1	1306-1405	●	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98080-833-1	01	1	1406-	●	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1306-		●
78	HOSE; VAC,PIPE TO PIPE (B)	8-98189-103-0	01	1	1306-		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98097-788-0	01	1	1408-	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (A)	8-97386-605-0	01	1	1408-	●	●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98092-258-1	01	1	1408-1501		●
80	PIPE; VAC,ENG SIDE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98308-378-0	01	1	1502-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
