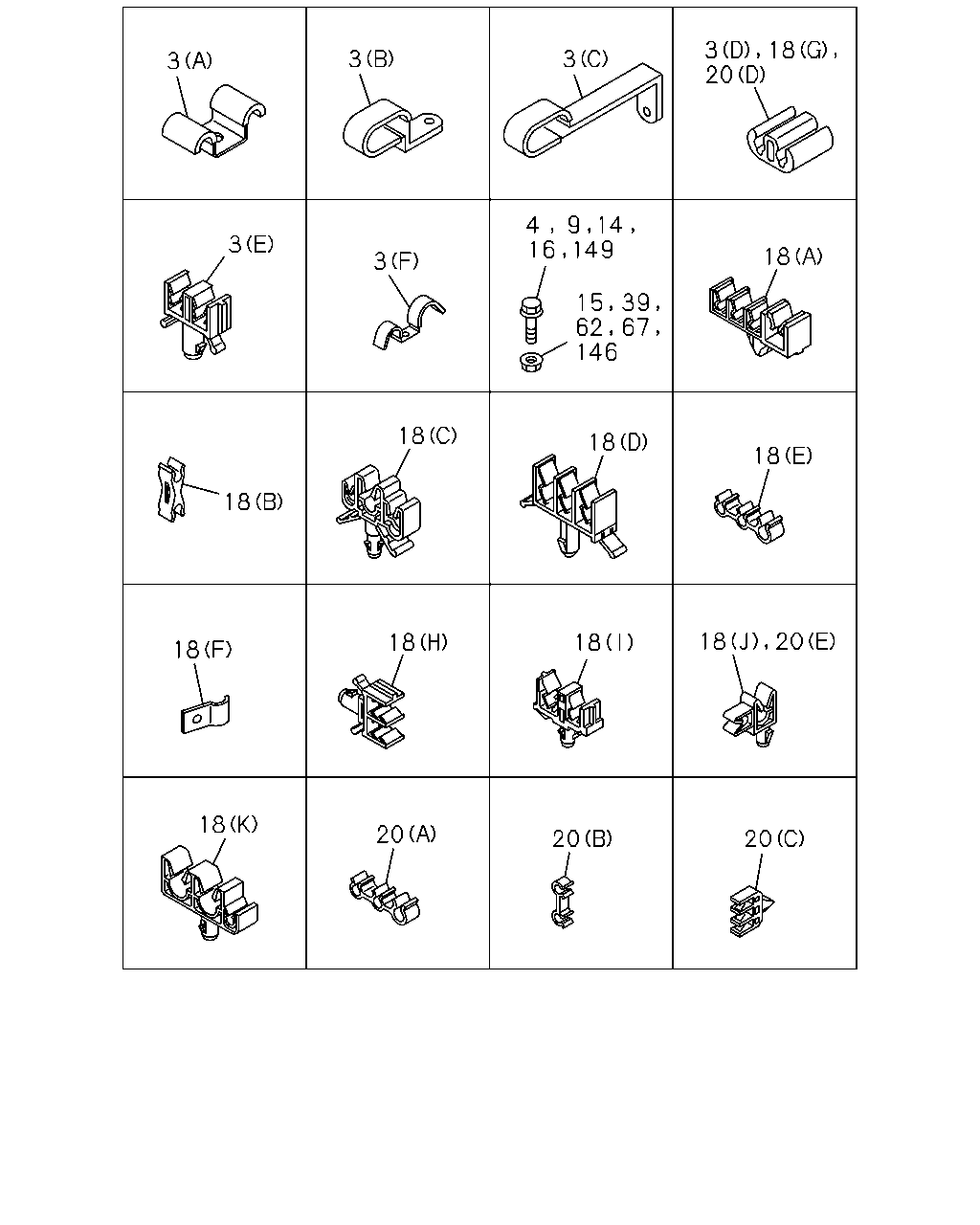

3-58 — FIXING PARTS; OIL PIPING (#122849) — 84 parça

3 3 3 3 18 20 3 3 4 9 14 16 149 15 39 62 67 146 18 18 18 18 18 18 18 18 18 20 18 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A) ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (C) ID=14X29 H=30 L=25	1-09701-101-0	01	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (D) ID=10X2 H=22	8-94252-455-2	01	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (D) ID=10X2 H=22	8-94252-455-2	03	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (E) ID=10X2 H=37.5	8-97018-546-0	01	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (E) ID=10X2 H=37.5	8-97018-546-0	02	1	1408-	●	●
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (F) ID=13 & 18 L=17 & 19	8-98067-703-0	03	1	1408-		●
4	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> M8X25 FLANGE SOU	0-28650-825-0	01	1	1408-	●	●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE SOU	0-28651-025-0	01	1	1408-	●	●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8X20 FLANGE	0-28650-820-0	01	1	1408-		●
4	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10X25 FLANGE SOU	0-28651-025-0	02	1	1408-		●
4	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
9	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-1405	●	●
9	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1406-	●	●
9	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE SOU	0-28650-825-0	01	1	1406-	●	●
14	BOLT; CLIP,OIL PIPE M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
15	NUT; CLIP,OIL PIPE M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●
16	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	08	1	1412-	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	07	1	1412-		●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (J) ID=12 & 6.35	8-97215-437-0	01	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) ID=10 & 4.76X3	8-97326-158-1	01	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (K) ID=10 OR 12X2 & 4.76	8-98058-323-0	02	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	03	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	09	1	1408-1411	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	01	1	1412-	●	●
18	CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.8X2	8-94316-410-0	01	1	1406-1407	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (H) ID=4.8X2	8-94316-410-0	01	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (H) ID=4.8X2	8-94316-410-0	01	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=4.8X2	8-94455-816-0	01	1	1406-	●	●
18	CLIP; BRK PIPE (F) B=18 L=20	1-09700-372-0	02	1	1306-	●	●
18	CLIP; BRK PIPE (E) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	1306-	●	●
18	CLIP; BRK PIPE (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1306-1405	●	●
18	CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1406-1407	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1406-1407	●	●
18	CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (G) ID=4.8X2 SOU	8-94389-060-0	01	1	1408-	●	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1306-1405	●	●
18	CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1406-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1406-	●	●
18	CLIP; BRK PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	1306-	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1306-1405	●	●
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1406-1407	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1408-	●	●
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1408-	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	1306-1407	●	●
18	CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	01	1	1408-	●	●
18	CLIP; BRK PIPE (C) ID=12 & 6.35 & 4.76	8-97202-954-1	03	1	1306-1407	●	●
18	CLIP; BRK PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	1408-	●	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	04	1	1306-	●	●
18	CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97326-158-1	07	1	1306-	●	●
20	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (D) ID=6.35 & 6.35	8-94474-113-0	03	1	1406-	●	●
20	CLIP; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (E) ID=12 & 6.35	8-97215-437-0	01	1	1406-	●	●
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	1306-1405	●	●
20	CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (A) ID=6.4 & 4.8X2 SOU	8-94146-043-0	01	1	1406-	●	●
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2 SOU	8-94250-923-2	01	1	1306-	●	●
20	CLIP; BRK PIPE (B)	8-94338-104-0	01	1	1306-1405	●	●
20	CLIP; BRK PIPE EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-94338-104-0	01	1	1406-	●	●
39	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	01	1	1306-1405	●	●
39	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	01	1	1406-	●	●
39	NUT; BRKT FIX 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE SOU	0-91180-108-0	01	1	1406-	●	●
62	NUT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU	0-91180-110-0	02	1	1406-	●	●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU	0-91180-110-0	01	1	1408-	●	●
67	NUT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> M10 FLANGE SOU	0-91180-110-0	01	1	1408-	●	●
67	NUT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> M8 FLANGE SOU	0-91180-108-0	01	1	1408-	●	●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M14 SOU	0-91111-514-0	01	1	1408-	●	●
67	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU	0-91180-110-0	02	1	1408-		●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	1408-	●	●
146	NUT; PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	1408-	●	●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M6 FLANGE SOU	0-91180-106-0	01	1	1408-		●
146	NUT; PIPE HYDRO BRAKE BOOSTER(7QQ) M10 FLANGE SOU	0-91180-110-0	02	1	1406-	●	●
149	BOLT; HOSE HYDRO BRAKE BOOSTER(7QQ) M6X20 FLANGE SOU	0-28650-620-0	01	1	1408-	●	●

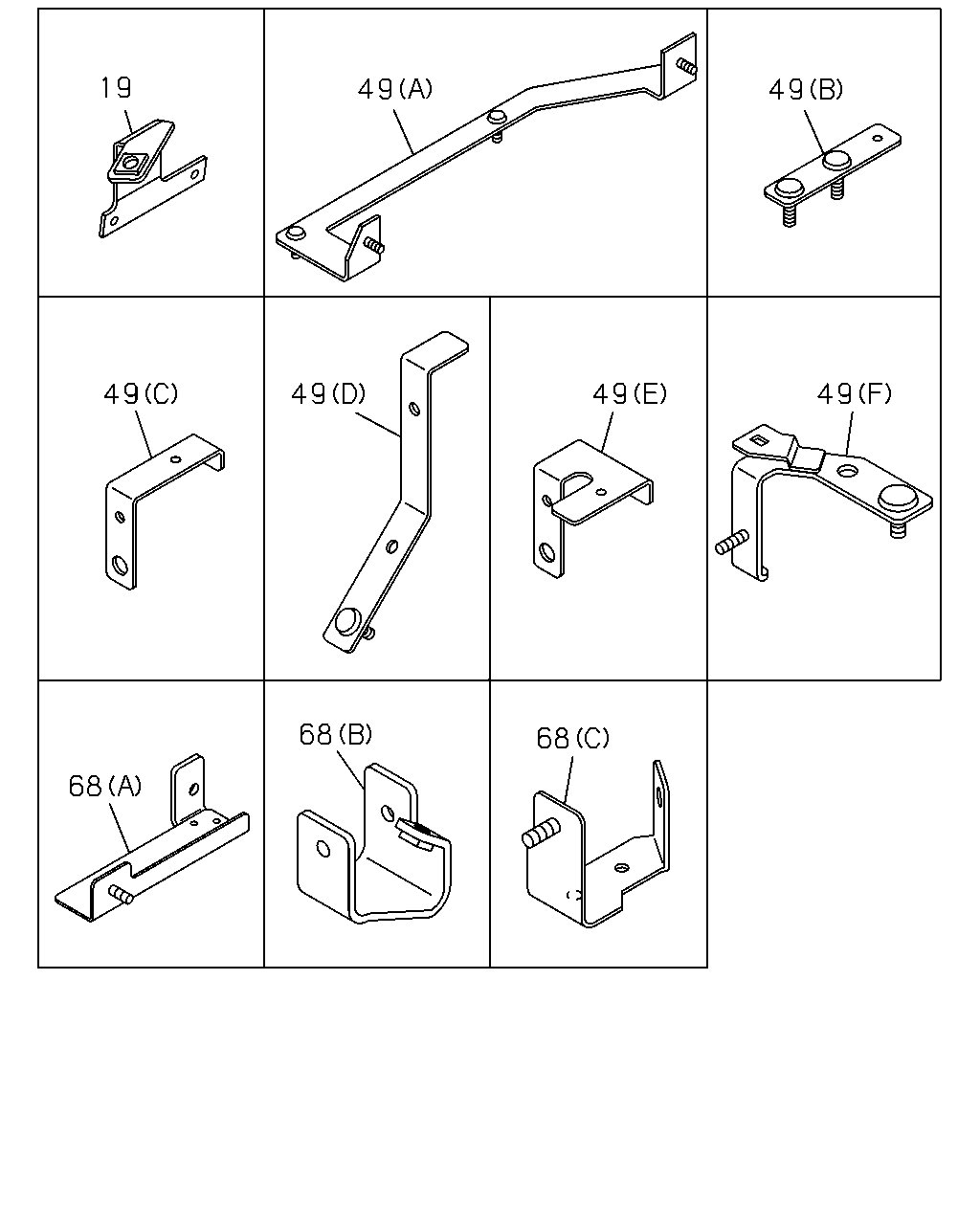

68 68 68 49 49 49 49 49 49 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BRACKET; OIL PIPE	8-97389-845-2	01	1	1306-	●	●
49	BRACKET; BRK PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HYDRO BRAKE BOOSTER(7QQ) (B)	8-97387-196-0	01	1	1408-	●	●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (C)	8-98033-802-1	01	1	1408-	●	●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (D)	8-97251-896-1	01	1	1408-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (E)	8-98033-803-1	01	1	1408-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (F)	8-98096-202-1	01	1	1408-		●
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98041-600-0	01	1	1406-	●	●
68	BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-98207-358-1	01	1	1408-	●	●
68	BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-98207-396-0	01	1	1408-	●	●
68	BRACKET; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C)	8-98284-683-0	01	1	1408-	●	●
