3-52 — BRAKE PIPING; OIL,FRONT (#122847) — 90 parça

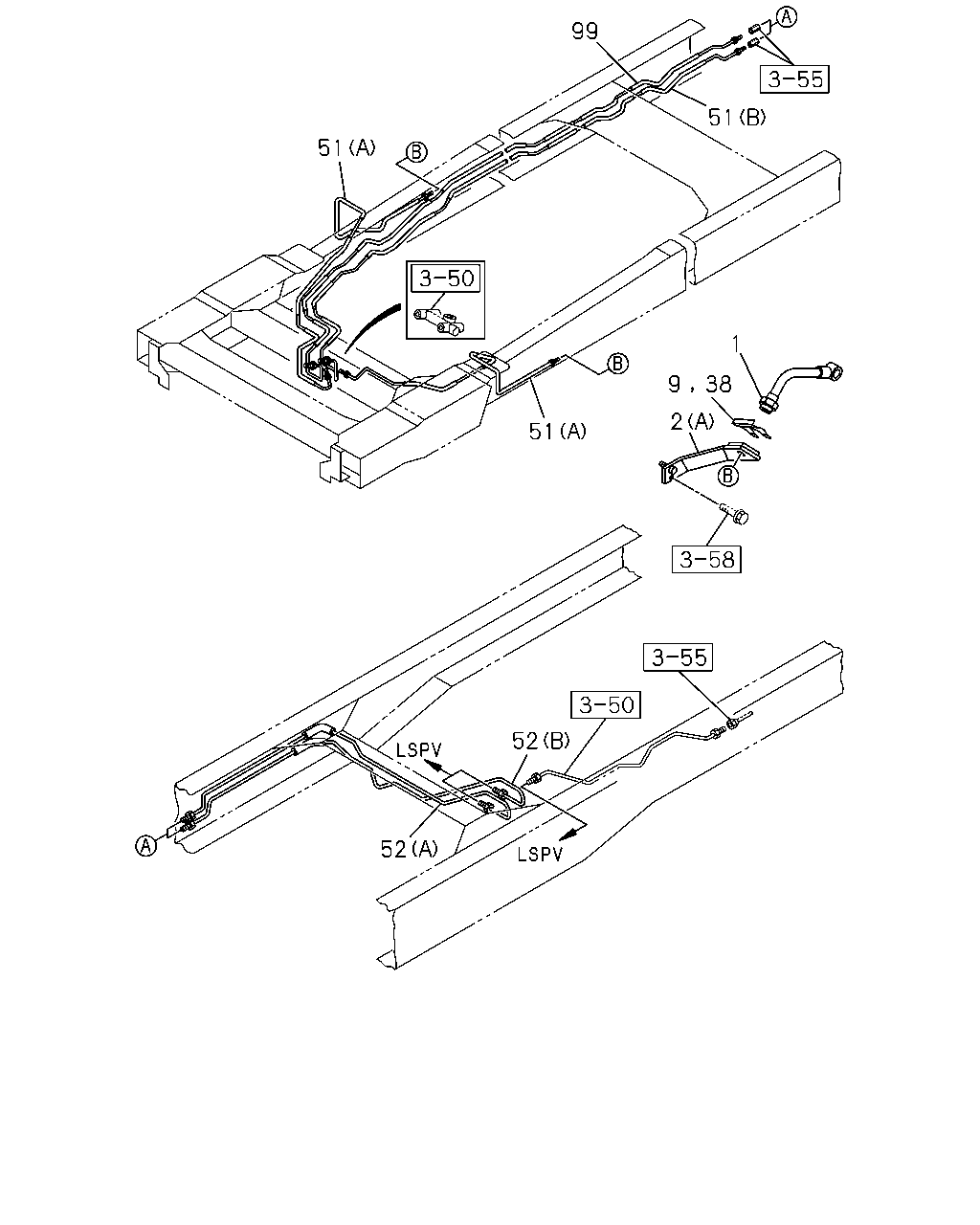

51 99 51 51 1 9 38 2 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	1306-	●	●
2	BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1406-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98049-943-1	01	1	1306-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1306-	●	●
38	CLIP	8-97360-054-0	02	1	1306-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT	8-98284-681-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (F) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-688-2	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (E) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-689-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) LSPV TO HU	8-98284-691-1	01	1	1408-	●	●
51	PIPE; BRK (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1306-1405	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1406-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) BRAKE SYSTEM,FRT LH 2WAY TO FRONT	8-98284-684-1	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98284-682-0	01	1	1408-	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1406-	●	●
52	PIPE; BRK (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1406-1407	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1408-	●	●
52	PIPE; BRK (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1406-	●	●
99	PIPE ASM; 4/5/6 WAY 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1306-1405	●	●
99	PIPE ASM; 4/5/6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1406-1407	●	●
99	PIPE ASM; 4/5/6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1408-	●	●
99	PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1408-	●	●

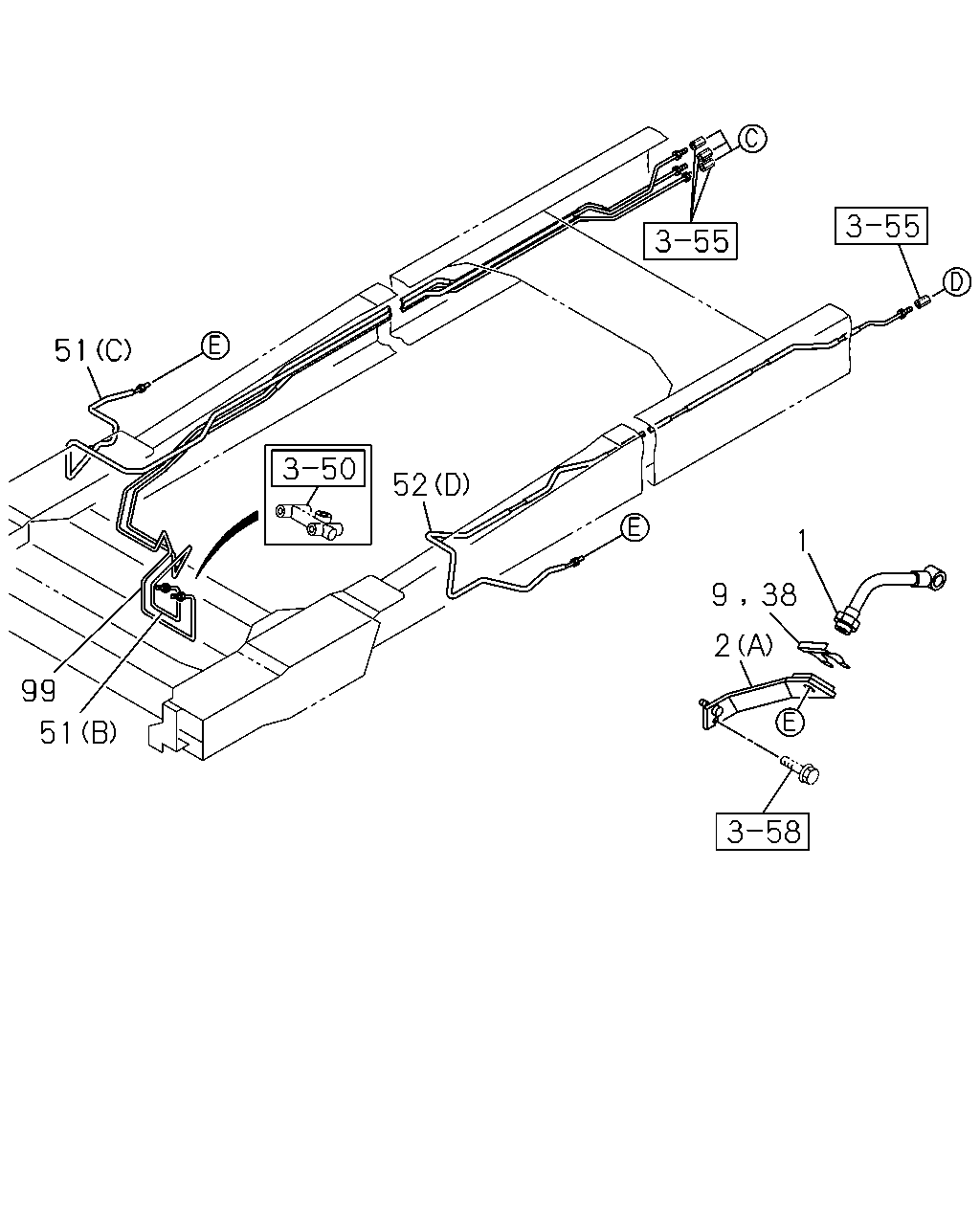

52 9 38 2 1 51 51 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	1306-	●	●
2	BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1406-	●	●
2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98049-943-1	01	1	1306-	●	●
9	CLIP; FLEX HOSE,FRT BRK	8-97360-054-0	02	1	1306-	●	●
38	CLIP	8-97360-054-0	02	1	1306-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT	8-98284-681-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (F) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-688-2	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (E) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-689-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) LSPV TO HU	8-98284-691-1	01	1	1408-	●	●
51	PIPE; BRK (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1306-1405	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1406-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) BRAKE SYSTEM,FRT LH 2WAY TO FRONT	8-98284-684-1	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98284-682-0	01	1	1408-	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1406-	●	●
52	PIPE; BRK (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1406-1407	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1408-	●	●
52	PIPE; BRK (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1406-	●	●
99	PIPE ASM; 4/5/6 WAY 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1306-1405	●	●
99	PIPE ASM; 4/5/6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1406-1407	●	●
99	PIPE ASM; 4/5/6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1408-	●	●
99	PIPE ASM; 4/5/6 WAY 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> 4/6WAY TO 2WAY,REAR	8-98057-259-0	01	1	1408-	●	●

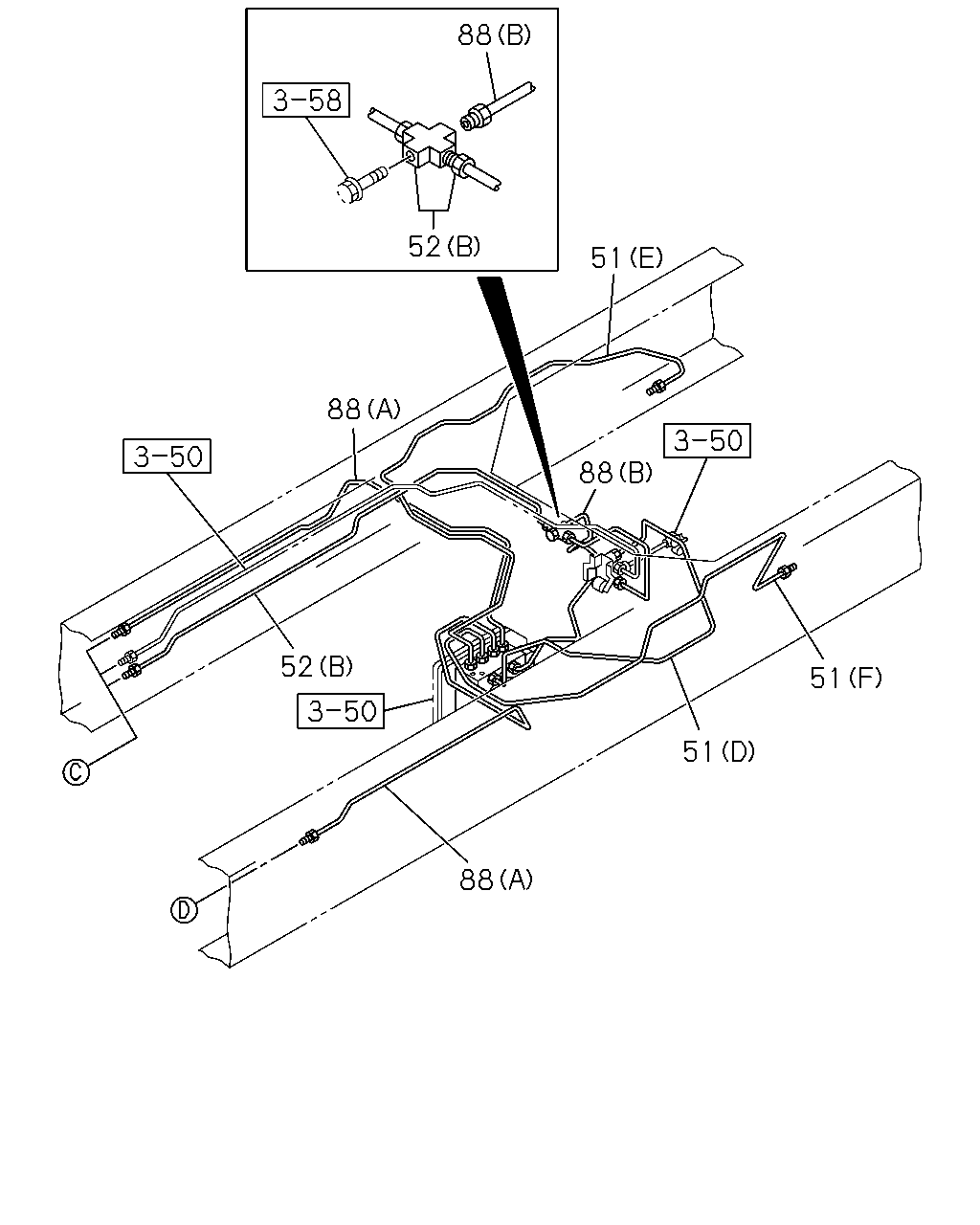

88 52 51 88 88 52 88 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (C) BRAKE SYSTEM,FRT RH 2WAY TO FRONT	8-98284-681-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (F) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-688-2	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (E) BRAKE SYSTEM,RR RH HU TO 2WAY,FRONT	8-98284-689-0	01	1	1408-	●	●
51	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) LSPV TO HU	8-98284-691-1	01	1	1408-	●	●
51	PIPE; BRK (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1306-1405	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1406-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 4/6WAY TO 2WAY,FRONT	8-98057-260-0	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT RH 6WAY TO 2WAY,FRONT	8-98060-402-1	01	1	1408-	●	●
51	PIPE; BRK (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1306-1407	●	●
51	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) BRAKE SYSTEM,FRT LH 6WAY TO 2WAY,FRONT	8-98060-406-2	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) BRAKE SYSTEM,FRT LH 2WAY TO FRONT	8-98284-684-1	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98284-682-0	01	1	1408-	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1406-	●	●
52	PIPE; BRK (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1406-1407	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1408-	●	●
52	PIPE; BRK (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1406-	●	●
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-98284-685-2	01	1	1408-	●	●
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B)	8-98284-686-0	01	1	1408-	●	●
88	PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-98284-687-0	01	1	1408-	●	●

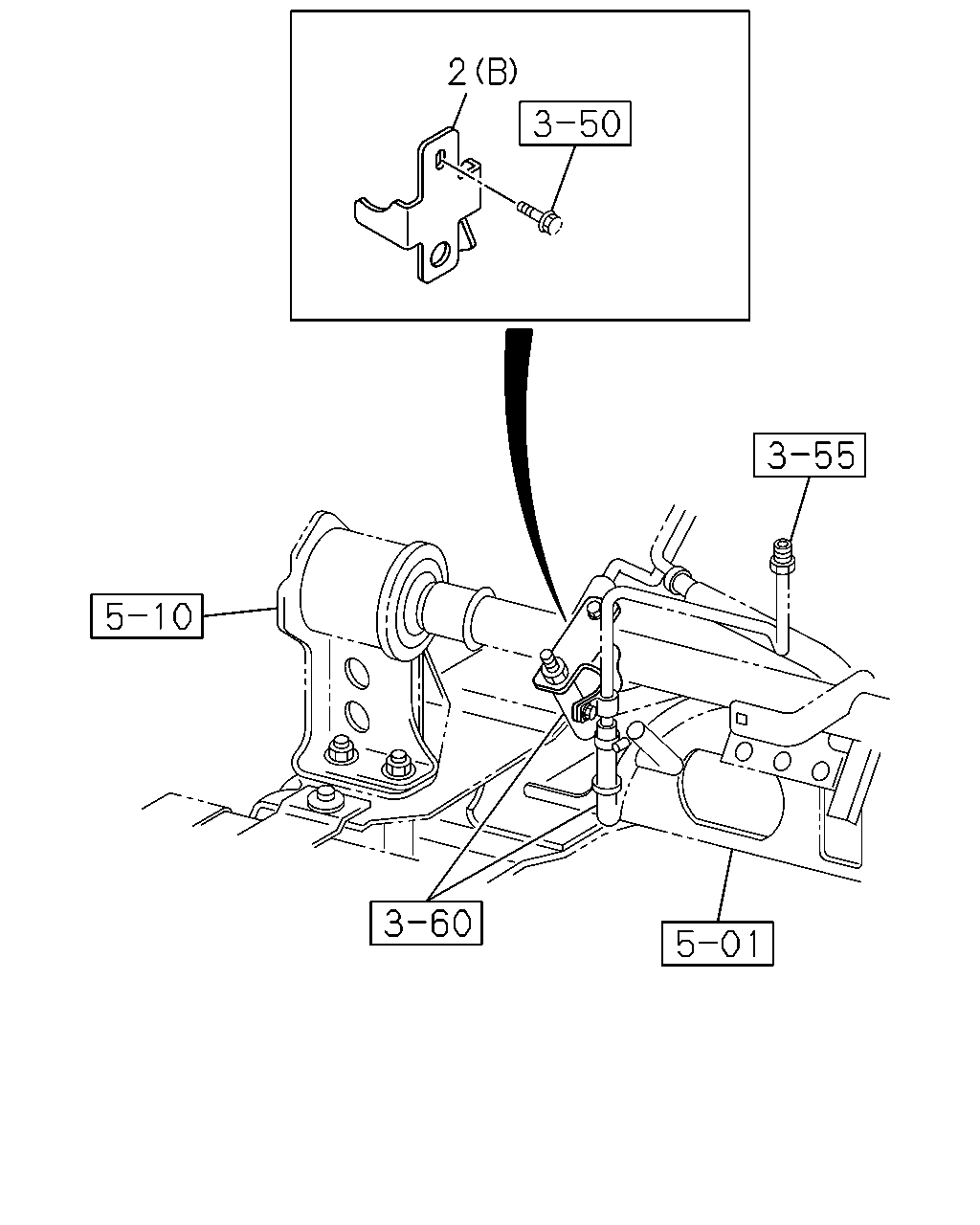

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BRACKET; FLEX HOSE,FRT BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98136-577-0	01	1	1406-	●	●
	2	BRACKET; FLEX HOSE,FRT BRK (A)	8-98049-943-1	01	1	1306-	●	●

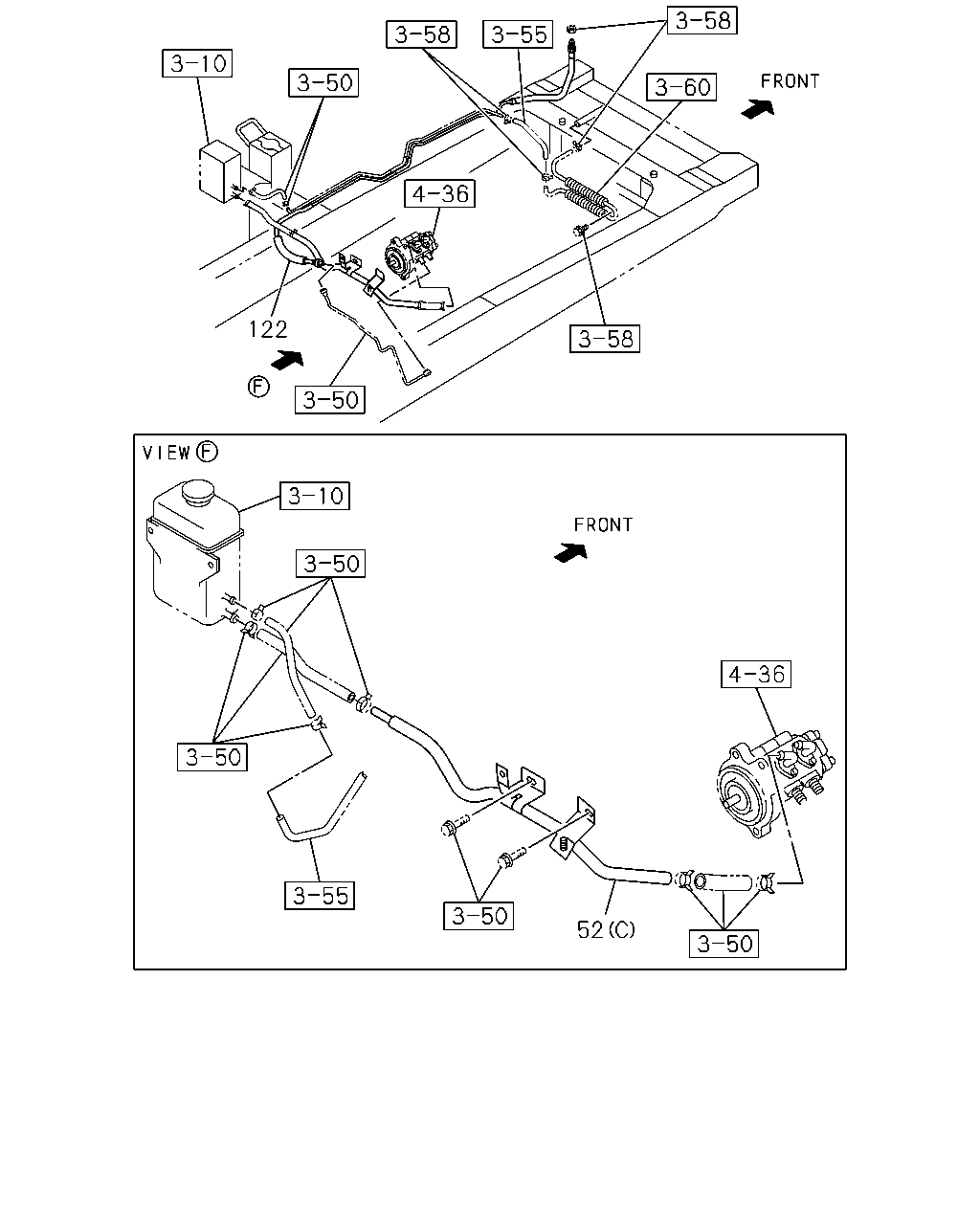

122 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (D) BRAKE SYSTEM,FRT LH 2WAY TO FRONT	8-98284-684-1	01	1	1408-	●	●
52	PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98284-682-0	01	1	1408-	●	●
52	PIPE; BRK HYDRO BRAKE BOOSTER(7QQ) (C)	8-98036-162-0	01	1	1406-	●	●
52	PIPE; BRK (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1406-1407	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> (B) 2WAY TO LSPV,REAR	8-98057-265-0	01	1	1408-	●	●
52	PIPE; BRK (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1306-1405	●	●
52	PIPE; BRK BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 2WAY TO LSPV,FRONT	8-98057-268-0	01	1	1406-	●	●
122	PIPE ASM; BRK,2 WAY HYDRO BRAKE BOOSTER(7QQ) L=1839	8-98136-573-0	01	1	1408-	●
122	PIPE ASM; BRK,2 WAY HYDRO BRAKE BOOSTER(7QQ) L=1958	8-98136-574-0	01	1	1408-		●
