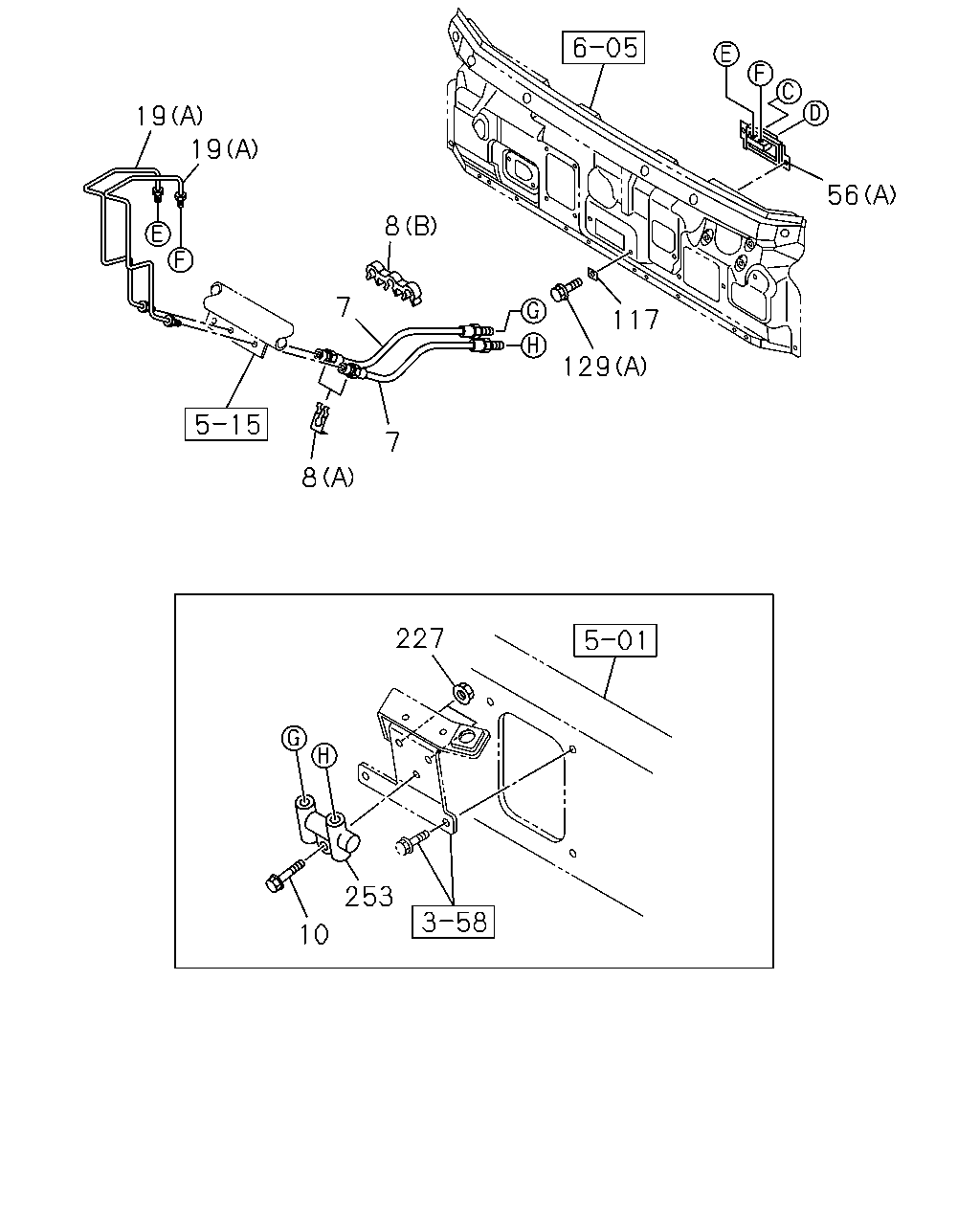

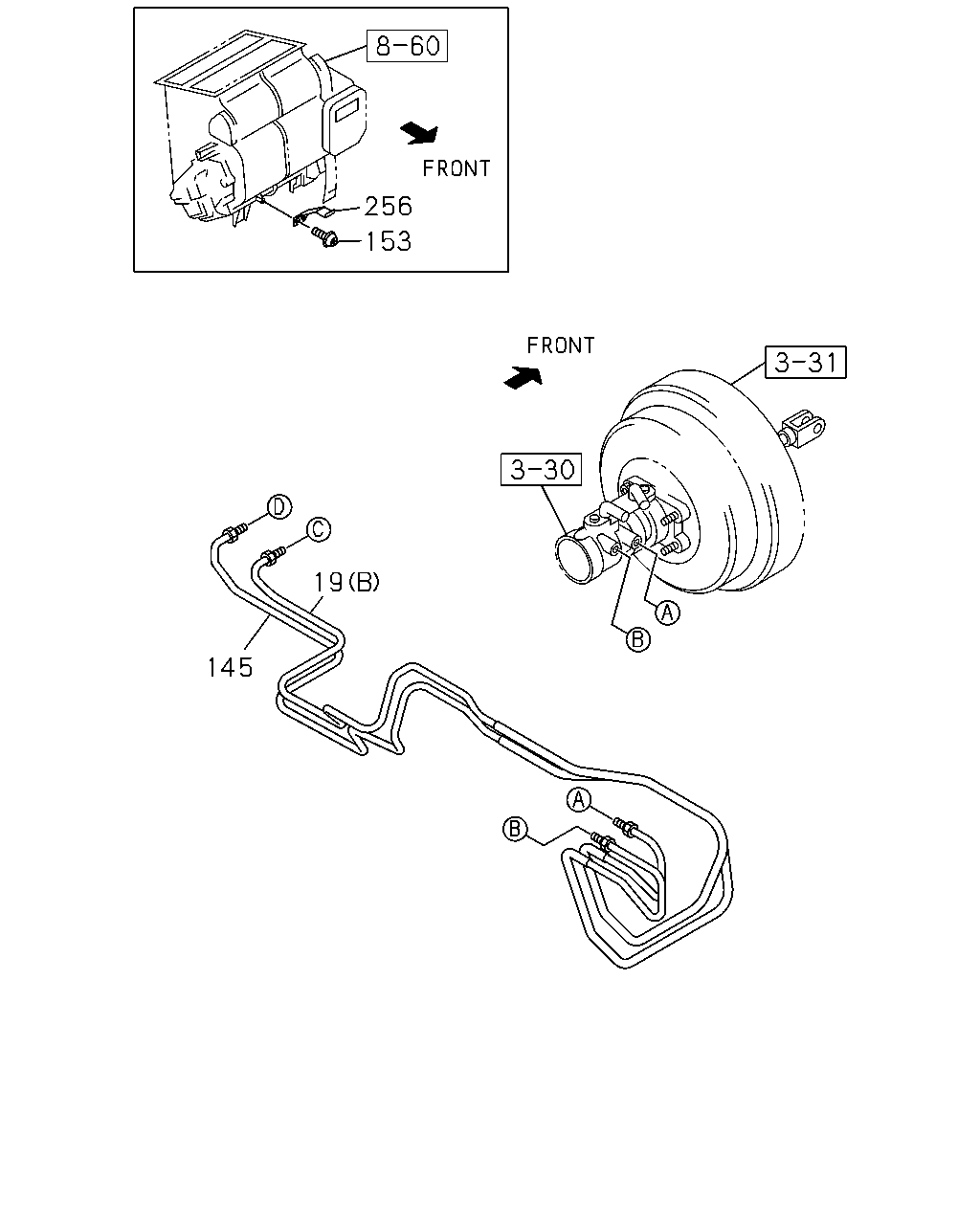

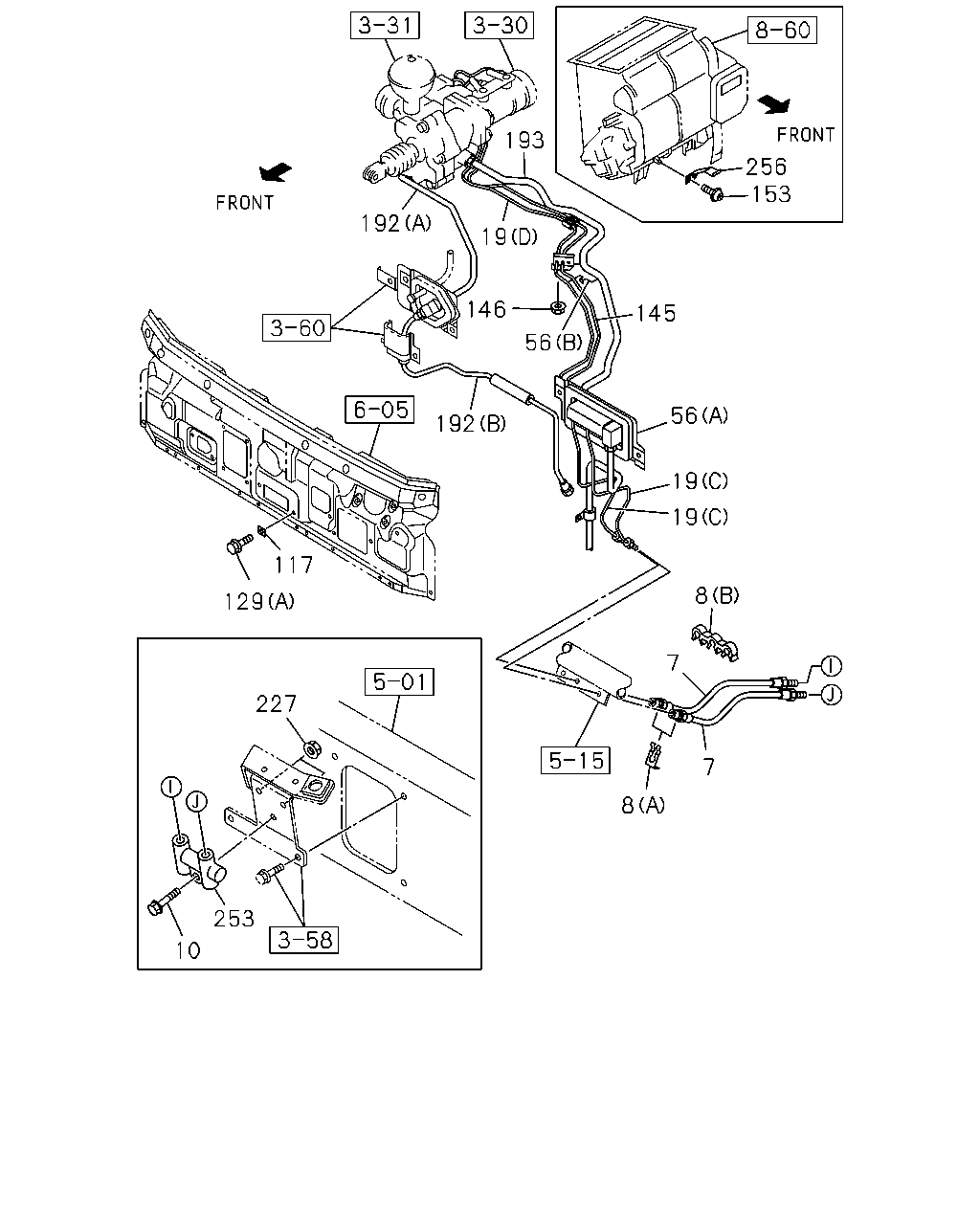

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#122846) — 137 parça

192 19 193 256 153 146 56 192 56 145 19 19 8 7 7 8 117 129 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1306-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	1306-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1306-	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	1306-	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1406-	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98098-679-0	01	1	1406-	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-266-1	01	1	1406-	●	●
56	BRACKET; UNION,BRK (A)	8-98154-264-1	01	1	1306-1405	●	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-264-1	01	1	1406-	●	●
117	SEAL; UNION,BRK PIPE JOINT SOU	8-97856-616-0	02	1	1306-	●	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1408-	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=268	8-98133-409-0	01	1	1406-1406	●	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98098-680-1	01	1	1407-1505	●	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ)	8-98098-680-1	01	1	1506-	●	●
145	PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1306-1405	●	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-97389-295-3	01	1	1406-1505	●	●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97389-295-3	01	1	1506-	●	●
146	NUT; BRKT HYDRO BRAKE BOOSTER(7QQ) M8 W/LK WASHER SOU	8-94279-050-0	01	1	1406-	●	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1306-	●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (A)	8-98127-262-0	01	1	1406-	●	●
192	PIPE; PRESSURE HYDRO BRAKE BOOSTER(7QQ) (B)	8-98193-137-0	01	1	1406-	●	●
193	PIPE; RETURN HYDRO BRAKE BOOSTER(7QQ)	8-98098-683-0	01	1	1406-	●	●
227	NUT; JOINT M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97139-922-1	01	1	1408-	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1406-1407	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-97038-940-1	01	1	1408-	●	●
253	JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	1406-	●	●
253	JOINT	8-97120-033-2	01	1	1306-1405	●	●
253	JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	1406-	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1306-	●	●

11 35 262 261 261 260 263 164 13 11 26 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT	8-94427-224-2	01	1	1306-1405	●	●
11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	1406-	●	●
13	BOLT; VLV TO BRKT M8X16 FLANGE SOU	0-28050-816-0	04	1	1306-1405	●	●
13	BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	04	1	1406-	●	●
26	BRACKET; PROPORTIONING VLV	8-98057-012-0	01	1	1306-1405	●	●
26	BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH>	8-98057-012-0	01	1	1406-	●	●
35	PIPE; BRK,VLV TO RR AXLE	8-98057-271-0	01	1	1306-1405	●	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	1406-	●	●
104	BOLT; BRKT TO BODY M8X16 FLANGE SOU	0-28050-816-0	02	1	1306-1405	●	●
104	BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> M8X16 FLANGE SOU	0-28050-816-0	02	1	1406-	●	●
164	SCREW; BLEEDER	8-97093-663-0	01	1	1306-1405	●	●
164	SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-663-0	01	1	1406-	●	●
260	SHACKLE; LSPV	8-97173-366-0	01	1	1306-1405	●	●
260	SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH>	8-97173-366-0	01	1	1406-	●	●
261	BUSHING; LSPV	8-97145-631-0	02	1	1306-1405	●	●
261	BUSHING; LSPV BRK WHL LK CONT LSPV<6PH>	8-97145-631-0	02	1	1406-	●	●
262	COLLAR; LSPV	8-97139-186-0	01	1	1306-1405	●	●
262	COLLAR; LSPV BRK WHL LK CONT LSPV<6PH>	8-97139-186-0	01	1	1406-	●	●
263	CAP; BLEEDER	8-97093-662-0	01	1	1306-1405	●	●
263	CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	1406-	●	●

256 153 145 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1406-	●	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ) L=268	8-98133-409-0	01	1	1406-1406	●	●
145	PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98098-680-1	01	1	1407-1505	●	●
145	PIPE; BRK,METERING VLV TO UNION HYDRO BRAKE BOOSTER(7QQ)	8-98098-680-1	01	1	1506-	●	●
145	PIPE; BRK,METERING VLV TO UNION	8-97389-295-3	01	1	1306-1405	●	●
145	PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER(7QQ)	8-97389-295-3	01	1	1406-1505	●	●
145	PIPE; BRK,METERING VLV TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ)	8-97389-295-3	01	1	1506-	●	●
153	SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1306-	●	●
256	BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1306-	●	●

19 19 8 7 7 8 129 117 56 227 253 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98029-865-0	02	1	1306-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (B)	8-97076-471-0	01	1	1306-	●	●
8	CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1306-	●	●
10	BOLT; JOINT M6X40 FLANGE	0-28650-640-0	01	1	1306-	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (C)	8-98043-501-2	02	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION HYDRO BRAKE BOOSTER(7QQ) (D)	8-98098-682-1	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (B)	8-97389-337-3	01	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (B)	8-97389-337-3	01	1	1406-	●	●
19	PIPE; BRK,M/CYL TO UNION (A)	8-97389-366-1	02	1	1306-1405	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-97389-366-1	02	1	1406-	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (B)	8-98098-679-0	01	1	1406-	●	●
56	BRACKET; UNION,BRK HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-266-1	01	1	1406-	●	●
56	BRACKET; UNION,BRK (A)	8-98154-264-1	01	1	1306-1405	●	●
56	BRACKET; UNION,BRK EXC. HYDRO BRAKE BOOSTER(7QQ) (A)	8-98154-264-1	01	1	1406-	●	●
117	SEAL; UNION,BRK PIPE JOINT SOU	8-97856-616-0	02	1	1306-	●	●
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1408-	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●
227	NUT; JOINT M8 FLANGE SOU	0-91180-108-0	02	1	1306-	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH>	8-97139-922-1	01	1	1408-	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1406-1407	●	●
253	JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH>	8-97038-940-1	01	1	1408-	●	●
253	JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONT LSPV<6PH>	5-47456-009-1	01	1	1406-	●	●
253	JOINT	8-97120-033-2	01	1	1306-1405	●	●
253	JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	1406-	●	●

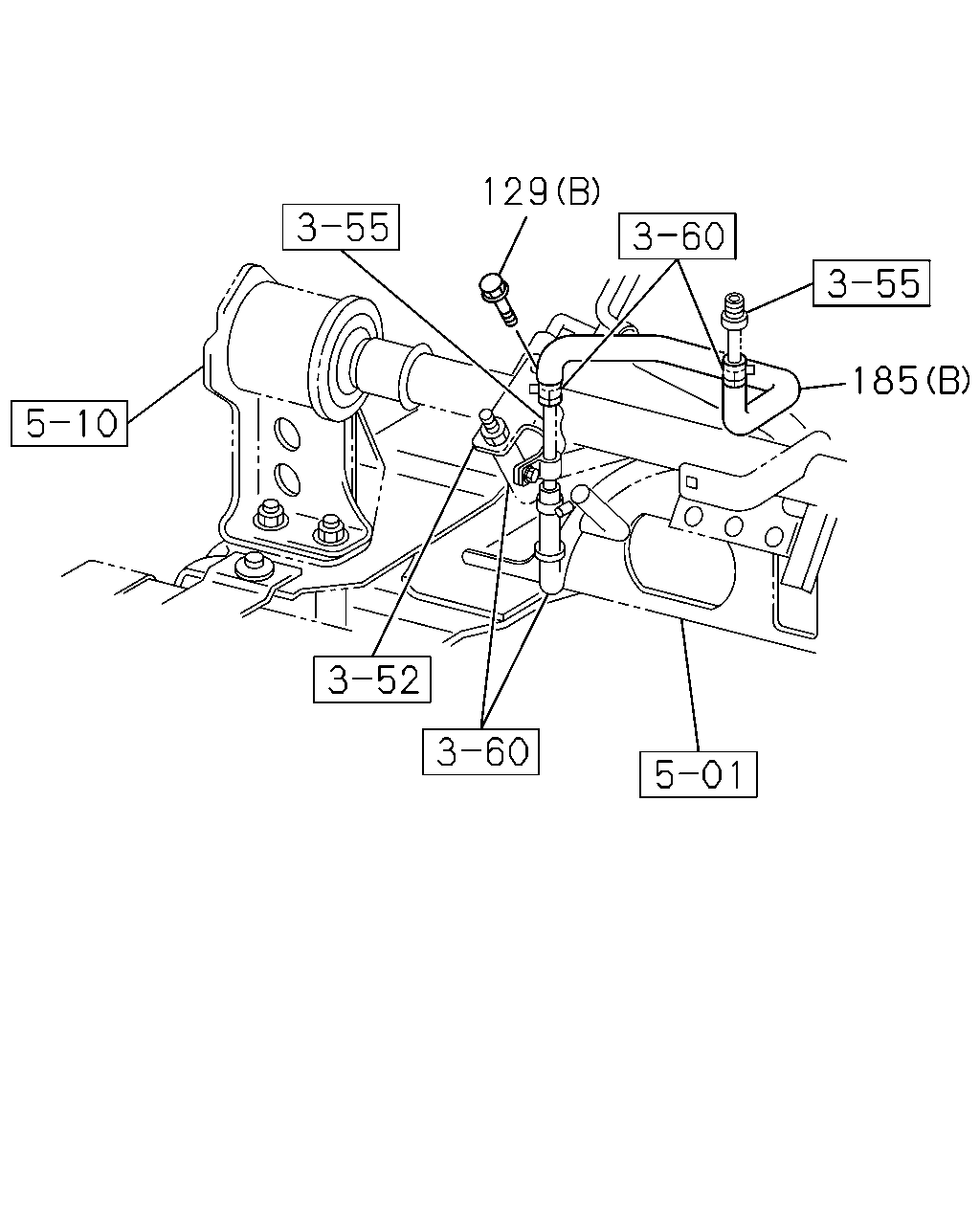

129 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
129	BOLT; BRKT HYDRO BRAKE BOOSTER(7QQ) (B) M6X12 FLANGE SOU	0-28050-612-0	01	1	1408-	●	●
129	BOLT; BRKT (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1306-	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1408-	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1406-	●	●

35 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	VALVE; BRK CONT	8-94427-224-2	01	1	1306-1405	●	●
11	VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH>	8-94427-224-2	01	1	1406-	●	●
35	PIPE; BRK,VLV TO RR AXLE	8-98057-271-0	01	1	1306-1405	●	●
35	PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98057-271-0	01	1	1406-	●	●

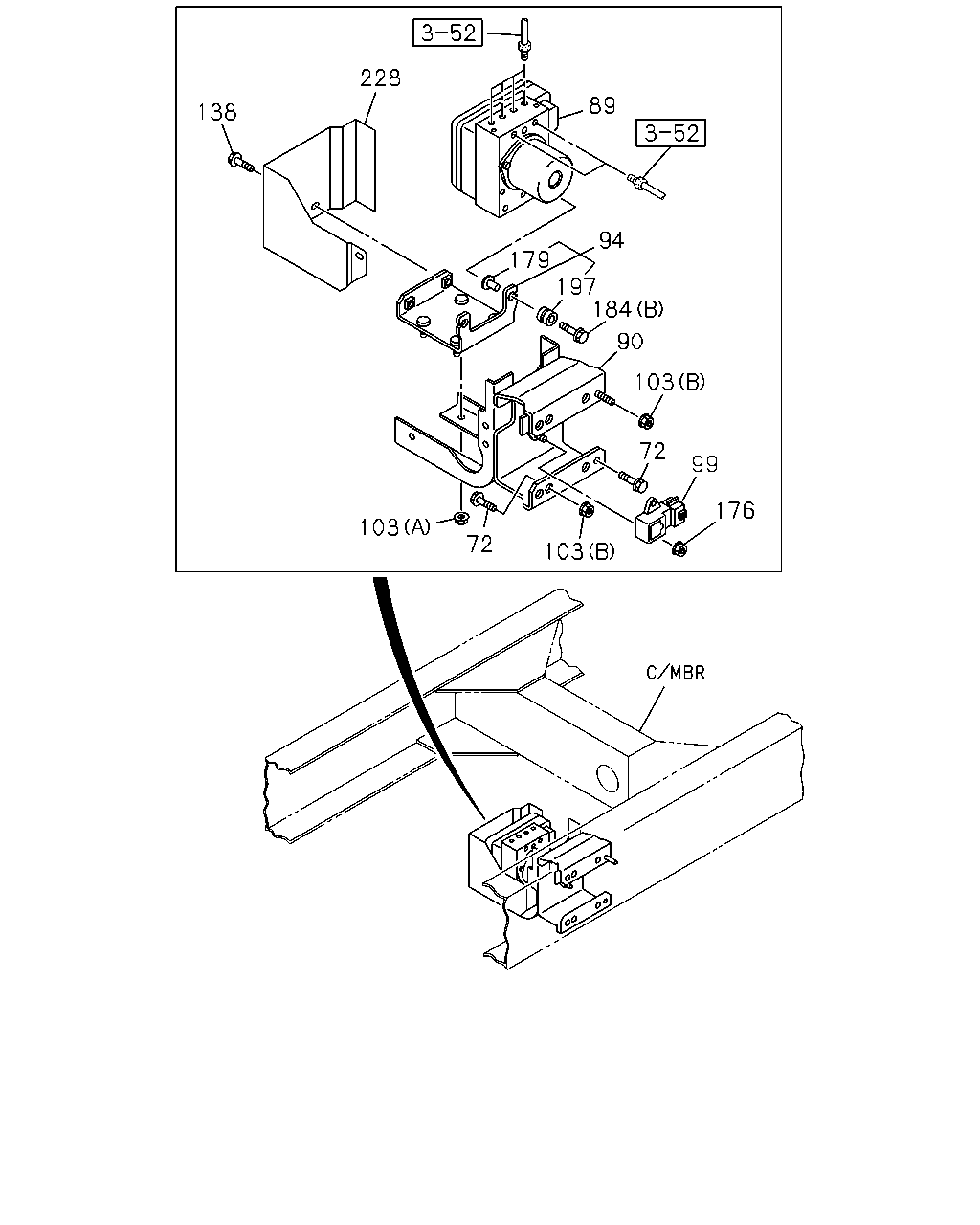

228 138 89 179 94 197 184 90 103 72 99 176 103 72 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M10X25 FLANGE SOU	0-28651-025-0	03	1	1407-	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> HYDRO BRAKE BOOSTER(7QQ)	8-98284-494-0	01	1	1407-	●	●
90	BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-534-0	01	1	1407-	●	●
94	BRACKET; ABS CONT UNIT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98131-873-1	01	1	1407-	●	●
99	SENSOR; DECELERATION 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97319-480-0	01	1	1408-	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M8 FLANGE SOU	0-91180-108-0	04	1	1407-	●	●
103	NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M10 FLANGE SOU	0-91180-110-0	03	1	1407-	●	●
138	BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	03	1	1407-	●	●
176	NUT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6 FLANGE SOU	0-91180-106-0	02	1	1408-	●	●
179	SPACER; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98130-134-0	03	1	1407-	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1407-	●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1406-	●	●
197	RUBBER; DAMPER 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98130-133-0	03	1	1407-	●	●
228	COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98146-719-0	01	1	1407-	●	●

131 130

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	130	BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1407-	●	●
	131	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M8X12 FLANGE	0-28050-812-0	02	1	1407-	●	●

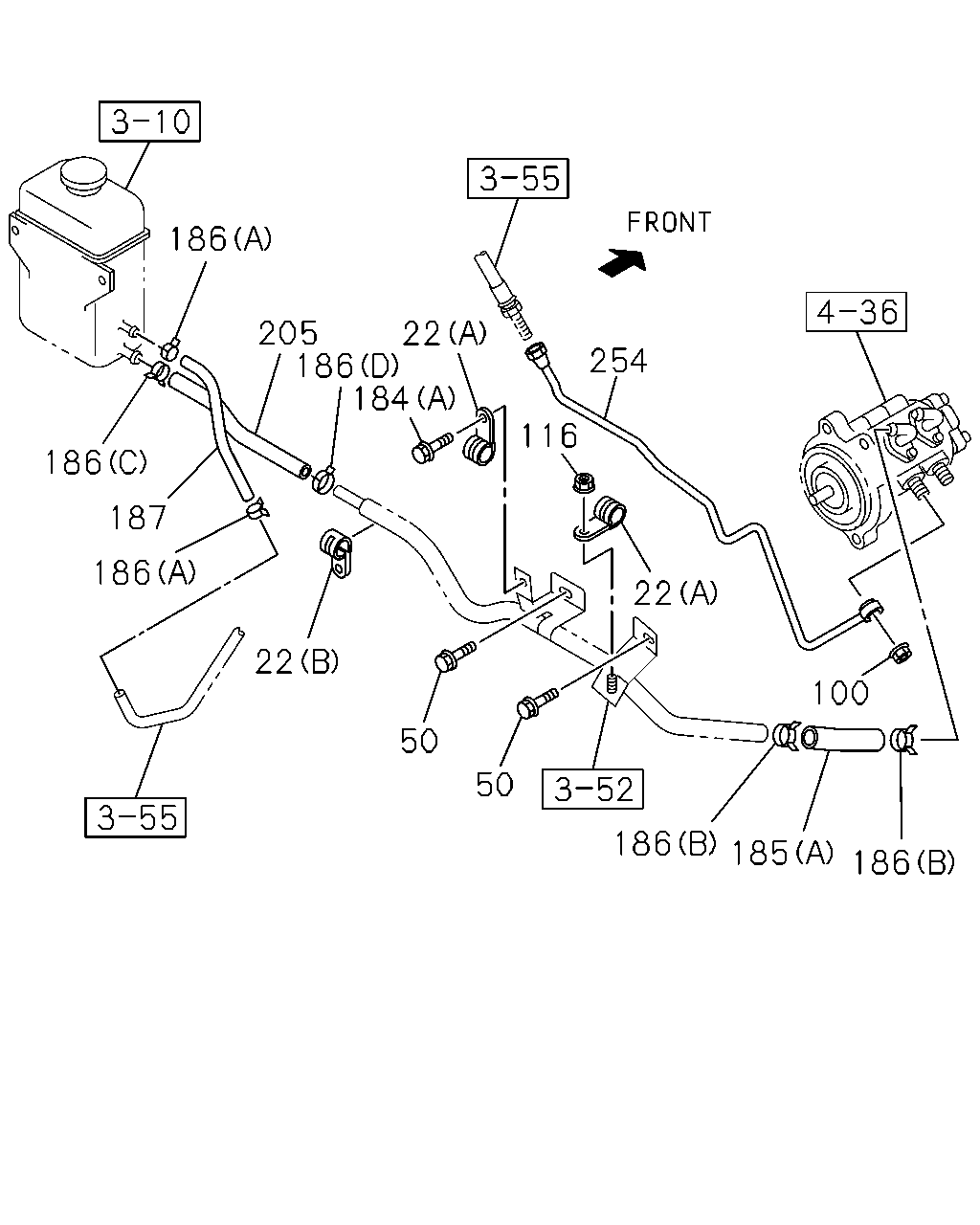

186 205 186 22 184 116 254 22 100 186 185 186 50 50 22 186 187 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (A) ID=10 L=16.5	8-98082-034-0	02	1	1406-	●	●
22	CLIP HYDRO BRAKE BOOSTER(7QQ) (B) ID=17 L=21	8-98082-035-0	01	1	1406-	●	●
50	BOLT; PIPE HYDRO BRAKE BOOSTER(7QQ) M8X16 FLANGE SOU	0-28050-816-0	03	1	1406-	●	●
100	NUT; HYDRAULIC UNIT HYDRO BRAKE BOOSTER(7QQ)	8-97358-958-0	01	1	1406-	●	●
116	NUT HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU	0-91180-108-0	01	1	1406-	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X27 W/PL WASHER	8-98131-461-0	03	1	1407-	●	●
184	BOLT; CLIP HYDRO BRAKE BOOSTER(7QQ) (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1406-	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (B)	8-98085-720-0	01	1	1408-	●	●
185	HOSE; RUBBER,SUCTION HYDRO BRAKE BOOSTER(7QQ) (A)	8-97330-513-0	01	1	1406-	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (C) ID=22	8-97359-141-0	01	1	1408-	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (A) ID=16	8-98008-098-0	02	1	1408-	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (D) ID=21	8-98150-355-0	01	1	1408-	●	●
186	CLIP; HOSE HYDRO BRAKE BOOSTER(7QQ) (B) ID=21	8-94242-034-0	02	1	1406-	●	●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=220 SERVICED BY L=3000	0-19809-300-0	01	1	1408-	●
187	HOSE; RUBBER,OIL TANK HYDRO BRAKE BOOSTER(7QQ) L=200 SERVICED BY L=3000	0-19809-300-0	01	1	1408-		●
205	HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) SERVICED BY L=300	0-09814-300-0	01	1	1408-	●
205	HOSE; TANK TO PIPE HYDRO BRAKE BOOSTER(7QQ) L=200 SERVICED BY L=300	0-09814-300-0	01	1	1408-		●
254	PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98036-161-0	01	1	1406-	●
254	PIPE; BRAKE,2WAY HYDRO BRAKE BOOSTER(7QQ)	8-98053-548-0	01	1	1406-		●
