◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-31 - BRAKE MASTER VAC AND BRAKE BOOSTER ▶
3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#122844) — 26 parça
çizim 356054
3 23 1 11 12 15 24 16 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 MASTER VAC ASM; BRK 8-97162-800-1 01 1 1306-1406 ● ●
1 MASTER VAC ASM; BRK
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97162-800-1 01 1 1407- ● ●
3 RETAINER; FRT SHELL,M/VAC
SOU 		9-83315-319-0 01 1 1306-1406 ● ●
3 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		9-83315-319-0 01 1 1407- ● ●
11 FILTER; M/VAC
SOU 		8-97205-576-0 01 1 1306-1406 ● ●
11 FILTER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97205-576-0 01 1 1407- ● ●
12 SILENCER; M/VAC
SOU 		8-97205-577-0 01 1 1306-1406 ● ●
12 SILENCER; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97205-577-0 01 1 1407- ● ●
15 RETAINER; GUARD,M/VAC
SOU 		8-94375-083-0 01 1 1306-1406 ● ●
15 RETAINER; GUARD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-94375-083-0 01 1 1407- ● ●
16 NUT; VLV ROD,M/VAC
M10 SOU 		1-52139-008-0 01 1 1306-1406 ● ●
16 NUT; VLV ROD,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) M10 SOU 		1-52139-008-0 01 1 1407- ● ●
17 CLEVIS; YOKE,M/VAC
SOU 		8-97224-610-0 01 1 1306-1406 ● ●
17 CLEVIS; YOKE,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97224-610-0 01 1 1407- ● ●
23 SEAL; M/VAC
SOU 		8-97079-350-0 01 1 1306-1406 ● ●
23 SEAL; M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97079-350-0 01 1 1407- ● ●
24 GUARD; VLV BODY,M/VAC
SOU 		8-97205-578-0 01 1 1306-1406 ● ●
24 GUARD; VLV BODY,M/VAC
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97205-578-0 01 1 1407- ● ●

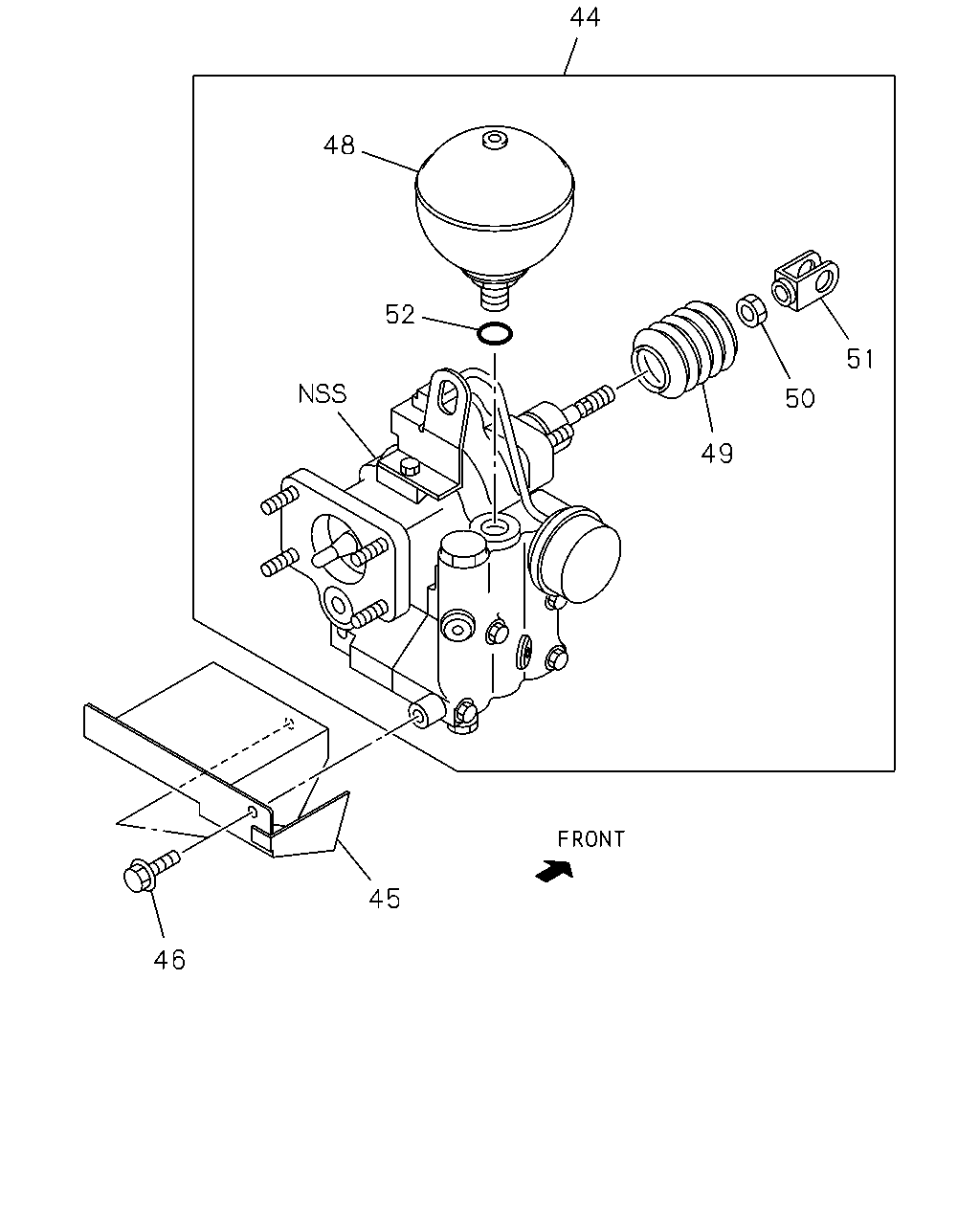

çizim 448948
51 50 49 44 48 52 45 46
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-414-0 01 1 1407- ● ●
45 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER(7QQ) 		8-98031-415-1 01 1 1406- ● ●
46 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER(7QQ) M6X10 FLANGE SOU 		0-28050-610-0 02 1 1406- ● ●
48 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-346-0 01 1 1407- ● ●
49 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97191-043-0 01 1 1407- ● ●
50 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-349-0 01 1 1407- ● ●
51 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98038-347-0 01 1 1407- ● ●
52 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER(7QQ) SOU 		8-97191-038-0 01 1 1407- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
