Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶
3-30 — BRAKE MASTER CYLINDER
(#122843) — 37 parça
Tümü
A - NPS5SN
B - NPS5WN
◀

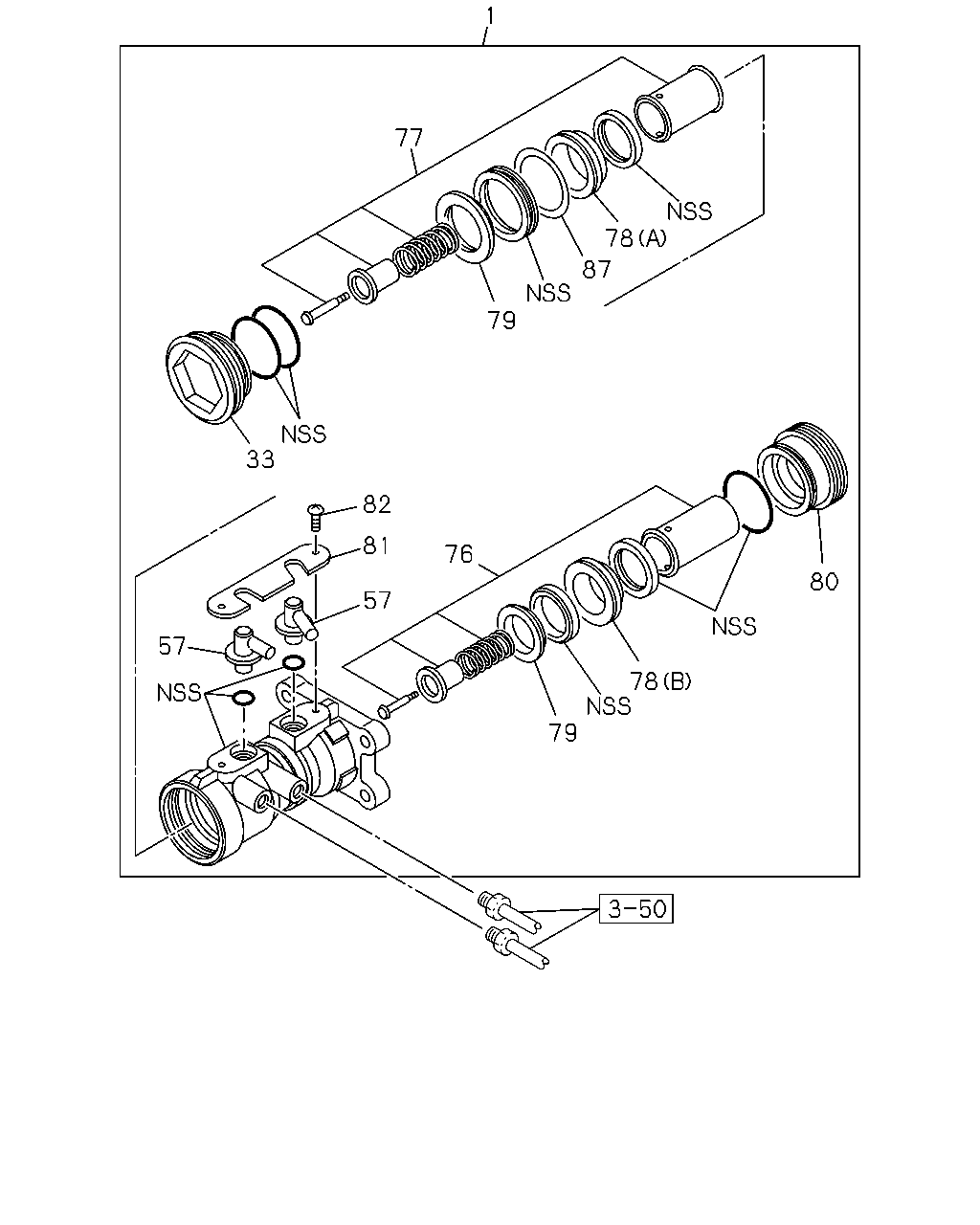

[330A] COMPONENT (34 parça)
[330A] REPAIR KIT (3 parça)
▶
1
77
78
87
79
33
57
82
81
57
76
79
78
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER(7QQ)
8-98032-618-0
01
1
1407-
●
●
1
CYLINDER ASM; BRK MASTER
8-98032-600-0
01
1
1306-1406
●
●
1
CYLINDER ASM; BRK MASTER
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98032-600-0
01
1
1407-
●
●
33
PLUG; END,M/CYL
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97186-699-0
01
1
1407-
●
●
33
PLUG; END,M/CYL
SOU
8-97186-697-0
01
1
1306-1406
●
●
33
PLUG; END,M/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97186-697-0
01
1
1407-
●
●
57
NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-441-0
02
1
1407-
●
●
57
NIPPLE; BRK M/CYL
SOU
8-97130-442-0
02
1
1306-1406
●
●
57
NIPPLE; BRK M/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-442-0
02
1
1407-
●
●
76
PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97224-641-0
01
1
1407-
●
●
76
PISTON ASM; PRIMARY
SOU
8-97224-643-0
01
1
1306-1406
●
●
76
PISTON ASM; PRIMARY
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97224-643-0
01
1
1407-
●
●
77
PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97224-640-0
01
1
1407-
●
●
77
PISTON ASM; SECONDARY
SOU
8-97224-642-0
01
1
1306-1406
●
●
77
PISTON ASM; SECONDARY
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97224-642-0
01
1
1407-
●
●
78
BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (A) SOU
8-97170-695-0
01
1
1407-
●
●
78
BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (B) SOU
8-97207-685-0
01
1
1407-
●
●
78
BUSHING; MASTER CYL
(A) SOU
8-97130-455-0
01
1
1306-1406
●
●
78
BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) SOU
8-97130-455-0
01
1
1407-
●
●
78
BUSHING; MASTER CYL
(B) SOU
8-97217-312-0
01
1
1306-1406
●
●
78
BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) SOU
8-97217-312-0
01
1
1407-
●
●
79
SUPPORTER; CUP
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97170-698-0
02
1
1407-
●
●
79
SUPPORTER; CUP
SOU
8-97130-463-0
02
1
1306-1406
●
●
79
SUPPORTER; CUP
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-463-0
02
1
1407-
●
●
80
COVER; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97170-692-0
01
1
1407-
●
●
80
COVER; MASTER CYL
SOU
8-97130-449-0
01
1
1306-1406
●
●
80
COVER; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-449-0
01
1
1407-
●
●
81
HOLDER; NIPPLE
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-444-0
01
1
1407-
●
●
81
HOLDER; NIPPLE
SOU
8-97130-445-0
01
1
1306-1406
●
●
81
HOLDER; NIPPLE
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-445-0
01
1
1407-
●
●
82
SCREW; HOLDER
SOU
8-97130-446-0
02
1
1306-
●
●
87
SPACER; CUP
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97170-696-0
01
1
1407-
●
●
87
SPACER; CUP
SOU
8-97130-459-0
01
1
1306-1406
●
●
87
SPACER; CUP
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-459-0
01
1
1407-
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER(7QQ) SOU
8-97254-775-0
01
1
1407-
●
●
2
REPAIR KIT; BRK,M/CYL
SOU
8-97130-471-0
01
1
1306-1406
●
●
2
REPAIR KIT; BRK,M/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) SOU
8-97130-471-0
01
1
1407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
