◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#122838) — 63 parça

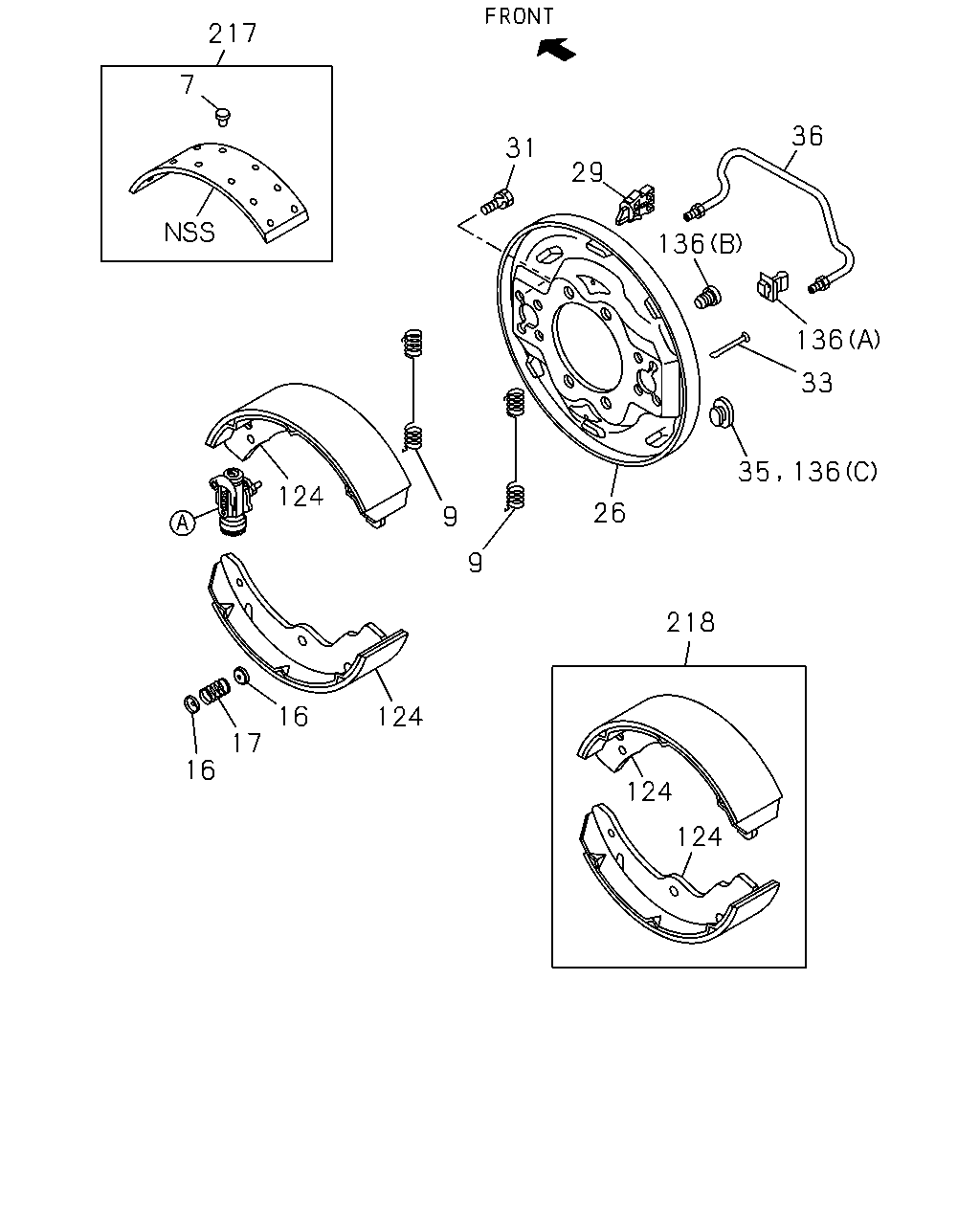

çizim 355973
217 7 124 124 16 17 16 218 124 124 136 35 26 9 9 31 29 136 36 136 33
BalonParca AdiParca NoAdetTipApplied Date A B
7 RIVET; LINING,RR BRK
SOU 		1-09732-029-0 48 1 1306- ● ●
9 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 1306- ● ●
16 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 1306- ● ●
17 SPRING; SHOE HOLD DOWN
SOU 		5-09580-101-1 04 1 1306- ● ●
26 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98148-182-0 01 1 1408- ● ●
26 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98148-183-0 01 1 1408- ● ●
26 PLATE; BACK,RR BRK 8-97223-575-0 01 1 1306-1405 ● ●
26 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97223-575-0 01 1 1406- ● ●
26 PLATE; BACK,RR BRK 8-97223-576-0 01 1 1306-1405 ● ●
26 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97223-576-0 01 1 1406- ● ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 1306- ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 1306- ● ●
33 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 1306- ● ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 1306- ● ●
36 PIPE; OIL,RR BRK 8-97192-215-0 02 1 1306- ● ●
124 SHOE ASM; BRK,RR 8-97201-061-0 04 1 1306- ● ●
136 GROMMET
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		1-47154-008-0 04 1 1408- ● ●
136 GROMMET
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97017-507-0 04 1 1408- ● ●
136 GROMMET
(A) 		8-97044-742-1 04 1 1306-1405 ● ●
136 GROMMET
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97044-742-1 04 1 1406- ● ●
217 LINING KIT; RR BRK 5-87831-774-0 01 1 1306- ● ●
217 LINING KIT; RR BRK
BEST VALUE PARTS 		5-87610-120-0 01 1 1306- ● ●
218 SHOE KIT; BRK,RR 5-87831-775-0 01 1 1306- ● ●

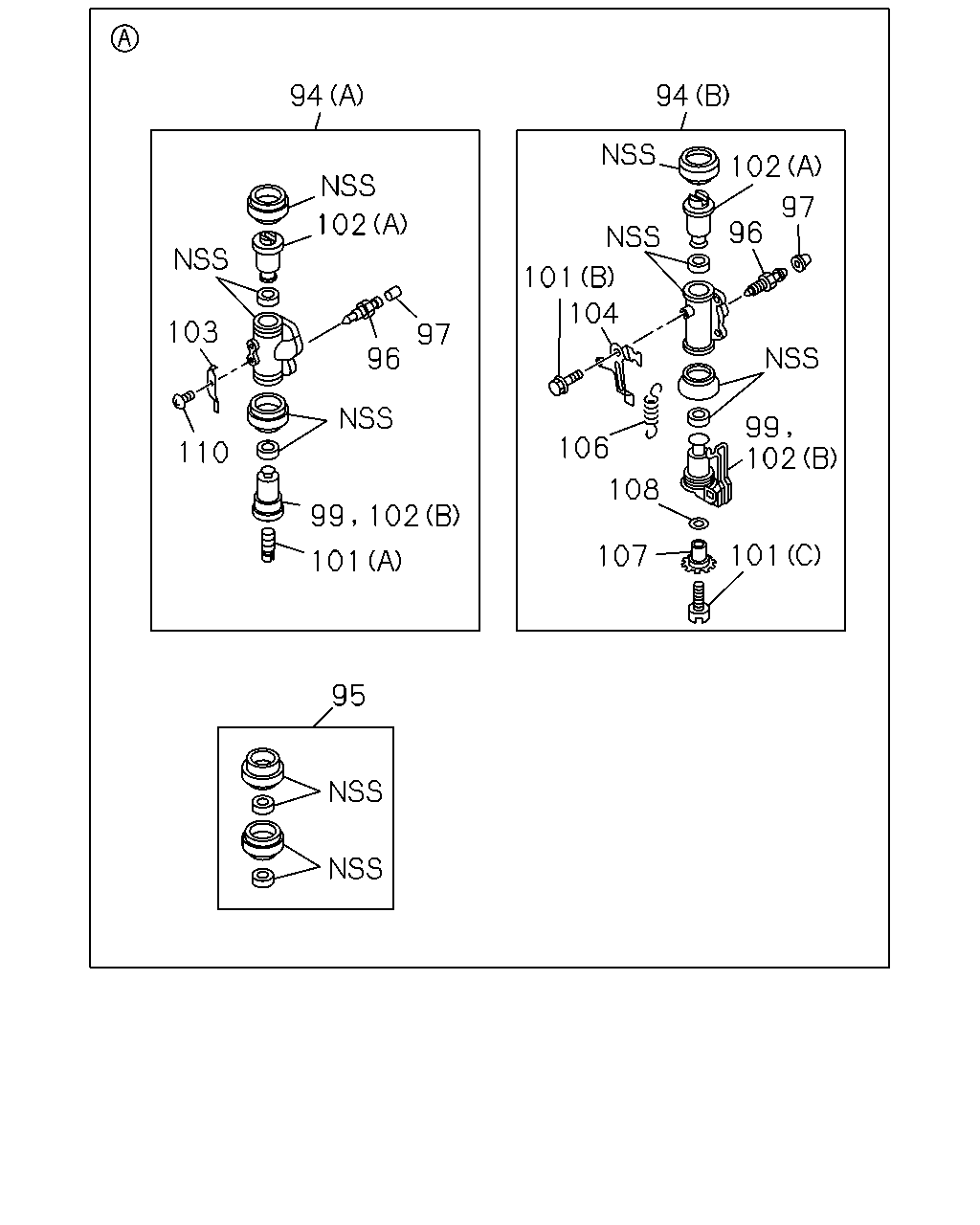

çizim 468038
97 102 97 96 102 101 99 110 103 95 94 101 104 106 108 107 101 102 99 96 97 102
BalonParca AdiParca NoAdetTipApplied Date A B
94 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98139-201-0 01 1 1408- ● ●
94 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98139-202-0 01 1 1408- ● ●
94 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98139-203-0 01 1 1408- ● ●
94 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98139-204-0 01 1 1408- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) FRONT 		8-97332-225-0 01 1 1306-1405 ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97332-225-0 01 1 1406- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) REAR 		8-97332-226-0 01 1 1306-1405 ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97332-226-0 01 1 1406- ● ●
94 CYLINDER; WHEEL,RR BRK
(A) 		8-97332-227-0 02 1 1306-1405 ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97332-227-0 02 1 1406- ● ●
95 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 1306- ● ●
96 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SOU 		8-98050-476-0 02 1 1408- ● ●
96 SCREW; BLEEDER,RR BRK
SOU 		8-98050-476-0 01 1 1306-1405 ● ●
96 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU 		8-98050-476-0 01 1 1406- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> SOU 		8-98050-479-0 02 1 1408- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
SOU 		8-98050-479-0 01 1 1306-1405 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> SOU 		8-98050-479-0 01 1 1406- ● ●
99 PISTON; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-731-0 01 1 1408- ● ●
99 PISTON; RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-732-0 02 1 1408- ● ●
99 PISTON; RR WHEEL CYL 8-97332-229-0 03 1 1306-1405 ● ●
99 PISTON; RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97332-229-0 03 1 1406- ● ●
101 SCREW; ADJ,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97349-741-0 02 1 1408- ● ●
101 SCREW; ADJ,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97349-742-0 02 1 1408- ● ●
101 SCREW; ADJ,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97349-747-0 04 1 1408- ● ●
101 SCREW; ADJ,RR WHEEL CYL
(A) 		8-94414-702-0 04 1 1306-1405 ● ●
101 SCREW; ADJ,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94414-702-0 04 1 1406- ● ●
102 PISTON; REAR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97349-731-0 01 1 1408- ● ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97332-043-0 04 1 1306- ● ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97332-229-0 01 1 1306-1405 ● ●
102 PISTON; REAR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97332-229-0 01 1 1406- ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1306-1405 ● ●
103 SPRING; LK,RR WHEEL CYL,ADJ
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 1406- ● ●
104 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-743-0 02 1 1408- ● ●
104 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-744-0 02 1 1408- ● ●
106 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-745-0 04 1 1408- ● ●
107 GEAR; ADJ,RR W/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-738-0 02 1 1408- ● ●
107 GEAR; ADJ,RR W/CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-740-0 02 1 1408- ● ●
108 WASHER; THRUST,GEAR ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-736-0 04 1 1408- ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1306-1405 ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 1406- ● ●
