◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#122837) — 69 parça

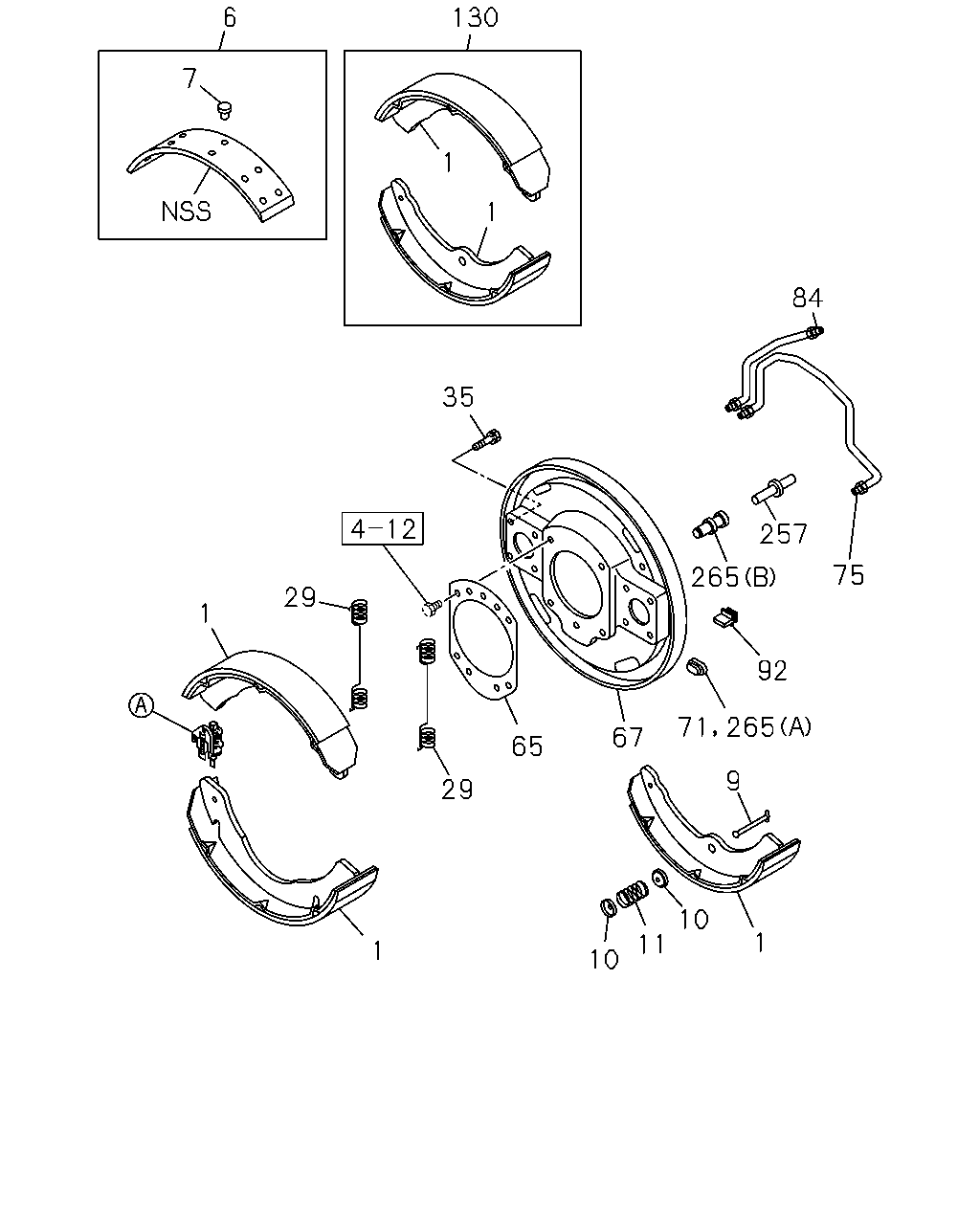

çizim 356200
6 7 130 1 1 35 29 1 1 29 65 67 71 265 265 257 75 84 9 1 10 11 10 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT
SOU 		8-97287-778-0 04 1 1306- ● ●
6 LINING KIT; FRT BRK
SOU 		5-87831-801-0 01 1 1306- ● ●
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-121-0 01 1 1306- ● ●
7 RIVET; LINING,FRT BRK
SOU 		1-09732-029-0 40 1 1306- ● ●
9 PIN; SHOE HOLDER
SOU 		5-47162-001-0 04 1 1306- ● ●
10 CUP; SHOE HOLDING
SOU 		9-47165-096-0 08 1 1306- ● ●
11 SPRING; SHOE HOLDING
SOU 		5-09580-101-1 04 1 1306- ● ●
29 SPRING; RETURN,FRT BRK SHOE
SOU 		5-09583-118-0 04 1 1306- ● ●
35 BOLT; FRT WHEEL CYL
SOU 		5-09030-016-1 16 1 1306- ● ●
65 COVER; OIL SHIELD,FRT 8-94438-775-1 02 1 1306- ● ●
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97192-137-0 01 1 1407- ● ●
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97192-138-0 01 1 1407- ● ●
67 PLATE; BACK,FRT BRK 8-97078-595-0 01 1 1306-1406 ● ●
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-595-0 01 1 1407- ● ●
67 PLATE; BACK,FRT BRK 8-97078-596-0 01 1 1306-1406 ● ●
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-596-0 01 1 1407- ● ●
71 GROMMET; CHECK HOLE 8-94171-287-0 02 1 1306- ● ●
75 PIPE; OIL,FWD,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-480-0 02 1 1407- ● ●
75 PIPE; OIL,FWD,FRT BRK 8-94473-818-0 02 1 1306-1406 ● ●
75 PIPE; OIL,FWD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-818-0 02 1 1407- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-481-0 01 1 1407- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-482-0 01 1 1407- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-819-1 01 1 1306-1406 ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-819-1 01 1 1407- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-94473-820-1 01 1 1306-1406 ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94473-820-1 01 1 1407- ● ●
92 GROMMET; ADJ HOLE 9-09756-034-0 04 1 1306-1406 ● ●
92 GROMMET; ADJ HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		9-09756-034-0 04 1 1407- ● ●
130 SHOE KIT; BRK,FRT
SOU 		5-87832-047-0 01 1 1306- ● ●
257 PIN; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97078-700-0 04 1 1407- ● ●
265 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94171-287-0 04 1 1407- ● ●
265 GROMMET; PLATE,BACK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-94366-295-0 04 1 1407- ● ●
çizim 450080
15 18 19 25 24 16 17 24 15 255 256 24 17 16 254 24 253 252 25 26
BalonParca AdiParca NoAdetTipApplied Date A B
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97192-142-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97192-143-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97192-144-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97192-145-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1306-1406 ● ●
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-814-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1306-1406 ● ●
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT ID=30.16(1 3/16") 		8-97139-815-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1306-1406 ● ●
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-816-0 01 1 1407- ● ●
15 CYLINDER; WHEEL,FRT BRK
(A) REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1306-1406 ● ●
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR ID=30.16(1 3/16") 		8-97139-817-0 01 1 1407- ● ●
16 SCREW; BLEEDER,FRT BRK
SOU 		8-98050-476-0 02 1 1306- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL
SOU 		8-98050-479-0 02 1 1306- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 1306-1406 ● ●
18 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 1407- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 1306-1406 ● ●
19 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 1407- ● ●
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97078-043-0 02 1 1407- ● ●
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97078-044-0 02 1 1407- ● ●
24 PISTON; FRT WHEEL CYL
(A) 		8-94414-700-1 04 1 1306-1406 ● ●
24 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-94414-700-1 04 1 1407- ● ●
24 PISTON; FRT WHEEL CYL
(B) 		8-97078-045-0 04 1 1306- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> M12X30.2 RH THREAD 		5-47622-003-1 02 1 1407- ● ●
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> M12X30.2 LH THREAD 		5-47622-004-1 02 1 1407- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 1306-1406 ● ●
25 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94414-702-0 04 1 1407- ● ●
26 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-777-0 02 1 1407- ● ●
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 02 1 1306-1406 ● ●
26 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87831-598-0 02 1 1407- ● ●
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-47623-005-0 02 1 1407- ● ●
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-47623-006-0 02 1 1407- ● ●
253 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97029-304-0 04 1 1407- ● ●
254 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-09585-045-0 04 1 1407- ● ●
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94366-173-0 02 1 1407- ● ●
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94366-174-0 02 1 1407- ● ●
256 SPRING; OVER TRAVEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-47619-046-0 04 1 1407- ● ●
