Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶

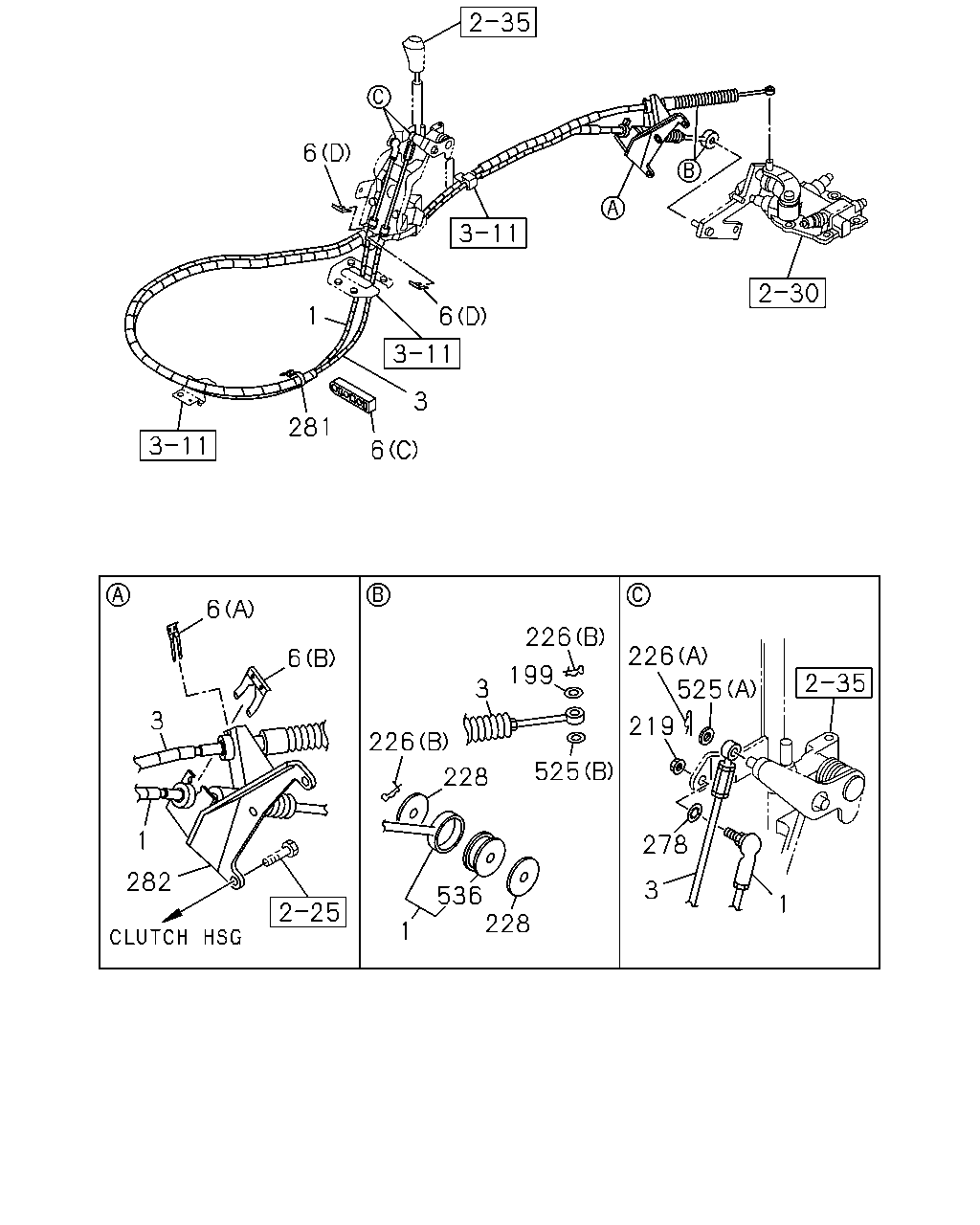

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#122831) — 17 parça
6
1
281
6
3
6
6
3
6
1
282
1
226
228
3
226
199
525
536
228
3
278
1
226
525
219
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
L=3090
8-98146-856-0
01
1
1306-
3
CABLE; SELECT,TRANS CONT
L=3202
8-98025-442-3
01
1
1306-
6
CLIP; CABLE
(A) ID=22.2
1-09701-209-1
01
1
1306-
6
CLIP; CABLE
(D)
8-97011-448-0
02
1
1306-
6
CLIP; CABLE
(B) ID=19.2
8-97211-011-0
01
1
1306-
6
CLIP; CABLE
EXC. MANUAL TILT CAB<RWZ> (C)
8-97093-491-1
01
1
1306-
199
WASHER; PL,SELECT
ID=8.4 OD=16 SOU
0-91610-508-0
01
1
1306-
219
NUT; FLANGE,SHAFT CABLE
M8 T=8.0 SOU
8-94363-045-0
01
1
1306-
226
PIN; SHIFT CABLE
(A) L=27.7 SOU
8-94111-137-0
01
1
1306-
226
PIN; SHIFT CABLE
(B) L=23
8-94170-378-0
02
1
1306-
228
WASHER; PL,SHIFT CABLE
ID=8.2 OD=40
8-97182-975-0
02
1
1306-
278
WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT
0-91541-208-0
01
1
1306-
281
CLIP; BAND
L=140 SOU
5-09707-031-1
01
1
1306-
282
BRACKET; TRANS SIDE
8-98032-395-1
01
1
1306-
525
WASHER; SHIFT CABLE
(A) ID=8.4 OD=16 SOU
0-91614-508-0
01
1
1306-
525
WASHER; SHIFT CABLE
(B) ID=8.4 OD=14
5-09550-002-0
01
1
1306-
536
DAMPER; CABLE
8-98097-681-0
01
1
1306-
