Isuzu WW
▶
TRUCKS
▶
CXY
▶
10869 - CXY(51) RHD AUSTRALIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

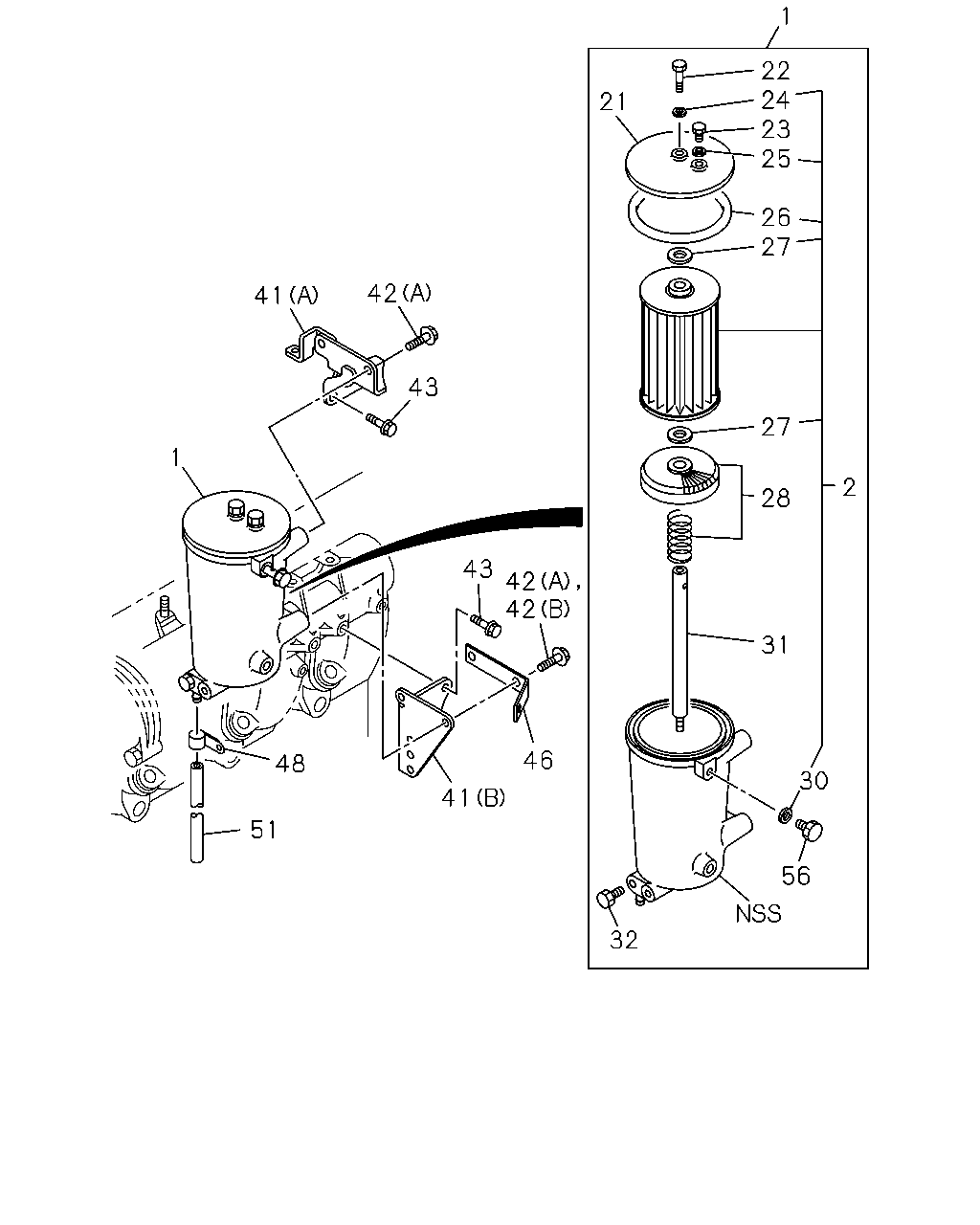

0-41 — FUEL FILTER AND BRACKET
(#12283) — 27 parça
1
22
24
23
25
21
26
27
42
41
43
27
1
2
28
43
42
42
31
46
48
30
41
51
56
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
FILTER ASM; FUEL
1-13200-820-2
01
1
0105-
2
ELEMENT KIT; FUEL FILTER
1-87810-976-0
01
1
0105-
21
COVER; UPR,FUEL FILTER
1-13212-049-1
01
1
0105-
22
BOLT; CENTER TUBE,COVER
1-13219-045-0
01
1
0105-
23
PLUG; COVER
1-13219-074-0
01
1
0105-
24
GASKET; CENTER TUBE BOLT
ID=10.2 OD=15.2
1-09630-083-0
01
1
0105-
25
GASKET; AIR DRAIN PLUG
ID=10.2 OD=15.2
1-09630-083-0
01
1
0105-
26
GASKET; COVER TO BODY
9-09720-797-0
01
1
0105-
27
GASKET; ELEMENT
1-09630-007-0
02
1
0105-
28
STRAINER; WATER,FUEL FILTER
1-13251-001-0
01
1
0105-
30
GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
01
1
0105-
31
TUBE; CENTER BOLT
1-13231-026-0
01
1
0105-
32
BOLT; DRAIN,FUEL FILTER
1-13219-030-0
01
1
0105-
41
BRACKET; FUEL FILTER
(A)
1-13219-350-2
01
1
0105-
41
BRACKET; FUEL FILTER
(B)
1-13219-351-2
01
1
0105-
42
BOLT; FUEL FILTER
(B) M10X25 FLANGE
0-28081-025-0
02
1
0304-0512
42
BOLT; FUEL FILTER
(B) M10X25 FLANGE
0-28051-025-0
02
1
0601-
42
BOLT; FUEL FILTER
(A) M10X20 FLANGE
0-28081-020-0
04
1
0105-0303
42
BOLT; FUEL FILTER
(A) M10X20 FLANGE
0-28081-020-0
02
1
0304-0512
42
BOLT; FUEL FILTER
(A) M10X20 FLANGE
0-28051-020-0
02
1
0601-
43
BOLT; BRKT
M10X20 FLANGE
0-28181-020-0
04
1
0105-0512
43
BOLT; BRKT
M10X20 FLANGE
0-28151-020-0
04
1
0601-
46
BRACKET
1-83129-466-0
01
1
0304-0310
46
BRACKET
1-83129-470-0
01
1
0311-
48
CLIP; VINYL PIPE
ID=21 L=47.5
8-94178-108-0
01
1
0105-
51
PIPE; VINYL
L=800 SERVICED BY L=10000
9-09914-909-0
01
1
0105-
56
PLUG; FUEL FILTER
M14X9
9-99202-314-0
01
1
0105-
