2-30 — GEAR SHIFTER AND QUADRANT BOX (#122829) — 53 parça

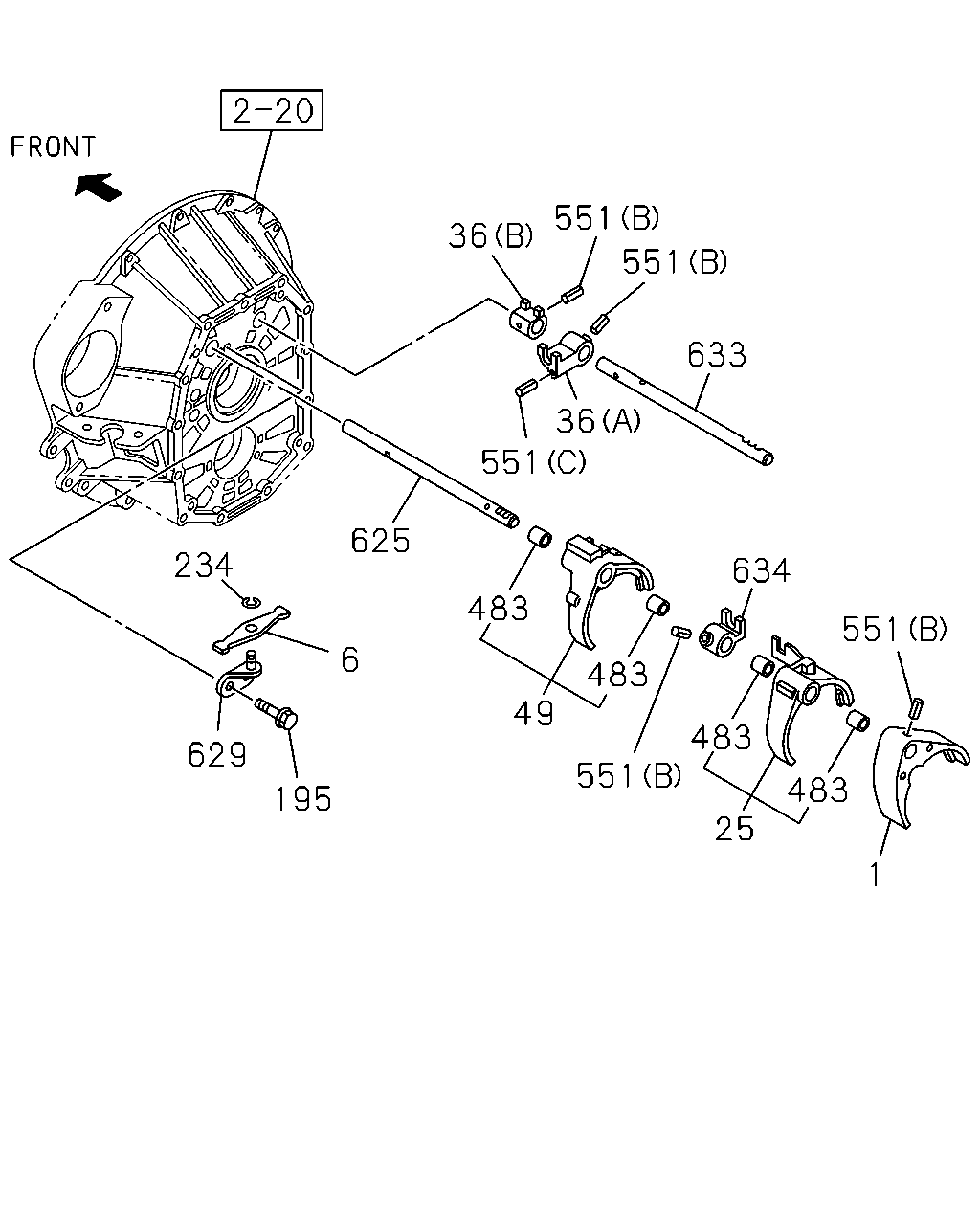

çizim 355033
1 483 551 634 483 483 551 25 49 483 551 36 633 551 551 36 625 234 6 195 629
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV 8-97241-320-2 01 1 1306-
6 LEVER; RELAY 8-97241-344-0 01 1 1306-
25 ARM; SHIFT,2ND & 3RD 8-97362-731-2 01 1 1306-1407
25 ARM; SHIFT,2ND & 3RD 8-98255-926-1 01 1 1408-
36 BLOCK; SHIFT,4TH & 5TH
(A) 		8-97241-329-1 01 1 1306-
36 BLOCK; SHIFT,4TH & 5TH
(B) 		8-97241-330-0 01 1 1306-
49 ARM; SHIFT,4TH & 5TH 8-97258-716-0 01 1 1306-
195 BOLT
M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1306-
234 RING; SNAP
ID=12 		8-94460-357-0 01 1 1306-
483 BUSHING; SHIFT ARM 8-97241-326-2 04 1 1306-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD 8-97362-741-0 01 1 1306-
629 BRIDGE; LEVER 8-97237-107-1 01 1 1306-
633 ROD; GEAR SHIFT,4TH,5TH 8-97362-743-0 01 1 1306-
634 BLOCK; SHIFT,LOW,REV 8-97241-327-1 01 1 1306-

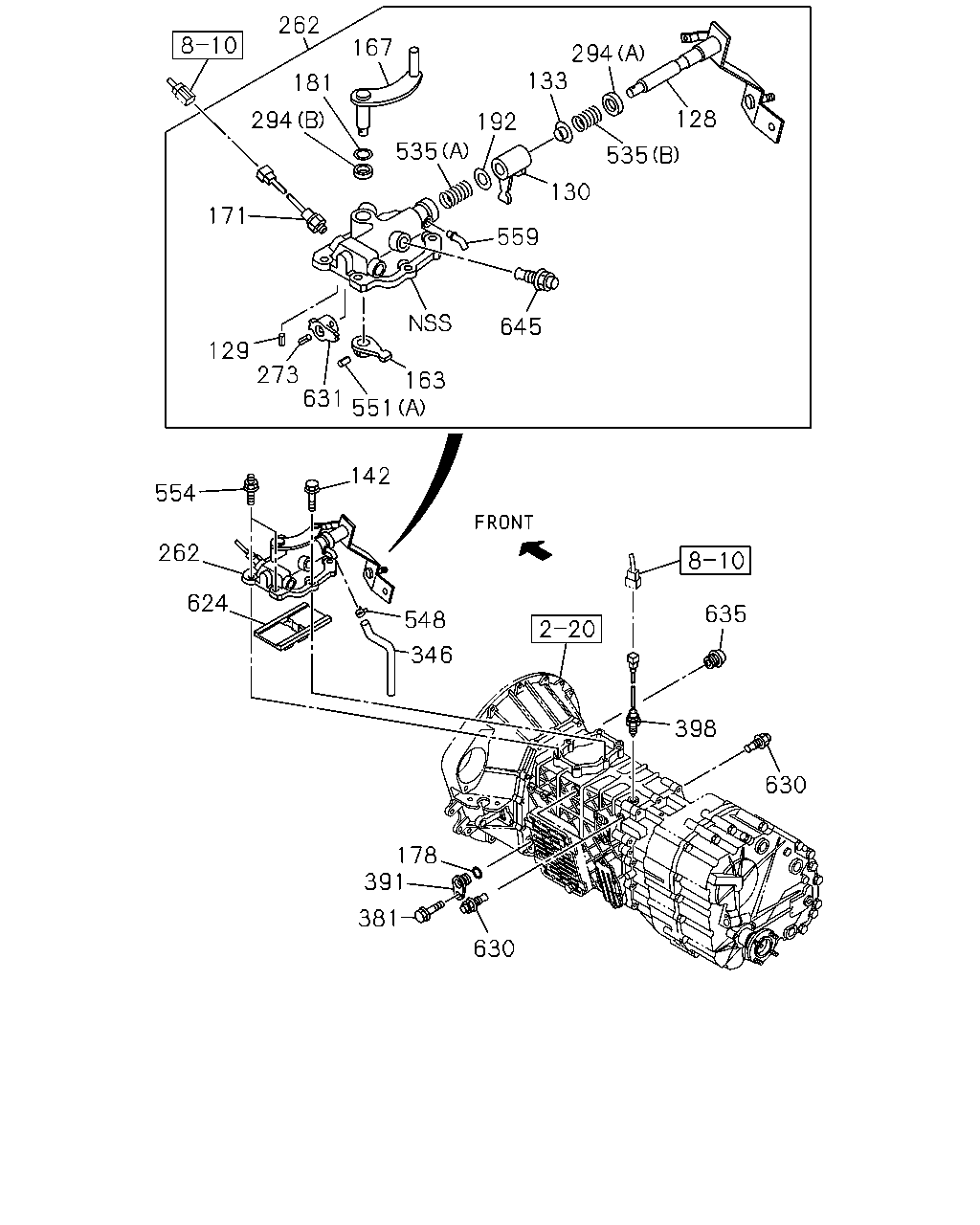

çizim 355930
262 181 167 294 171 129 273 631 551 163 645 559 130 192 535 133 294 535 128 142 554 262 624 548 346 635 630 398 178 630 391 381
BalonParca AdiParca NoAdetTipApplied Date
128 LEVER; SHIFT,EXTERNAL 8-98079-799-0 01 1 1306-
129 PIN; SPR,SHIFT
L=30 OD=4 		1-09748-031-0 01 1 1306-
130 LEVER; SHIFT,INTERNAL 8-97306-647-0 01 1 1306-
133 SEAT; SPR 8-97305-667-0 01 1 1306-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 1306-
163 LEVER; SELECT,INTERNAL 8-97305-663-0 01 1 1306-
167 LEVER; SELECT,EXTERNAL 8-98039-444-0 01 1 1306-
171 SWITCH; NEUTRAL 8-98023-050-0 01 1 1306-1312
171 SWITCH; NEUTRAL 8-98242-172-1 01 1 1401-1509
171 SWITCH; NEUTRAL 8-98324-878-0 01 1 1510-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 		9-09567-113-0 01 1 1306-
181 WASHER; PL,SELECT LEVER 8-97367-327-0 01 1 1306-
192 WASHER; PL 8-97305-661-0 01 1 1306-
262 BOX ASM; SHIFT CONT 8-98079-798-0 01 1 1306-1312
262 BOX ASM; SHIFT CONT 8-98241-003-2 01 1 1401-
273 PIN; SPR,STOPPER
D=4.2 L=25 		8-97103-142-0 01 1 1306-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (B) 		8-97305-662-0 01 1 1306-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). (A) 		8-97363-225-0 01 1 1306-
346 HOSE; AIR 8-97309-855-0 01 1 1306-
381 BOLT
M6X16 FLANGE SOU 		0-28650-616-0 01 1 1306-
391 PLUG; SW HOLE 8-97300-273-1 01 1 1306-
398 SWITCH; REV LAMP 8-98186-003-0 01 1 1306-1311
398 SWITCH; REV LAMP 8-98256-418-0 01 1 1312-
535 SPRING; LEVER
(A) 		8-97323-771-0 01 1 1306-
535 SPRING; LEVER
(B) 		8-97323-772-0 01 1 1306-
548 CLIP; HOSE 8-97031-674-0 01 1 1306-
551 PIN; SPRING
(A) L=25 OD=5 		1-09748-032-0 01 1 1306-
551 PIN; SPRING
(B) L=32 		8-97011-596-2 04 1 1306-
551 PIN; SPRING
(C) L=20 		8-97241-340-0 01 1 1306-
554 STUD; CONT BOX
M8X15,M8X25 L=49 		8-97365-378-0 02 1 1306-
559 PIPE; BREATHER 8-97358-318-0 01 1 1306-
624 PLATE; INTER LOCK 8-97241-317-3 01 1 1306-
630 DETENT ASM 8-98019-536-0 03 1 1306-
631 STOPPER; SPRING 8-97305-666-0 01 1 1306-
635 PLUG; DETENT 8-97380-892-0 01 1 1306-
645 DETENT ASM 8-98019-536-0 01 1 1306-
