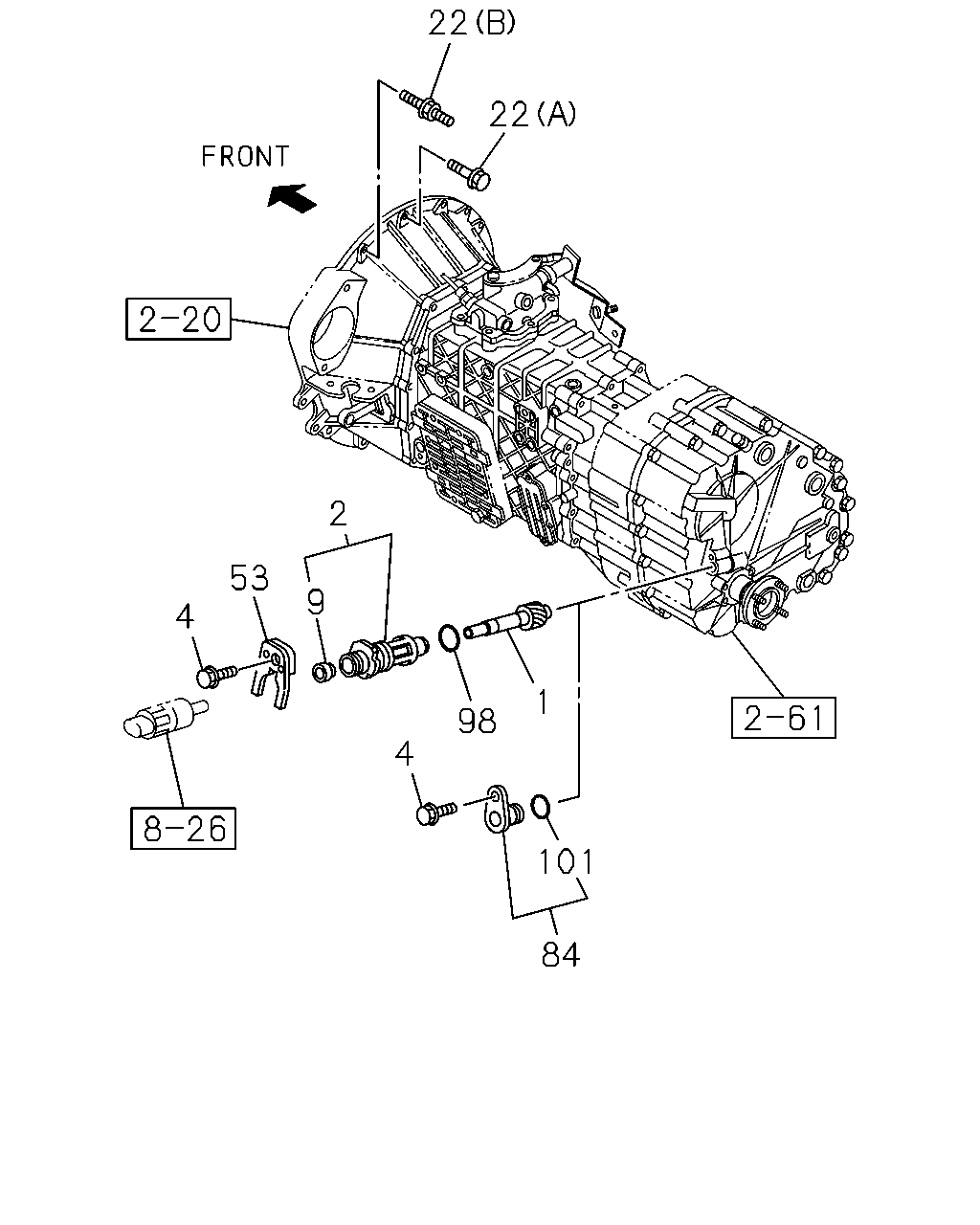

2-25 — SPEEDOMETER DRIVEN GEAR (#122827) — 19 parça

22 22 2 9 53 4 98 4 1 101 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) Z=14	8-97253-561-1	01	1	1306-1405	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 39/7(GV1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=14	8-97253-561-1	01	1	1406-	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) Z=13	8-97253-562-1	01	1	1306-1405	●	●
1	GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/8(RU1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=13	8-97253-562-1	01	1	1406-	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER MARK "12,13,14,15"	8-97253-125-0	01	1	1306-1405	●	●
2	BUSHING; DRIVEN GEAR,SPEEDOMETER EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> MARK "12,13,14,15"	8-97253-125-0	01	1	1406-	●	●
4	BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28650-820-0	01	1	1306-	●	●
9	SEAL; OIL,DRIVEN GEAR NOK	8-97131-328-1	01	1	1306-1405	●	●
9	SEAL; OIL,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK	8-97131-328-1	01	1	1406-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X30 FLANGE	0-28151-030-0	04	1	1306-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X35 FLANGE	0-28151-035-0	01	1	1306-	●	●
22	BOLT; TRANS CASE TO ENG (A) M10X50 FLANGE	0-28151-050-0	02	1	1306-	●	●
22	BOLT; TRANS CASE TO ENG (B) M10X35 L=65	8-97178-725-0	02	1	1306-	●	●
53	PLATE; LOCK,DRIVEN GEAR	8-98046-217-0	01	1	1306-1405	●	●
53	PLATE; LOCK,DRIVEN GEAR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98046-217-0	01	1	1406-	●	●
84	CAP; BUSH,SPEEDOMETER GEAR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98035-151-1	01	1	1406-	●	●
98	SEAL; OIL,BUSH	9-09561-324-0	01	1	1306-1405	●	●
98	SEAL; OIL,BUSH EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09561-324-0	01	1	1406-	●	●
101	GASKET; CAP 4 WHEEL ANTI LOCK BRAKE<JE5>	9-09561-324-0	01	1	1406-	●	●
