◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#122824) — 24 parça

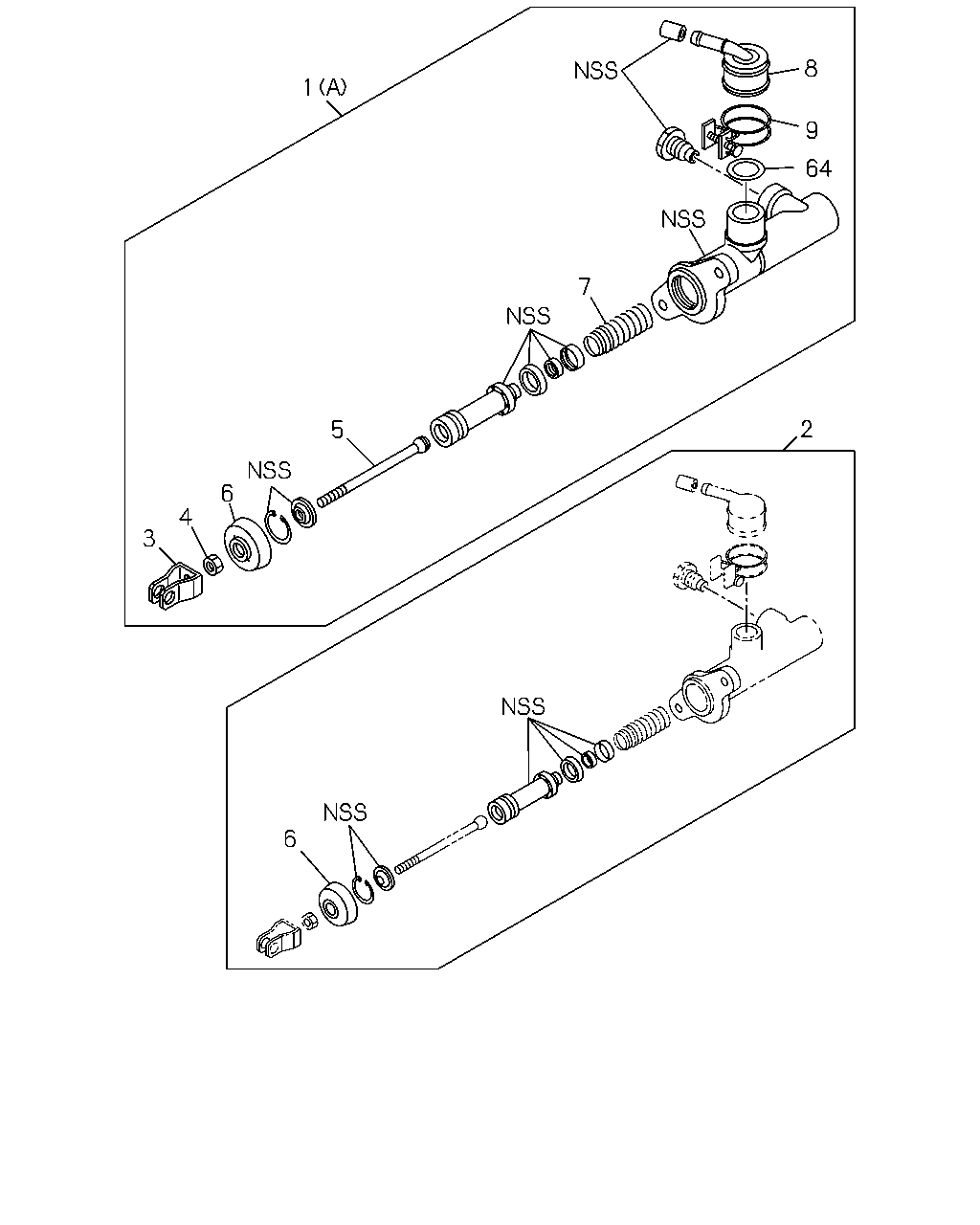

çizim 355856
1 5 6 4 3 6 2 7 64 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-250-0 01 1 1306-
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1306-
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1306-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1306-
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1306-
3 JOINT; JAW,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97167-770-0 01 1 1306-
4 NUT; JAW JOINT
EXC. POWER ASSIST CLUTCH(S2T) M8 SOU 		0-91111-508-0 01 1 1306-
5 ROD; PUSH,CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97167-768-0 01 1 1306-
6 BOOT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-94412-200-0 01 1 1306-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1306-
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97167-780-0 01 1 1306-
8 CONNECTOR; PIPE,CLU M/CYL
SOU 		8-97163-191-0 01 1 1306-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
SOU 		8-97167-773-0 01 1 1306-
64 GASKET; CONNECTOR
SOU 		8-97167-767-0 01 1 1306-
çizim 355890
2 7 1 8 64 9
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98098-250-0 01 1 1306-
1 CYLINDER ASM; CLUTCH MASTER
POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98062-277-0 01 1 1306-
1 CYLINDER ASM; CLUTCH MASTER
EXC. POWER ASSIST CLUTCH(S2T) (A) 		8-98117-639-0 01 1 1306-
2 REPAIR KIT; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		5-87832-221-0 01 1 1306-
2 REPAIR KIT; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) 		5-87832-226-0 01 1 1306-
7 SPRING ASM; CLU M/CYL
POWER ASSIST CLUTCH(S2T) 		8-98077-784-0 01 1 1306-
7 SPRING ASM; CLU M/CYL
EXC. POWER ASSIST CLUTCH(S2T) SOU 		8-97167-780-0 01 1 1306-
8 CONNECTOR; PIPE,CLU M/CYL
SOU 		8-97163-191-0 01 1 1306-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
SOU 		8-97167-773-0 01 1 1306-
64 GASKET; CONNECTOR
SOU 		8-97167-767-0 01 1 1306-
