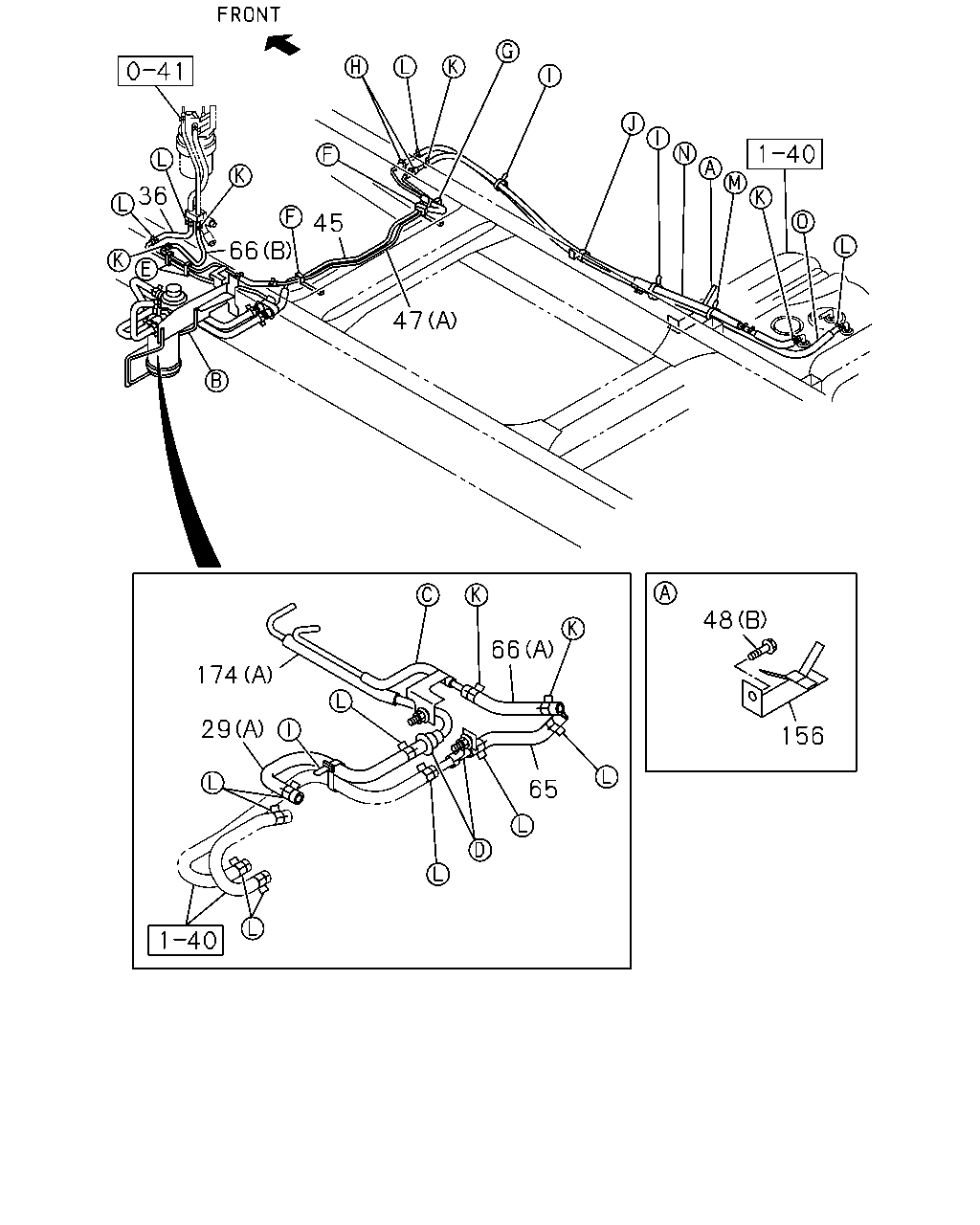

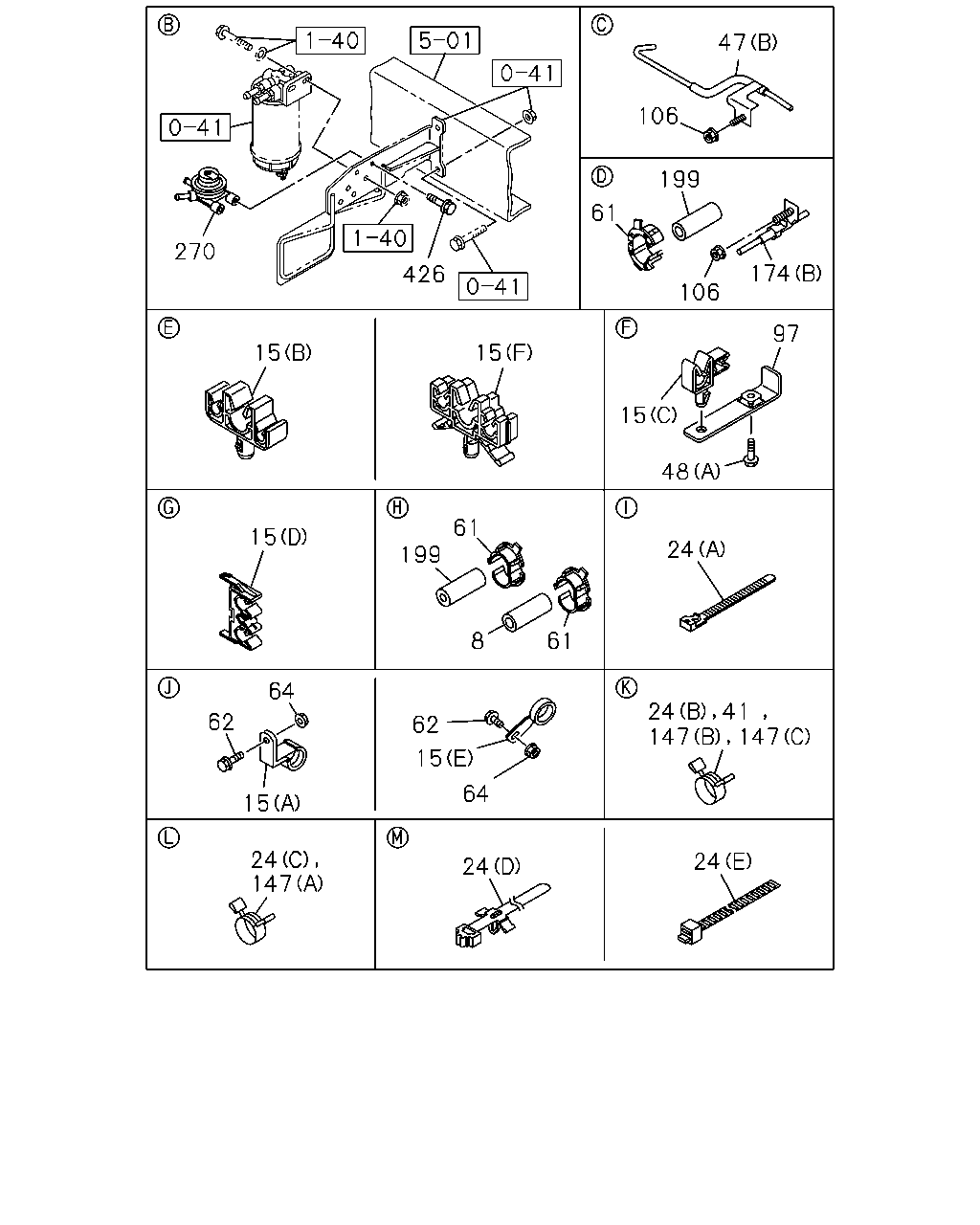

1-41 — FUEL PIPING; CHASSIS (#122815) — 82 parça

270 426 15 15 61 199 8 61 64 62 15 24 147 62 15 64 24 24 147 147 41 24 24 48 15 97 106 174 199 61 47 106 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	RUBBER; MTG OD=17 L=50 SOU	8-94157-054-1	01	1	1306-	●	●
15	CLIP; FUEL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (F) ID=10 OR 12 & 6.35 OR 8.0 & 4.76 OR 6.35	8-98153-939-1	02	1	1408-	●	●
15	CLIP; FUEL PIPE (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-	●
15	CLIP; FUEL PIPE (A) ID=29 H=50 L=45.5	1-09701-027-0	01	1	1306-	●
15	CLIP; FUEL PIPE (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1306-1407	●	●
15	CLIP; FUEL PIPE BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=12 & 6.35 & 4.76	8-97202-954-1	02	1	1408-	●	●
15	CLIP; FUEL PIPE (C) ID=12 & 6.35	8-97215-437-0	02	1	1306-	●	●
15	CLIP; FUEL PIPE (D) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1306-	●	●
15	CLIP; FUEL PIPE (E) ID=28 L=60	1-09700-585-1	01	1	1306-		●
24	CLIP; FUEL HOSE (D) L=170.3	1-09987-182-0	01	1	1306-	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	01	1	1306-	●	●
24	CLIP; FUEL HOSE (A) L=140 SOU	5-09707-031-1	02	1	1306-	●	●
24	CLIP; FUEL HOSE (C) ID=16	8-98008-098-0	04	1	1306-	●	●
24	CLIP; FUEL HOSE (B) ID=12	8-98150-358-0	02	1	1306-	●	●
24	CLIP; FUEL HOSE (E) L=450	1-09707-142-1	01	1	1306-		●
41	CLIP; FUEL PIPE,FUEL TANK ID=12	8-98150-358-0	02	1	1306-	●	●
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1306-	●	●
48	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
48	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	01	1	1306-	●	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	1306-	●	●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●
62	BOLT; CLIP FIX M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●	●
64	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
97	BRACKET; CLIP	8-98041-203-0	02	1	1306-	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
106	NUT; FUEL PIPE M10 FLANGE SOU	0-91180-110-0	01	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	1306-	●	●
174	PIPE; FUEL,FEED,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-98158-899-0	01	1	1408-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	1306-1407	●	●
174	PIPE; FUEL,FEED,FRT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98033-844-1	01	1	1408-	●	●
174	PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1306-	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-	●	●
199	PROTECTOR; FUEL PIPE OD=15 L=50	8-97077-629-0	01	1	1306-	●	●
270	PUMP ASM; FUEL	8-98018-187-4	01	1	1306-1408	●	●
270	PUMP ASM; FUEL	8-97948-892-0	01	1	1409-	●	●
426	BOLT; FUEL PUMP M8X20 FLANGE	0-28650-820-0	02	1	1306-	●	●

36 66 45 47 174 29 66 65 48 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98067-564-4	01	1	1306-	●	●
29	HOSE; FUEL (A)	8-98099-502-0	01	1	1306-	●	●
36	HOSE; FUEL,FILTER TO TANK	8-98171-618-0	01	1	1306-	●	●
45	PIPE; FUEL,DELIVERY	8-98043-681-1	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1306-	●	●
48	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1306-	●
48	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-567-2	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1306-	●	●
156	BRACKET; FUEL HOSE	8-98041-250-2	01	1	1306-	●
174	PIPE; FUEL,FEED,FRT 4 WHEEL ANTI LOCK BRAKE<JE5> BRK WHL LK CONT LSPV<6PH> (A)	8-98158-899-0	01	1	1408-	●	●
174	PIPE; FUEL,FEED,FRT (A)	8-98033-844-1	01	1	1306-1407	●	●
174	PIPE; FUEL,FEED,FRT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98033-844-1	01	1	1408-	●	●
174	PIPE; FUEL,FEED,FRT (B)	8-98041-616-0	01	1	1306-	●	●

147 311 29 147 124 47 66 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (B)	8-98067-564-4	01	1	1306-	●	●
29	HOSE; FUEL (A)	8-98099-502-0	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (C) L=70	8-98036-483-0	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (B)	8-98041-618-1	01	1	1306-	●	●
47	PIPE; FUEL,RETURN (A)	8-98043-639-0	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=150 SERVICED BY L=3000	0-01855-300-0	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (C)	8-98067-567-2	01	1	1306-	●	●
66	HOSE; FUEL,RETURN PIPE (B)	8-98093-616-0	01	1	1306-	●	●
124	CLIP; HOSE (A) ID=13	8-98150-357-0	01	1	1306-	●	●
124	CLIP; HOSE (B) ID=12	8-98150-358-0	01	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	02	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=13	8-98150-357-0	01	1	1306-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=12	8-98150-358-0	01	1	1306-	●	●
311	JOINT; HOSE	8-97353-668-0	01	1	1306-	●	●
