◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶
1-40 — FUEL TANK (#122814) — 36 parça

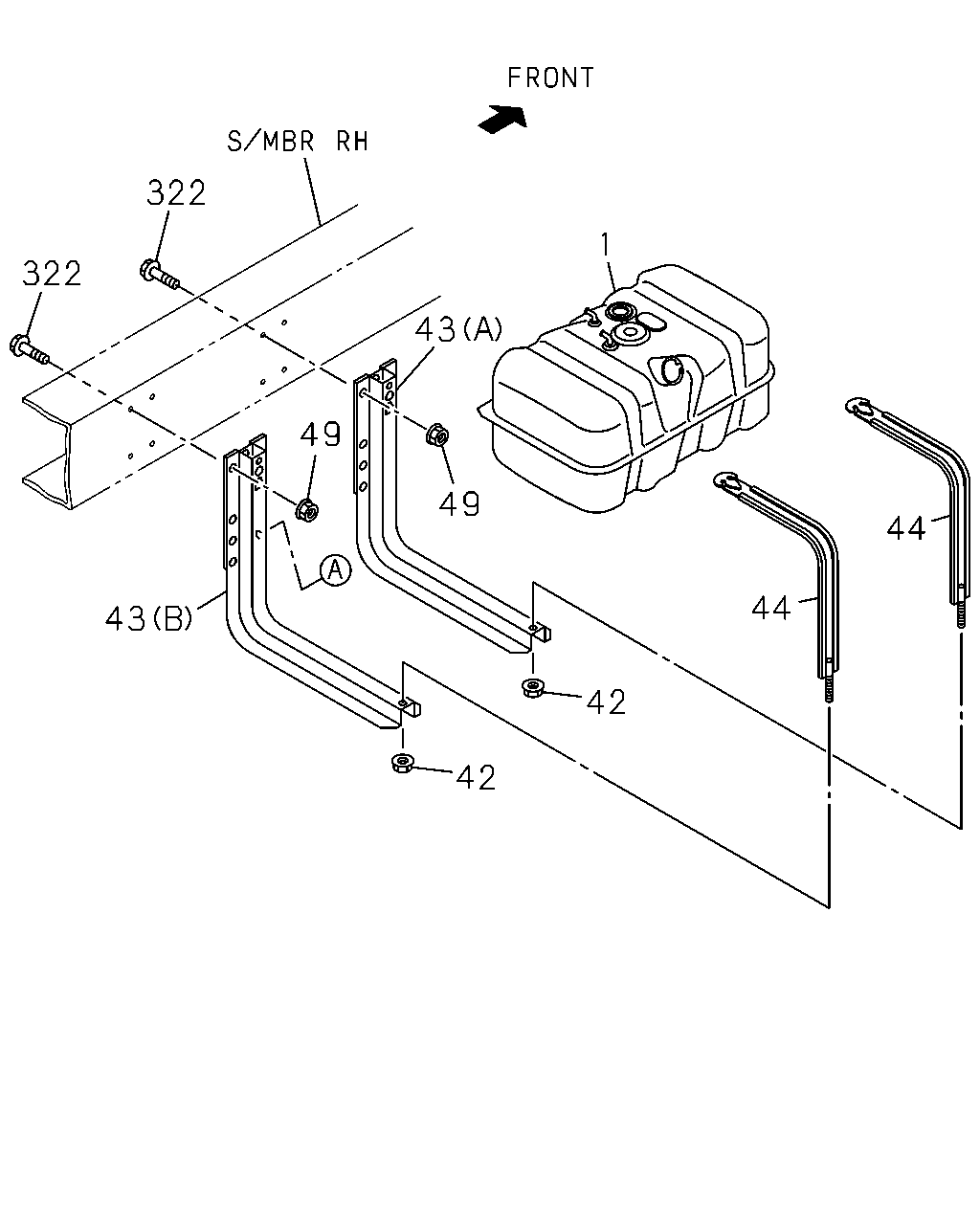

çizim 355614
322 322 43 49 43 49 42 42 44 44 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1306- ● ●
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1406- ● ●
42 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1306- ● ●
43 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 1306- ● ●
43 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 1306- ● ●
44 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 1306- ● ●
49 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 08 1 1306- ● ●
322 BOLT; BRKT FIX
M10X40 FLANGE 		0-28661-040-0 08 1 1306- ● ●

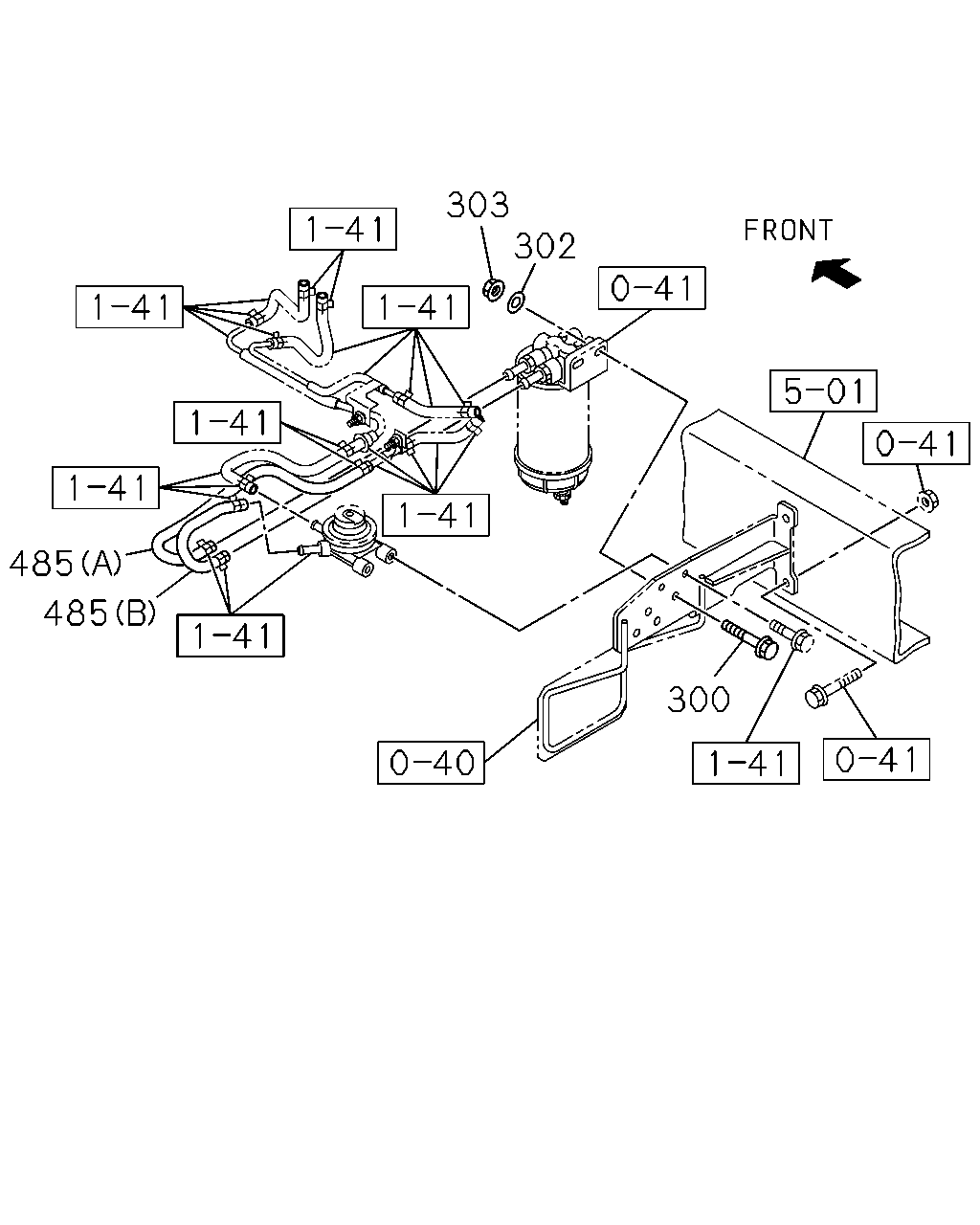

çizim 355716
485 485 303 302 300
BalonParca AdiParca NoAdetTipApplied Date A B
300 BOLT; BRKT TO BODY
M10X40 FLANGE SOU 		0-28651-040-0 02 1 1306- ● ●
302 WASHER; PL,SEDIMENTER
ID=10.5 OD=26 		0-91614-710-0 02 1 1306- ● ●
303 NUT; SEDIMENTER BRKT
M10 FLANGE SOU 		0-91180-110-0 02 1 1306- ● ●
485 HOSE; FUEL
(A) 		8-98099-503-0 01 1 1306- ● ●
485 HOSE; FUEL
(B) 		8-98105-710-0 01 1 1306- ● ●
çizim 357901
411 411 411 411 35 1 22 19 14 158 159 452 8 11 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1306- ● ●
1 TANK; FUEL
756X482X376 100L 		8-98062-738-4 01 1 1406- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0 		9-09572-014-0 01 1 1306- ● ●
11 PLUG; DRAIN,FUEL TANK
M14X14 		9-09862-156-0 01 1 1306- ● ●
14 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1306- ● ●
19 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1306- ● ●
22 UNIT; FUEL TANK 8-98056-705-0 01 1 1306- ● ●
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1306- ● ●
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1306- ● ●
158 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1306- ● ●
159 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1306- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 1306- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(C) L=140 SOU 		5-09707-031-1 01 1 1306- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(A) T=4.5 & 9 		8-97371-947-0 02 1 1306- ● ●
411 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 03 1 1306- ● ●
452 BREATHER; FUEL TANK 8-97357-261-0 01 1 1306- ● ●

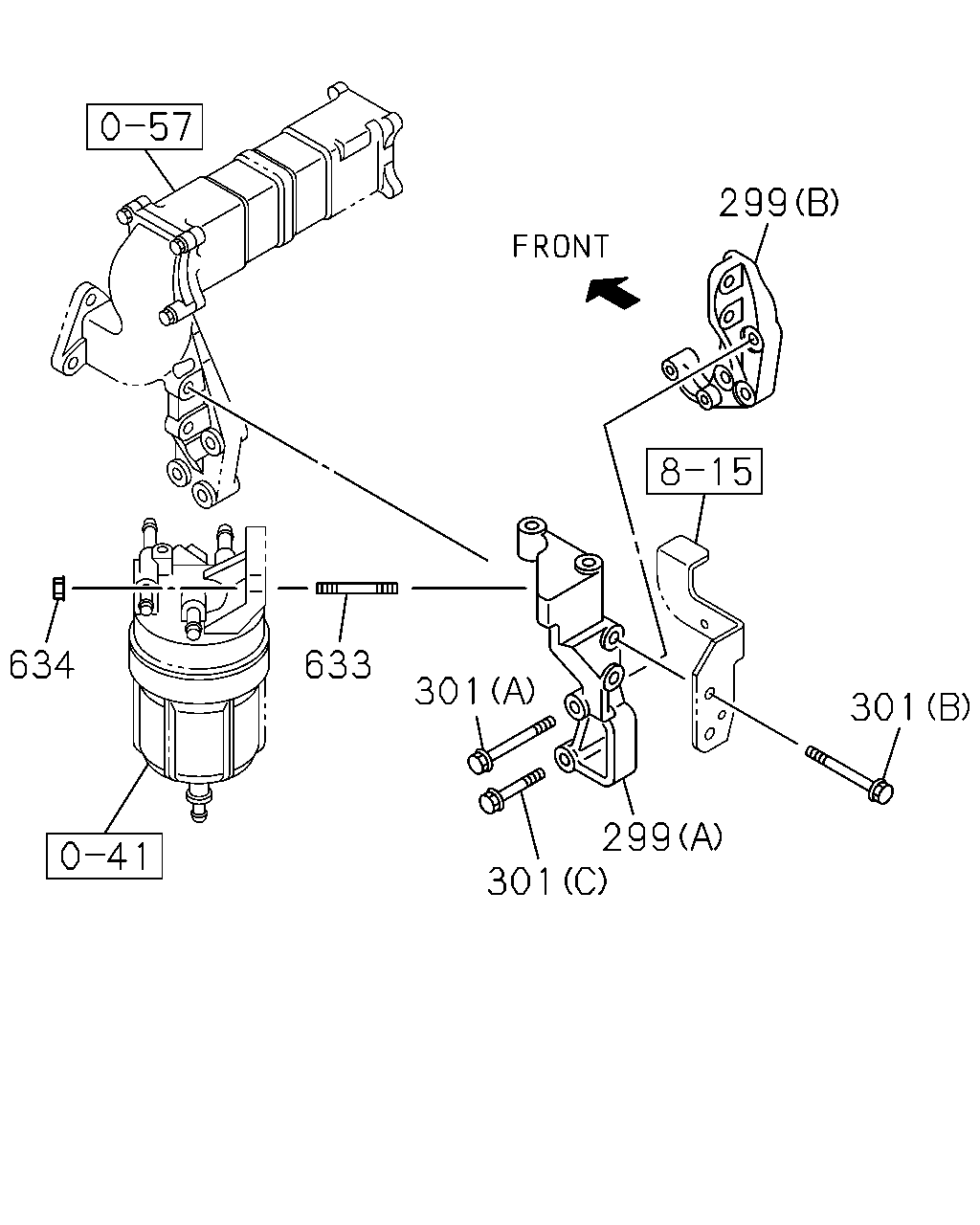

çizim 357968
299 634 633 301 299 301 301
BalonParca AdiParca NoAdetTipApplied Date A B
299 BRACKET; FUEL FILTER
(A) 		8-98023-175-3 01 1 1306- ● ●
299 BRACKET; FUEL FILTER
(B) 		8-98074-132-1 01 1 1306- ● ●
301 BOLT; BRKT TO SEDIMENTER
(A) M12X100 FLANGE 		0-28151-200-0 01 1 1306- ● ●
301 BOLT; BRKT TO SEDIMENTER
(B) M12X50 FLANGE 		0-28151-250-0 01 1 1306- ● ●
301 BOLT; BRKT TO SEDIMENTER
(C) M12X80 		0-28151-280-0 01 1 1306- ● ●
633 STUD; BRKT TO SEDIMENTER
M8X25 L=37 		0-41010-825-0 02 1 1306- ● ●
634 NUT; BRKT TO SEDIMENTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1306- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
