1-31 — AIR DUCT (#122812) — 218 parça

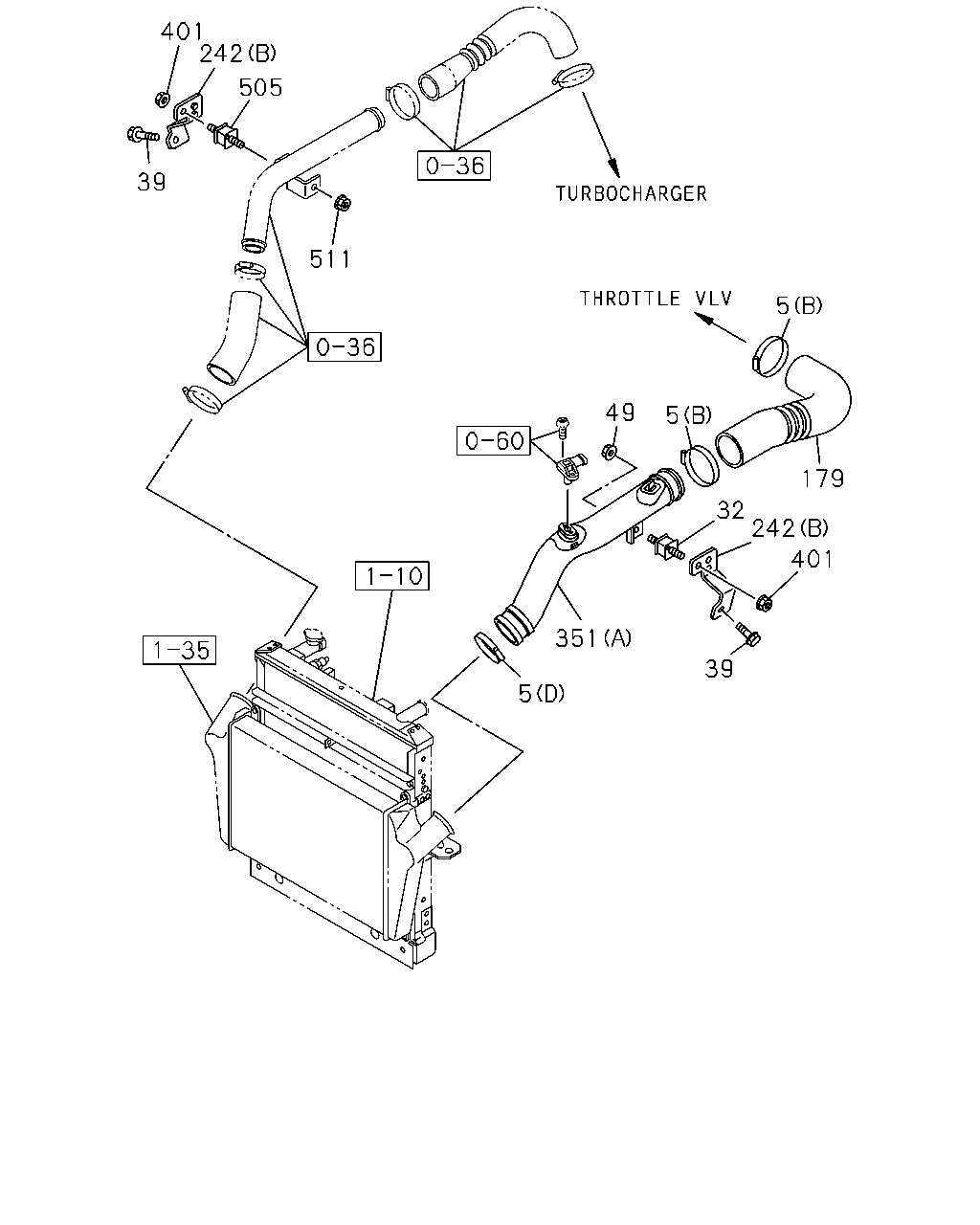

çizim 355582
39 401 242 32 179 5 49 5 511 505 242 401 39 351 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1306- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 1306- ● ●
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1306- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 1306- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1306- ●
32 RUBBER; AIR DUCT MTG
SOU 		8-97081-886-0 01 1 1306- ● ●
39 BOLT; BRKT
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ● ●
49 NUT; AIR DUCT
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
179 HOSE; AIR INT 8-98114-719-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1306- ●
351 DUCT; AIR
(A) 		8-98059-995-2 01 1 1306- ● ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1306- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1306- ●
401 NUT; BRKT,AIR INT
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
401 NUT; BRKT,AIR INT
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●
505 RUBBER; MTG
SOU 		8-97081-886-0 01 1 1306- ● ●
511 NUT; PIPE
M8 FLANGE SOU 		0-91180-108-0 01 1 1306- ● ●

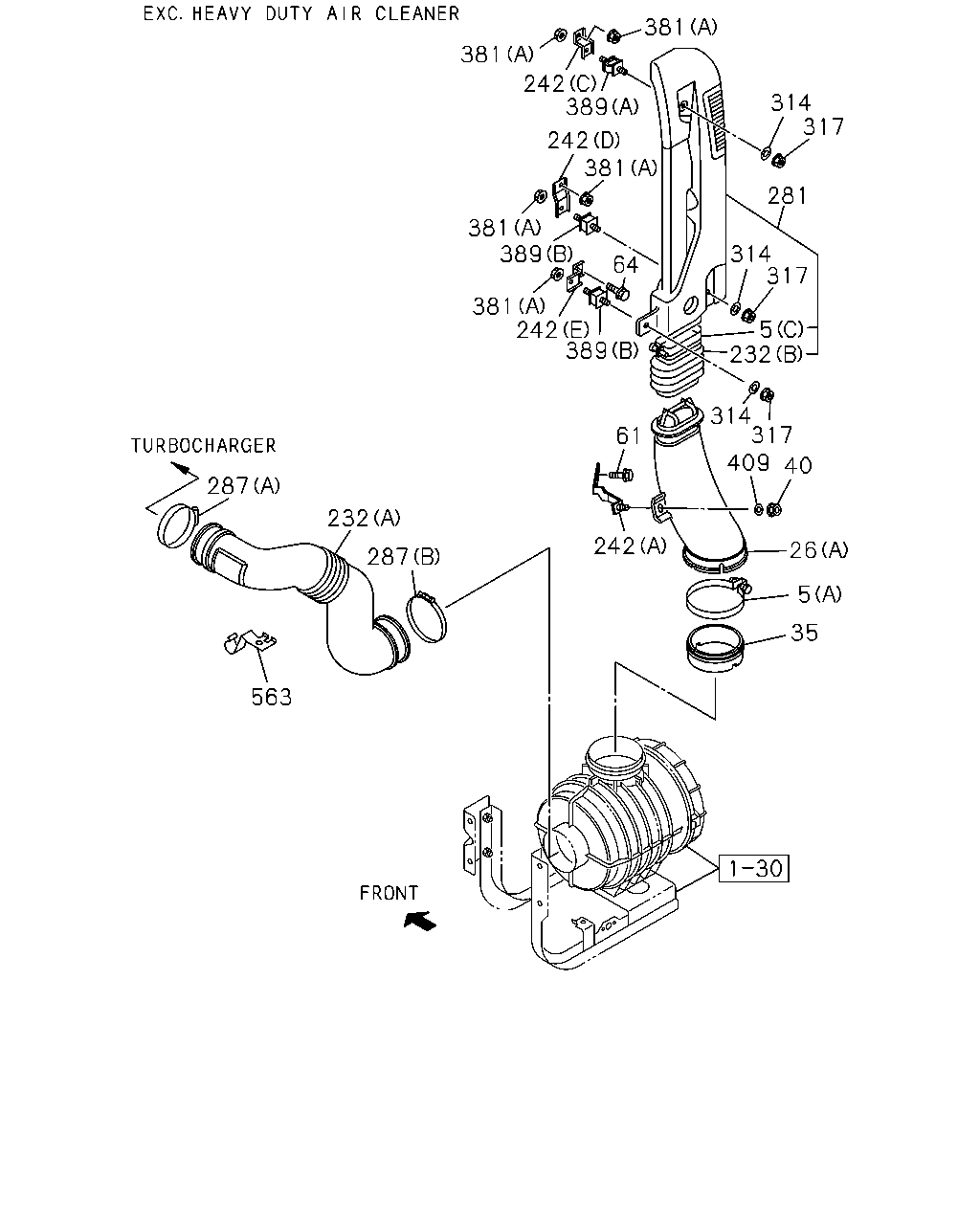

çizim 356133
381 314 281 314 381 242 389 242 381 381 389 64 317 317 5 232 314 61 409 317 26 35 242 5 232 287 563 287 40 381 242 389
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1306- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 1306- ● ●
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1306- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 1306- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1306- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1306- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1306- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1306- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1306- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1306- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1306-1309 ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1306- ●
232 HOSE; CONN
(A) 		8-98094-582-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1306- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1306- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1306- ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1306- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1306- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1306- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1306- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1306- ● ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1306- ● ●

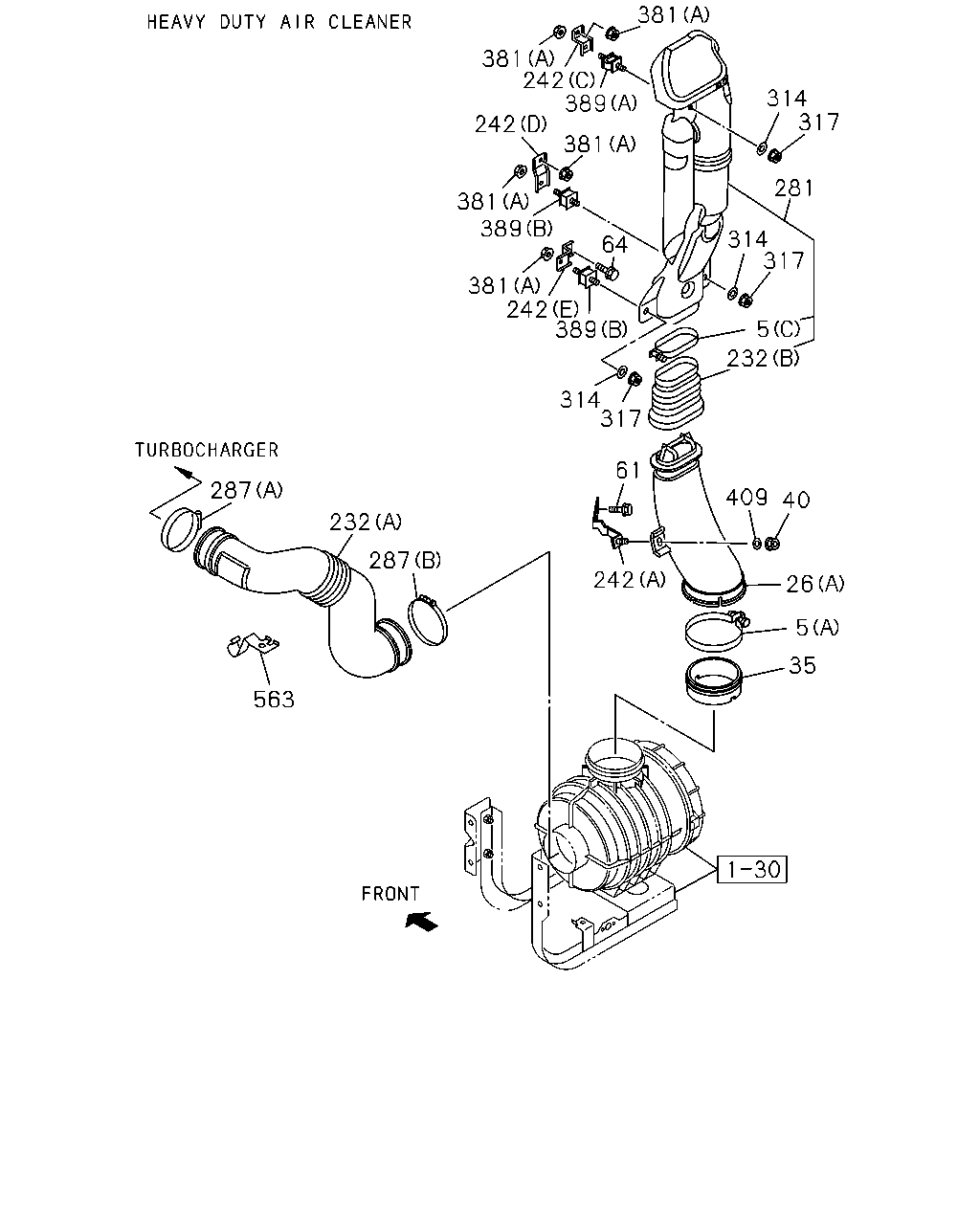

çizim 356167
381 314 317 281 314 5 317 232 314 61 317 389 242 381 389 381 64 381 242 381 242 389 409 40 26 5 35 563 287 232 287 242
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1306- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 1306- ● ●
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1306- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 1306- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1306- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1306- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1306- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1306- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
64 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1306- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1306- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1306-1309 ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1306- ●
232 HOSE; CONN
(A) 		8-98094-582-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1306- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1306- ●
287 CLIP; AIR DUCT
(A) ID=55-75 		8-98133-349-0 01 1 1306- ●
287 CLIP; AIR DUCT
(B) ID=112 		9-09915-074-1 01 1 1306- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1306- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1306- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1306- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1306- ● ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1306- ● ●

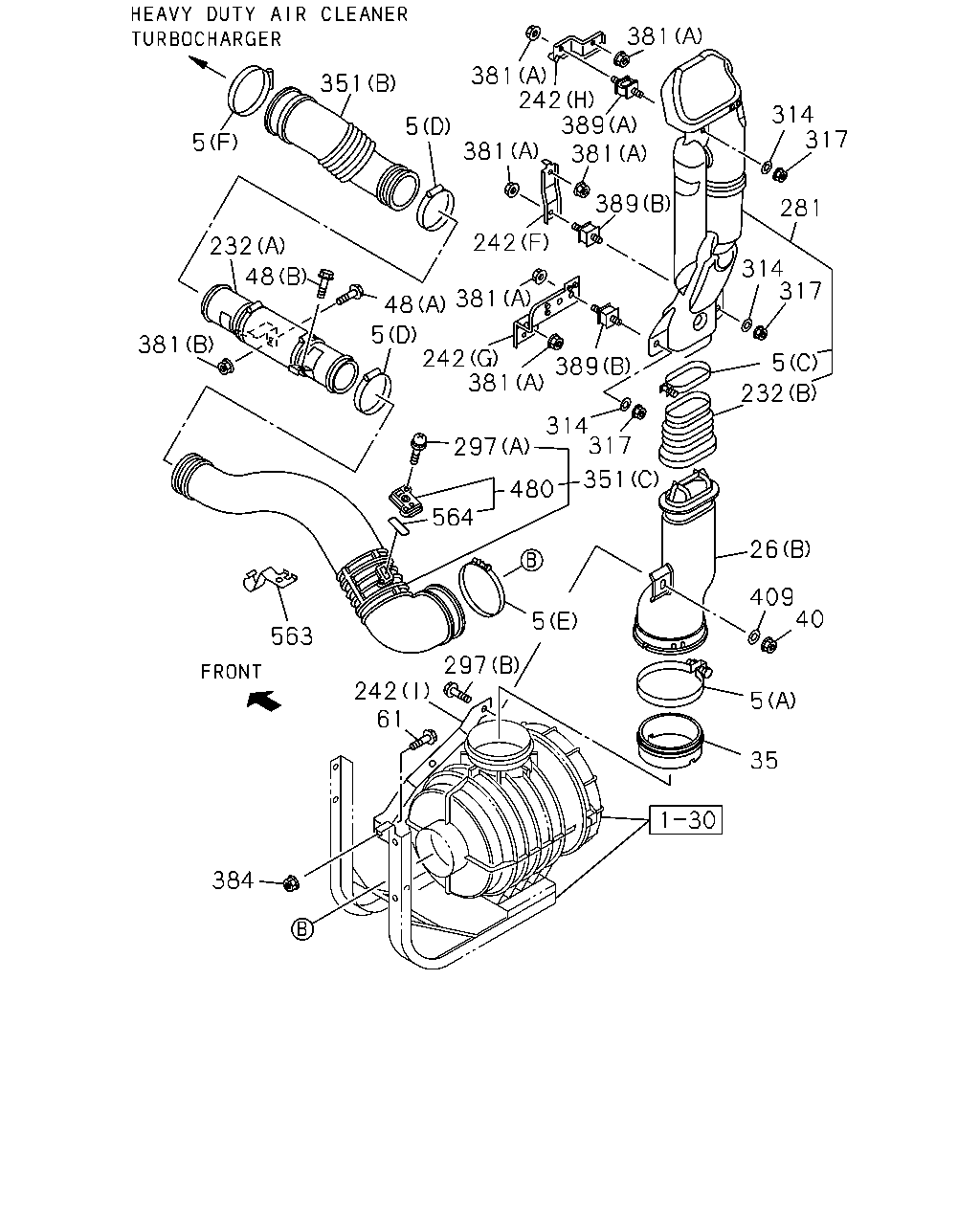

çizim 357745
351 5 5 232 381 48 48 5 381 242 242 381 297 314 564 563 242 297 5 35 5 40 409 26 351 317 232 5 317 314 281 317 314 381 381 242 389 381 381 389 389 61 384 480
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1306- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 1306- ● ●
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1306- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 1306- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1306- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1306- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1306- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1306- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1306- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1306-1309 ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1306- ●
232 HOSE; CONN
(A) 		8-98094-582-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1306- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1306- ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
297 BOLT; DUCT
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1306- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1306- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
351 DUCT; AIR
(A) 		8-98059-995-2 01 1 1306- ● ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1306- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1306- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1306- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1306- ● ●
480 ADAPTER 8-98086-417-0 01 1 1306- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1306- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1306- ●

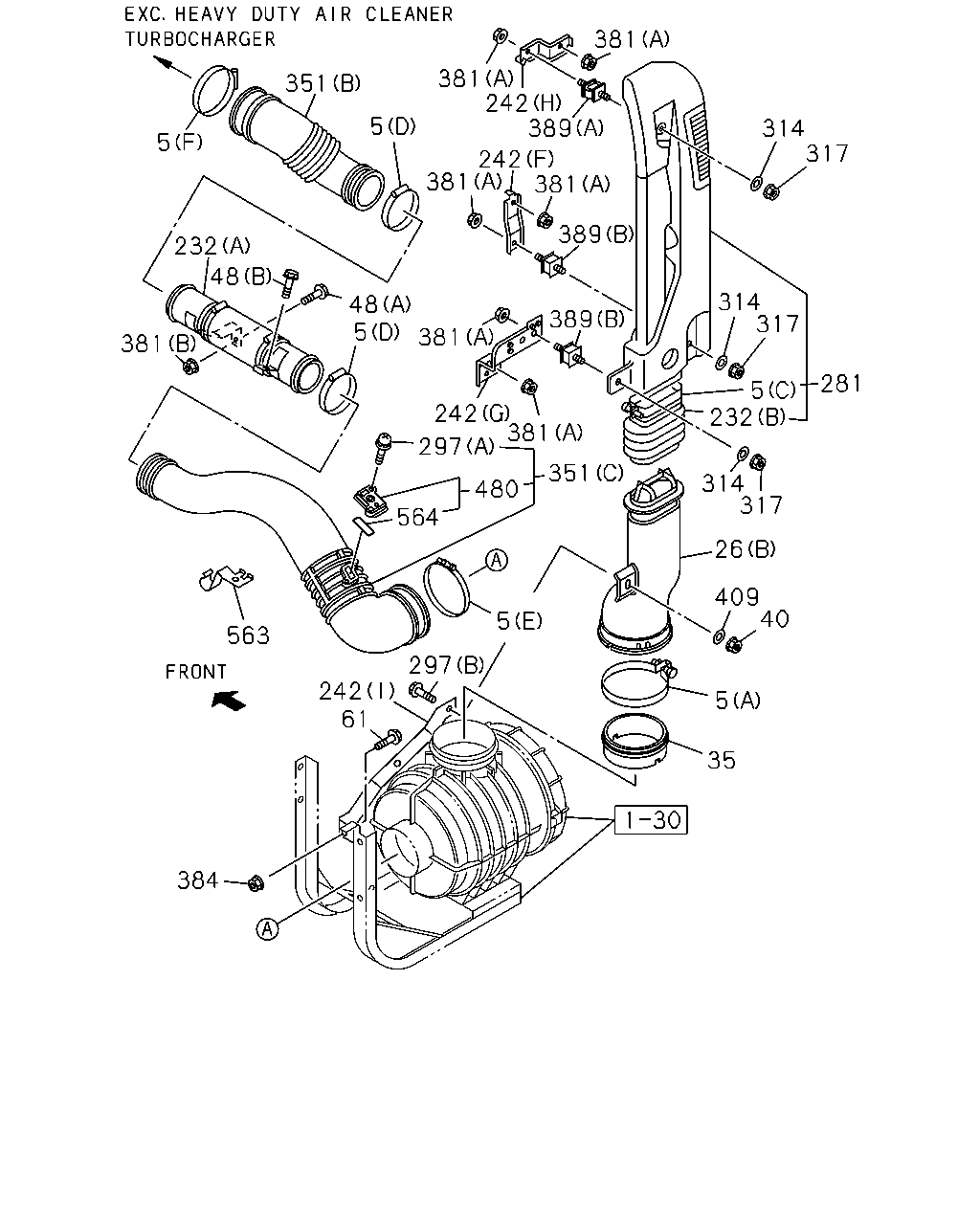

çizim 358729
5 351 381 5 232 381 48 48 5 563 384 242 61 297 5 35 5 40 409 26 317 314 281 232 5 317 314 317 314 381 242 381 564 480 351 381 297 242 381 389 389 381 242 389
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 01 1 1306- ● ●
5 CLIP; AIR DUCT
(B) ID=75-95 		8-98133-357-0 02 1 1306- ● ●
5 CLIP; AIR DUCT
(C) D=101.6 SOU 		9-09915-502-1 01 1 1306- ● ●
5 CLIP; AIR DUCT
(F) ID=55-75 		8-98133-349-0 01 1 1306- ●
5 CLIP; AIR DUCT
(D) ID=65-85 		8-98133-350-0 02 1 1306- ●
5 CLIP; AIR DUCT
(E) ID=112 		9-09915-074-1 01 1 1306- ●
26 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1306- ●
26 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 1306- ●
35 SEAL; DUCT,INT 8-98029-332-0 01 1 1306- ● ●
40 NUT; AIR INT DUCT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ● ●
48 BOLT; AIR DUCT
(A) M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306- ●
48 BOLT; AIR DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ●
61 BOLT; BRKT,AIR DUCT
M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
232 HOSE; CONN
HEAVY DUTY AIR CLEANER<K46> (A) 		8-98070-857-1 01 1 1306- ●
232 HOSE; CONN
(B) 		8-98082-535-0 01 1 1306-1309 ● ●
232 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ●
232 HOSE; CONN
EXC. HEAVY DUTY AIR CLEANER<K46> (A) 		8-98095-507-1 01 1 1306- ●
232 HOSE; CONN
(A) 		8-98094-582-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(B) 		8-98032-142-1 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98080-412-0 01 1 1306- ● ●
242 BRACKET; AIR DUCT
(I) 		8-98049-012-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 1306- ●
242 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 1306- ●
242 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1306- ● ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1306- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1306- ●
297 BOLT; DUCT
(B) M10X35 FLANGE SOU 		0-28651-035-0 01 1 1306- ●
297 BOLT; DUCT
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1306- ●
314 WASHER; PL,AIR INT DUCT
ID=10.5 OD=32 		0-91614-810-0 03 1 1306- ● ●
317 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
351 DUCT; AIR
(A) 		8-98059-995-2 01 1 1306- ● ●
351 DUCT; AIR
(B) 		8-98070-850-0 01 1 1306- ●
351 DUCT; AIR
(C) 		8-98070-863-1 01 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1306- ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ● ●
381 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 03 1 1306- ●
381 NUT; BRKT,AIR DUCT
(B) M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
384 NUT; AIR INT DUCT BRKT
M10 FLANGE SOU 		0-91180-110-0 01 1 1306- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1306- ● ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-98036-826-0 02 1 1306- ● ●
409 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1306- ● ●
480 ADAPTER 8-98086-417-0 01 1 1306- ●
563 BRACKET; CLIP 8-98090-587-0 01 1 1306- ● ●
564 GASKET; ADAPTER 8-98071-416-0 01 1 1306- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
