Sayfa 1-11 - Isuzu EPC

1-11 — RADIATOR HOSE AND SUB TANK (#122810) — 34 parça

18 34 1 2 19 13 13 13 13

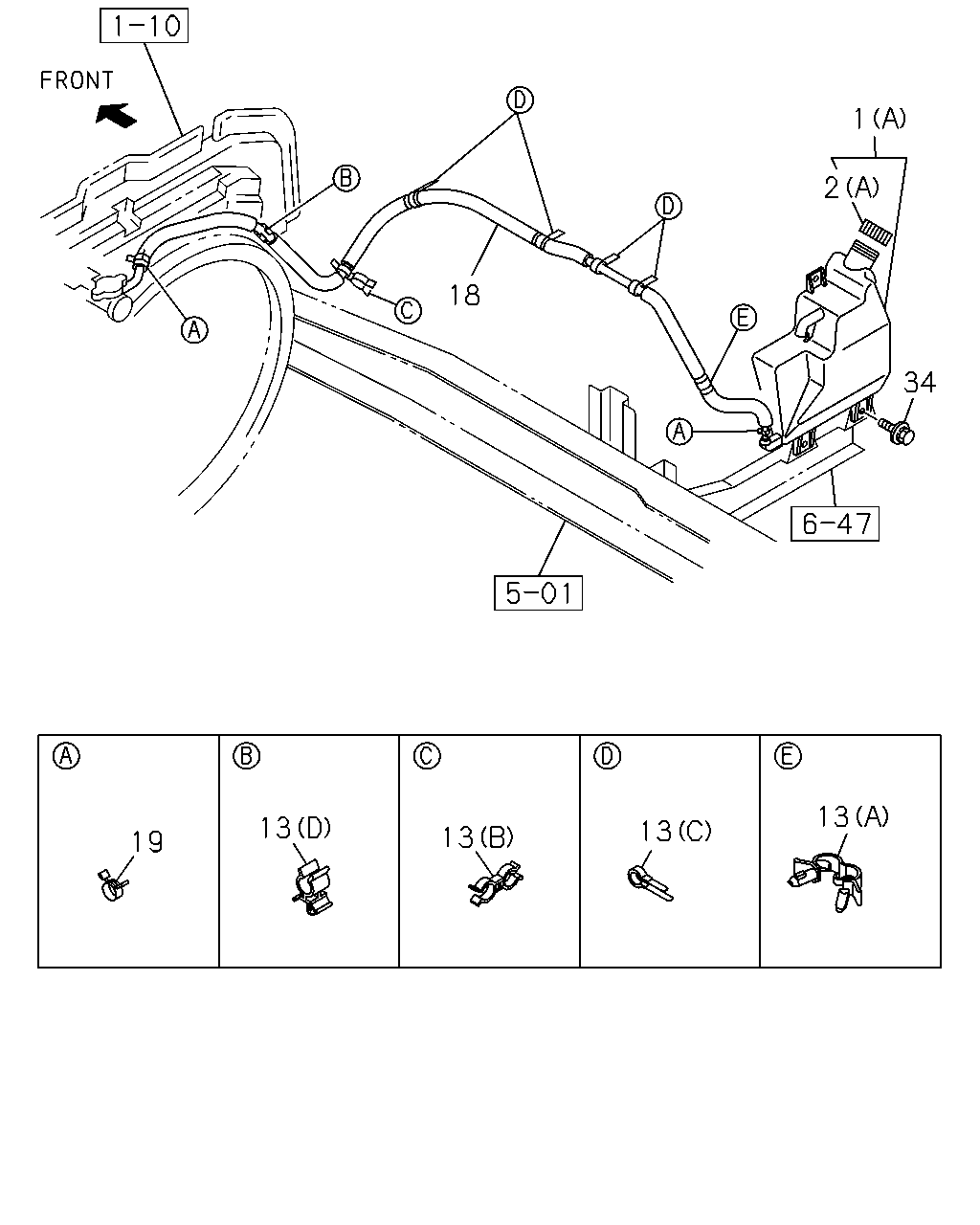

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-		●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-		●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	04	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-		●
18	HOSE; RAD TO SURGE TANK L=1660	8-98049-555-0	01	1	1306-	●
18	HOSE; RAD TO SURGE TANK L=1810	8-98049-556-0	01	1	1306-		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●

18 23 33 1 2 34 33 19 13 13 13 13 23

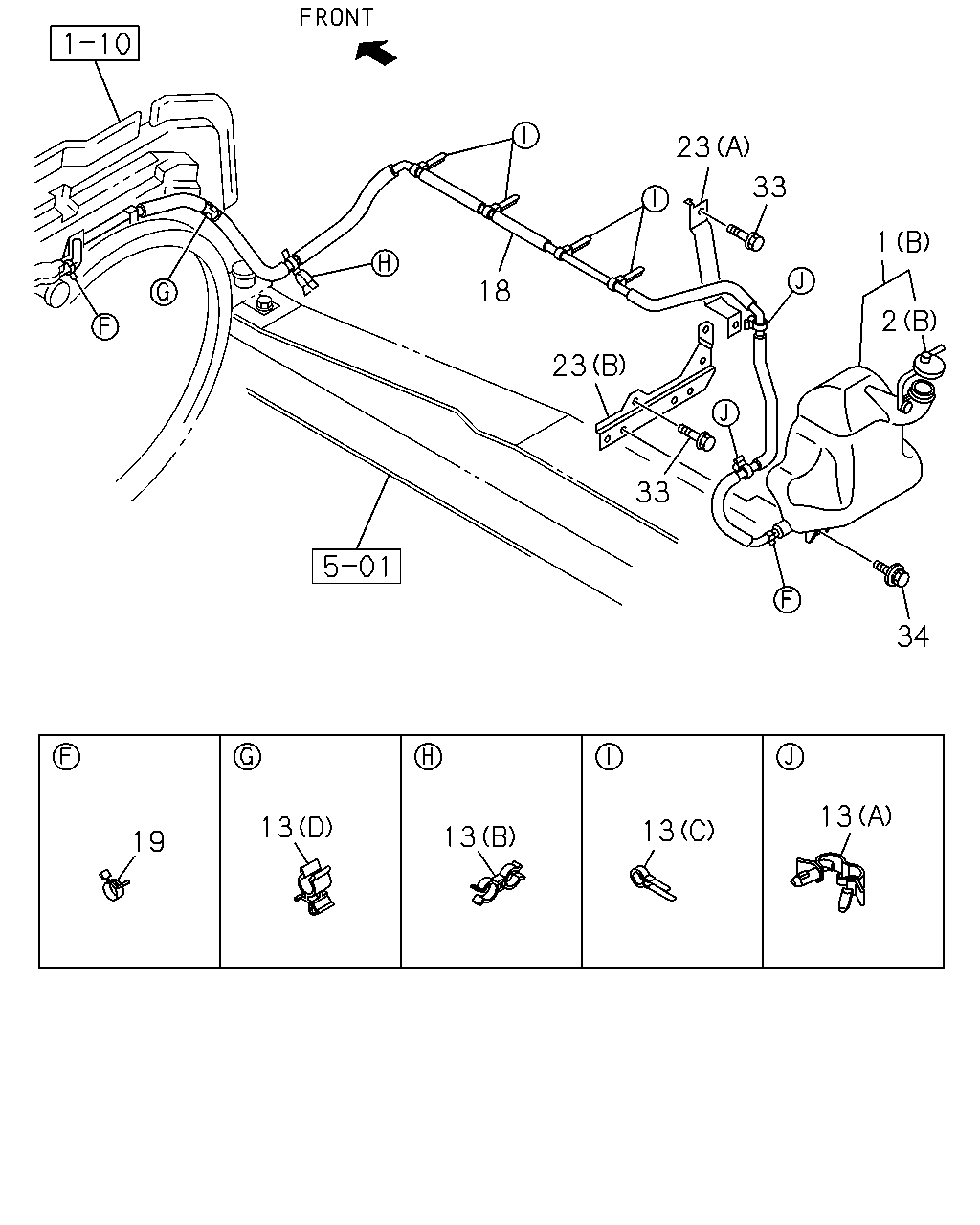

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; SURGE,RAD (A)	8-98178-179-0	01	1	1306-	●
1	TANK; SURGE,RAD (B)	8-98001-240-1	01	1	1306-		●
2	CAP; SURGE TANK (A)	8-98178-074-0	01	1	1306-	●
2	CAP; SURGE TANK (B) SOU	8-97130-964-0	01	1	1306-		●
13	CLIP; HOSE,SURGE TANK (C) ID=14 L=47 SOU	5-09700-319-0	04	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (B) ID=10 & 11	8-94438-996-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (D) ID=12	8-98029-256-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-	●	●
13	CLIP; HOSE,SURGE TANK (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1306-		●
18	HOSE; RAD TO SURGE TANK L=1660	8-98049-555-0	01	1	1306-	●
18	HOSE; RAD TO SURGE TANK L=1810	8-98049-556-0	01	1	1306-		●
19	CLIP; HOSE,SURGE TANK ID=12	8-98150-358-0	02	1	1306-	●	●
23	BRACKET; RESERVE TANK (A)	8-98001-252-0	01	1	1306-		●
23	BRACKET; RESERVE TANK (B)	8-98010-502-1	01	1	1306-		●
33	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-		●
34	BOLT; RESERVE TANK M8X22 W/LK&PL WASHER	1-09030-042-0	03	1	1306-	●	●

56 56 128 56 55 56

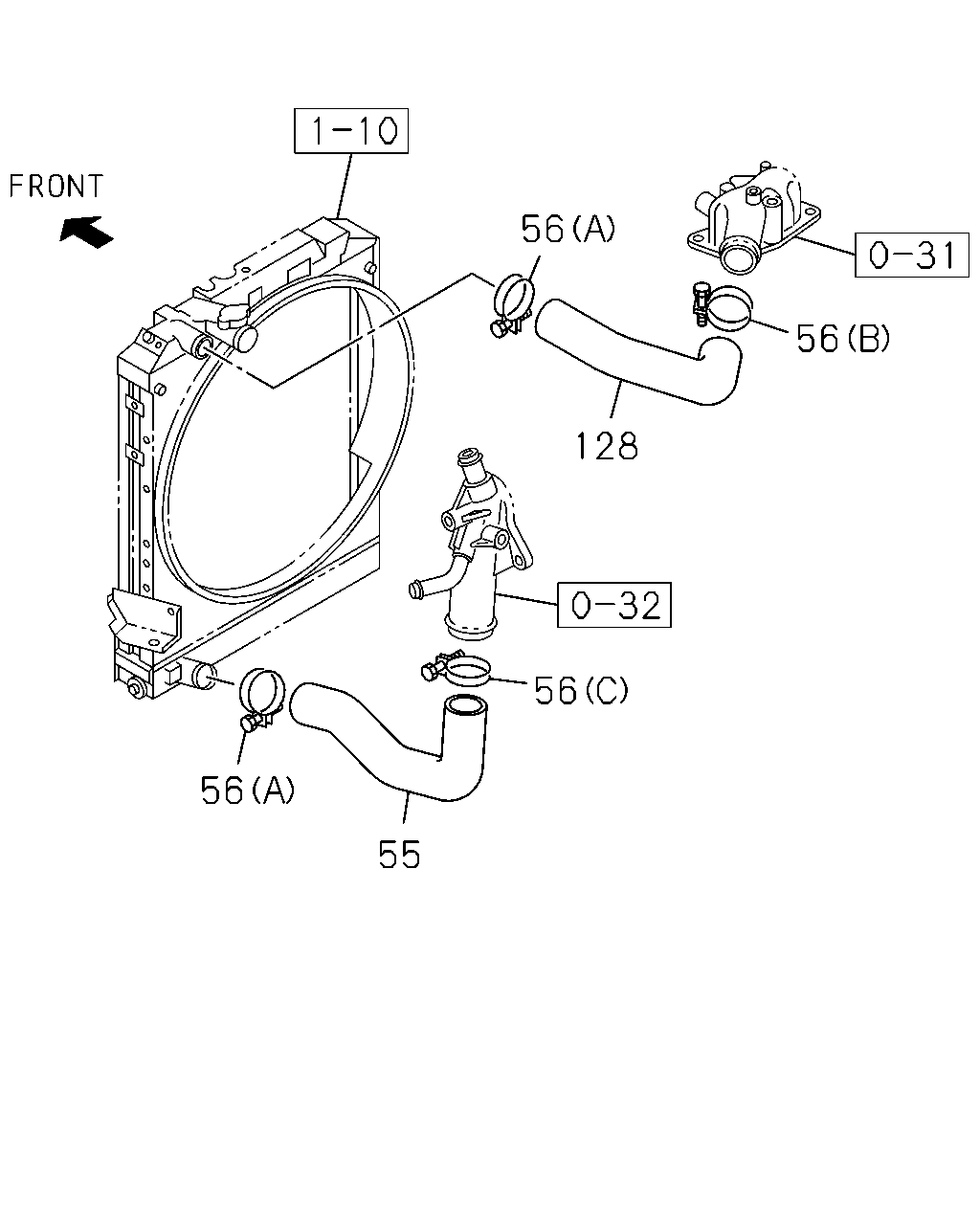

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
55	HOSE; WATER,RAD OUTLET	8-97387-525-0	01	1	1306-	●	●
56	CLIP; WATER HOSE,RAD (B) ID=52 SOU	1-09704-057-0	01	1	1306-	●	●
56	CLIP; WATER HOSE,RAD (A) ID=48	8-98133-956-0	02	1	1306-	●	●
56	CLIP; WATER HOSE,RAD (C) ID=62	8-98133-957-0	01	1	1306-	●	●
128	HOSE; WATER,RAD INL	8-97387-524-0	01	1	1306-	●	●
