◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#1228) — 22 parça

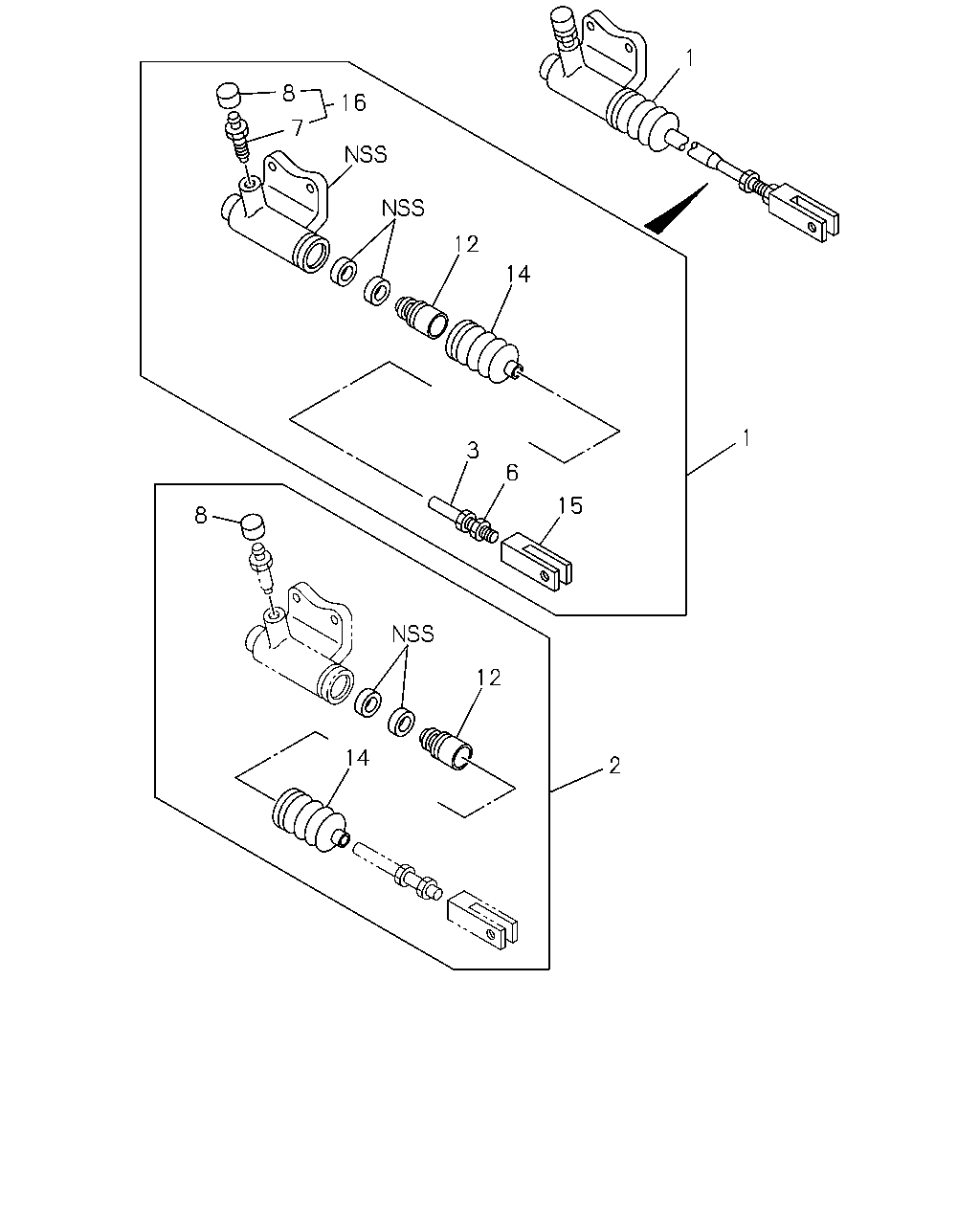

çizim 92565
1 8 16 7 12 14 1 3 6 15 8 12 14 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; SLAVE,CLU 1-47570-050-2 01 1 9202- ●
1 CYLINDER; SLAVE,CLU
EXC. AIR ASSIST CLUTCH<PK1> 		1-47570-050-2 01 1 9202- ●
2 REPAIR KIT; CLU SLAVE CYL 1-87830-533-0 01 1 9202- ●
2 REPAIR KIT; CLU SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-87830-533-0 01 1 9202- ●
3 ROD; PUSH,SLAVE CYL 1-47573-005-0 01 1 9202- ●
3 ROD; PUSH,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47573-005-0 01 1 9202- ●
6 NUT; LK,ROD END
M10 		9-09111-410-0 01 1 9202- ●
6 NUT; LK,ROD END
EXC. AIR ASSIST CLUTCH<PK1> M10 		9-09111-410-0 01 1 9202- ●
7 SCREW; BLEEDER,SLAVE CYL 9-47615-008-1 01 1 9202-9302 ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		9-47615-008-1 01 1 9202-9302 ●
7 SCREW; BLEEDER,SLAVE CYL 1-47615-019-0 01 1 9303- ●
7 SCREW; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47615-019-0 01 1 9303- ●
8 CAP; BLEEDER,SLAVE CYL
OD=9.5 		9-47619-005-0 01 1 9202- ●
8 CAP; BLEEDER,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> OD=9.5 		9-47619-005-0 01 1 9202- ●
12 PISTON; SLAVE CYL 1-47572-006-0 01 1 9202- ●
12 PISTON; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47572-006-0 01 1 9202- ●
14 BOOT; SLAVE CYL 1-47579-048-0 01 1 9202- ●
14 BOOT; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47579-048-0 01 1 9202- ●
15 JOINT; JAW,SLAVE CYL 1-47579-014-1 01 1 9202- ●
15 JOINT; JAW,SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-47579-014-1 01 1 9202- ●
16 VALVE; SLAVE CYL 9-48410-037-0 01 1 9202- ●
16 VALVE; SLAVE CYL
EXC. AIR ASSIST CLUTCH<PK1> 		9-48410-037-0 01 1 9202- ●
