Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

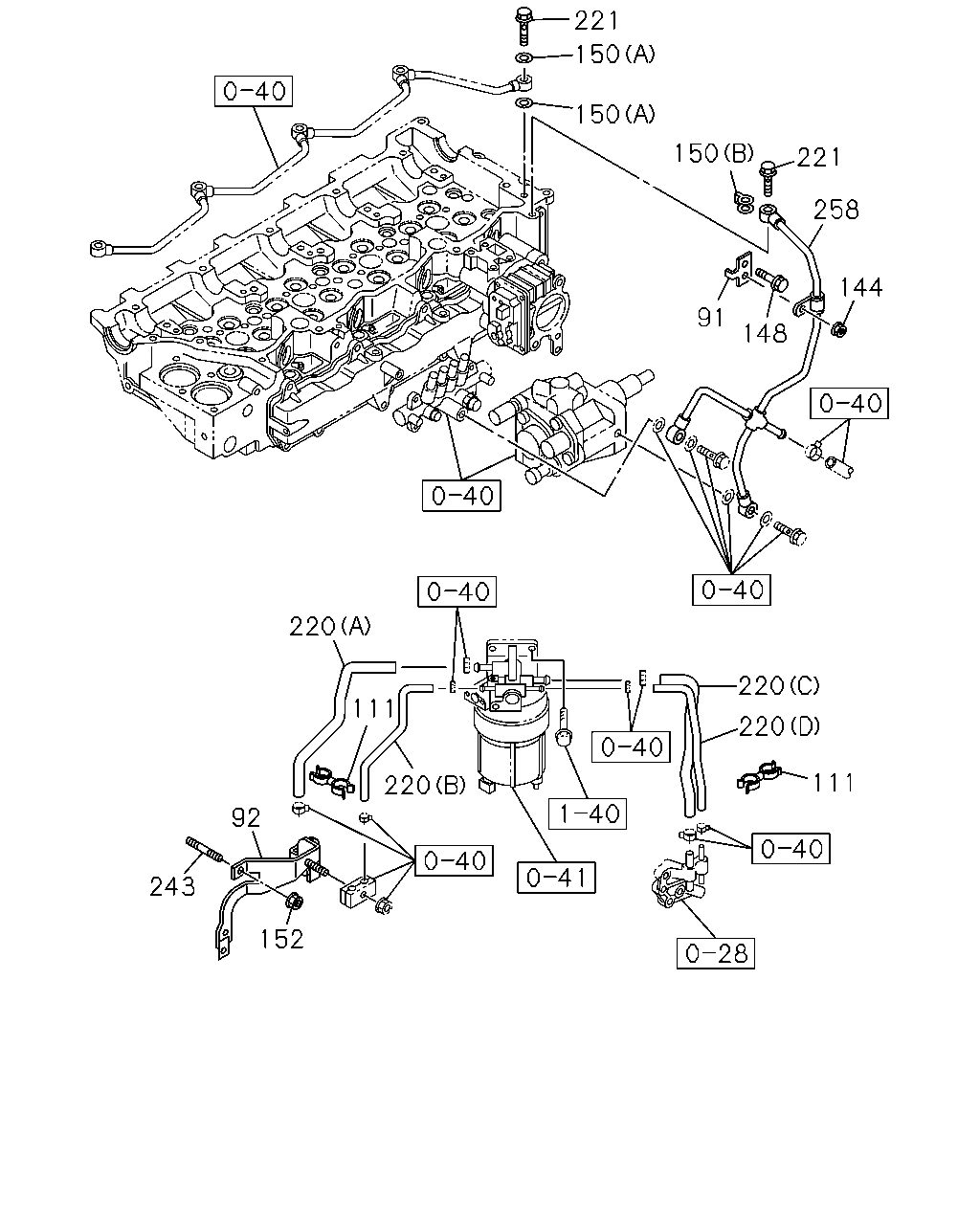

0-42 — FUEL PUMP AND PIPE
(#122796) — 15 parça
221
150
150
150
221
258
91
148
220
111
220
92
243
152
220
220
111
144
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
BRACKET; FUEL PIPE TO INL MANIF
8-98033-979-0
01
1
1306-
92
BRACKET; FUEL PIPE
8-98051-532-1
01
1
1306-
111
CLIP; FUEL PIPE
ID=13 & 16.5
8-94169-028-0
03
1
1306-
144
NUT; CLIP
M6 FLANGE SOU
0-91180-106-0
03
1
1306-
148
BOLT; BRKT
M6X12 FLANGE SOU
0-28050-612-0
03
1
1306-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2
1-09630-083-0
02
1
1306-
150
GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=10.2 OD=17
8-98079-755-0
01
1
1306-
152
NUT; BRKT
M8 FLANGE SOU
0-91180-108-0
01
1
1306-
220
HOSE; FUEL
(C)
8-98036-180-3
01
1
1306-
220
HOSE; FUEL
(D)
8-98036-181-2
01
1
1306-
220
HOSE; FUEL
(A)
8-98076-056-1
01
1
1306-
220
HOSE; FUEL
(B)
8-98076-057-1
01
1
1306-
221
BOLT; FUEL PIPE
M10X21 FLANGE
8-94396-711-0
02
1
1306-
243
STUD; BRKT
M8X15,M8X17 L=40
8-98009-913-0
01
1
1306-
258
PIPE ASM; FUEL,LEAK OFF
8-98033-718-0
01
1
1306-
