◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51291 - NPS(SOUTH AFRICA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#122795) — 20 parça

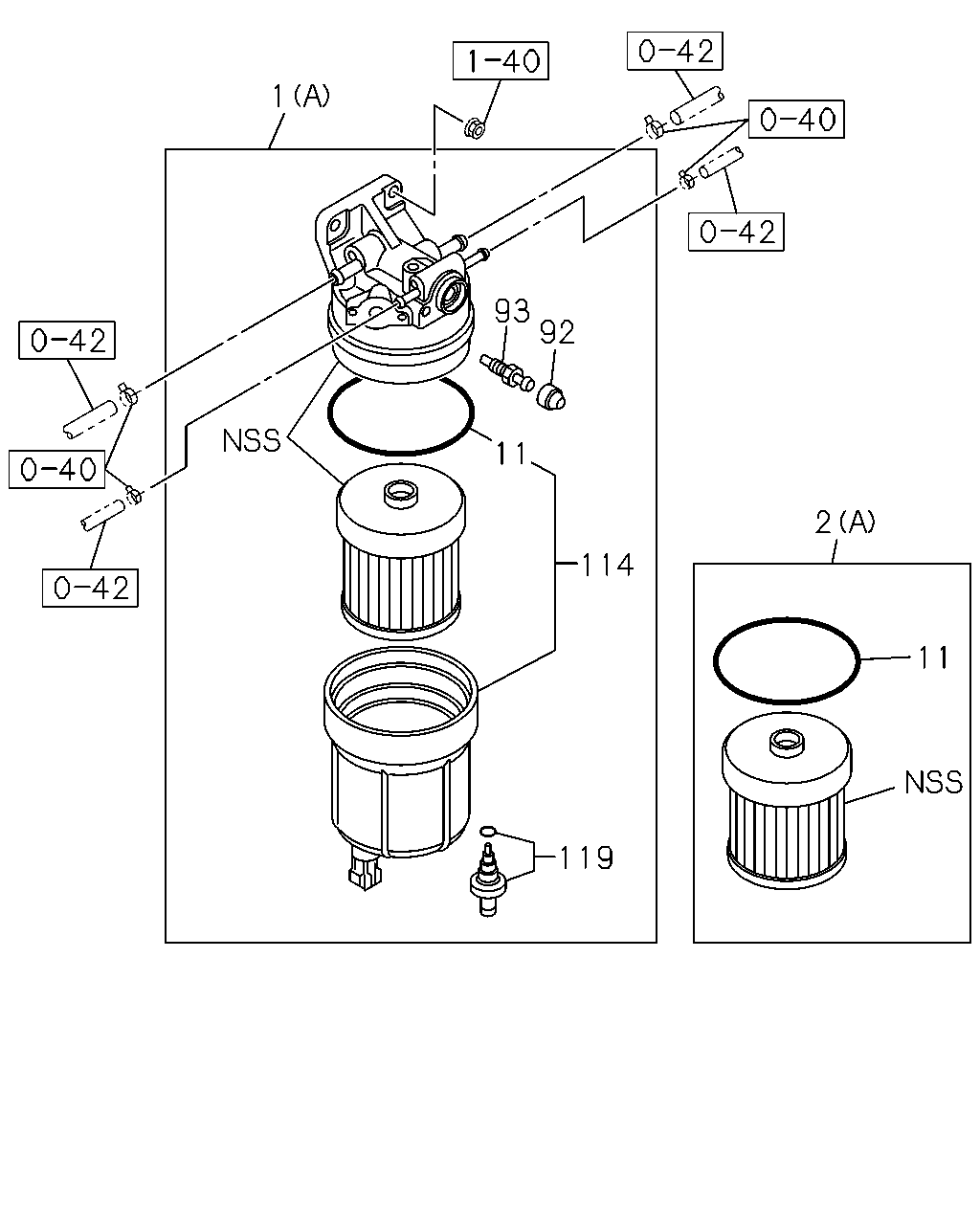

çizim 355395
1 93 92 11 114 2 11 119
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1306-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1306-
11 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1306-
92 CAP; FUEL FILTER 8-98034-314-0 01 1 1306-
93 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 1306-
114 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 1306-
119 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 1306-
çizim 358218
131 131 2 1 136 1 40 88
BalonParca AdiParca NoAdetTipApplied Date
1 FILTER ASM; FUEL
(A) 		8-98162-903-3 01 1 1306-
1 FILTER ASM; FUEL
(B) 		8-98095-980-1 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(B) 		8-98095-983-0 01 1 1306-
2 ELEMENT KIT; FUEL FILTER
(A) BEST VALUE PARTS 		1-87610-093-1 01 1 1306-
40 BRACKET; FUEL FILTER 8-98107-354-3 01 1 1306-
88 BOLT; BRKT,FUEL FILTER
M10X30 FLANGE SOU 		0-28651-030-0 02 1 1306-
131 PIPE; FILTER
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1306-
136 CAP KIT; FUEL FILTER 8-98096-004-0 01 1 1306-1408
136 CAP KIT; FUEL FILTER 8-98279-324-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
