Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#122782) — 46 parça
◀

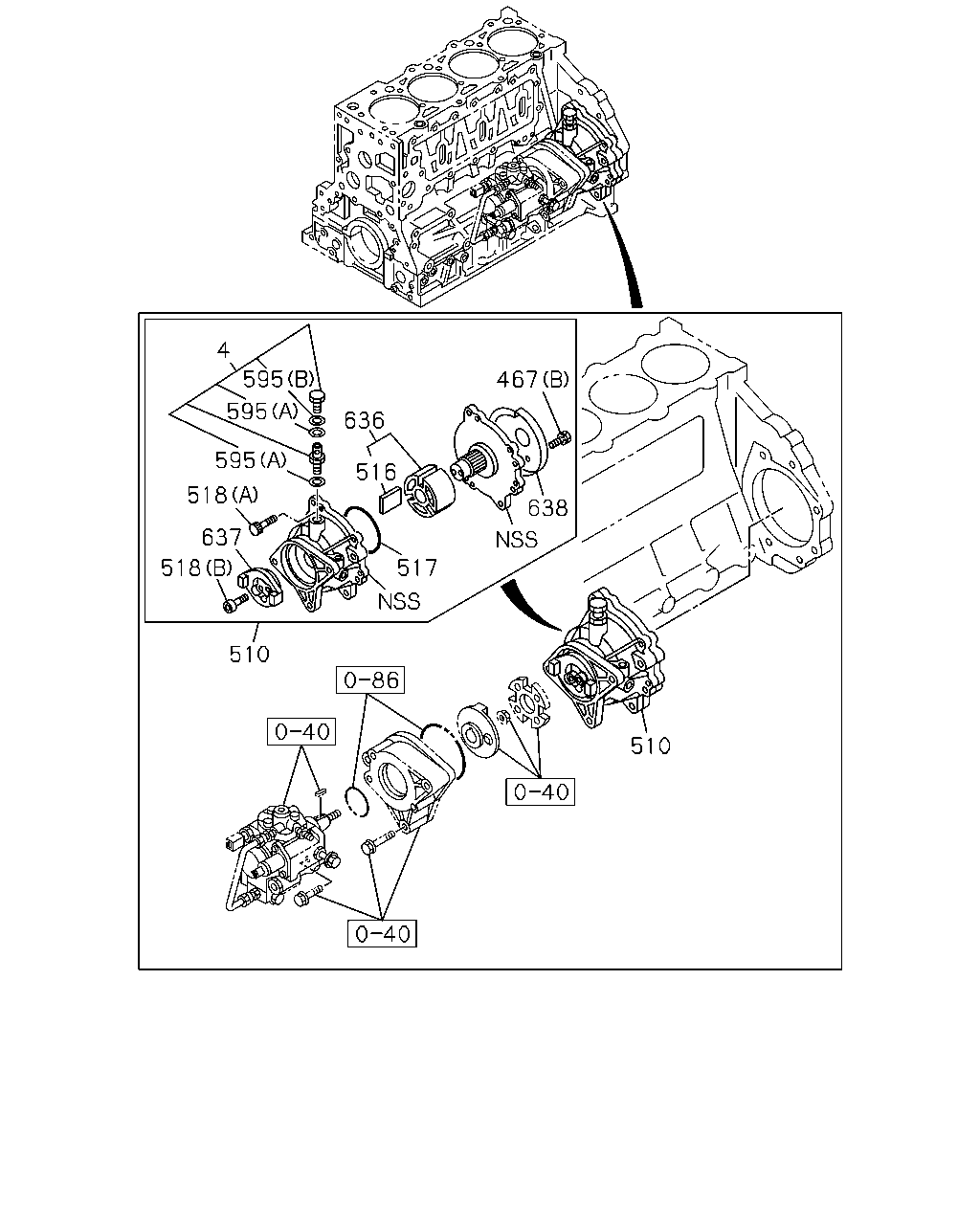

[020A] VACUUM PUMP (13 parça)

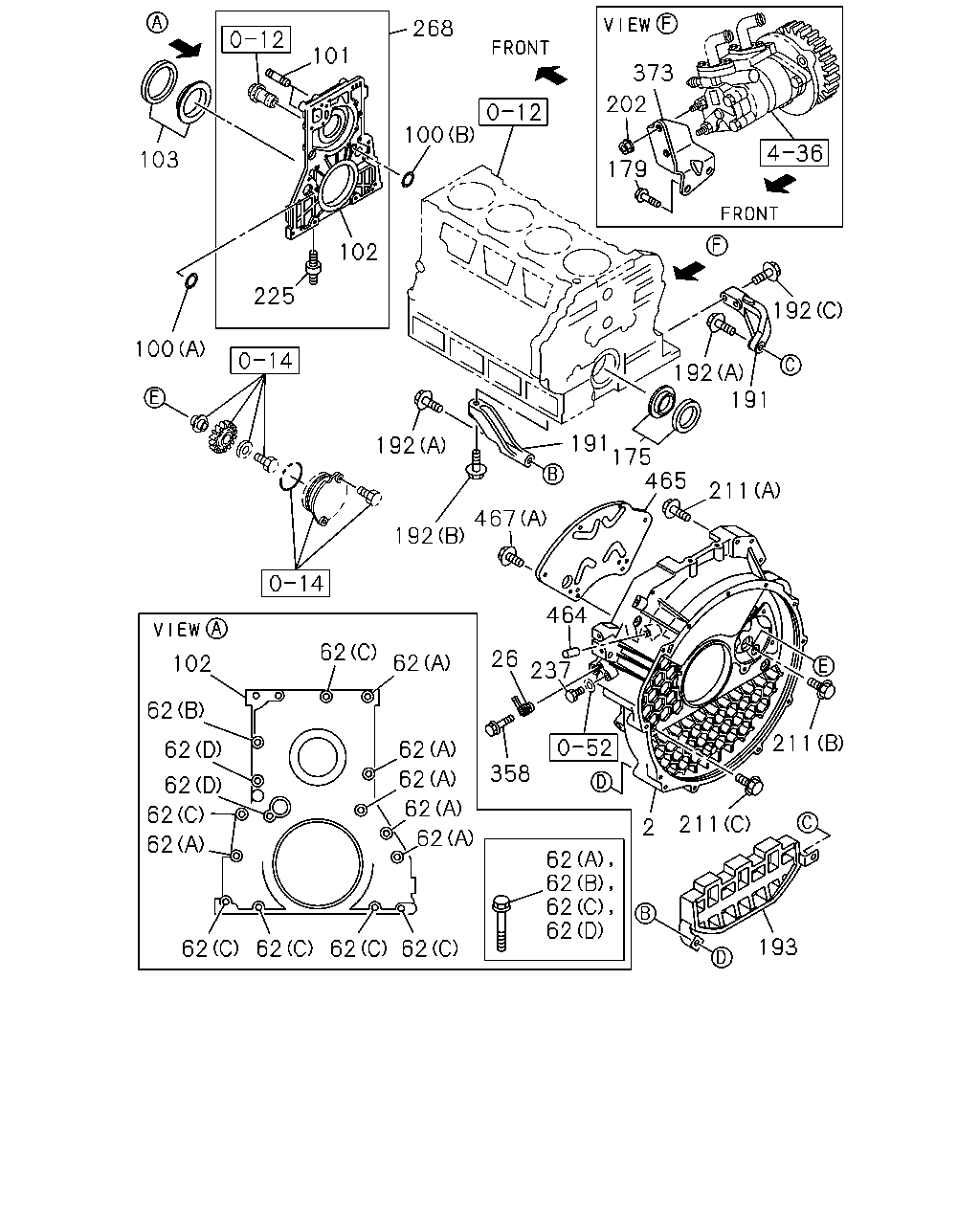

[020A] TIMING GEAR CASE AND OTHER PARTS (33 parça)
▶
510
638
467
636
516
517
518
510
637
518
595
595
595
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
VALVE ASM; CHECK
8-98049-521-0
01
1
1306-
467
BOLT; PLATE
(A) M6X10
8-98030-649-0
06
1
1306-
467
BOLT; PLATE
(B)
8-98049-523-0
02
1
1306-
510
PUMP ASM; VACUUM
8-97388-589-6
01
1
1306-
516
VANE; VAC PUMP
8-98051-279-0
03
1
1306-
517
GASKET; VAC PUMP
8-98051-280-0
01
1
1306-
518
BOLT; VAC PUMP
(A) M6X25 W/LK&PL WASHER
0-50640-625-0
03
1
1306-
518
BOLT; VAC PUMP
(B) M8X20
8-98051-277-0
02
1
1306-
595
GASKET; VLV
(B) ID=12
8-98018-518-0
01
1
1306-
595
GASKET; VLV
(A) ID=18
8-98018-519-0
02
1
1306-
636
ROTOR & VANE ASM; VAC PUMP
8-98051-281-0
01
1
1306-
637
COUPLING; VAC PUMP
8-98051-278-0
01
1
1306-
638
PLATE KIT; VAC PUMP
8-98051-276-0
01
1
1306-
268
101
103
102
225
100
192
192
467
191
175
465
211
192
191
192
179
202
373
100
464
26
237
358
211
211
2
193
62
62
62
62
62
62
62
62
62
62
62
62
102
62
62
62
62
62
62
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-97364-901-5
01
1
1306-
26
ADAPTER
8-97354-819-0
01
1
1306-
62
BOLT; COVER
(A) M8X25 FLANGE SOU
0-28650-825-0
06
1
1306-
62
BOLT; COVER
(B) M8X30 FLANGE
0-28650-830-0
01
1
1306-
62
BOLT; COVER
(C) M8X35 FLANGE SOU
0-28650-835-0
06
1
1306-
62
BOLT; COVER
(D) M8X65 FLANGE
1-09044-072-1
02
1
1306-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1
8-97028-748-1
01
1
1306-
100
GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8
9-09561-318-0
01
1
1306-
101
STUD; WATER PUMP
M8X18 L=30
0-41010-818-0
01
1
1306-
101
STUD; WATER PUMP
M8X18 L=29
8-97028-541-0
01
1
1306-
102
RETAINER; FRT
8-98081-351-1
01
1
1306-
103
SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137
8-97329-780-0
01
1
1306-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139
8-97602-379-0
01
1
1306-
179
BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M10X20 FLANGE
0-28151-020-0
02
1
1409-
191
STAY; FLYWHEEL HSG
8-97167-291-0
01
1
1306-
191
STAY; FLYWHEEL HSG
8-97167-292-0
01
1
1306-
192
BOLT; STAY TO HSG
(C) M10X40 FLANGE
0-28151-040-0
02
1
1306-
192
BOLT; STAY TO HSG
(B) M12X100 FLANGE
0-28151-200-0
01
1
1306-
192
BOLT; STAY TO HSG
(A) M12X50 FLANGE
0-28151-250-0
02
1
1306-
193
SPACER; STAY TO OIL,PAN
8-97259-536-0
01
1
1306-
202
NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) M8 FLANGE SOU
0-91180-108-0
01
1
1409-
211
BOLT; HSG
(A) M10X40 FLANGE
0-28751-040-0
01
1
1306-
211
BOLT; HSG
(B) M12X30 FLANGE
8-97135-419-0
02
1
1306-
211
BOLT; HSG
(C) M12X70 FLANGE, W/PL WASHER
8-98179-087-1
11
1
1306-
225
STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
03
1
1306-
237
PLUG; FLYWHEEL HSG
M10X12 FLANGE
0-28051-012-0
01
1
1306-
268
COVER; FRT
8-98079-080-1
01
1
1306-
358
BOLT; ADAPTER
M6X16 FLANGE SOU
0-28050-616-0
01
1
1306-
373
BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ)
8-97149-333-0
01
1
1409-
464
PIPE; PCV,FLYWHEEL HSG
8-94373-246-3
01
1
1306-
465
PLATE; FLYWHEEL HSG
8-97363-823-0
01
1
1306-
467
BOLT; PLATE
(A) M6X10
8-98030-649-0
06
1
1306-
467
BOLT; PLATE
(B)
8-98049-523-0
02
1
1306-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
