Isuzu WW
▶
TRUCKS
▶
NPS
▶
51291 - NPS(SOUTH AFRICA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

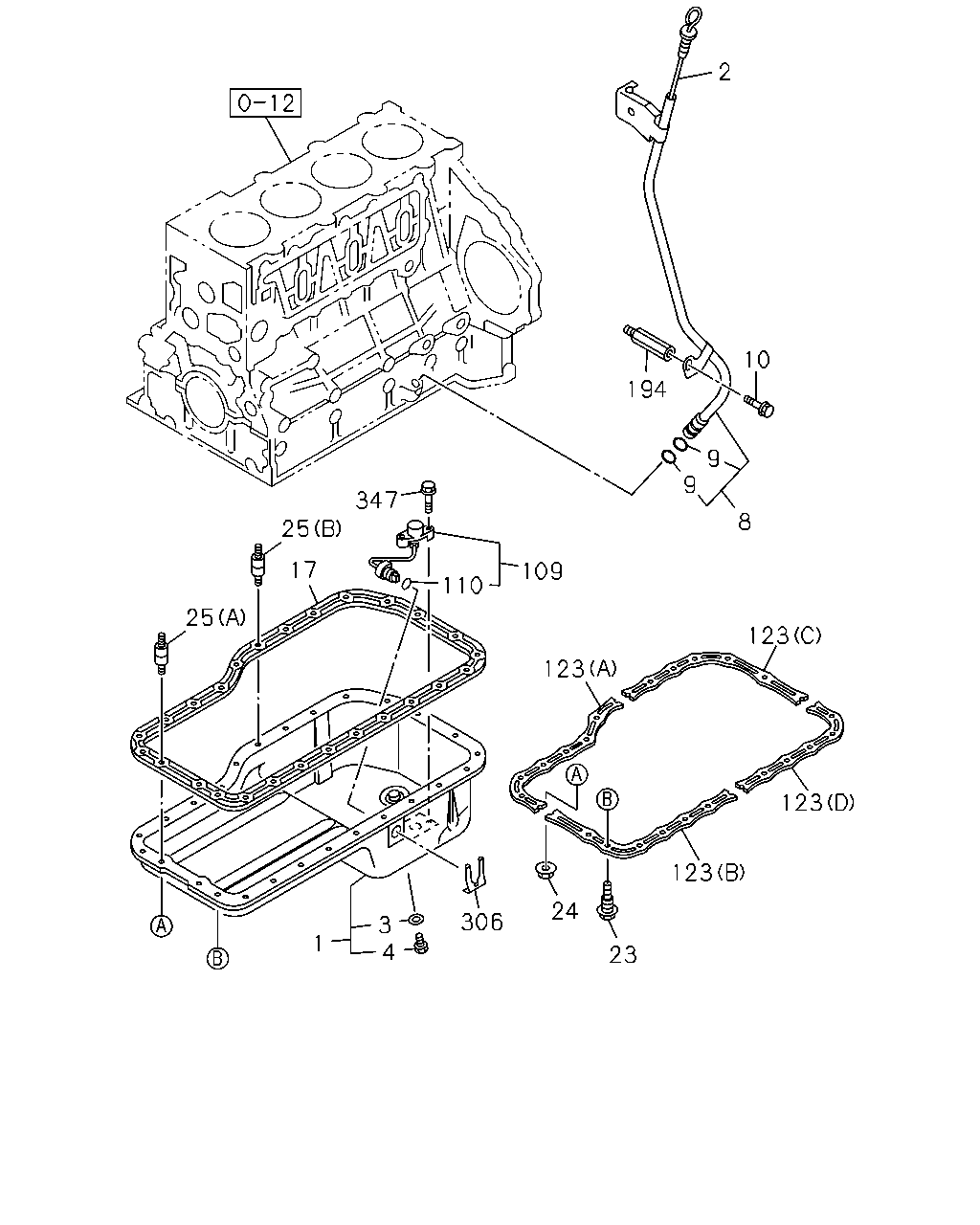

0-13 — OIL PAN AND LEVEL GAUGE
(#122779) — 21 parça
2
194
10
9
9
8
123
123
123
23
24
123
109
110
306
3
4
1
17
347
25
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98039-422-0
01
1
1306-
2
GAUGE; OIL LEVEL
8-98091-931-0
01
1
1306-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1306-
4
PLUG; DRAIN,OIL
M14X14
8-94152-613-0
01
1
1306-
8
TUBE; GUIDE,OIL LEVEL GAUGE
8-98039-161-0
01
1
1306-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
1306-
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28650-820-0
01
1
1306-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
1306-
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
1306-
24
NUT; OIL PAN
M8 FLANGE SOU
0-91180-108-0
13
1
1306-
25
STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
1306-
25
STUD; OIL PAN
(A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
1306-
109
SWITCH; OIL LEVEL
8-97328-993-1
01
1
1306-
110
GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
1306-
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
1306-
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
1306-
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
1306-
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
1306-
194
SPACER; GUIDE TUBE
8-97101-215-0
01
1
1306-
306
CLIP; CONNECTOR
8-97229-219-0
01
1
1306-
347
BOLT; OIL LEVEL SW
M6X25 FLANGE SOU
0-28650-625-0
02
1
1306-
