◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 9 - Tools ▶ 9-32 - REAR BODY; GUARD FRAME ▶
9-32 — REAR BODY; GUARD FRAME (#122772) — 23 parça

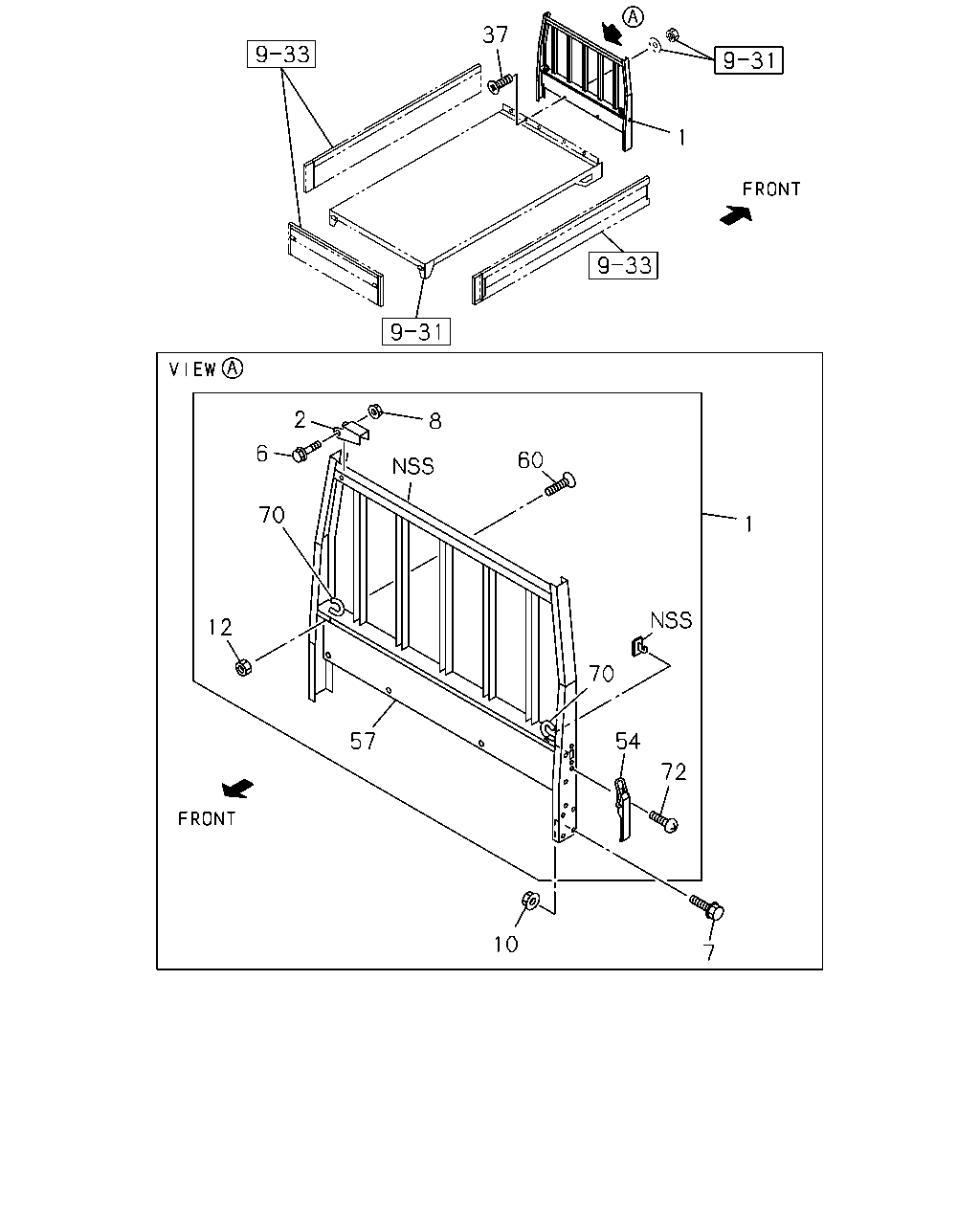

çizim 357704
37 1 1 60 6 2 12 57 10 7 72 54 70 8 70
BalonParca AdiParca NoAdetTipApplied Date
1 FRAME; GUARD,RR BODY
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98024-567-2 01 1 1306-
1 FRAME; GUARD,RR BODY
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98009-916-2 01 1 1306-
2 STOPPER; GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-98045-225-0 02 1 1306-
2 STOPPER; GUARD FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98045-225-0 02 1 1306-
6 BOLT; STOPPER TO GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-98045-226-0 02 1 1306-
6 BOLT; STOPPER TO GUARD FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-98045-226-0 02 1 1306-
7 BOLT; GUARD FRAME STOPPER,RR BODY
RR BODY FLAT BED<RS6> M12X25 FLANGE 		0-28661-225-0 08 1 1306-
8 NUT; STOPPER BOLT
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M10 		8-98045-227-0 02 1 1306-
8 NUT; STOPPER BOLT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M10 		8-98045-227-0 02 1 1306-
10 NUT; GUARD FRAME STOPPER
RR BODY FLAT BED<RS6> M12 FLANGE SOU 		0-91180-212-0 08 1 1306-
12 NUT; GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT FLANGE 		0-91380-008-0 05 1 1306-
12 NUT; GUARD FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT FLANGE 		0-91380-008-0 05 1 1306-
37 BOLT; GUARD FRAME
RR BODY FLAT BED<RS6> M8X25 PABCO 		8-98030-412-0 05 1 1306-
54 HANDLE; LOCK,GATE,FRT
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98045-206-0 02 1 1306-
54 HANDLE; LOCK,GATE,FRT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98045-206-0 02 1 1306-
57 BOARD; HEADER
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98045-229-2 01 1 1306-
57 BOARD; HEADER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO 		8-98045-105-2 01 1 1306-
60 SCREW; BOARD
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X25 PABCO 		8-98030-412-0 05 1 1306-
60 SCREW; BOARD
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 PABCO 		8-98030-412-0 05 1 1306-
70 HOOK; ROPE,GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> PABCO 		5-87580-001-0 02 1 1306-
70 HOOK; ROPE,GUARD FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> PABCO 		5-87580-001-0 02 1 1306-
72 SCREW; HANDLE TO GUARD FRAME
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> M8X13 PABCO 		8-98045-180-0 04 1 1306-
72 SCREW; HANDLE TO GUARD FRAME
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) RR BODY FLAT BED<RS6> EXC. FRAME STRAIGHT TYPE<7KJ> M8X13 PABCO 		8-98045-180-0 04 1 1306-
