9-01 — TOOLS (#122769) — 60 parça
çizim 357692
450 450
BalonParca AdiParca NoAdetTipApplied Date A B C
450 SEAL; HOLE
(A) OD=36 T=0.05 BLACK SOU 		5-76777-035-0 02 1 1306- ●
450 SEAL; HOLE
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 1306- ●

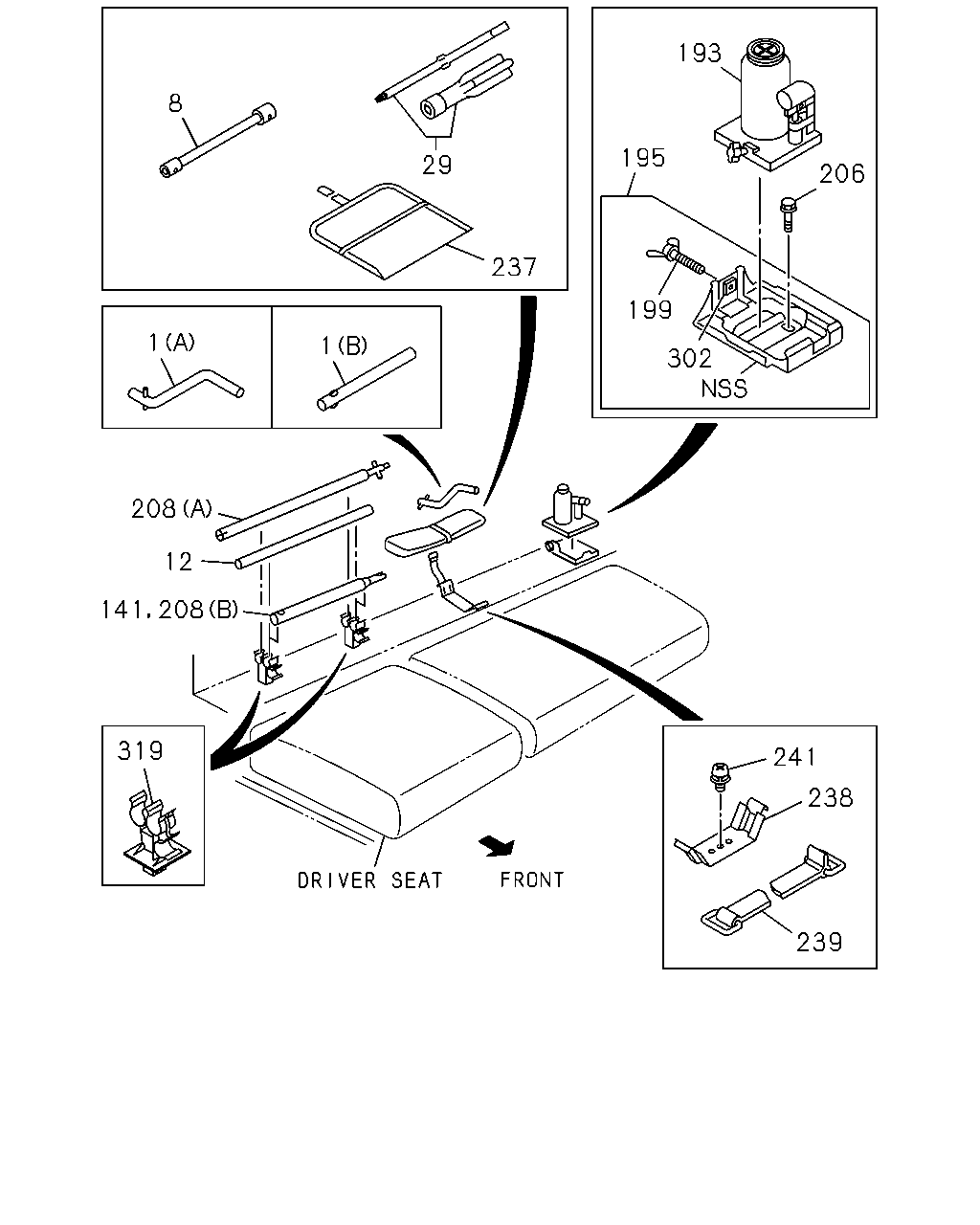

çizim 357698
239 238 241 319 141 208 12 208 1 1 302 199 206 195 193 29 8 237
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280 		8-98181-251-0 01 1 1306- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1306- ●
1 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1306- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W) (A) 		8-97218-985-0 01 1 1306-1307 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) 		8-97218-985-0 01 1 1308- ●
8 WRENCH; WHEEL
B=41X21 L=440 SOU 		1-85113-015-1 01 1 1306-1601 ● ● ●
8 WRENCH; WHEEL
B=41X21 L=445 SOU 		8-98316-703-0 01 1 1602- ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W) OD=25 L=480 SOU 		1-85116-011-0 01 1 1306-1307 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=480 SOU 		1-85116-011-0 01 1 1308-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) OD=25 L=480 SOU 		8-98257-407-0 01 1 1408- ●
29 DRIVER; SCREW
<+>,<-> L=160 SOU 		8-94242-798-1 01 1 1306- ● ● ●
141 HANDLE; WRENCH
L=580 		8-98181-249-0 01 1 1306- ●
193 JACK ASM
FRT&RR 215/85R16 16X6K-128(CSC) 4TON 		8-98012-285-0 01 1 1306-1406 ●
193 JACK ASM
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) 4TON 		8-98012-285-0 01 1 1407-1507 ●
193 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) 4TON 		8-98012-285-0 01 1 1508- ●
193 JACK ASM
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB) 4TON 		8-98012-285-0 01 1 1508- ●
193 JACK ASM
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON 		8-98114-047-0 01 1 1306- ●
193 JACK ASM
5TON 		8-98114-047-0 01 1 1306- ● ●
195 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB) 		8-94262-068-3 01 1 1508- ●
195 BRACKET; JACK
FRT&RR 215/85R16 16X6K-128(CSC) 		8-98033-737-2 01 1 1306-1406 ●
195 BRACKET; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) 		8-98033-737-2 01 1 1407-1507 ●
195 BRACKET; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) 		8-98033-737-2 01 1 1508- ●
195 BRACKET; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1306-1402 ●
195 BRACKET; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) 		8-97589-376-2 01 1 1306-1402 ●
195 BRACKET; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 		8-97589-376-2 01 1 1403- ●
195 BRACKET; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) 		8-97589-376-2 01 1 1403- ●
195 BRACKET; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) 		8-94273-287-7 01 1 1306- ●
199 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB) M8X50 WING SOU 		8-94279-136-0 01 1 1508- ●
199 BOLT; JACK
FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING 		8-98005-537-0 01 1 1306-1406 ●
199 BOLT; JACK
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING 		8-98005-537-0 01 1 1407-1507 ●
199 BOLT; JACK
FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU), FRT&RR 215/85R16 16X6K-128(CSC) M8X50 WING 		8-98005-537-0 01 1 1508- ●
199 BOLT; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1306-1402 ●
199 BOLT; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF) M8X30 WING 		8-98005-536-0 01 1 1306-1402 ●
199 BOLT; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING 		8-98005-536-0 01 1 1403- ●
199 BOLT; JACK
FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),F&R 225/70R19.5 F&R 19.5X6.00-127 BLACK DISC(CYN) M8X30 WING 		8-98005-536-0 01 1 1403- ●
199 BOLT; JACK
FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C) M8X30 WING 		8-94279-018-1 01 1 1306- ●
206 SCREW; OIL JACK BRKT
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1306- ● ●
206 SCREW; OIL JACK BRKT
M6X16 		0-38050-616-0 01 1 1306- ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580 		8-98181-249-0 01 1 1306- ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1306- ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W) (A) L=642 		8-98181-477-0 01 1 1306-1307 ●
208 HANDLE; JACK
WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) (A) L=642 		8-98181-477-0 01 1 1308- ●
237 BAG; TOOL
SOU 		8-97130-903-1 01 1 1306- ● ● ●
238 SUPPORT; TOOL BAG
SOU 		8-97994-977-0 01 1 1306- ● ●
239 BAND; TOOL BAG
L=100 SOU 		5-73997-026-1 01 1 1306- ● ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 1306- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 1306- ● ●
302 NUT; JACK BRKT
SOU 		8-94279-522-0 01 1 1306- ●
319 CLIP; TOOL BAR
SOU 		8-97853-077-2 02 1 1306- ● ● ●

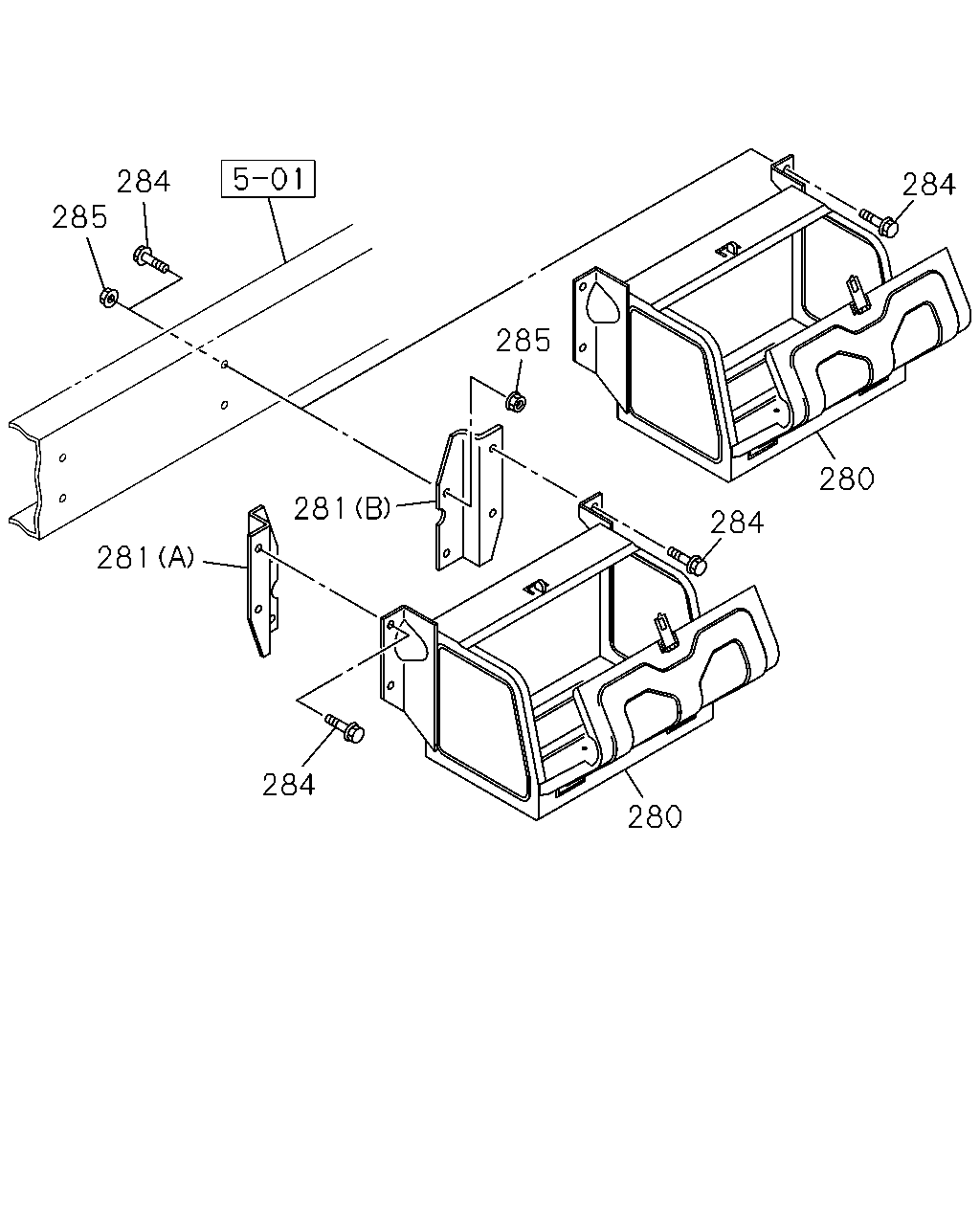

çizim 358885
280 284 280 284 284 281 281 285 284 285
BalonParca AdiParca NoAdetTipApplied Date A B C
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1306-1511 ● ● ●
280 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97384-079-0 01 1 1512- ● ● ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98045-642-1 01 1 1306- ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-98130-709-0 01 1 1306- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1306-1511 ● ● ●
284 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1306-1511 ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1512- ● ● ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE SOU 		0-28651-030-0 04 1 1512- ●
285 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10 FLANGE SOU 		0-91180-110-0 04 1 1306- ● ● ●
