Isuzu WW
▶
TRUCKS
▶
NPR
▶
51487 - NPR/NQR(SOUTHAFRICA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

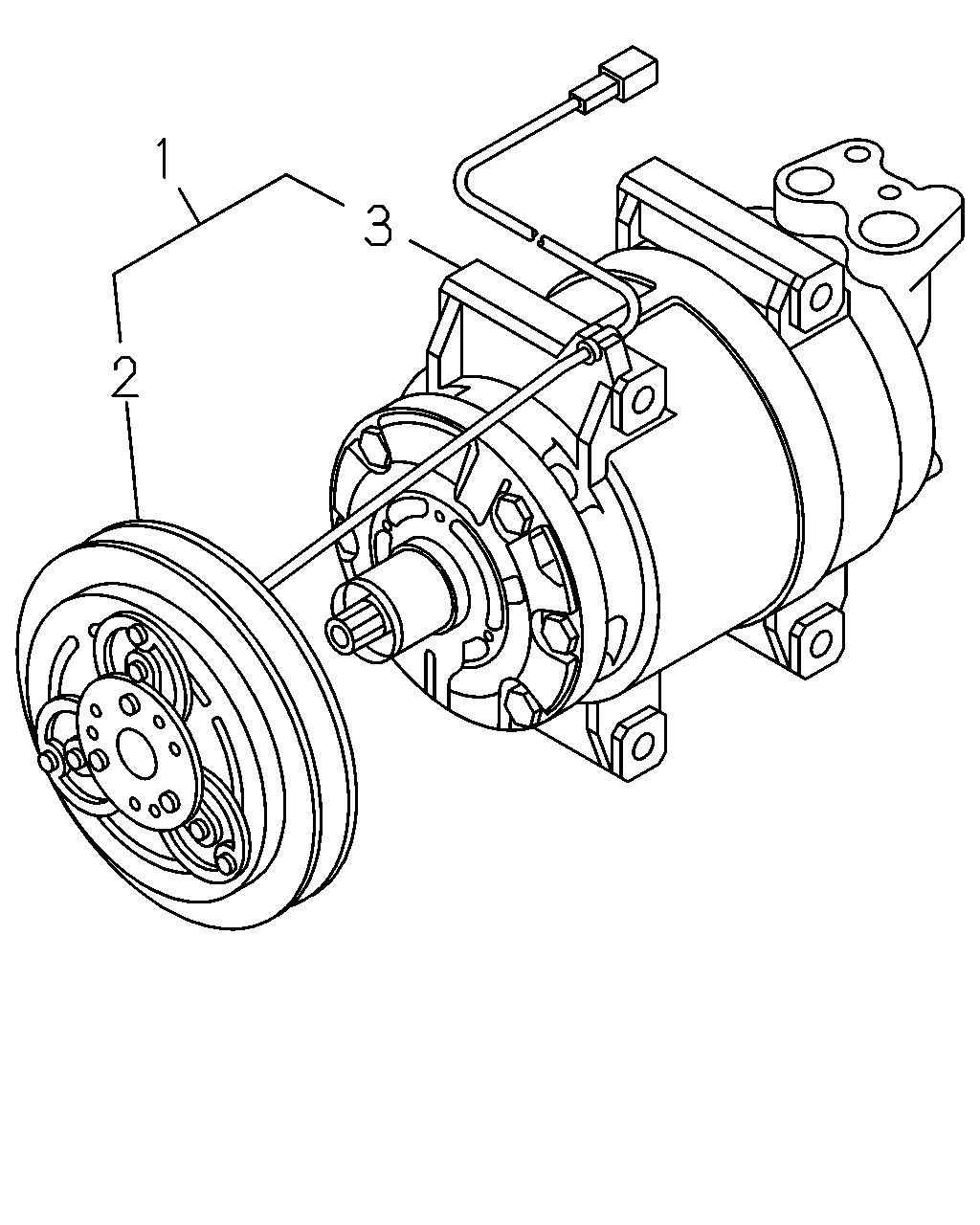

8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#122764) — 8 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
1
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98214-321-0
01
1
1306-1410
●
●
●
1
COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-197-0
01
1
1411-
●
●
●
1
COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98214-324-0
01
1
1306-1410
●
1
COMPRESSOR ASM; A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-199-0
01
1
1411-
●
2
CLUTCH; MAGNET,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)
8-98208-773-1
01
1
1306-
●
●
●
2
CLUTCH; MAGNET,A/C
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-1
01
1
1306-
●
3
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
1306-
●
3
COMPRESSOR ASM; A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
1306-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
