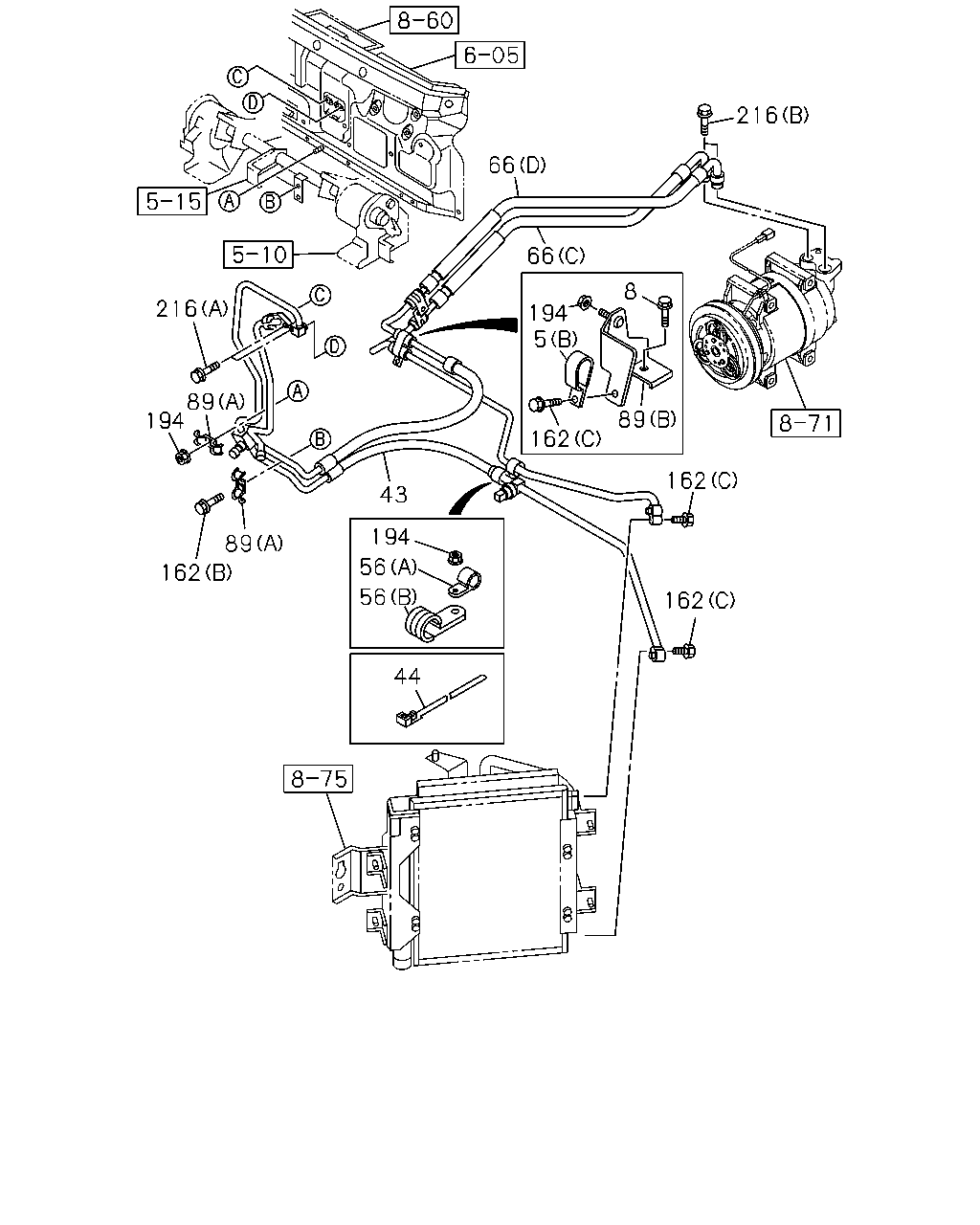

8-52 — PIPING; AIR CONDITIONING (#122761) — 91 parça

216 66 66 8 194 162 5 89 162 162 44 56 194 56 43 89 162 194 89 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1306-	●	●	●
5	CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=16 L=32	0-95235-562-0	02	1	1306-	●
8	BOLT; CLIP 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=350	8-94152-256-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=140 SOU	5-09707-031-1	01	1	1306-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1306-	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20	0-95235-232-0	01	1	1306-	●
56	CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20	0-95235-232-0	01	1	1306-		●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98098-289-0	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-629-1	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1306-	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1306-	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98151-264-0	02	1	1306-	●	●	●
89	BRACKET; A/C PIPE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-365-2	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	02	1	1306-	●
194	NUT; HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	03	1	1306-	●	●	●
194	NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X30 FLANGE	0-28650-630-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●

50 43 147 148 202 50 66 67 67 66 67 67 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1306-	●	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98098-289-0	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-629-1	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1306-	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1306-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-		●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1306-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-	●
147	CAP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-		●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-	●
148	VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-		●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1306-	●	●	●

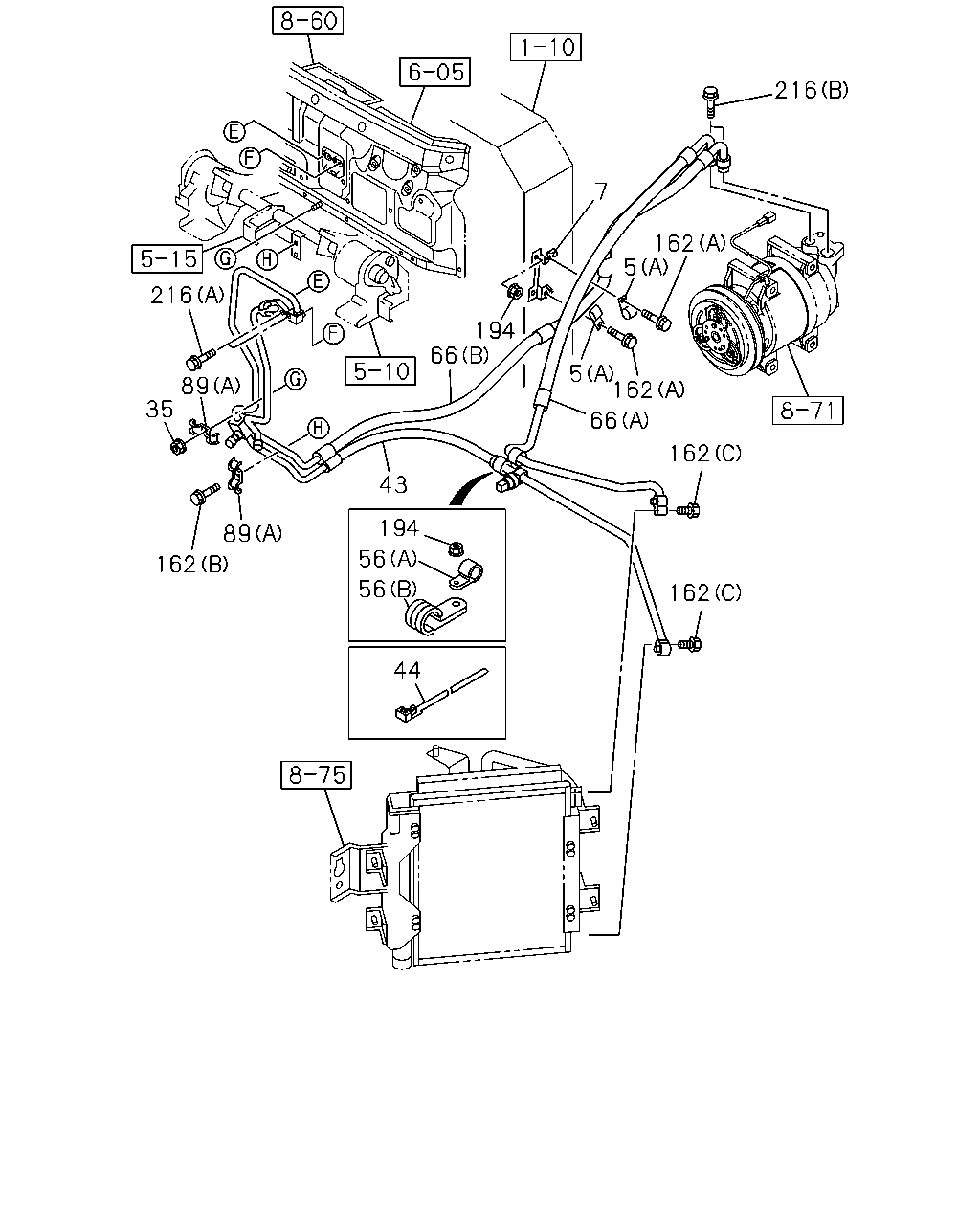

216 7 162 5 5 162 66 162 162 43 56 56 44 194 89 162 66 194 89 35 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	CLIP; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1306-	●	●	●
5	CLIP; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) ID=16 L=32	0-95235-562-0	02	1	1306-	●
7	BRACKET; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60)	8-98049-348-0	01	1	1306-	●
35	NUT; FLEX HOSE,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=170.3	1-09987-182-0	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=350	8-94152-256-1	01	1	1306-	●	●	●
44	CLIP; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=140 SOU	5-09707-031-1	01	1	1306-	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98032-641-0	01	1	1306-	●	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20	0-95235-232-0	01	1	1306-	●
56	CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) ID=13 L=20	0-95235-232-0	01	1	1306-		●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98098-289-0	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-629-1	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1306-	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1306-	●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98151-264-0	02	1	1306-	●	●	●
89	BRACKET; A/C PIPE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98002-365-2	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE SOU	0-28650-620-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	02	1	1306-	●	●	●
162	BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE SOU	0-28650-625-0	01	1	1306-	●	●	●
162	BOLT; FLEX HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	02	1	1306-	●
194	NUT; HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	03	1	1306-	●	●	●
194	NUT; HOSE 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	02	1	1306-	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X30 FLANGE	0-28650-630-0	02	1	1306-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●

43 147 148 50 202 50 66 67 67 67 67 66 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98179-006-0	01	1	1306-	●	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98098-289-0	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) LOW PRESSURE	8-98159-629-1	01	1	1306-	●	●	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-97386-811-3	01	1	1306-	●
66	HOSE; FLEX,A/C 4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-634-1	01	1	1306-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1306-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1306-		●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-	●
67	GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1306-		●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1306-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-	●
147	CAP; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1306-		●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1306-	●	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-	●
148	VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1306-		●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1306-	●	●	●
