◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51487 - NPR/NQR(SOUTHAFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#122760) — 47 parça

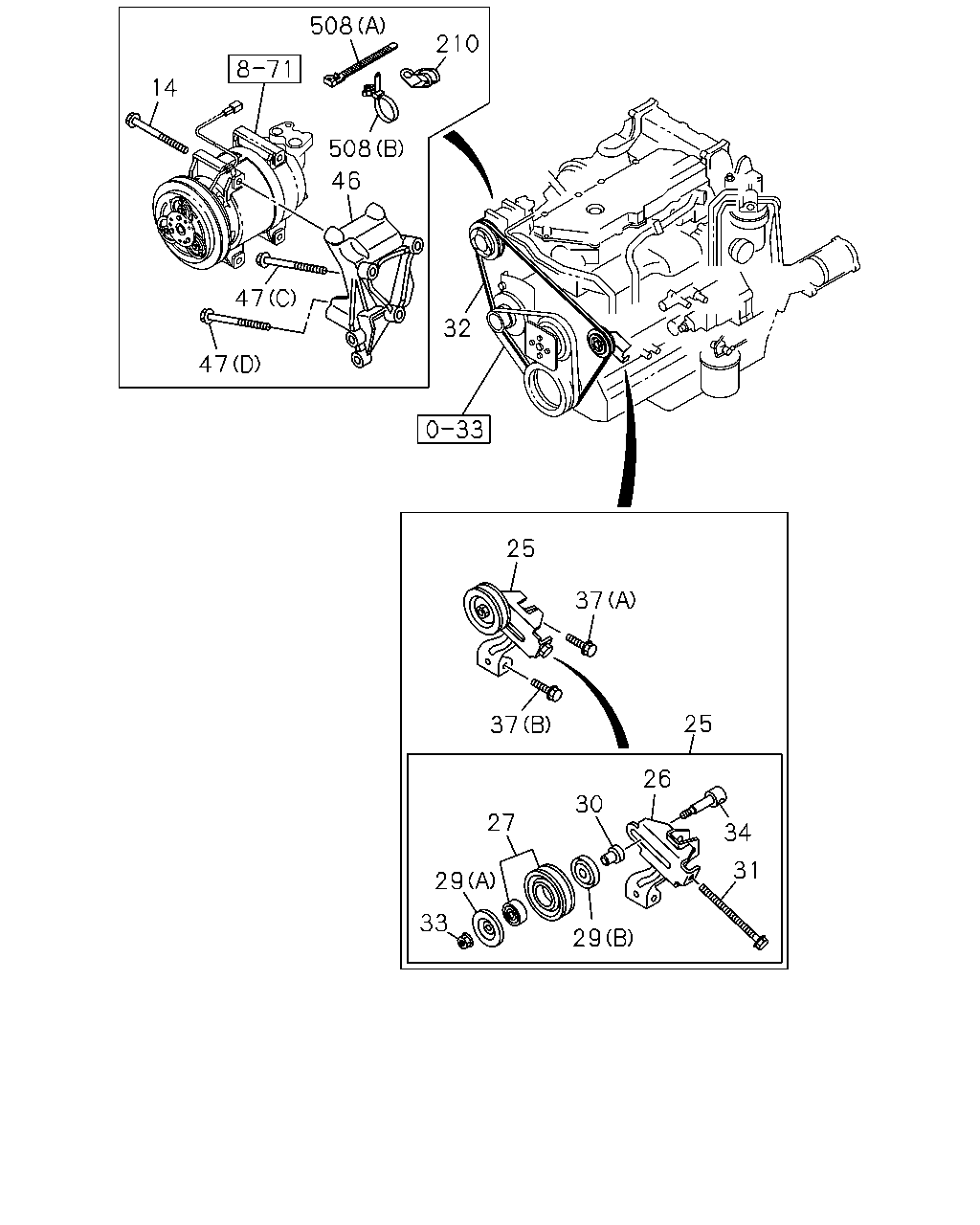

çizim 357476
508 210 14 508 46 47 47 32 25 37 37 25 26 34 31 29 27 30 29 33
BalonParca AdiParca NoAdetTipApplied Date A B C
14 BOLT; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ● ● ●
14 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE 		0-28050-800-0 04 1 1306- ●
25 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1306- ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1306- ●
26 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1306- ● ● ●
27 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1306- ● ● ●
29 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 1306- ● ● ●
29 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 1306- ● ● ●
30 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1306- ● ● ●
31 BOLT; ADJ,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1306- ● ● ●
32 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 1306- ● ● ●
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1306- ●
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1306- ●
33 NUT; IDLER PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1306- ● ● ●
34 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1306- ● ● ●
37 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) M8X50 FLANGE 		0-28050-850-0 01 1 1306- ● ● ●
37 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) M10X65 FLANGE 		8-94344-540-1 01 1 1306- ● ● ●
46 BRACKET; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-98006-515-3 01 1 1306- ● ● ●
46 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98037-322-0 01 1 1306- ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) M10X90 FLANGE 		0-28151-090-0 02 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) M10X120 FLANGE 		0-28156-012-0 01 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE SOU 		0-28050-845-0 01 1 1306- ●
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
210 CLIP; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1306- ● ● ●
508 CLIP; HARNESS
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) (B) L=170.3 		1-09987-182-0 01 1 1306- ● ● ●
508 CLIP; HARNESS
4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) (A) L=140 SOU 		5-09707-031-1 01 1 1306- ● ● ●

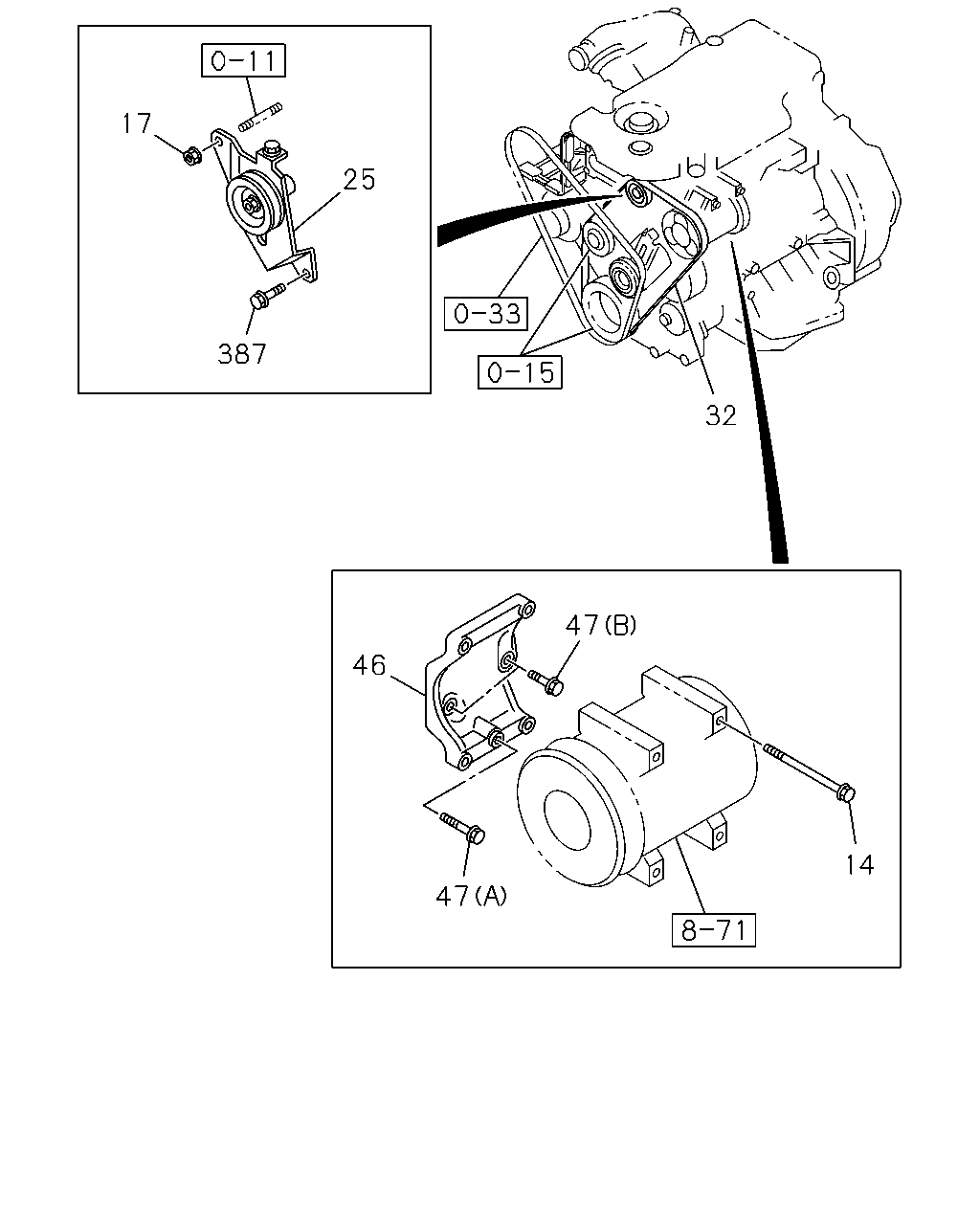

çizim 357515
17 387 25 32 47 14 47 46
BalonParca AdiParca NoAdetTipApplied Date A B C
14 BOLT; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28050-890-0 04 1 1306- ● ● ●
14 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE 		0-28050-800-0 04 1 1306- ●
17 NUT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE SOU 		0-91180-208-0 01 1 1306- ●
25 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1306- ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1306- ●
32 BELT; A/C CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 1306- ● ● ●
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1306- ●
32 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1306- ●
46 BRACKET; CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-98006-515-3 01 1 1306- ● ● ●
46 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 		8-98037-322-0 01 1 1306- ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) M10X90 FLANGE 		0-28151-090-0 02 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (D) M10X120 FLANGE 		0-28156-012-0 01 1 1306- ● ● ●
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE SOU 		0-28050-845-0 01 1 1306- ●
47 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1306- ●
387 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE 		0-28650-820-0 01 1 1306- ●

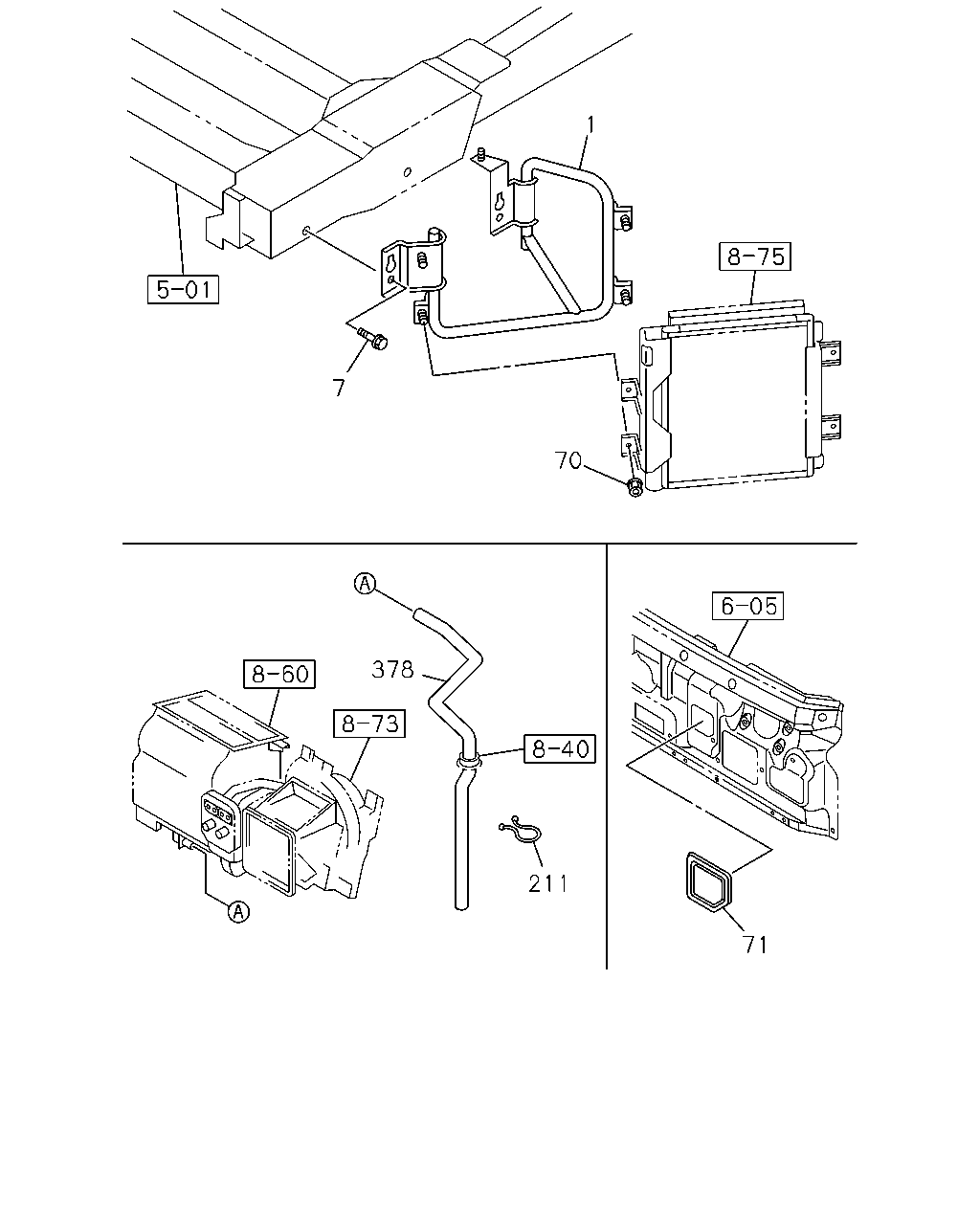

çizim 357550
7 1 70 71 211 378
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-411-0 01 1 1306- ● ● ●
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) M12X30 FLANGE SOU 		0-28651-230-0 04 1 1306- ● ● ●
70 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE SOU 		0-91180-108-0 04 1 1306- ● ● ●
71 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-234-1 01 1 1306- ● ● ●
211 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=44 		8-94463-508-0 01 1 1306- ● ● ●
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97387-174-2 01 1 1306- ● ● ●
