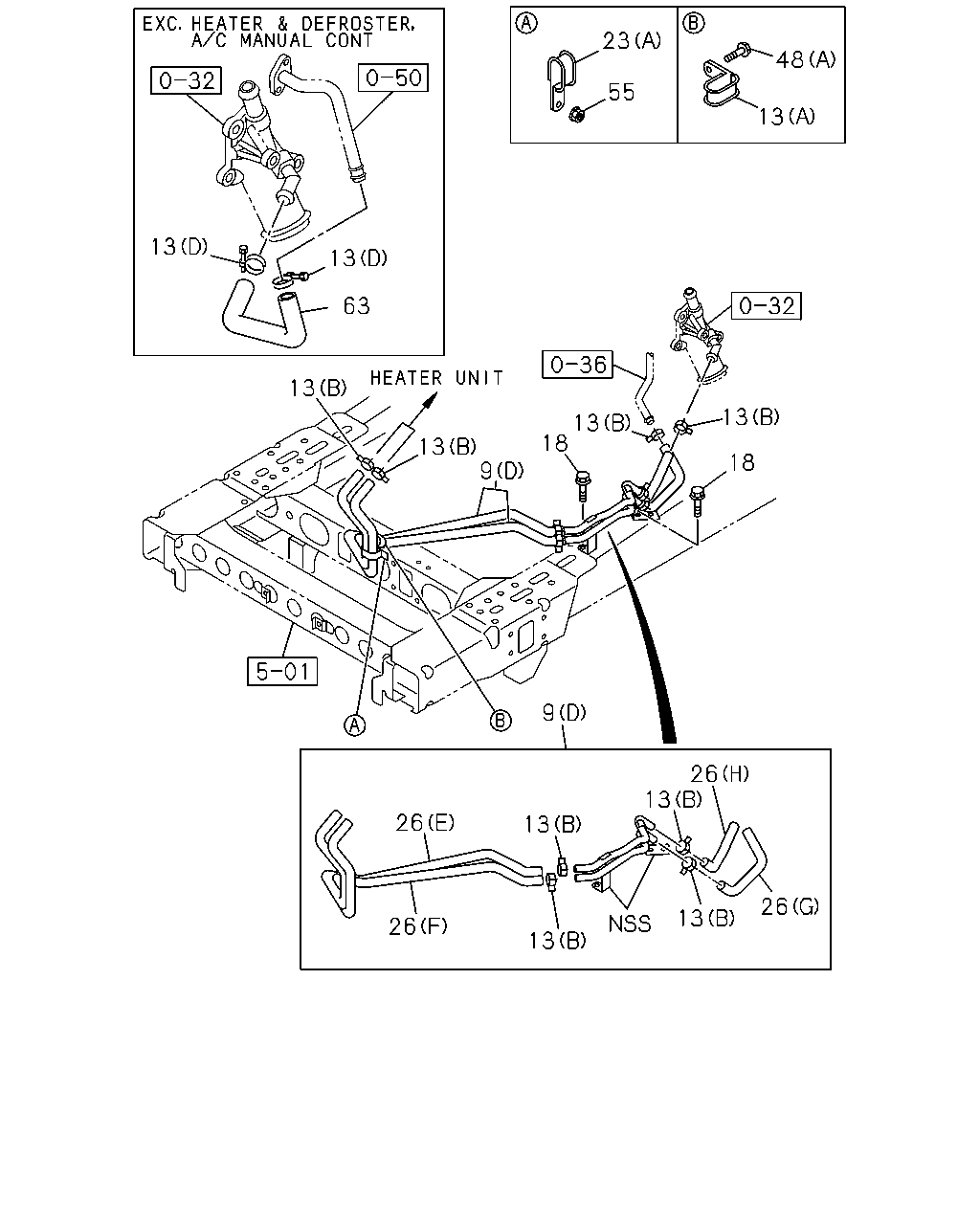

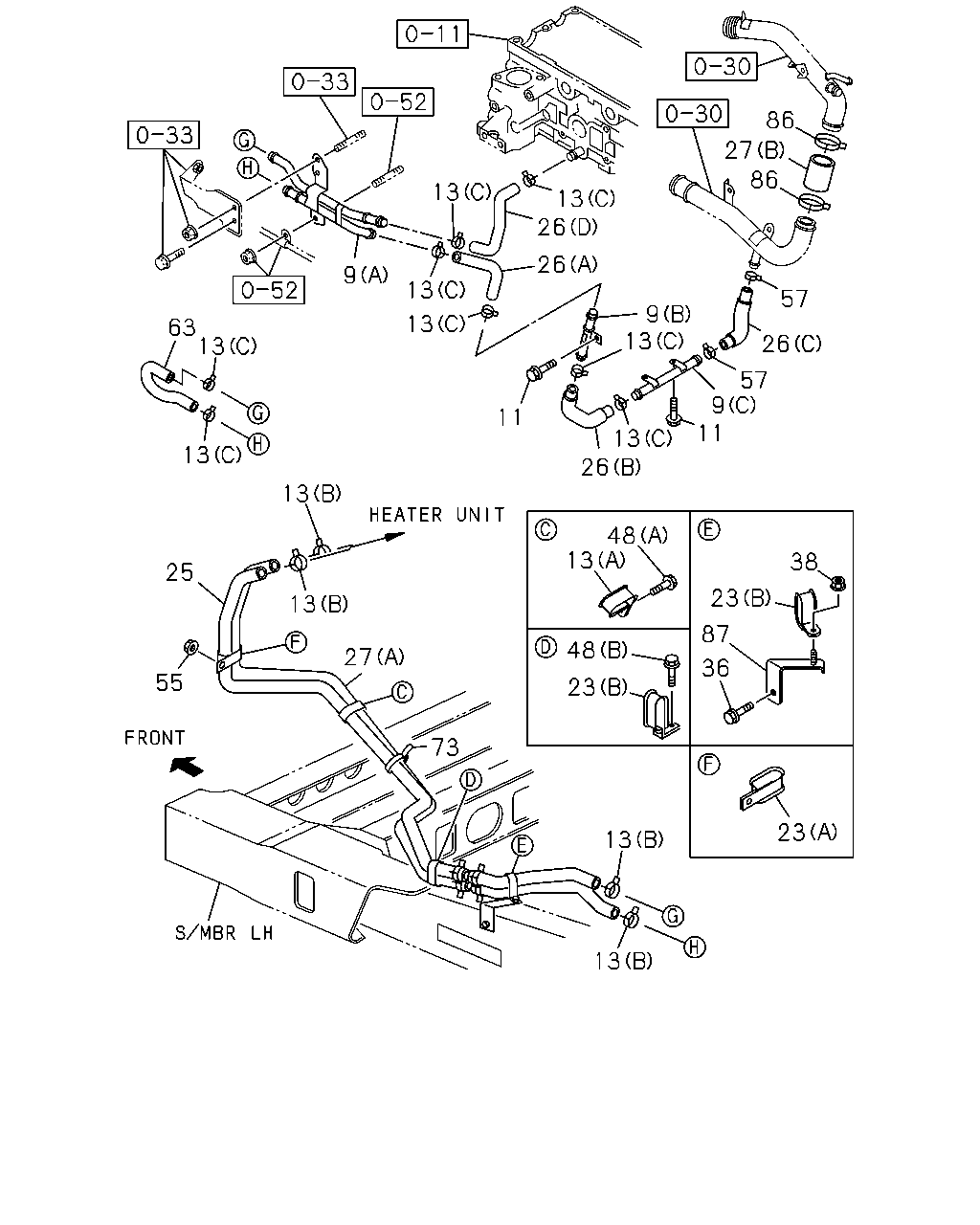

8-45 — HEATER PIPING (#122759) — 101 parça

13 13 63 13 13 9 9 26 26 13 13 13 26 13 26 18 13 13 18 55 23 13 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98064-107-1	01	1	1306-	●	●	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97381-481-3	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97381-481-3	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97383-035-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97383-035-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98028-829-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98028-829-1	01	1	1510-	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1306-	●	●	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1306-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1306-	●	●	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=25 SOU	8-94233-115-0	02	1	1306-	●	●	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) (C) ID=20.8	8-94125-862-1	06	1	1306-1509	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=20.8	8-94125-862-1	06	1	1510-	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=20.8	8-94125-862-1	06	1	1510-	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=20.8	8-94125-862-1	02	1	1306-	●
18	BOLT; WATER HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU	0-28650-825-0	02	1	1306-	●	●	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1306-	●	●	●
23	CLIP; WATER HOSE,DASH LWR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=14	8-98029-678-0	02	1	1306-	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98050-293-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98050-294-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98050-295-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98050-296-0	01	1	1306-	●	●	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97383-048-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97383-048-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-099-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-099-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-101-2	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-101-2	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98143-868-0	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98143-868-0	01	1	1510-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●	●	●
48	BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●	●
63	HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94134-250-1	01	1	1306-	●	●	●
63	HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1306-	●

63 13 13 25 55 13 13 27 73 13 13 23 38 23 87 36 23 48 13 48 11 26 13 11 9 57 26 57 86 27 86 13 13 26 26 13 13 9 9 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	PIPE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98064-107-1	01	1	1306-	●	●	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (B)	8-97381-481-3	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97381-481-3	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97381-481-3	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (C)	8-97383-035-1	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97383-035-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-97383-035-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98028-829-1	01	1	1306-1509	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98028-829-1	01	1	1510-	●
9	PIPE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98028-829-1	01	1	1510-	●
11	BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) M8X16 FLANGE SOU	0-28050-816-0	03	1	1306-1509	●
11	BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE SOU	0-28050-816-0	03	1	1510-	●
11	BOLT; HTR PIPE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE SOU	0-28050-816-0	03	1	1510-	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1306-	●	●	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22	8-97359-141-0	04	1	1306-	●	●	●
13	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=14	8-98029-678-0	01	1	1306-	●	●	●
13	CLIP; HTR HOSE 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) ID=25 SOU	8-94233-115-0	02	1	1306-	●	●	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) (C) ID=20.8	8-94125-862-1	06	1	1306-1509	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=20.8	8-94125-862-1	06	1	1510-	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=20.8	8-94125-862-1	06	1	1510-	●
13	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) ID=20.8	8-94125-862-1	02	1	1306-	●
23	CLIP; WATER HOSE,DASH LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) B=18	8-98166-023-0	01	1	1306-	●	●	●
23	CLIP; WATER HOSE,DASH LWR 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) B=14	8-98029-678-0	02	1	1306-	●
25	HOSE; WATER,ENG TO HTR UNIT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98091-453-1	01	1	1306-	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98050-293-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (F)	8-98050-294-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (G)	8-98050-295-0	01	1	1306-	●	●	●
26	HOSE; HTR 4HK1-TCN ENG(RDQ) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (H)	8-98050-296-0	01	1	1306-	●	●	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (D)	8-97383-048-1	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97383-048-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-97383-048-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (B)	8-98000-099-1	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-099-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-099-1	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (C)	8-98000-101-2	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-101-2	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98000-101-2	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) (A)	8-98143-868-0	01	1	1306-1509	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98143-868-0	01	1	1510-	●
26	HOSE; HTR 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98143-868-0	01	1	1510-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-425-1	01	1	1306-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) (B)	8-98009-701-0	01	1	1306-1509	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-701-0	01	1	1510-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98009-701-0	01	1	1510-	●
36	BOLT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
38	NUT; BRKT 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE SOU	0-91180-108-0	01	1	1306-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE SOU	0-28050-612-0	01	1	1306-	●	●	●
48	BOLT; CLIP FIX 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE SOU	0-28650-825-0	01	1	1306-	●
55	NUT; CLAMP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE SOU	0-91180-106-0	01	1	1306-	●	●	●
57	CLIP; HOSE 4JJ1-TCC ENG(RDU) ID=20.8	8-94125-862-1	02	1	1306-1509	●
57	CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=20.8	8-94125-862-1	02	1	1510-	●
57	CLIP; HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=20.8	8-94125-862-1	02	1	1510-	●
63	HOSE; WATER 4HK1-TCN ENG(RDQ) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-94134-250-1	01	1	1306-	●	●	●
63	HOSE; WATER 4JJ1-TCC ENG(RDU) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98015-119-3	01	1	1306-	●
73	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) L=250 SOU	5-09707-030-1	01	1	1306-	●
86	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) ID=40.5 SOU	8-97313-472-0	02	1	1306-1509	●
86	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) KD PREPARATORY PACK<6HF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=40.5 SOU	8-97313-472-0	02	1	1510-	●
86	CLIP; HTR HOSE 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) KD PREPARATORY PACK<6HF> TRANSMISSION CONTROL-SMOOTHER(8GF) ID=40.5 SOU	8-97313-472-0	02	1	1510-	●
87	BRACKET; HTR HOSE CLIP 4JJ1-TCC ENG(RDU) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98025-918-4	01	1	1306-	●
